HD PoE Fixed Network Camera

DCS-3010

  • Product Status: End of Life

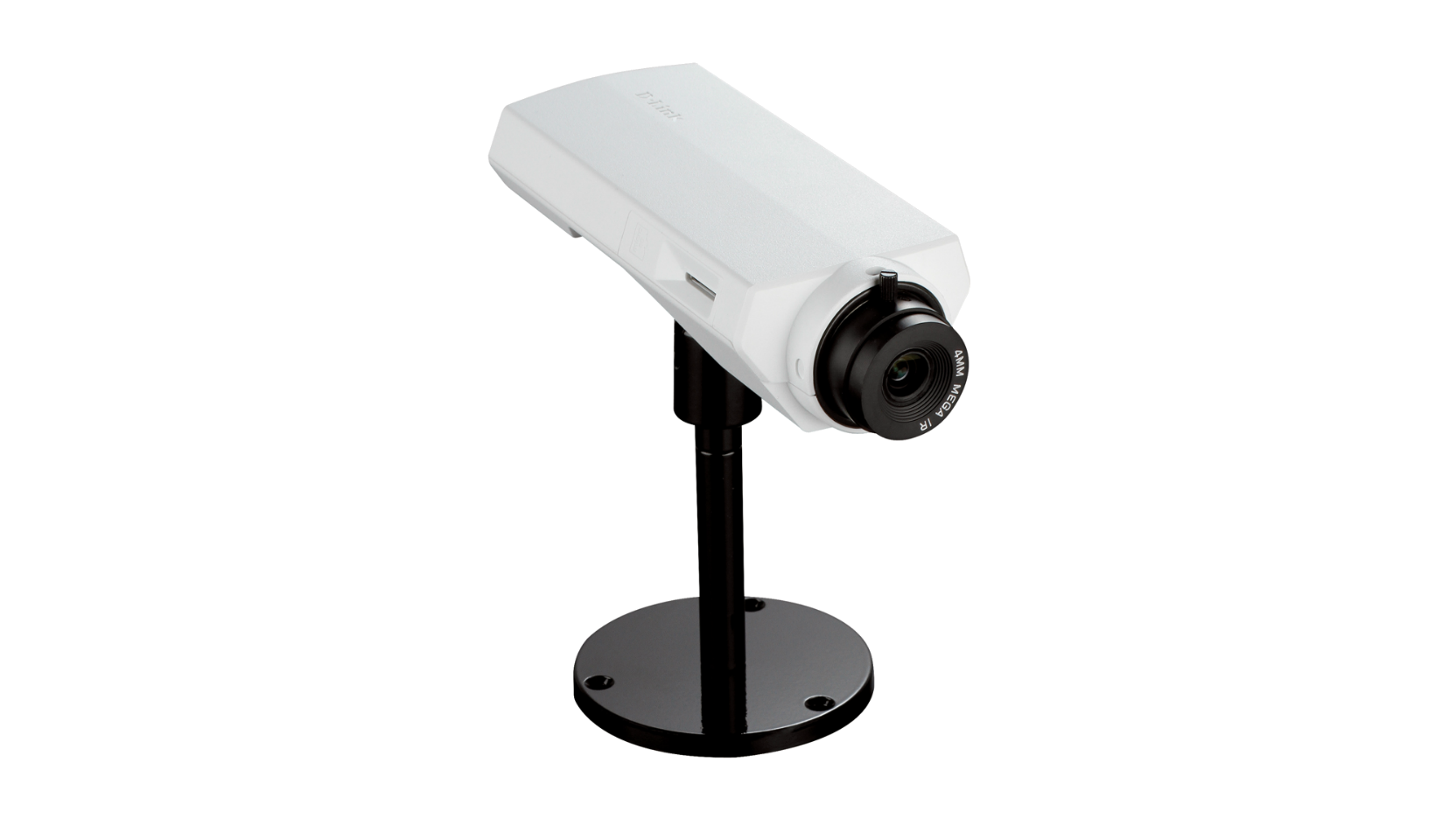

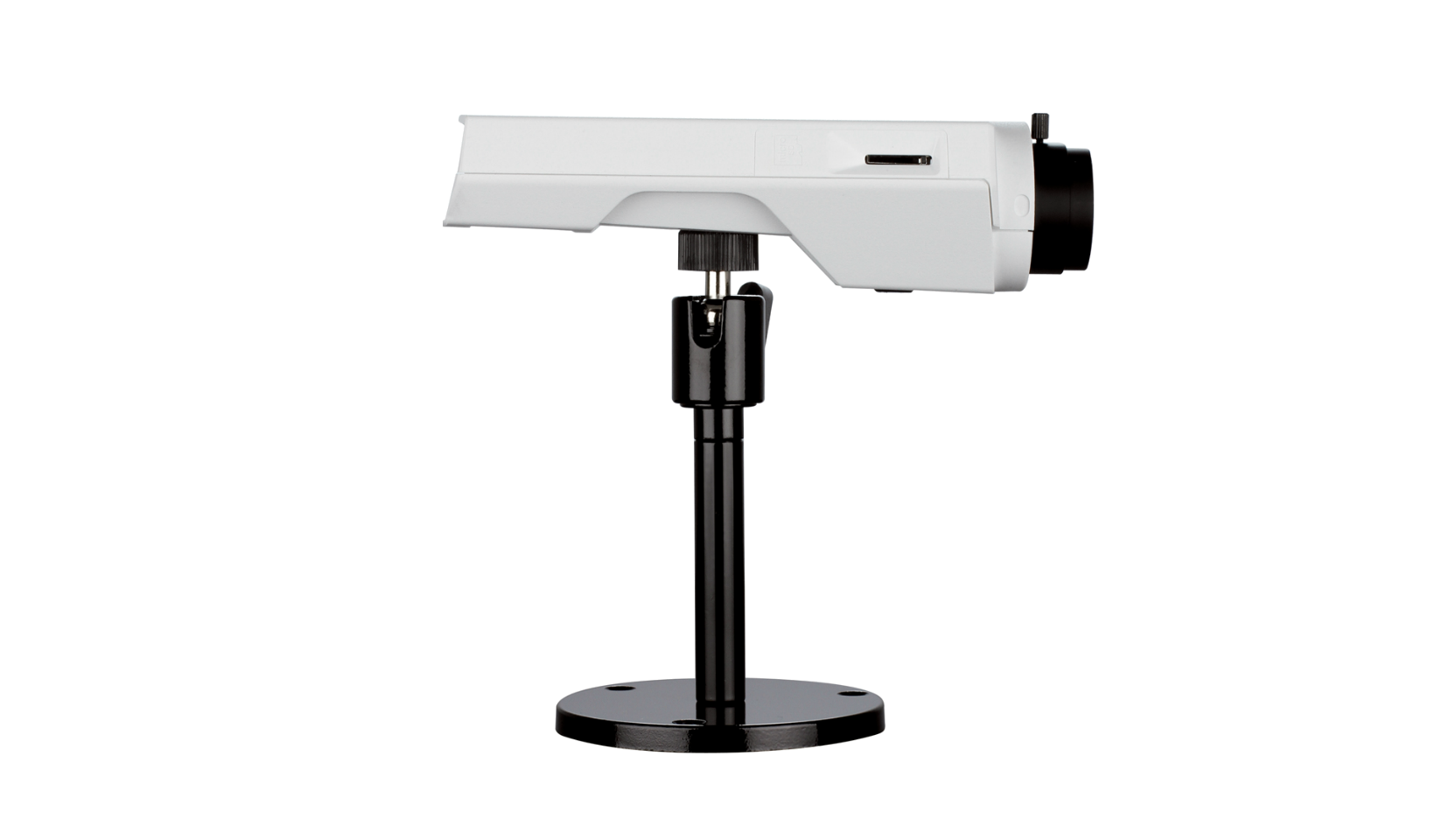

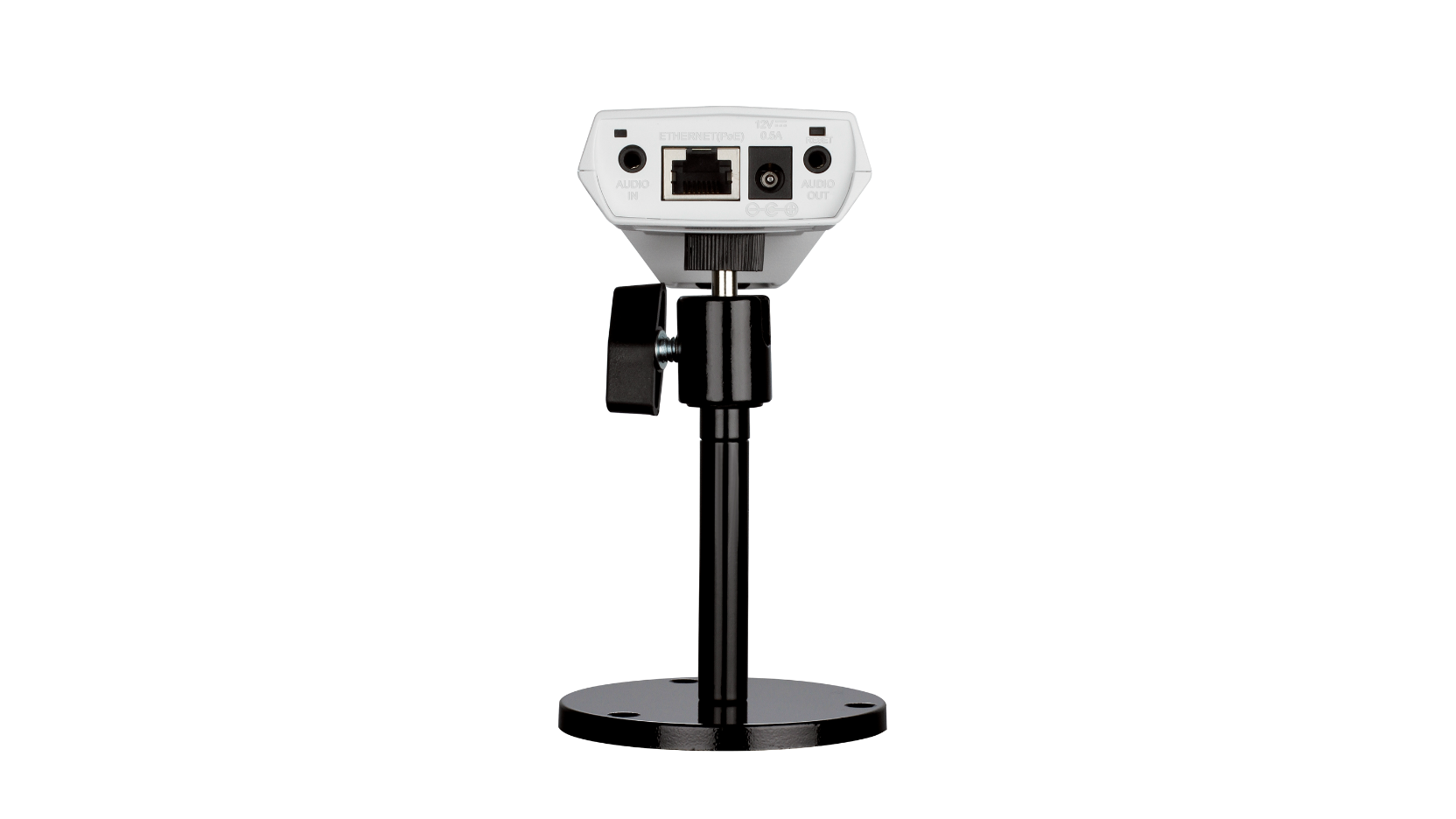

The D-Link DCS-3010 is a full-featured, high-definition, PoE-enabled fixed network camera, equipped with 1/4” megapixel progressive scan CMOS sensor and 4mm fixed iris lens. This camera can capture high resolution videos at resolutions of up to 1280 x 800 with frame rates of up to 30 fps. Snapshots and video can be saved to a network drive, or to onboard storage with the built-in SD card slot.

Multiple Video Streams
The DCS-3010 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3010 supports multicast H.264 and MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Flexible Connectivity
The DCS-3010 incorporates Power over Ethernet (PoE), which allows it to be easily installed in a variety of locations, even when no power outlet is nearby. The DCS-3010 has a built-in microphone as well as external audio input and output, making it useful for remote two-way communication.

A Complete, Expandable Surveillance Solution
The DCS-3010 is a self-sufficient surveillance solution, capable of recording snapshots and videos to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam™ management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities

D-ViewCam™ for Management
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to directly record important events to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

Open Network Video Interface Forum (ONVIF) Profile S Compliant
ONVIF is an open industry forum for the development of a global standard for the interface of IP based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-3010 is ONVIF Profile S compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.

Indoor/outdoor
Indoor
Connectivity
Wired PoE
Resolution
HD 1 megapixel
Image sensor
1/4" 1 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 720 (16:9)
1280 x 800 (other)
Lens
4 mm
F1.5
Fixed
Privacy Masks
5 zones
2-way audio
Supported
Built-in Microphone
Supported
External Microphone Input
Supported
External Speaker Output
Supported
External Card Slot
MicroSD SDHC (max 32 GB)
Features
ONVIF
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
4x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 13/01/2016
This product's last date of support is on: 12/01/2018
Version Date Type File Size
DCS-3010 datasheet - PDF 1.24mb Download
IP Surveillance Product Guide - PDF 3.58mb Download
Version Description Date Type File Size
DCS-3010 manual DCS-3010 manual - PDF 6.31mb Download
Version Description Date Type File Size
1.10 Quick installation guide - PDF 2.32mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.12.18 Release notes included 6.11.2015. - Download
Firmware 1.11.25 1.11.25 Firmware 1.11.25 2.7.2014. - Download
Version Description Date
Device Pack 1.5.4

Device Pack

18.2.2014. Download
D-ViewCam 3.50 + Device Pack 3.60

D-ViewCam 3.50 + Device Pack 1.5.4

18.2.2014. Download
Version Description Date
CE declaration for revison A1 CE declaration for revison A1 14.10.2014. Download
CE declaration for revison A2 CE declaration for revison A2 14.10.2014. Download
IP Surveillance Cheat Sheet IP Surveillance Cheat Sheet 6.6.2014. Download
