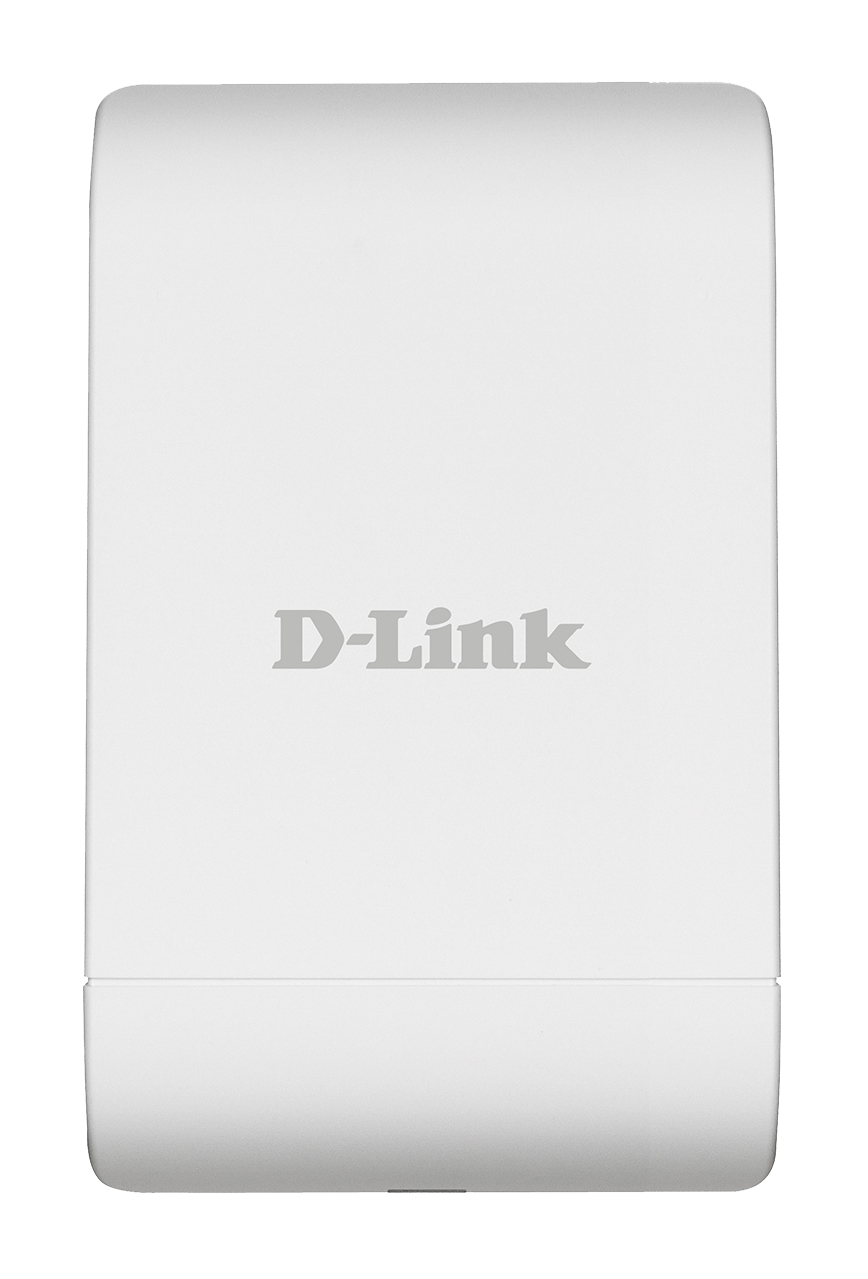

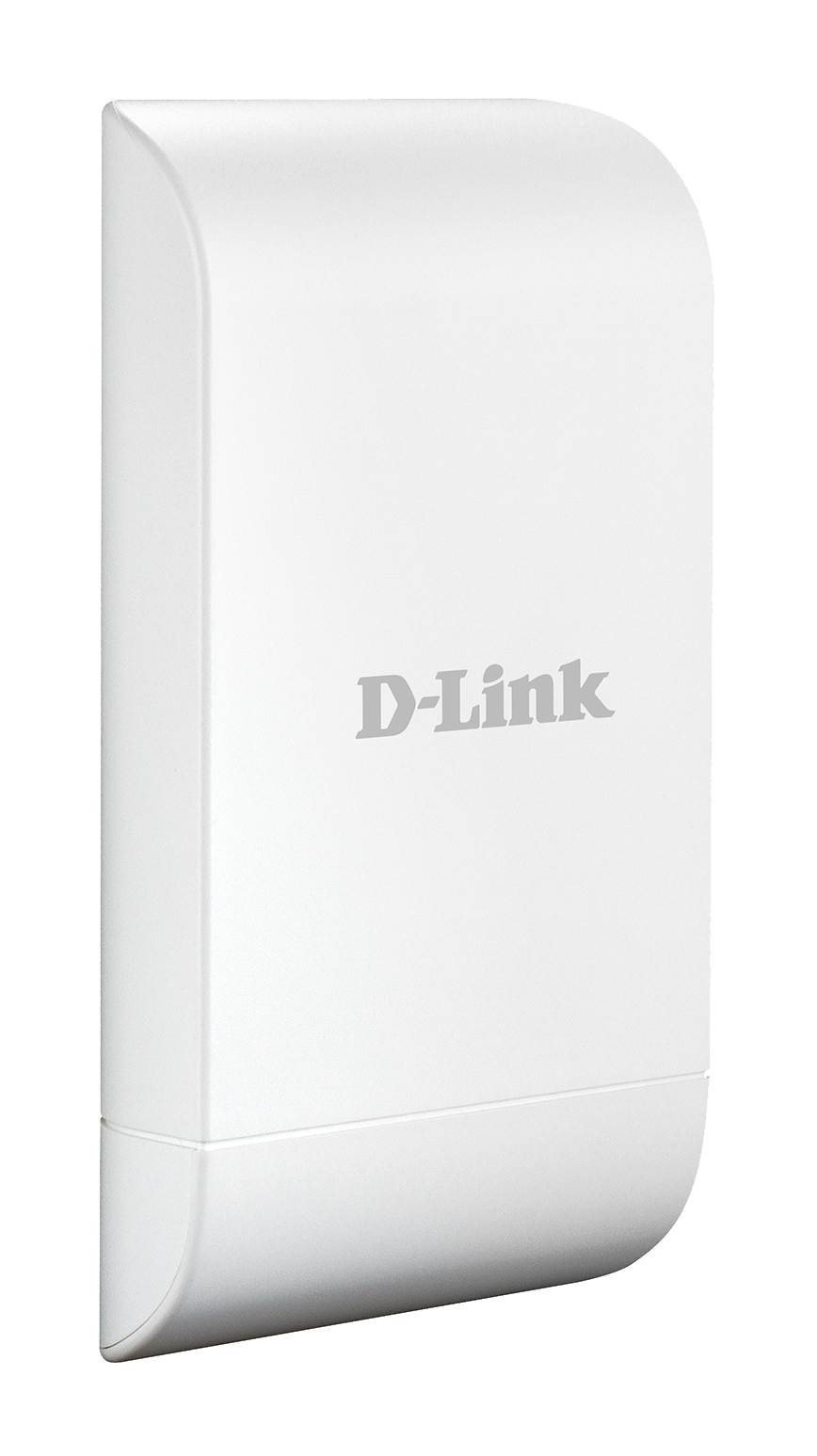

Wireless N PoE Outdoor Access Point


  • Product Status: End of Sale

There's a new version of this product:

Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points


See Newer Product

There's a new version of this product:


Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points


  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 internal antennas, MU-MIMO with beamforming
  • IP68 water, dust-proof, weather-resistant housing (-30 to 60°C)
  • 2x Gigabit LAN Ports (LAN 1 supports PoE)
  • Free Nuclias Connect network management software
See Newer Product


  • 802.11ac Wave 2 wireless, up to 1.2 Gbps1, with band steering
  • WiFi4EU ready, 2x2 internal antennas, MU-MIMO with beamforming
  • IP68 water, dust-proof, weather-resistant housing (-30 to 60°C)
  • 2x Gigabit LAN Ports (LAN 1 supports PoE)
  • Free Nuclias Connect network management software
See Newer Product
12dBi High Gain Directional Antenna

High power output to ensure your network’s wireless signal reaches distant locations.

Waterproof Design

IPx5-certified housing for waterproof protection.

Multiple Operational Modes

Use as an access point (AP), Wireless Distribution System (SDS), WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater.

4kV Surge and 15kV ESD Protection

Protection against voltage spikes and breakdowns.

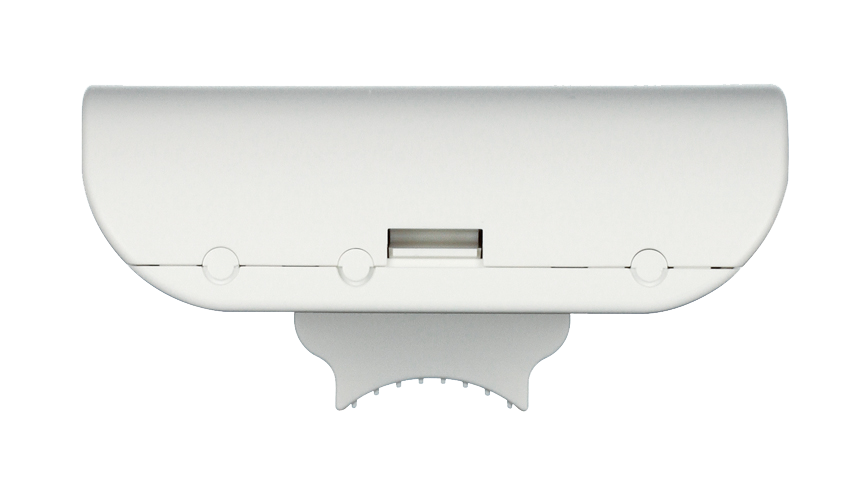

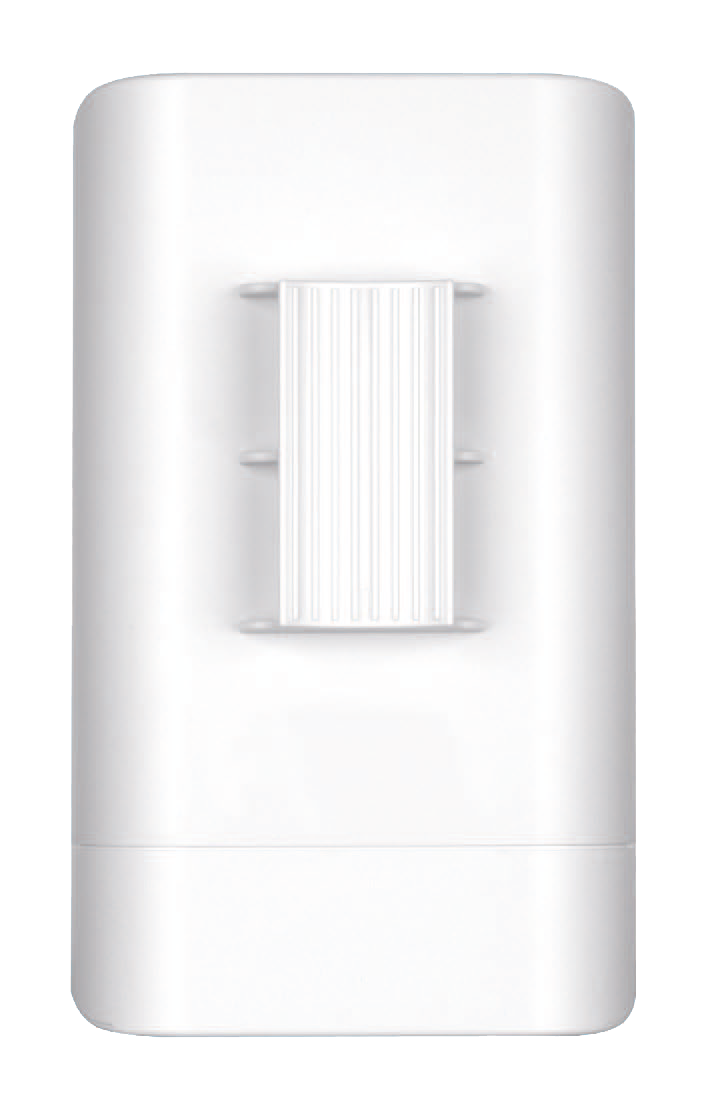

Flexible Mounting Options

Includes wall or pole mounting kits and PoE injector.

Supports up to 8 SSIDs

Logically divide the AP into several virtual access points all within a single hardware platform.

Security Features

Wireless encryption, along with support for multiple SSIDs and VLANs.

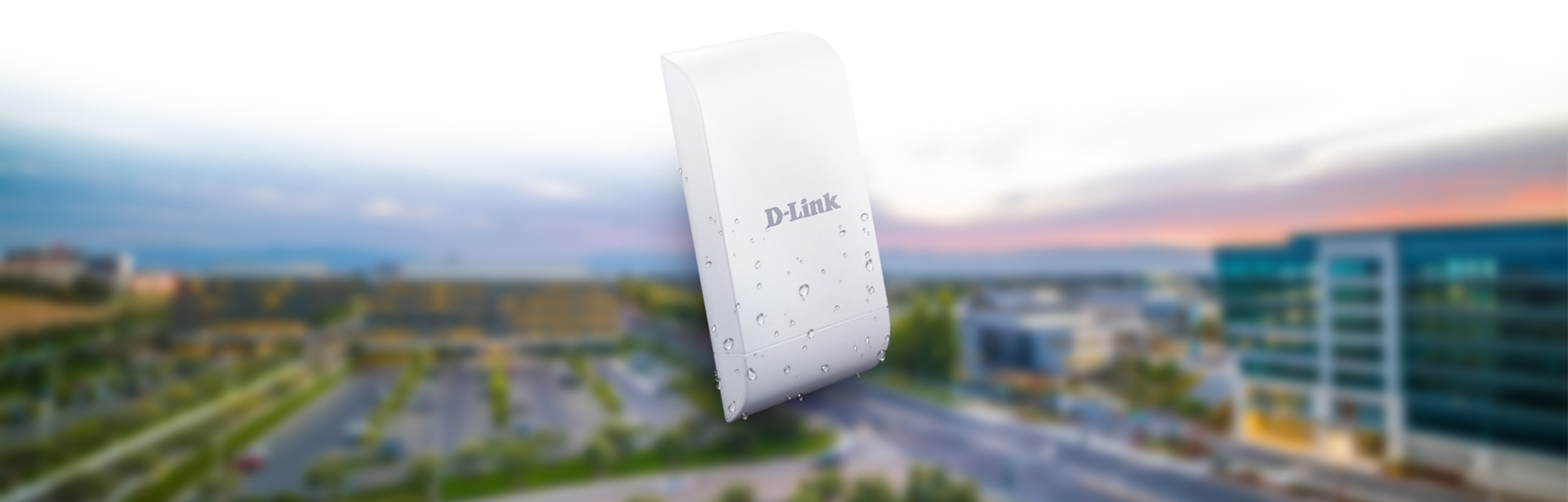

Build the Bridge to a Better Network

Built for outdoor use, its waterproof housing protects it from the elements, and its directional antenna excels in connecting separate networks that cannot be joined using cabling.

Point-to-point or Multi-point

Expand your current wireless network with a single wireless band with the furthest reach. Supports passive PoE to allow for easy and adaptable installation. Built-in 12 dBi sector antenna has a high power output to ensure wireless signal reaches farther, whether you want to connect additional wireless devices or bring connectivity over the air to networks separated by short distances.

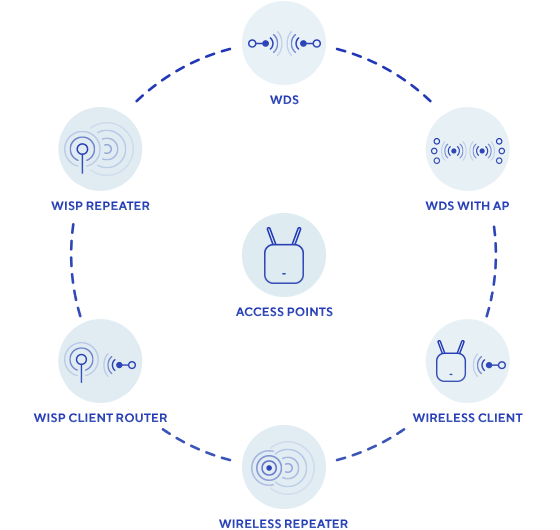

Fits into Your Network

The DAP-3315 features multiple operation modes, allowing it to adapt to any situation:

In Wireless Distribution System (WDS) mode, it can expand current wireless coverage without the need for a wired backbone link.

mode will extend current wireless coverage eliminating dead spots and weak signals. WISP mode functionality includes the ability to function as a client or repeater

As a wireless client, it can connect to an existing AP and expand the network physically with the two built-in Ethernet ports.

Using it as a standard wireless access point (AP) a wide range of wireless devices can connect to the DAP-3315.

Directional Antenna

The built-in 12 dBi High Gain directional antenna utilises the far-reaching 2.4Ghz wireless band to ensure your wireless signal extends to distant locations.

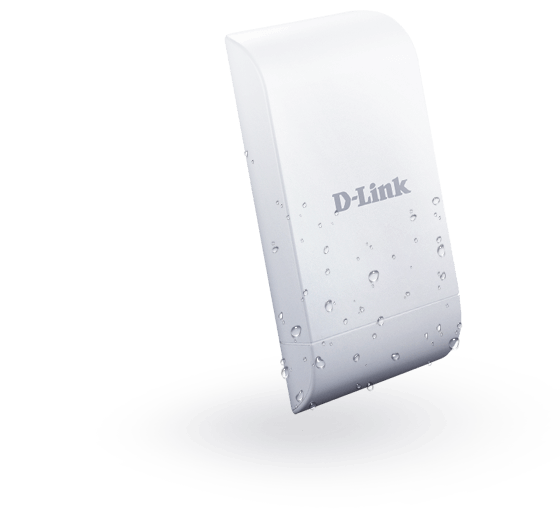

Outdoor Connectivity Made Simple

With its IPX5 waterproof housing that maintains your uptime during rainy weather1, and high power radio antenna, the DAP-3315 is ideal for providing wireless connectivity between two locations using 2.4Ghz wireless N connectivity. It even operates between -20 to 60 °C (-4 to 140 °F) temperature ranges.

Power Where You Need It Most

Its proprietary PoE (Power over Ethernet) design and included power injector makes it convenient to deploy - especially in places where a power supply is unreliable or power cables are not available.

More Controls Over Network Resources

Up to 8 SSIDs

Divide the access point into virtual access points, all within a single hardware platform. Deploy one single AP to support more than one application, like public Internet access, to keep costs down.

VLAN Tagging

It supports 802.1Q VLAN Tagging, which enables operations with multiple SSIDs to segment traffic to enhance network performance and security.

WLAN Partitioning

Ideal for wireless hotspot deployments. With station-to-station partitioning enabled, security is improved, since wireless users cannot peek at each other, the possibility for data theft is reduced.

This product is compatible with Nuclias Connect*

Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.

*An upgrade to the latest product firmware is required.


Nuclias hardware controller

The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

Learn more

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Nuclias Connect
Find out more
Nuclias Connect Hub
Find out more
Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points
Find out more
Infrastructure AP

Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Wireless speed
300 Mbps 2.4 GHz
Antenna type
Embedded sector antenna
Antenna gain
12 dBi for 2.4 GHz
Wired interface
2 x Fast Ethernet LAN
Type of housing
IP rating
Wireless modes
Access Point (AP)

WDS bridge

WDS with AP

Wireless client

Wireless extender
Advanced features
802.11k/r Roaming
Maximum number of SSIDs
Auto channel selection
WMM-PS/802.11e (U-APSD)
Wi-Fi scheduler
AP traffic load balance
L2 roaming
TKIP/AES encryption
WLAN partition
SSID broadcast disable
Station isolation
MAC address filtering
802.1X authentication
DHCP server
802.1D STP
IGMP snooping
ARP spoofing
Management platform
Nuclias Connect

1 IPX5 standard means the device is protected from low pressure jets of water from the top and the front directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weatherproof box when in severe weather environment.


This product was phased out on: 09/09/2023
This product's last date of support is on: 03/03/2029
