Wireless N Access Point

DAP-2020

  • Product Status: End of Life





Secure.
Manageable.
Flexible.

Create a secure and manageable wireless network with ease. Multiple operational modes, network management tools and security features provide greater flexibility.



















Secure Your Wireless Network

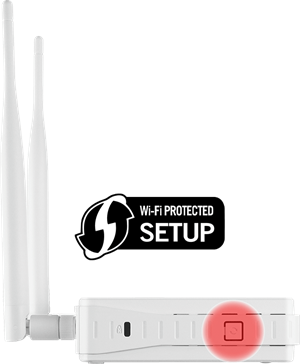

Set up your wireless network quickly and securely with Wi-Fi Protected Setup (WPS).

Latest Wi-Fi security standards ensure encrypted and secure wireless network traffic with no hassle.





Multiple Operation Modes

Configure the DAP-2020 to suit your specific wireless application needs with seven different operation modes.

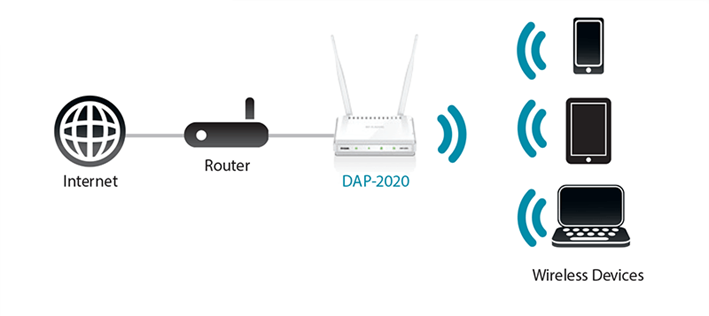

Access Point Mode

"Access point" mode allows the device to act as a central hub for wireless users. This is the most common use of an access point.

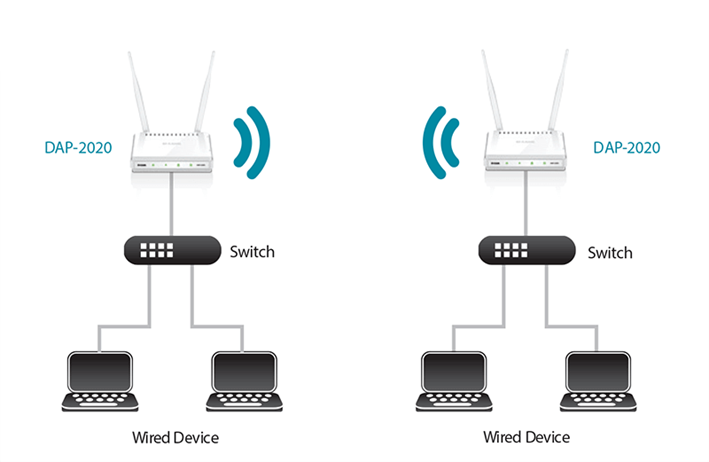

Bridge Modes

"Bridge" mode can wirelessly join two networks together, while "Bridge with AP" mode allows the device to act as a wireless hub and as a bridge at the same time.



Repeater mode extends wireless coverage to cover all dead spots.

Wireless client mode enables the DAP‑2020 to connect to another access point.

WISP client router mode allows wireless Internet service subscribers to share an Internet connection with wired computers without the need for an extra router.

WISP repeater (range extender) mode can let WISP subscribers share their Internet connection with wireless devices without any additional routers.

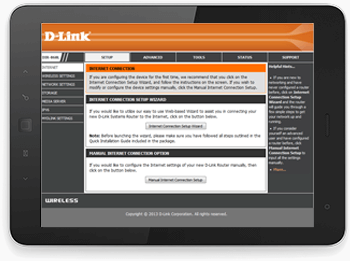

Quick and Easy Installation

With the D‑Link setup wizard, you can set up your wireless network in minutes. It configures your DAP‑2020’s operating mode and allows you to easily add new wireless devices to the network.

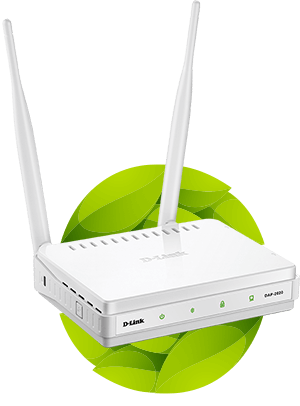

Effective Power Saving

Built-in schedule function dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.



Whats in the box?


DAP‑2020

Antennas

Ethernet Cable

Power adapter
Type
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Single-band
Wireless speed
300 Mbps 2.4 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
5 dBi for 2.4 GHz
Wired interface
1 x Fast Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Plastic
Wireless modes
Access Point (AP)
Wireless client
Advanced features
MIMO
Maximum number of SSIDs
1
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
IGMP snooping
Supported
WEB
Supported
This product was phased out on: 17/04/2022
This product's last date of support is on: 16/04/2024
Version Date Type File Size
Datasheet - PDF 0.30mb Download
Version Description Date Type File Size
Manual 1.10 RevA1 Manual 19.6.2019. - - Download
Manual Manual 24.11.2016. - - Download
Version Description Date Type File Size
QIG 1.40 RevA1 Quick Installation Guide 10.1.2022. - - Download
QIG 1.20 RevA1 Quick Installation Guide 7.12.2020. - - Download
Quick Installation Guide Quick Installation Guide 2.5.2017. PDF 0.69mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.01 Firmware 19.3.2017. - Download
1.00 Firmware 27.12.2016. - Download
Version Description Date
CE doc 1.30 RevA1 CE document 20.5.2020. Download
CE doc 1.20 RevA1 CE document 19.7.2019. Download
CE doc 1.10 Revision A1 CE document 9.11.2018. Download
1.01 Revision A CE document 4.12.2017. Download
DEU_CE_Declaration_RevA DAP-2020 CE DoC - Download
