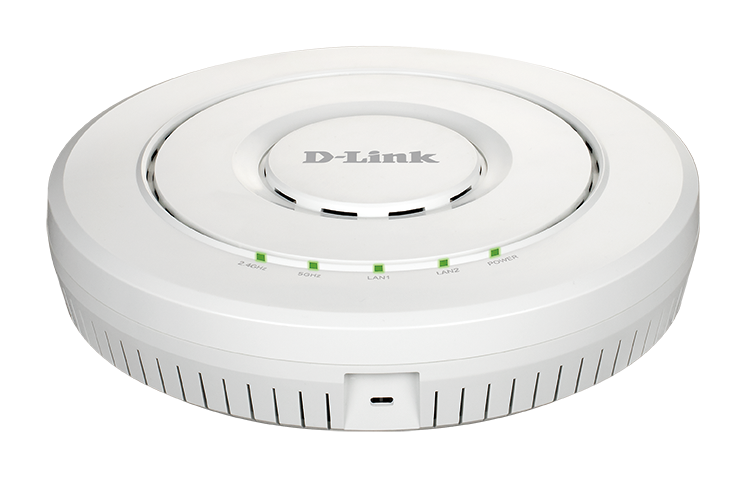

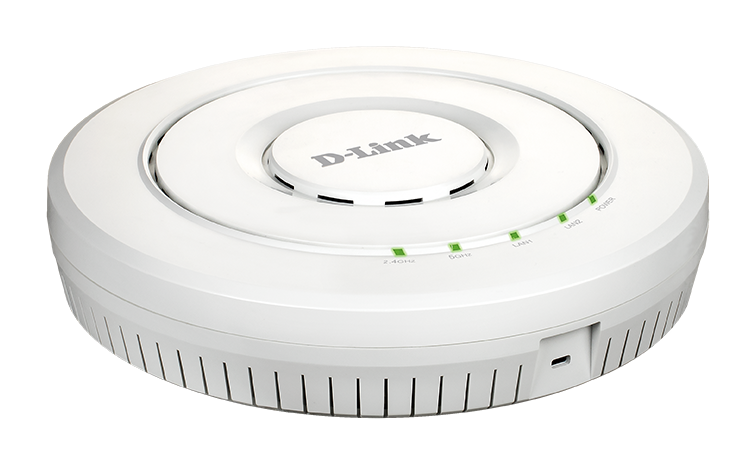

AX3600 Wi-Fi 6 Dual-Band Unified Access Point
DWL-X8630AP
- Product Status: Live
- 802.11ax Wi-Fi CERTIFIED 6™, Dual-Band, up to 3.6 Gbps2
- 4x4 MU-MIMO internal omnidirectional antennas
- Self-optimising, self-healing, Fast Roaming with wireless controller
- Link Aggregation with 2.5G and Gigabit ports
Wi-Fi 6
Next-generation 802.11ax Wi-Fi CERTIFIED 6™ technology provides increased speed, capacity and the latest WPA3 security.
Dual-Band with band steering
Two bands to improve throughput and coverage as well as reduces co-channel interference.
4 x 4 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network.
PoE & flexible installation
Power the device over Ethernet without the need for nearby power outlets with the option for ceiling or wall mounting.
Fast roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1
Self-healing
Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.1
Centrally Managed
Used as a standalone wireless access point or managed centrally via a D-Link Wireless Controller.1
D-Link is officially Wi-Fi Certified by the Alliance.
The Wi-Fi CERTIFIED 6™ seal is a declaration of having passed a series of rigorous tests performed by the Wi-Fi Alliance - an internationally recognised organisation. It's only granted to products that adhere to the strict industry-agreed standards for interoperability.
With this, purchasing a D-Link Wi-Fi CERTIFIED 6™ device ensures increased speeds, advanced Wi-Fi 6 capability, backwards compatibility and improved security.
Related Products
Specs
|
Type
|
Hardware-managed AP |
|---|---|
|
Wireless standard
|
802.11ax Wi Fi 6 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
1147 Mbps 2.4 GHz 2402 Mbps 5 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|

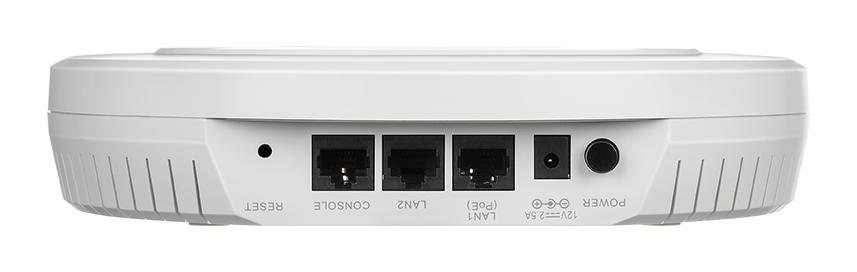

Wired interface
|
1 x 2.5GBASE-T LAN 1 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) |
|
Advanced features
|
Fast Roaming MU-MIMO SmartBeam |
|
Maximum number of SSIDs
|
16 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
WPA3-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
|
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
|
Management platform
|
Hardware controller: DWC Series |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
Syslog
|
Supported
|
