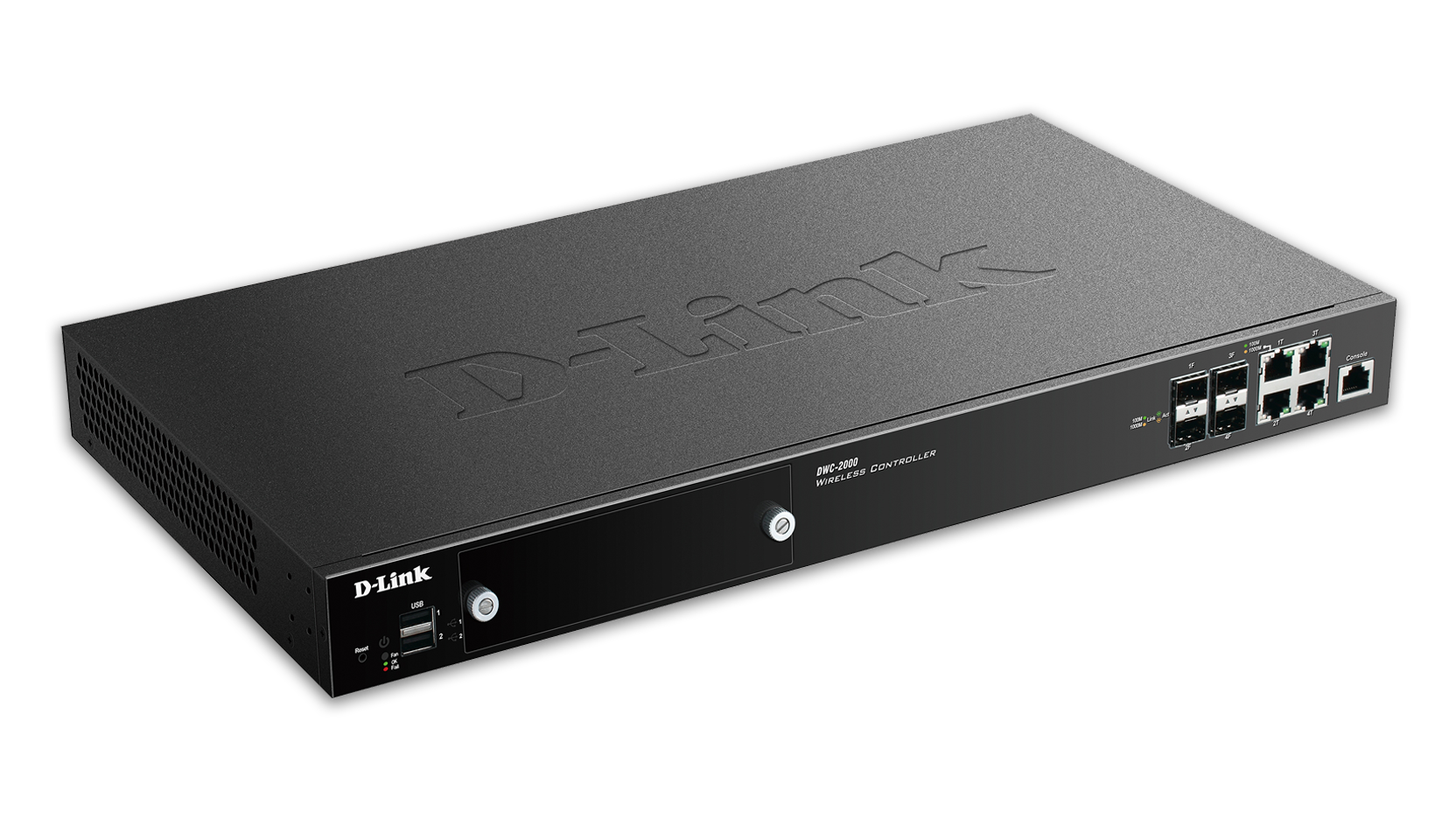

Wireless Controller
DWC-2000
- Product Status: Live
D-Link's DWC-2000 Unified Wireless Controller is a cost-effective wireless management solution suitable for large Access Point deployments. Capable of managing 64 Unified Wireless Access Points Out of the box, it provides a Reliable, Secure, Self-Healing, Scalable wireless network suitable for education, hospitality and businesses of any size.
Specs
|

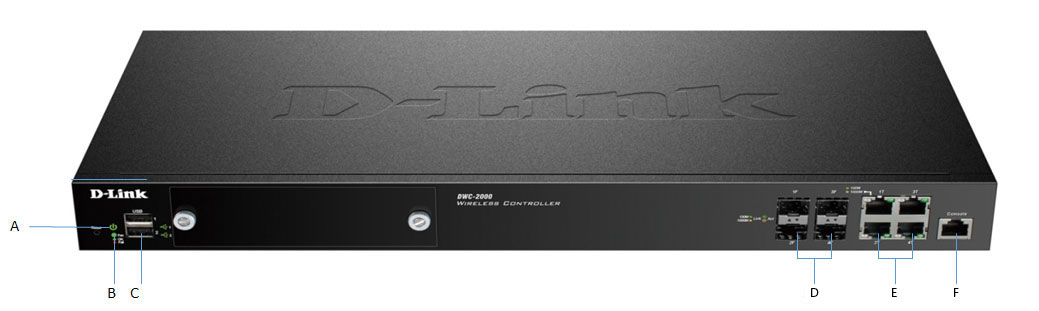

Number of ports
|
5 to 14 ports |
|---|---|
|
Layer
|
Layer 3 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet SFP |
|
Type of uplink ports
|
Combo 1000BASE-T/SFP |
|
Management platform
|
Hardware |
|
Access point management - number supported per unit (default/upgradeable)
|
64/256 APs |
|
Supported access points
|
DWL-2600AP DWL-3610AP DWL-6600AP DWL-6610AP DWL-6610APE DWL-6620APS DWL-6700AP DWL-7620AP DWL-8610AP DWL-8620AP DWL-8620APE DWL-8710AP DWL-8720AP |
|
Maximum number of device clustering per group
|
4 |
|
Access point management - number supported per cluster (default/upgradeable)
|
256/1024 |
|
AP auto discovery and monitoring
|
Supported
|
|
AP authentication by local database and external RADIUS
|
Supported
|
|
Auto channel and power management
|
Supported
|
|
Centralised AP firmware upgrade
|
Supported
|
|

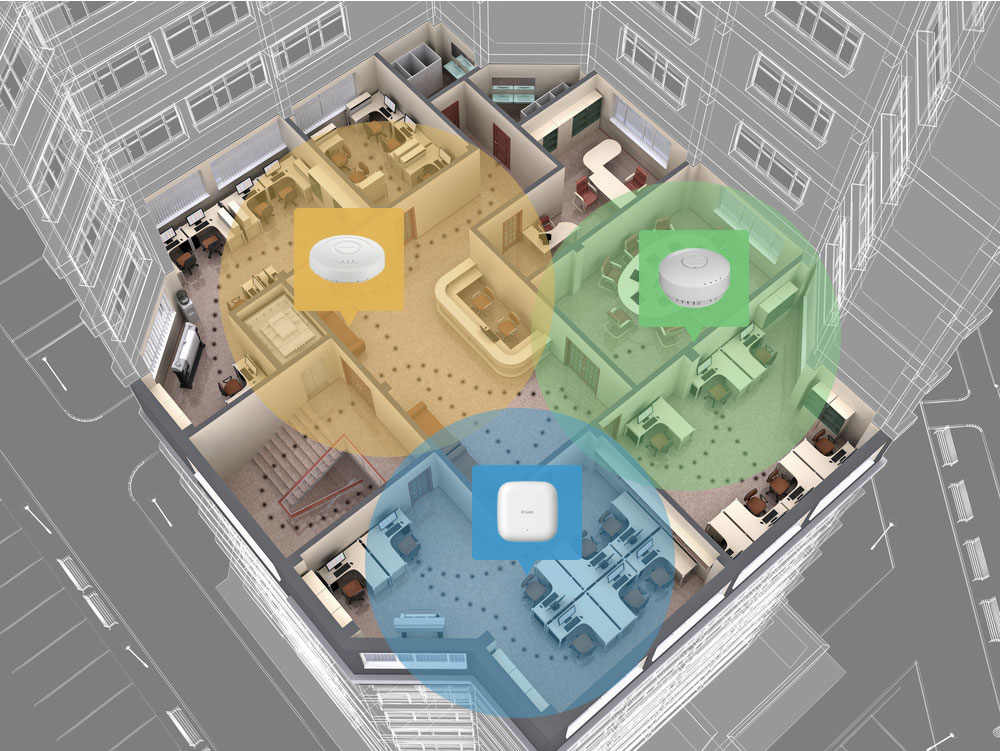

Fast roaming
|
L2 |
|
WPA/WPA2-personal/enterpise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
Rogue AP/Client detection and mitigation
|
Supported
|
|
WIDS
|
Supported
|
|
VLAN group (max static)
|
255 |
|
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
|
Advanced VLAN
|
Double VLAN (Q-in-Q) Voice VLAN |
|
Routing table size
|
2048 |
|
Number of QoS queues per port
|
4 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
64 Kbps minimum granularity |
|
WMM
|
Supported
|
|
ACL based on packet contents
|
Supported
|
|
Time-based ACL
|
Supported
|
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
|
802.1X access control
|
Supported
|
|
External user databae - POP3 and LDAP
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|

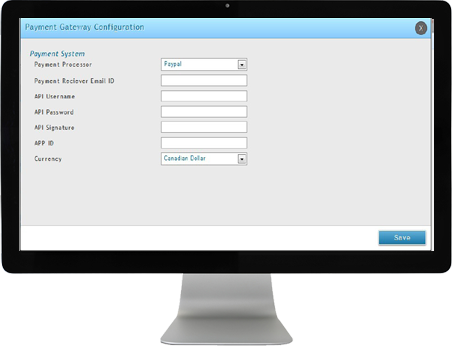

Captive portal
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
FAQ
- What is the maximum number of entries in the DWC-2000's local DB ? Read Answer
