xStack 24-Port L2 10-100Mbps Switch with 2 Combo SFP Gigabit Ports

DES-3526DC

  • Termék Státusz (Revision A): End of Life

Project-based item only. Please contact us for further information.

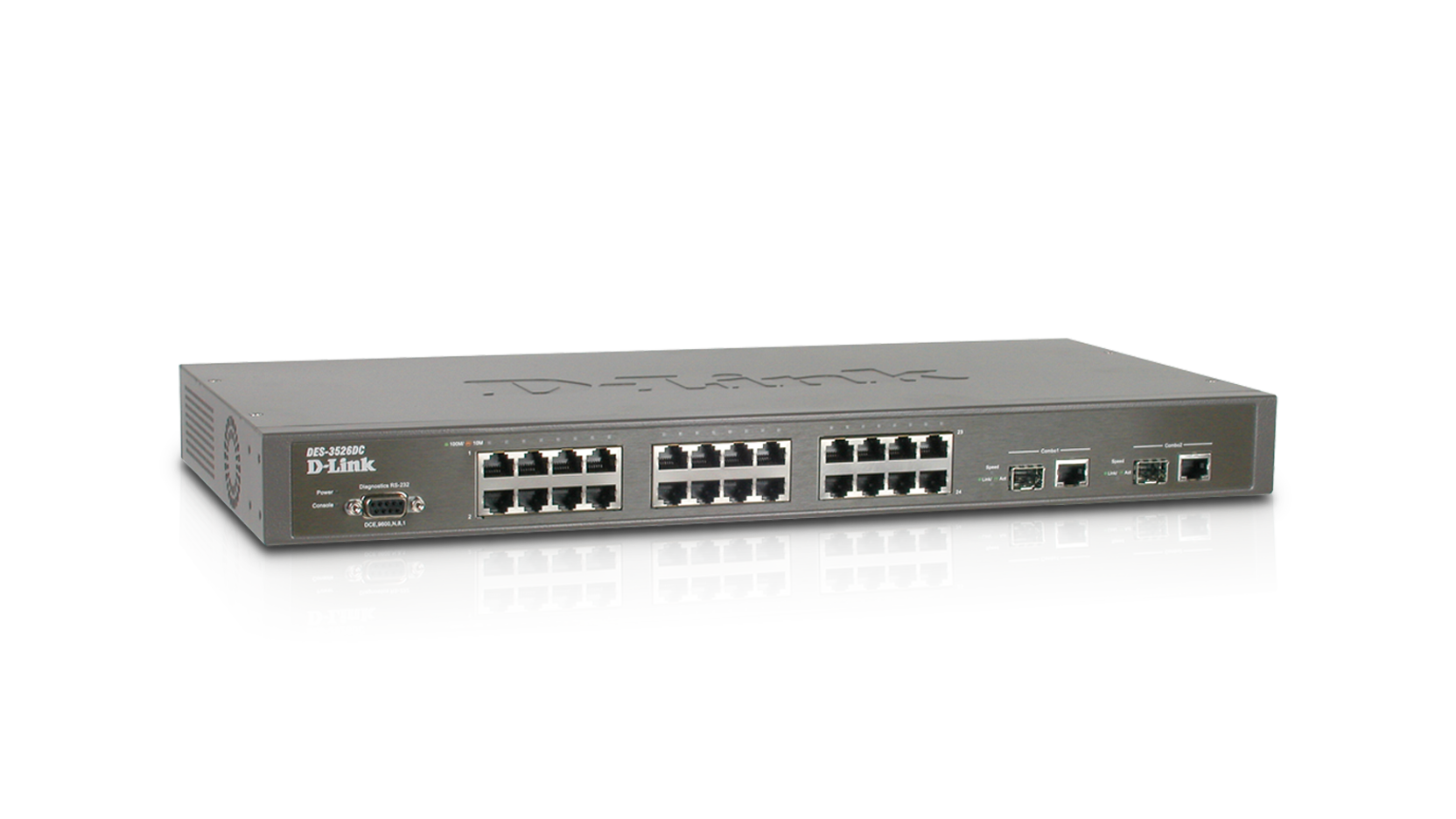

Actual product appearance may differ from the image displayed on this page

Specs

Download the datasheet.

DES-3526DC
  • 48 V DC (24) ports 10/100BASE-T plus 2 Combo 10/100/1000Mbps Copper/ SFP ports*
MAC Address Table Size
  • 8,000
Switch Fabric
  • 8.8Gbps switching capacity
Transmission method
  • Store-and-Forward
Spanning Tree Support
  • 802.1d, 802.1w and 802.1s support
VLANs
  • Supports up to 255 Dynamic/ 64 Static VLAN groups (Port-based, Asymetric Port Based, 802.1q and GARP/GVRP)
Access Control Lists
  • L2/L3/L4 filtering rules based On MAC address, IP Address, 802.1p, DSCP, TCP/UDP payload, and/or TCP/UDP port numbers
Link Aggregation
  • 802.3ad and LACP support
Port Security
  • Port lock down to MAC Address
IGMP Snooping
  • Supports up to 128 L2 Multicast Groups

Interface Options

RJ-45

  • 10BASE-T, 100BASE-TX & 1000BASE-T
SFP
  • Support For Standard 3.3 Volt SFPs

Network Management

In Band & Out of Band

  • Telnet, CLI/Console, RMON (4 Groups), Web-based HTTP, SNMPv1/v2c/v3 Compatible & Port Mirroring

Network Protocol and Standards

IEEE

  • 802.3 Ethernet, 802.3u Fast Ethernet,802.3ad Gigabit Ethernet, 802.1d Spanning Tree, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree Group, 802.1p Priority Tags, 802.1Q VLANs, 802.3ad Link Aggregation Control, 802.3x Flow Control, 802.1x Port-based Network Access Control, and 802.1x MAC-based Network Access Control
IETF
  • RFC 1157 SNMP, RFC 1757 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 1643 Ether-like MIB, RFC 2674 802.1p, IF MIB

Electrical & Electrical Emissions

Emissions

  • CE Mark, & FCC Class A, C-Tick, VCCI Class A
Power Supply
  • 60W DC Power Input; -48 V, output 12V. Internal universal power supply

Safety Agency Certifications

Safety

  • CSA International

Physical and Environmental

Dimensions

  • 441(W) x 207(D) x 44(H)mm (17.36 x 8.26 x 1.69 inches) 19-inch rack-mount width
Height
  • 1U
Weight
  • 4.0 kg (8.89 lb.)
Temperature
  • Operating: 0° - 40° C (32° - 104° F)
  • Storage: -40° - 70° C (-40° - 158° F)
Humidity
  • Operating: 5% to 95% RH, Non-Condensing

Warranty and Support Information

Warranty

  • Limited Lifetime Warranty
Support
  • Free Technical Support

Ordering Information

  • Part Number
  • Description
DES-3526DC
  • -48V DC Managed stackable layer 2 switch with (24) 10/100Base-T ports , plus 2 10/100/1000 Copper/SFP ports*
DEM-310GT
  • 1000BASE-LX 3.3V Mini GBIC Up to 550m (Multimode) Up to 10km (Singlemode)
DEM-311GT
  • 1000BASE-SX 3.3V Mini GBIC, Up to 220m/550m (Multimode)
DEM-312GT2
  • 1000BASE-SX+ 3.3V Mini GBIC Up to 2km (Multimode)
DEM-314GT
  • 1000BASE-LH+ 3.3V Mini GBIC Up to 50km (Singlemode)
DEM-315GT
  • 1000BASE-ZX+ 3.3V Mini GBIC Up to 80km (Singlemode)

Support

This product was phased out on: 07/08/2010
This product's last date of support is on: 06/08/2015
Version Date Type File Size
Datasheet - PDF 0.74mb Letölt
Version Leírás Date Type File Size
Manual for v5 firmware Manual for v5 firmware 2013. 02. 28. PDF 12.56mb Letölt
CLI Reference Manual v5.1 CLI Reference Manual v5.1 2013. 02. 28. PDF 1.38mb Letölt
Version Leírás Date Type File Size
1.0 Quick Installation Guide 2013. 02. 28. PDF 0.18mb Letölt
Version Leírás Date Type
Firmware 5.01B65 Firmware 2009. 11. 24. - Letölt
Version Leírás Date
CE declaration CE declaration 2014. 10. 20. Letölt
