DGS-1100 Series Gigabit Smart Managed Switches

DGS-1100 Series

  • Product Status (Revision B_v3.20_EN_US): Live
  • Web-Based Management: Intuitive interface for easy setup and ongoing management.
  • Flexible Port Options: Available with 5, 8, 16, or 24 GbE ports to suit various business sizes.
  • PoE Support Options: Options up to 370W power budget, powering devices like VoIP phones and cameras directly over Ethernet.
  • PD Alive: Automatically restarts failed PoE-powered devices to minimize downtime.
  • Loopback Detection & Cable Diagnostics: Quickly identifies and resolves network issues for reliable connectivity.
  • Bandwidth Control & QoS: Ensures priority traffic like voice and video is always smooth and lag-free.
  • IGMP Snooping: Optimizes multicast traffic to reduce network congestion.
  • VLANs for Traffic Segmentation: Improves network security and performance by separating different types of traffic.
  • Energy-Saving Features: Reduces power consumption for cost savings and environmental benefit.
  • Layer 2 Management Features: Offers advanced control over network traffic and security settings.
  • NDAA Compliant
  • Lifetime Warranty after Registration

Download the datasheet.

Where to buy
Web UI

Easy to use web interface to access management features

VLANs

Segment your network into VLANs.

Energy Efficient Design

Automatic power saving features to reduce power usage

Limited Lifetime Warranty & Next Day Service

Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.

Learn more

Simple. Easy. Smart.

DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.

Smart Web UI

The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.

Free Nuclias Connect remote network management software.

Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100) provides hardware-based, centralised network management.



Learn more

PoE and PoE+, with budgets up to 370W

The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.

Easy Troubleshooting

The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.

Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.

Green Technology

D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).

DGS-1100V2 Smart switch series

DGS-1100-05V2

· 5 x 1000Base-T
· Fanless

DGS-1100-05PDV2

· PoE Powered
· 3 x 1000Base-T
· 2 x 1000Base-T PoE
· Power Budget: 18W with 802.3at / 8W with 802.3af input power
· Fanless

DGS-1100-08V2

· 8 x 1000Base-T
· Fanless

DGS-1100-08PV2

· 8 x 1000Base-T 802.3at PoE
· 64W PoE budget
· Fanless

DGS-1100-16V2

· 16 x 1000Base-T
· Fanless

DGS-1100-24V2

· 24 x 1000Base-T
· Fanless

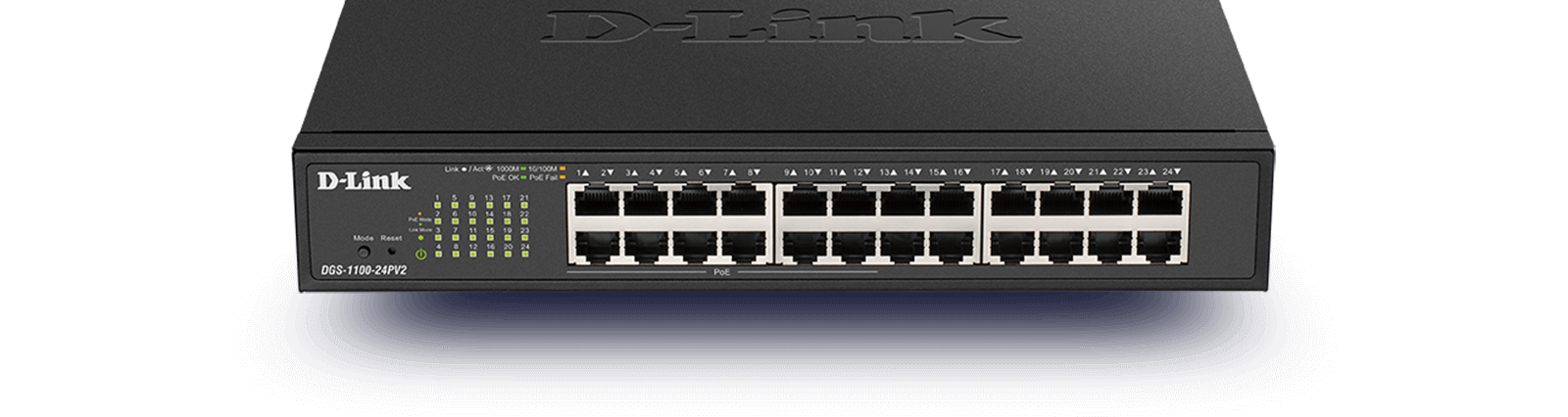

DGS-1100-24PV2

· 12 x 1000Base-T
· 12 x 1000Base-T 802.3af/802.3at PoE
· 100W PoE budget

Related Products

Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
Smart Managed Gigabit Switches
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Find out more
AX1800 Wi-Fi 6 Dual-Band PoE Access Point
DAP-X2810
Find out more
AX3600 Wi-Fi 6 Dual-Band PoE Access Point
DAP-X2850
Find out more
Type
Smart managed
Number of ports
16 to 30 ports

5 to 14 ports
Layer
Layer 2
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
Combo 1000BASE-T/SFP

SFP
Switching capacity
16 Gbps

20 Gbps

32 Gbps

36 Gbps

48 Gbps

52 Gbps
Powered by PoE
Supported
PoE options
802.3af

802.3at
Number of PoE ports
24

8
PoE power budget
See datasheet

See datasheet

See datasheet
Fanless
Supported
D-Link Green
Supported
802.3az Energy-Efficient Ethernet support
Supported
Form Factor
Rackmountable

Supports desktop and wall mounting
Housing
Metal
Jumbo frame
Supported
Cable diagnostics
Supported
MAC address
16K

8K
Spanning Tree Protocol
802.1D STP

802.1w RSTP
Link aggregation
802.3ad

Static trunk
VLAN group (max static)
128

32
VLAN type
Port-based
Advanced VLAN
Asymmetric VLAN

Auto Surveillance VLAN

Voice VLAN
Number of QoS queues per port
4
Bandwidth control
8 Kbps minimum granularity
Encryption protocol supported
SSL (v1/v2/v3)
