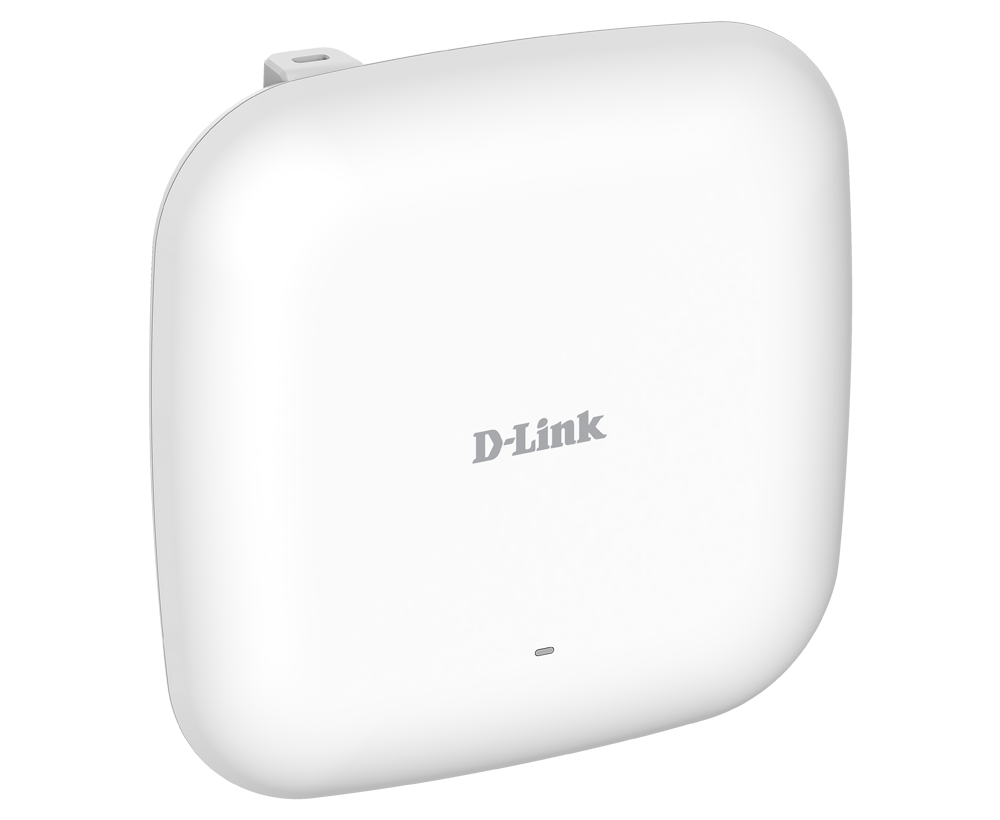

AX3000 Wi-Fi 6 Smart Access Point
DBR-X3000-AP
- Product Status (A1_Datasheet_v1.00(WW)): Live
- Dual-band Wi-Fi 6 speeds: up to 3 Gbps* for more smooth streaming, video calls, and connected devices

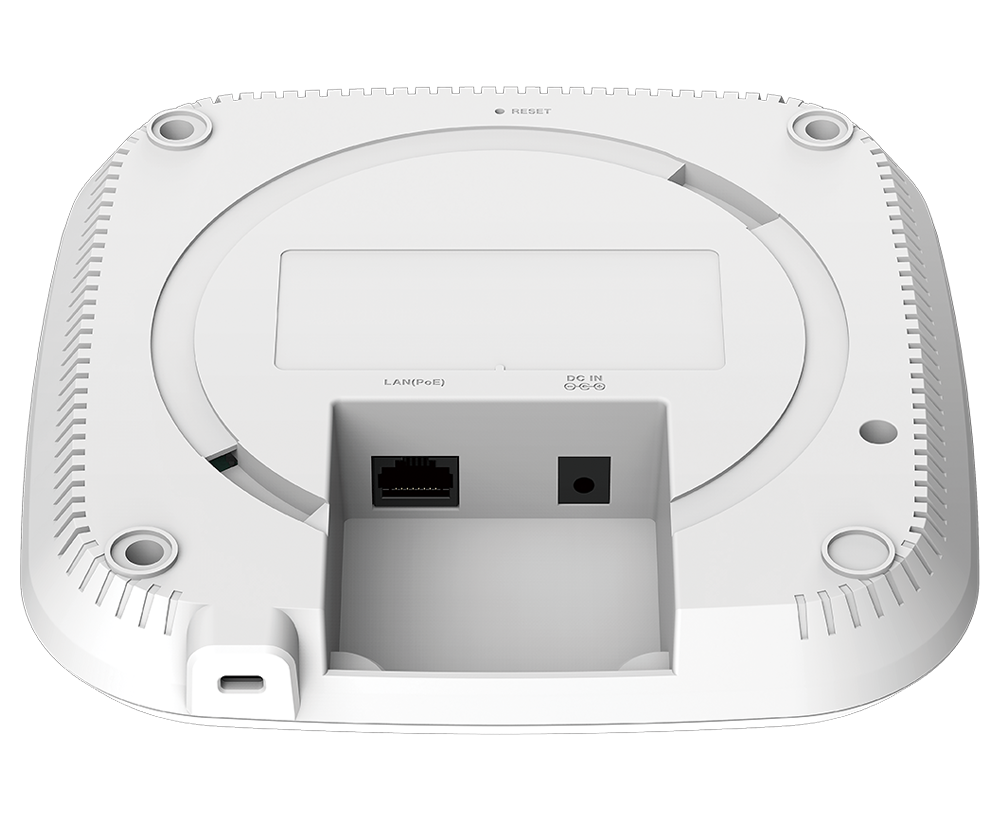

- 1 x Gigabit PoE* LAN port (802.3af, up to 12.95W*) for power and data over a single Ethernet cable to simplify deployment
- Wall and ceiling mount options: Compact design to fit different environments like offices, classrooms, or retail
- Advanced wireless security with WPA3, VLAN tagging, and up to 7 SSIDs
- Guest Wi-Fi (Guest Zone): Create up to 6 visitor networks that stay separate from your main Wi-Fi to help reduce security risks
- Use standalone or manage centrally with DBR-600-P or DBR-700 Multi-Gig Business routers (sold separately)
Central Management with the D-Link DBR Multi-Gigabit Business Router Series (sold separately)
- Pair with the D-Link DBR-600-P or DBR-700 Multi-Gigabit business routers (sold separately) to centrally manage up to 10-15 D-link Smart Managed Access Points*, simplify setup, and monitor your Wi-Fi network from a single dashboard – no IT team and subscriptions required
- Establish Mesh mode for wider coverage, keep Wi-Fi names/passwords consistent, see devices and signal health in real time, and push updates* network wide.
- Customizable Guest Wi-Fi (Captive Portal): Set one login page (click-through, password/RADIUS, or local database), add your logo and terms once, and apply it across all managed DBR Smart Access Points
- Business-ready backbone: Multi-WAN with intelligent failover, 2.5GbE* uplinks for higher bandwidth, built-in VPN (IPSec/WireGuard/OpenVPN), and firewall controls for enhanced security
- NDAA/TAA: Follows NDAA/TAA for public sector and enterprise projects
- Trusted Business-Class Reliability: Backed by D-Link’s Limited Lifetime Warranty (North America) and over 39 years of networking experience
*Actual performances and speeds may vary and can be affected by service plan, network configuration, device/cable limitations, temperature, and other environmental conditions.
*DBR-600-P supports up to 10 DBR APs, PoE Support; DBR-700 supports up to 15 DBR APs, SFP Uplink
Where to buy
Wi-Fi 6 Access Point for More Seamless, Smarter Connectivity
The D-Link DBR-X3000-AP is an AX3000 Wi-Fi 6, PoE-powered smart access point that helps deliver fast, dependable wireless across classrooms, cafés, retail spaces, smart homes, and growing companies. One-cable installation (PoE) simplifies placement, while WPA3, VLAN tagging, and up to seven SSIDs let you separate staff, POS, IoT, and guests. Guest Wi-Fi keeps visitors off your main network to help reduce security risks, so everyday work, streaming, and video calls stay smooth and consistent. Use standalone or manage centrally with a D-Link DBR Multi-Gig Business Router (sold separately).
Central Management with the D-Link DBR Multi-Gig Business Routers (sold separately)
Pair with a D-Link DBR Multi-Gig Business Router to easily deploy more secure, high-speed connectivity with centralized management and built-in VPN. From one dashboard, discover and manage up to 10–15 DBR-X3000-AP Smart Access Points*, keep Wi-Fi names and passwords consistent, set one customized guest login across every AP, see devices and signal health in real time, and push security/firmware updates across the network - no extra licenses or subscriptions required.
You can also enable mesh with seamless roaming to extend coverage as people move, while the routers provide a resilient backbone with multi-WAN failover, 2.5GbE* uplinks for multi-gig internet, and firewall tools to help protect remote work and business data. Choose the DBR-600-P model when you want PoE on board to power APs, cameras, phones, and POS over existing cables; choose DBR-700 model when you need a 2.5GbE SFP* uplink and multi-gig LAN for flexible fiber and high-bandwidth connections across larger or multi-building sites.
*DBR-600-P provides PoE; DBR-700 includes a 2.5GbE SFP uplink (non-PoE). AP count is model-dependent (DBR-600P up to 10, DBR-700 up to 15). Actual performance may vary based on service plan, network design, cabling, and environment.
*All references to power capacity, data storage capacity, distance, signal range, signal or processing speed, data encryption, and other performance metrics are based on optimal conditions derived from industry standards and are provided for informational purposes only.
Wi-Fi 6 Ready
Provides high efficiency and low latency, offering nearly 4x the capacity of previous Wi-Fi standards

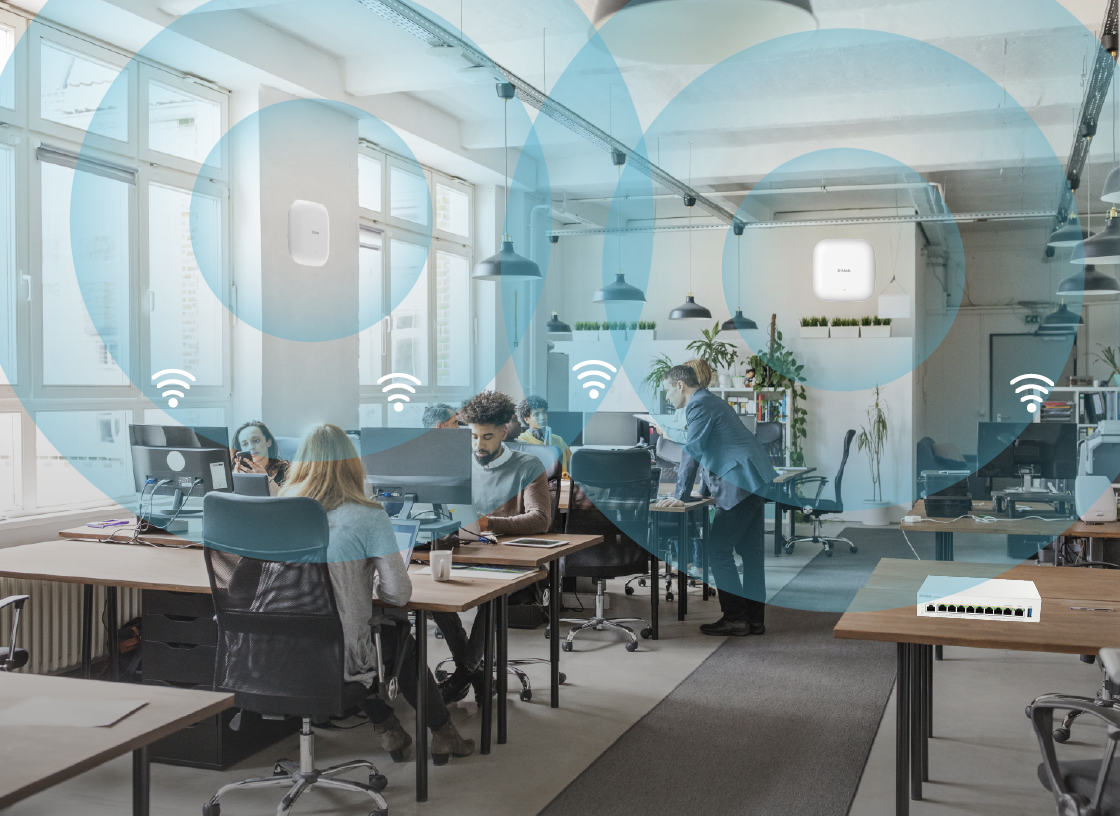

Broader WiFi Coverage
Mesh support helps extend coverage across more rooms and areas, reducing gaps in connectivity
Flexible Installation
Supports PoE for easy deployment, with wall-mount and ceiling design options for space efficiency
Worry-free Public Network
WPA3 encryption enhances network security, making browsing safer even in public spaces
Exclusive Guest Wi-Fi
Enables a separate WiFi network for visitors to help keep business and guest traffic apart
Centralized Management
Integrates with DBR Series routers for VPN, firewall security, and access point management, all from a single dashboard.
DBR-X3000-AP | Wi‑Fi 6 performance that helps turbo boost your business
Dual-band Wi-Fi 6 speeds up to 3 Gbps* help keep streaming, video calls, and everyday work moving. 1 × Gigabit PoE LAN (802.3af, up to 12.95W)* supports one-cable installs, and the compact wall/ceiling-mount design fits offices, classrooms, and retail. WPA3, VLAN tagging, and up to seven SSIDs support smarter segmentation, while Guest Wi-Fi (Guest Zone) lets you create visitor networks separate from your main Wi-Fi to help reduce security risks. Use standalone - or manage centrally with DBR-600P/DBR-700 Multi-Gig Business Routers (sold separately) for one-dashboard control.
Boosts Your Business with Advanced Wi‑Fi 6
Multi-Gig Power.
Smarter Control.
Smarter Control.
Pair the D-Link DBR-X3000-AP Access Points with a D-Link DBR Multi-Gig Business Router to easily deploy more secure, high-speed connectivity with centralized management and built-in VPN. From one dashboard, discover and manage up to 10–15 DBR-X3000-AP Smart Access Points*, keep Wi-Fi names and passwords consistent, set one customized guest login across every AP, see devices and signal health in real time, and push security/firmware updates across the network - No IT Team or subscriptions required.
You can also enable mesh with seamless roaming to extend coverage as people move, while the routers provide a resilient backbone with multi-WAN failover, 2.5GbE* uplinks for multi-gig internet, and firewall tools to help protect remote work and business data. Choose the DBR-600-P model when you want PoE on board to power APs, cameras, phones, and POS over existing cables; choose DBR-700 model when you need a 2.5GbE SFP* uplink and multi-gig LAN for flexible fiber and high-bandwidth connections across larger or multi-building sites.
Enterprise-Level Security, Without the Complexity
Paired with the DBR-X3000-AP Access Points , you can deliver Wi-Fi 6 performance with WPA3 security, VLAN tagging, customizable guest networks, and centralized mesh management. Together, the DBR routers and DBR-X3000-AP bring high-speed connectivity, simple scaling, and professional guest Wi-Fi, managed your way, all in one place.
Quick to Deploy and Manage
*All references to power capacity, data storage capacity, distance, signal range, signal or processing speed, data encryption, and other performance metrics are based on optimal conditions derived from industry standards and are provided for informational purposes only
*Actual performances and speeds may vary and can be affected by service plan, network configuration, device/cable limitations, temperature, and other environmental conditions. Multi-Gig speeds require compatible service and equipment.
Related Products

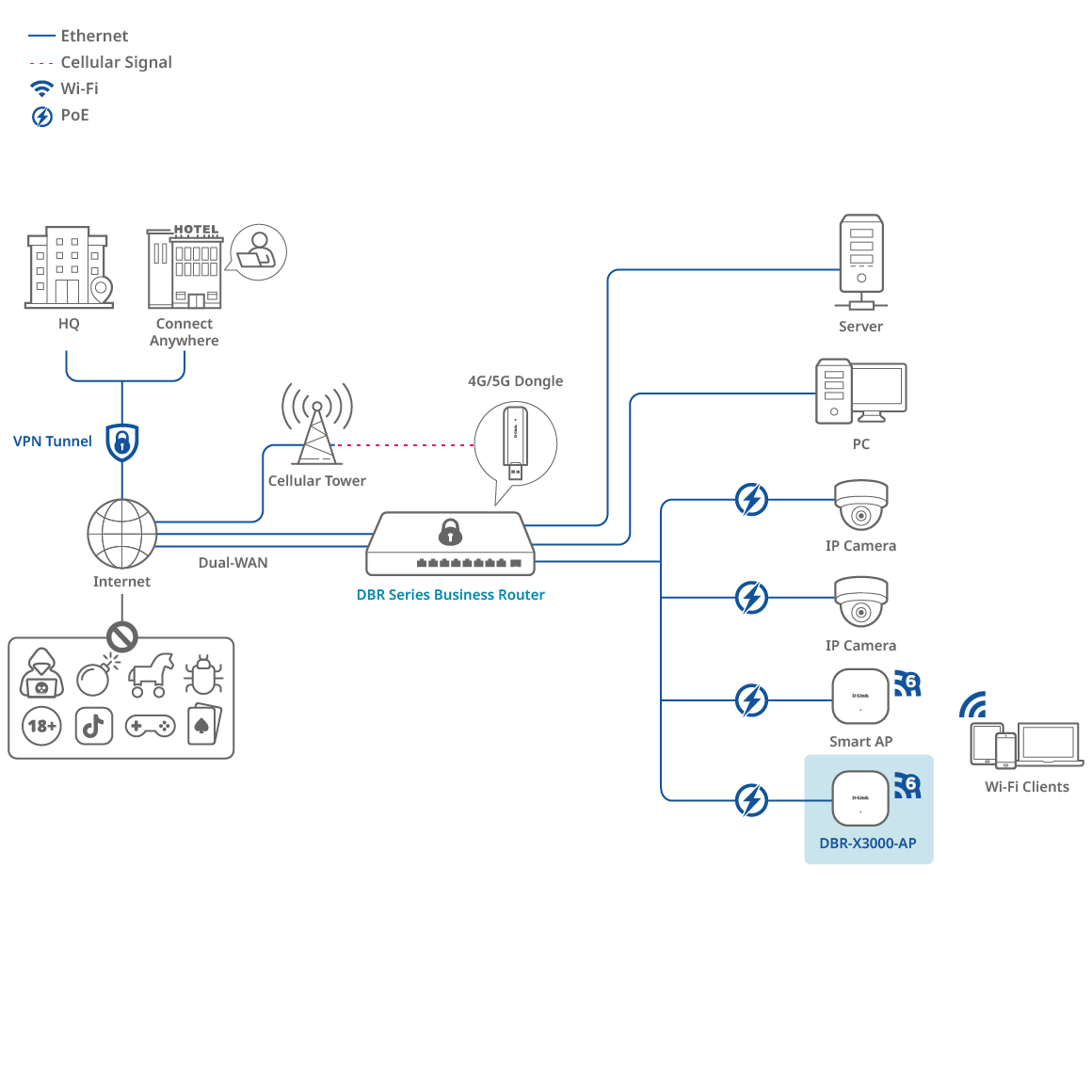

Connection Diagram
Discover the DBR-X3000-AP smart access point's capabilities through our detailed topology diagram.
Engineered for high performance, robust security, and efficient network management, D-Link’s Smart AP leverages Wi-Fi 6 dual-band technology with PoE support to help deliver fast, efficient connectivity. The WPA3 Personal/Enterprise and Guest Wi-Fi feature helps isolate traffic to help safeguard sensitive data, reducing security risks, while centralized management through D-Link business routers helps ensure effortless deployment and control. With advanced mesh technology, it helps enable flexible and rapid network expansion throughout a building. Designed for small to medium-sized businesses, the DBR-X3000-AP enables smooth, high-performance internet access for multiple users and devices.

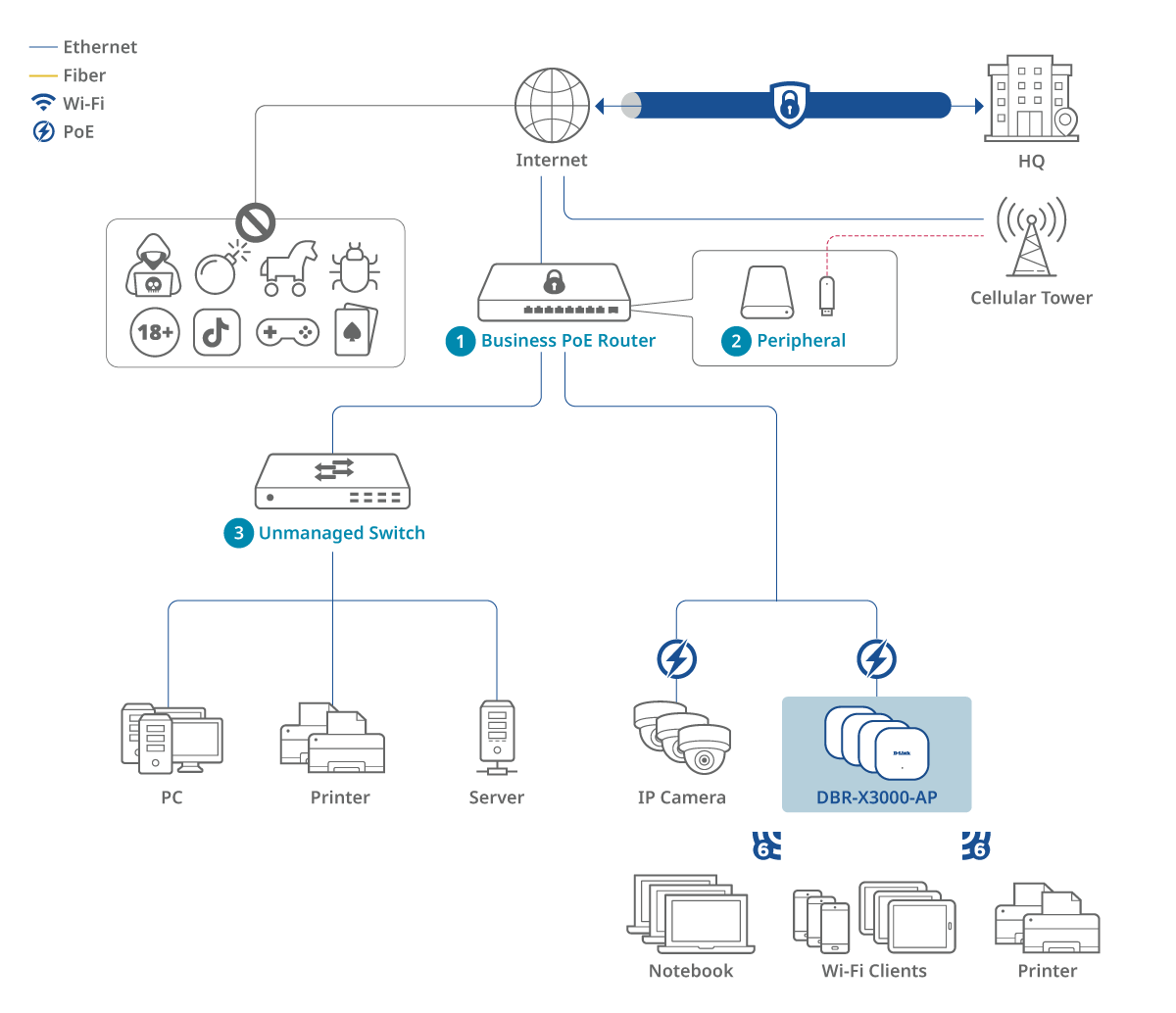

Small Office
User benefits :
- More secure remote access with robust protection
- User-friendly web UI simplifies configuration and setup
- Easily expands Wi-Fi coverage with multiple mesh nodes with DBR Router Management
- Advanced Guest Wi-Fi for more network protection
Learn more :
Hotel (Building)
User benefits :
- Offers more seamless coverage with advanced mesh technology
- Enhanced security helps ensure a more secure browsing experience
- Captive portals control user access and enhance security
- Manage and monitor access points through a central platform
Learn more :
- Business Router : DBR-700
- Multi-Gig Managed Switch : DMS-1250-18P
- Unmanaged PoE Switch : DMS-108P
Specification
|
Wireless Standard
|
802.11ax Wi-Fi 6 |
|---|---|
|
Frequency band mode
|
2.4G,5G Dual-band simultaneous |
|
Wireless Speed
|
2402 Mbps 5GHz 574 Mbps 2.4GHz |
|
Antenna gain
|
3 dBi for 5GHz 4 dBi for 2.4GHz |
|
MIMO
|
2.4G : 2T 2R 5G : 2T 3R |
|
Interfaces
|
1 x Gigabit Ethernet LAN |
|
PoE Standard
|
IEEE802.3at |
|

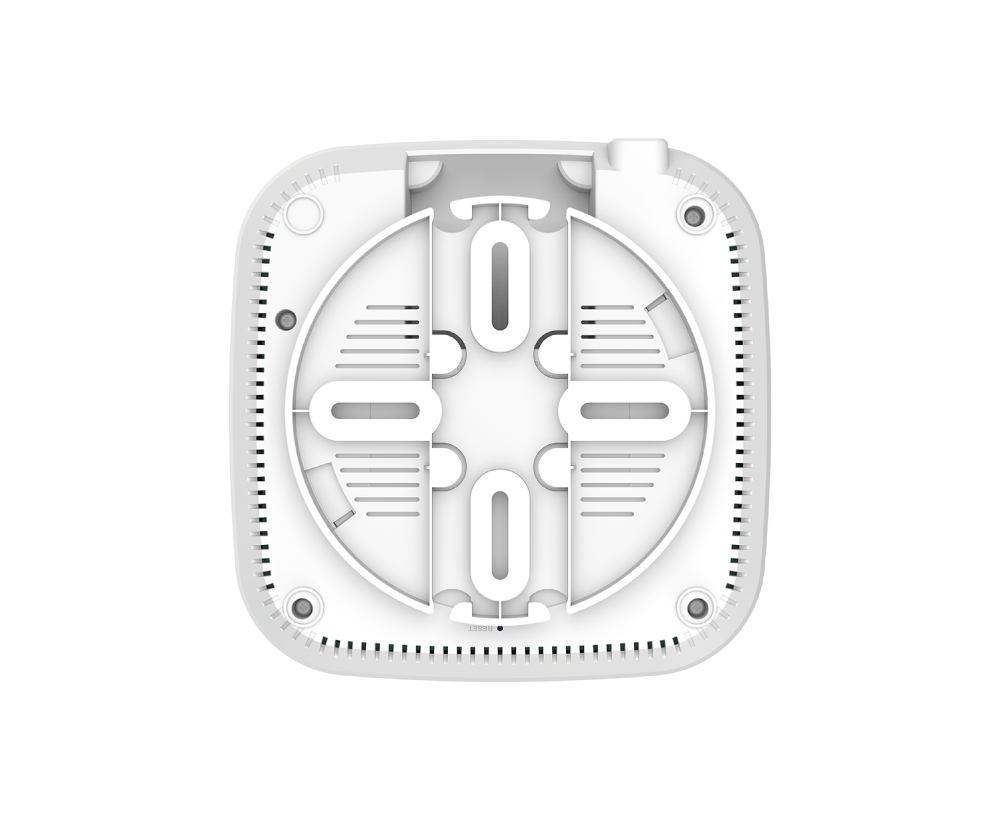

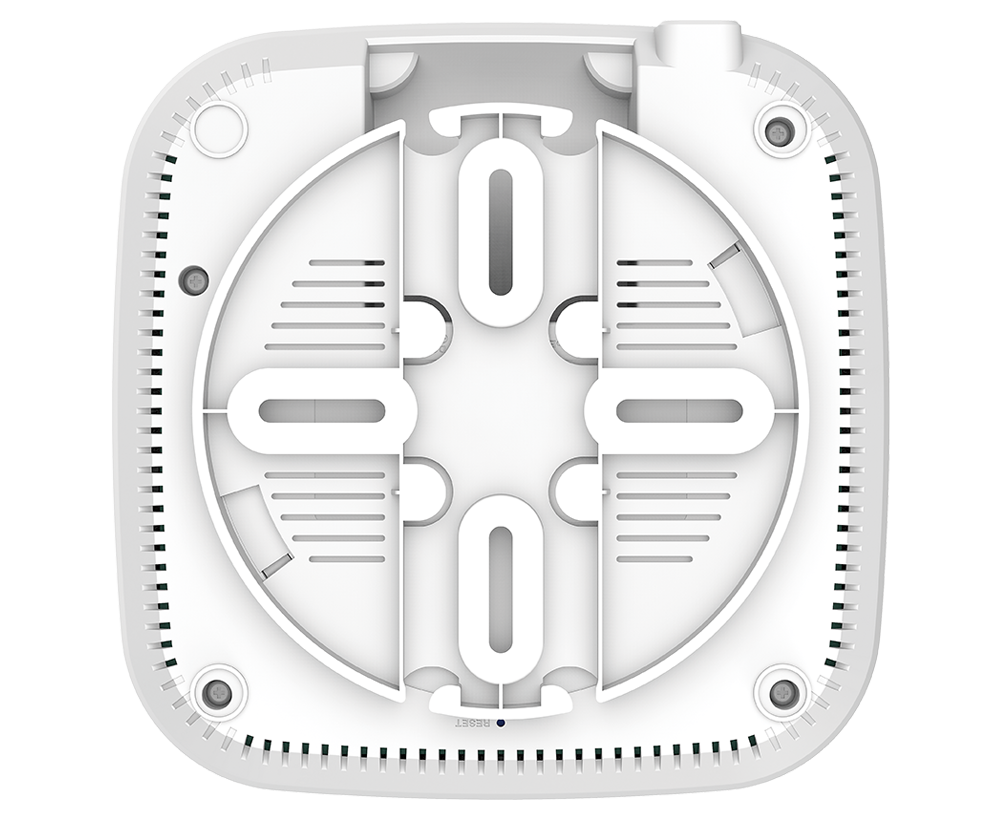

Mounting
|
Wall/Ceiling |
|
Support Mode
|
AP, Extender Mode |
|
Wi-Fi Security
|
WPA/WPA2/WPA3 Enterprise WPA/WPA2/WPA3 Personal |
|
Multiple SSID
|
Up to 7 per device |
|
Guest Mode
|
Yes |
|
Central Management
|
Managed by DBR-600-P/DBR-700 |
|
Captive Portal
|
Click Through, Local DB when managed by DBR-700 /DBR-600-P |
|
Dimensions
|
170 x 170 x 28 mm |
|
Operating Temperature
|
0 - 40 °C (32 - 104 °F) |
|
Storage Temperature
|
-10˚C to 70˚C (-4˚F to 158˚F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
