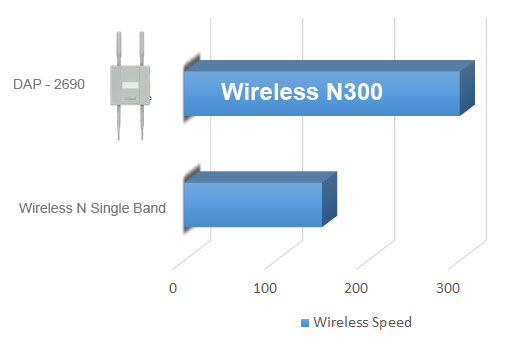

Performance without Compromise
Using the latest generation of Wireless N technology, the DAP-2690 delivers great wireless performance and coverage in a compact design.
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_performance.jpg)

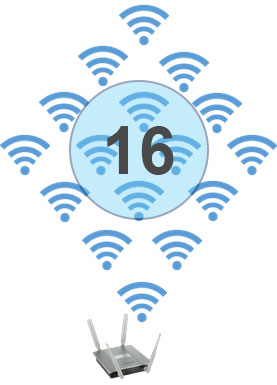

Broadcast 16 independent SSIDs simultaneously
Supports up to 16 SSIDs, 8 per Band, including station isolation
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_16_ssid.jpg)
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_reliable.jpg)

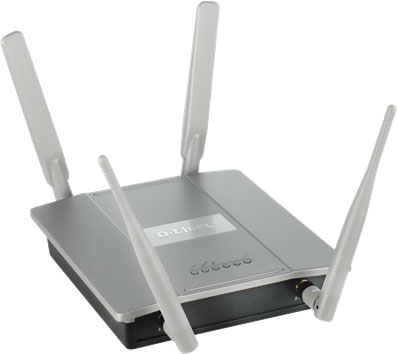

Reliable wireless with maximum wireless signal strength
The DAP-2690 is a dual-band wireless access point, designed to enable businesses of any size to deploy wireless networks. Enclosed in a rugged, plenum-rated metal chassis, the DAP-2690 adheres to strict fire codes for placement in air passageways.
![](/pl/pl/-/media/images/b2b_icons/access_points/wireless_n.jpg)
![](/pl/pl/-/media/images/b2b_icons/access_points/speed300.jpg)
![](/pl/pl/-/media/images/b2b_icons/access_points/range100m.jpg)
![](/pl/pl/-/media/images/b2b_icons/access_points/dual_band.jpg)
![](/pl/pl/-/media/images/b2b_icons/access_points/cwm.jpg)

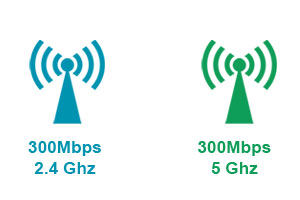

Simultaneous Dual-Band Wireless
Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_dual_band.jpg)

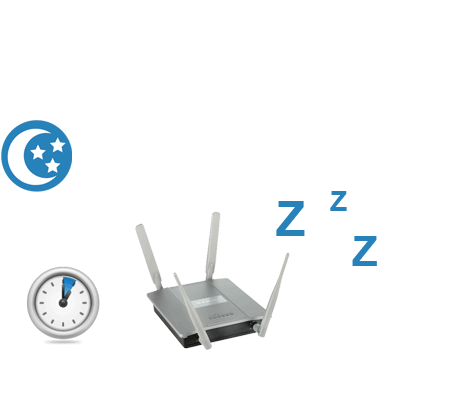

Smart Design
With a wireless scheduler feature which turns off wireless functionality when it isn’t needed, the DAP-2690 provides savings in power and increased network security.
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_smart_design.jpg)

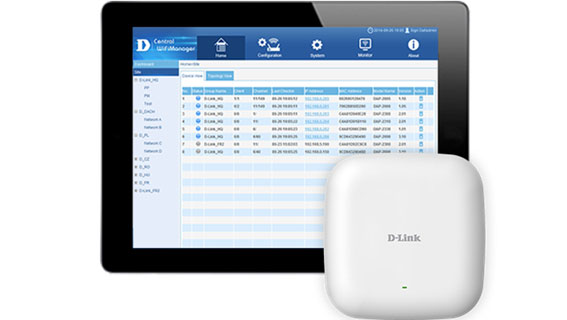

Free Wireless AP Controller software
D-Link’s free Central WiFiManager is a cloud-enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_ap_controller.jpg)
Manage up to 1000 APs
Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_1000_aps.jpg)

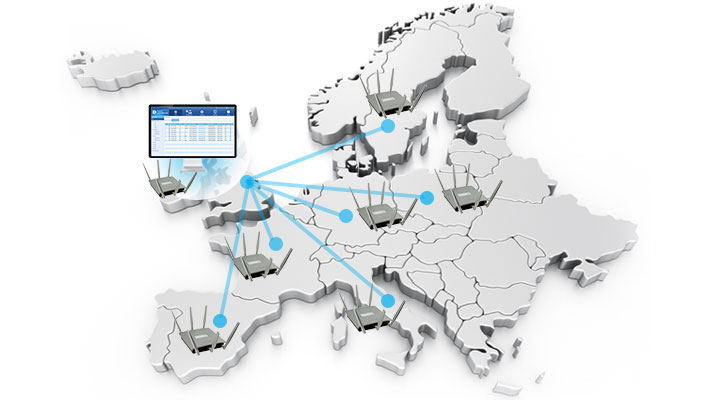

Scalable, flexible, centralised AP management
Manage up to 1000 APs from a central location, regardless of geography.
![](/pl/pl/-/media/product-pages/dap/2690/dap2690_scalable.jpg)
Product Comparison
![]() |
![]() |
![]() |
||
---|---|---|---|---|
DAP-2310 | DAP-2360 | DAP-2690 | ||
Wireless Standard | B, G, N | B, G, N | B, G, N | |
Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | |
2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | |
5GHz Throughput | - | - | 300Mbps | |
Aspect | Indoor | Indoor | Indoor | |
Range* | 100m | 100m | 100m |
![]() |
![]() |
|||
---|---|---|---|---|
DAP-2660 | DAP-2695 | |||
Wireless Standard | B, G, N, AC | B, G, N, AC | ||
Frequency | 2.4GHz, 5GHz | 2.4GHz, 5GHz | ||
2.4GHz Throughput | 300Mbps | 300Mbps | ||
5GHz Throughput | 867Mbps | 1300Mbps | ||
Aspect | Indoor | Indoor | ||
Range* | 100m | 100m |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Sugerowane urządzenia
![](/pl/pl/-/media/product-pages/dgs/1210/f1/dgs12101010p10mp20262828p28mp5252mpf1image-lside1.png?h=100&w=103&la=pl-PL&hash=21D1E1F0694C07A9B8111C84D67994B2)
![](/pl/pl/-/media/product-pages/dgs/1510/dgs1510seriesa1image-lfront.png?h=100&w=178&la=pl-PL&hash=ED3B54D326E0A7F3287D8146AE4D938F)
Dane techniczne
Rodzaj
|
Punkt dostępowy |
---|---|
Standard WiFi
|
Wireless N |
Ilość pasm
|
Dwupasmowy |
Anteny
|
4 demontowane anteny dookólne |
Zysk mocy
|
4 dBi w 2.4 GHz 6 dBi w 5 GHz |
PoE
|
Tak |
Porty
|
1 x Gigabit Ethernet LAN |
Port konsoli
|
Supported
|
Montaż
|
Wewnątrz |
Obudowa
|
Metalowa |
Odporność na ogień (UL-2043)
|
Supported
|
Tryb pracy
|
Access Point (AP) Klient bezprzewodowy WDS Bridge WDS z AP |
Zaawansowane funkcje
|
MIMO |
Maksymalna liczba SSID
|
16 na pasmo |
Automatyczny dobór kanału
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Harmonogram WiFi
|
Supported
|
Balansowanie ruchu w AP
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
Szyfrowanie TKIP-AES
|
Supported
|
WPA/WPA2-PSK przez WDS
|
Supported
|
Separacja WLAN
|
Supported
|
Opcja wyłączenia rozgłaszania SSID
|
Supported
|
Funkcja Rogue AP
|
Supported
|
Station isolation
|
Supported
|
Filtrowanie adresów MAC
|
Supported
|
Autoryzacja 802_1X
|
Supported
|
Serwer DHCP
|
Supported
|
802.1D STP
|
Supported
|
IGMP snooping
|
Supported
|
ARP spoofing
|
Supported
|
NTP
|
Supported
|
Platforma do zarządzania
|
CWM-100 |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
Centralne zarządzanie (przez AP Manager II i/lub moduł D-View Wireless Control)
|
Supported
|
