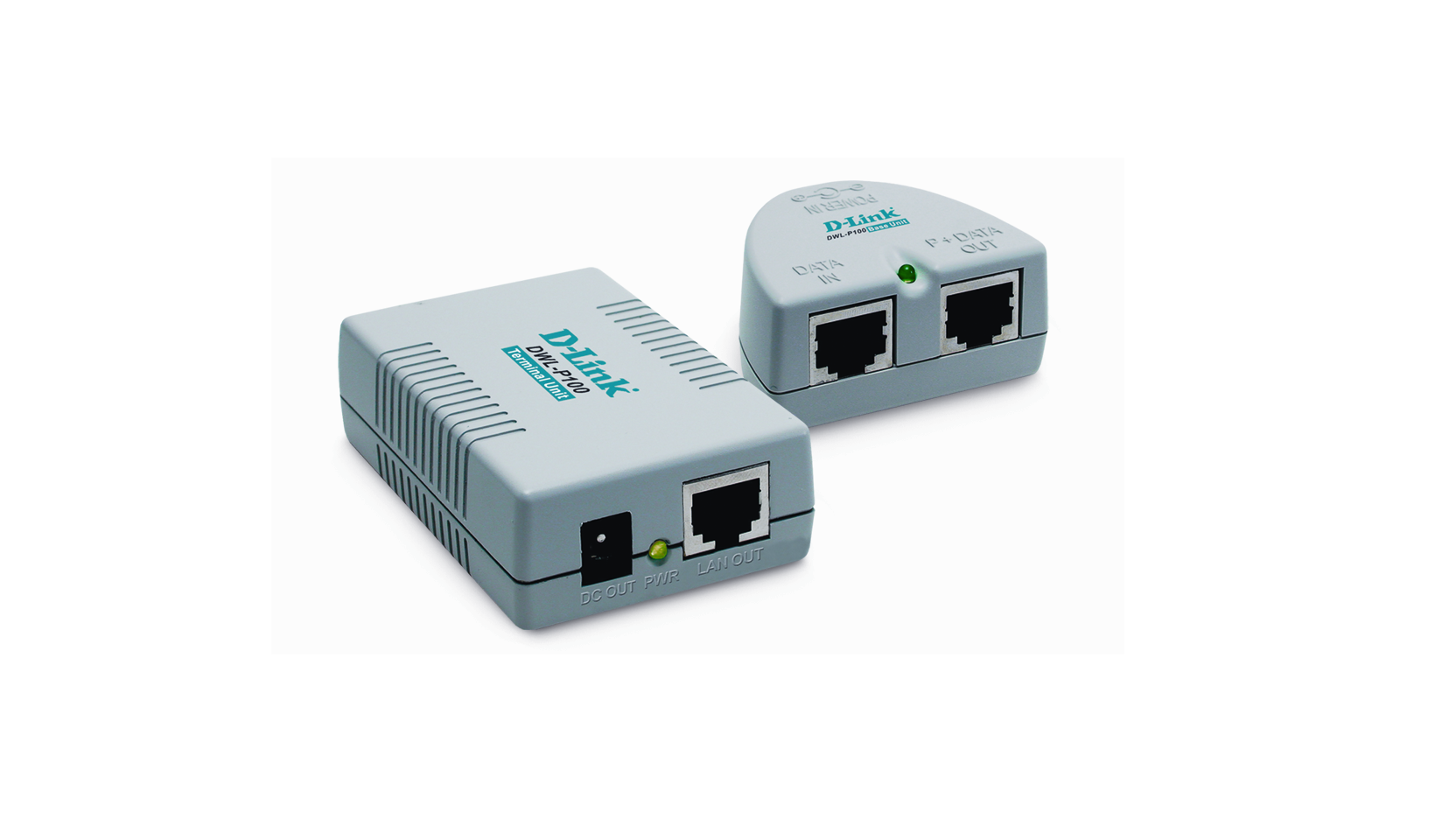

Power Over Ethernet Adapter
DWL-P100
- Product Status (Revision A): End of Life
Description
The DWL-P100 Power Over Ethernet (POE) Adapters are accessory items designed to supply operational power to devices with an Ethernet port and power requirements that do not exceed 5 Volts/1 Amp.
D-Link introduces another revolutionary product - the D-Link DWL-P100 Power Over Ethernet (POE) Adapter. It delivers data and electrical power to access points using standard Category 5 Ethernet cable. This eliminates the need for electrical cable and power converters at each access point location. The DWL-P100 Power Over Ethernet (POE) Adapter is easy to install. It 's Plug n Play and requires no tools or software. Best of all, the DWL-P100 is light weight and compact size means you can locate it virtually anywhere and never know it 's there. The DWL-P100 transfers data on Category 5 Ethernet cable pairs 1/2 and 3/6. Power is transmitted on unused Ethernet pairs 4/5 and 7/8. It has an operational range of up to 328 ft./100m, which is a requirement of the Fast Ethernet standard.
Terminal Unit With the DWL-P100 you can mount devices such as an access point virtually anywhere in a building without worrying about the location of a power supply.
The DWL-P100 Power Over Ethernet (POE) Adapters are accessory items designed to supply operational power to devices with an Ethernet port and power requirements that do not exceed 5 Volts/1 Amp.
D-Link introduces another revolutionary product - the D-Link DWL-P100 Power Over Ethernet (POE) Adapter. It delivers data and electrical power to access points using standard Category 5 Ethernet cable. This eliminates the need for electrical cable and power converters at each access point location. The DWL-P100 Power Over Ethernet (POE) Adapter is easy to install. It 's Plug n Play and requires no tools or software. Best of all, the DWL-P100 is light weight and compact size means you can locate it virtually anywhere and never know it 's there. The DWL-P100 transfers data on Category 5 Ethernet cable pairs 1/2 and 3/6. Power is transmitted on unused Ethernet pairs 4/5 and 7/8. It has an operational range of up to 328 ft./100m, which is a requirement of the Fast Ethernet standard.
Terminal Unit With the DWL-P100 you can mount devices such as an access point virtually anywhere in a building without worrying about the location of a power supply.
Specs
Power Over Ethernet Includes
Category 5 Pin Power Usage
Output Voltage
Ethernet Cable
Dimensions
Operating Temperature
Storage Temperature
Operating Humidity
EMI Certification
Power Adapter Safety Certifications
- 1 base unit
- 1 terminal unit
Category 5 Pin Power Usage
- Data: pins 1, 2, 3, 6
- Power: pins 4, 5, 7, 8
Output Voltage
- Input: 48VDC, 400mA
- Output: 5VDC, 2.5A
Ethernet Cable
- Data rate: 10/100Mbps
- TIA/EIA 568 Cat. 5
- Connector: RJ-45
Dimensions
- Base unit: 53 x 42 x 25 mm
- Terminal unit: 80 x 53 x 25 mm
Operating Temperature
- 0 ° to 40 °C
Storage Temperature
- -20° to 70 °C
Operating Humidity
- Up to 90% non condensing
EMI Certification
- FCC Part 15 Class B
- CE Class B
Power Adapter Safety Certifications
- UL
- TUV
Support
This product was phased out on: 05/03/2007
This product's last date of support is on: 04/03/2009
