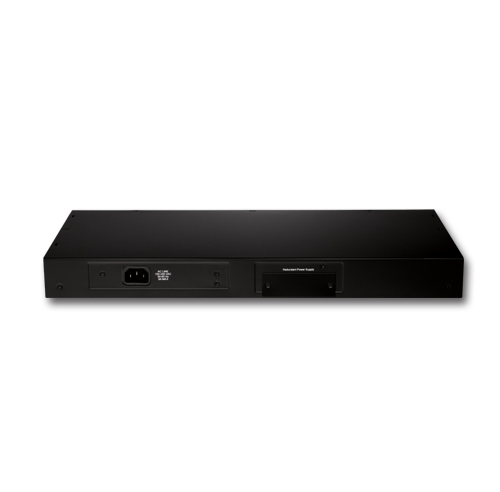

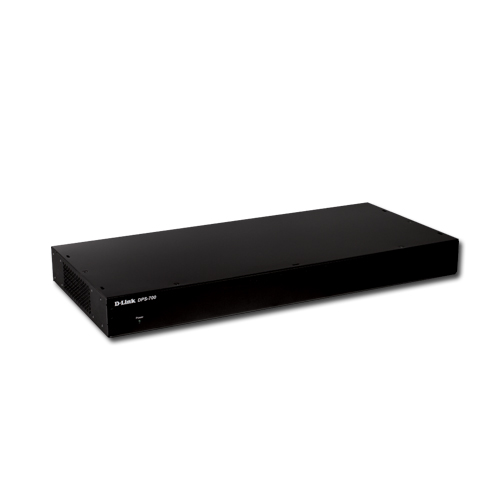

589 Watt Redundant Power Supply for D-Link Managed Switches

DPS-700

  • Product Status (Revision A): Live
Description
  • Redundant Power Supply keeps your switch online in case of Power Supply Failure
  • 1+1 PoE Budget, allowing you to extend your PoE budget by 370 Watts on supported switches
  • Rack Mountable for ease of installation

The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.

Related Products

Layer 3 Stackable Smart Managed Switches
DGS-1520-28, DGS-1520-28MP, DGS-1520-52, DGS-1520-52MP
Find out more
Gigabit Layer 3 Stackable Managed Switches
DGS-3130-30TS, DGS-3130-30S, DGS-3130-30PS, DGS-3130-54TS , DGS-3130-54S, DGS-3130-54PS
Find out more
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
Gigabit L3 Stackable Managed Switches
DGS-3630-28SC, DGS-3630-28TC, DGS-3630-28PC, DGS-3630-52TC, DGS-3630-52PC
Find out more
Input Voltage Range
  • 90VAC to 264VAC

Input Frequency Range
  • 47 Hz to 63 Hz

Maximum Input Current
  • 7.5A at 115VAC, 60Hz
  • 3.7A at 230VAC, 50Hz

Maximum In-rush Current
  • 30A @ 115VAC, 60Hz
  • 30A @ 230VAC, 50Hz

Leakage Current
  • 3.5mA max.

Output Voltage
  • +54VDC
  • +12VDC

Total Output Power
  • 589 watts

Efficiency
  • 80%

Over Voltage Protection
  • Trip point: below 16V for +12V output
  • Auto-recovery mode against short circuit or over load conditions
  • -59V output below -57V will protect itself against short circuit or over load condition

LED Status
  • On: RPS good
  • Off: RPS failed

Dimensions (LxWxH)
  • 196mm x 195mm x 50mm

Weight
  • 3.7 kg

Operating Temperature
  • 0° to 65° C

Storage Temperature
  • -40° to 70° C

Safety Standards
  • UL 60950 3rd Edition
  • CSA 22.2 NO.234
  • EN 60 950

Safety Approvals
  • UL
  • CUL

EMI
  • FCC Class B
  • CE

MTBF
  • 624,961 hours

Redundant Power Supply & Lan Switch Compatibility

DPS-700
  • DGS-1510-52XMP
  • DGS-1520-28MP
  • DGS-1520-52MP
  • DGS-3120-48PC
  • DGS-3120-24PC
  • DGS-3130-30PS/SI
  • DGS-3130-54PS/SI
  • DGS-3420-28PC
  • DGS-3420-52PC
  • DGS-3620-28PC
  • DGS-3620-52PC
  • DGS-3630-28PC
  • DGS-3630-52PC



Warranty and Service Information

All DPS-SKU

  • 2 Year Warranty

All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted. See inside package for warranty details.
