Wireless AC Day/Night HD Mini Bullet Cloud Camera

DCS-7000L

  • Product Status: End of Life

THE DCS 7000L

The DCS-7000L Wireless AC Day/Night HD Mini Bullet Cloud Camera is a mydlink-enabled IP surveillance camera that lets you monitor an area 24 hours a day. Built-in Wireless AC technology gives you better streaming and increased reliability; and because it’s mydlink-enabled, you can check on things right from your smart phone or tablet.

A Complete, Expandable Surveillance Solution

The DCS-7000L is a self-sufficient surveillance solution, capable of recording snapshots and video to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

24/7 HD Surveillance with Night Vision

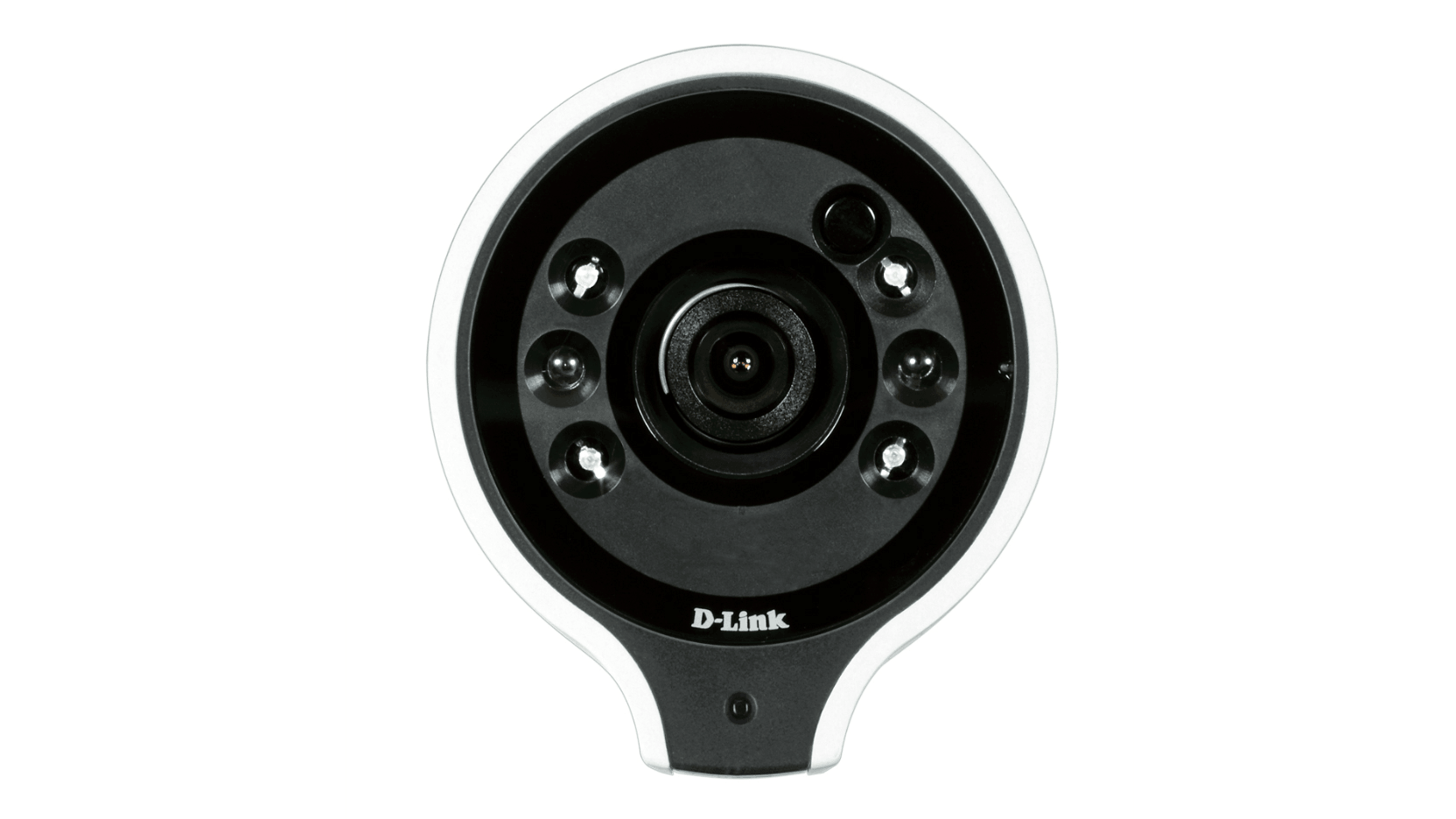

The DCS-7000L is built with a megapixel image sensor to give you high-quality snapshots and video with resolutions up to 720p HD. This gives you sharp, high-resolution snapshots and videos with rich detail. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily. The integrated infrared cut removable (ICR) filter blocks infrared light during the day for precise colour and improved quality images. At night, it moves out of the way to use all available light for low-light surveillance. Furthermore, with the built-in IR LED illuminator, the camera can monitor up to 8 metres in complete darkness.

mydlink: the easiest way to setup up your camera and monitor your office

Connecting a camera on your network and accessing it has traditionally required complex configuration. mydlink makes it easy to access your camera from wherever you are with a wireless or 3G/4G LTE connection, whenever it’s convenient for you. Using the free mydlink Lite app for iOS and Android smartphones and tablets, you can connect and setup your mydlink camera without turning on a computer. A step-by-step guide has your camera up and running in a matter of minutes. Through the mydlink Lite app, you can set up a free mydlink account which allows you to view and manage your camera from any Internet connected computer. If you have more than one camera, you can add it to your existing mydlink account and watch all your cameras from a single location. You can even access videos recorded onto a microSD card2 and talk back through the app with 2-way audio support. Thanks to this app, you can monitor on-the-go even if you don’t have access to a computer.

Built for Versatility

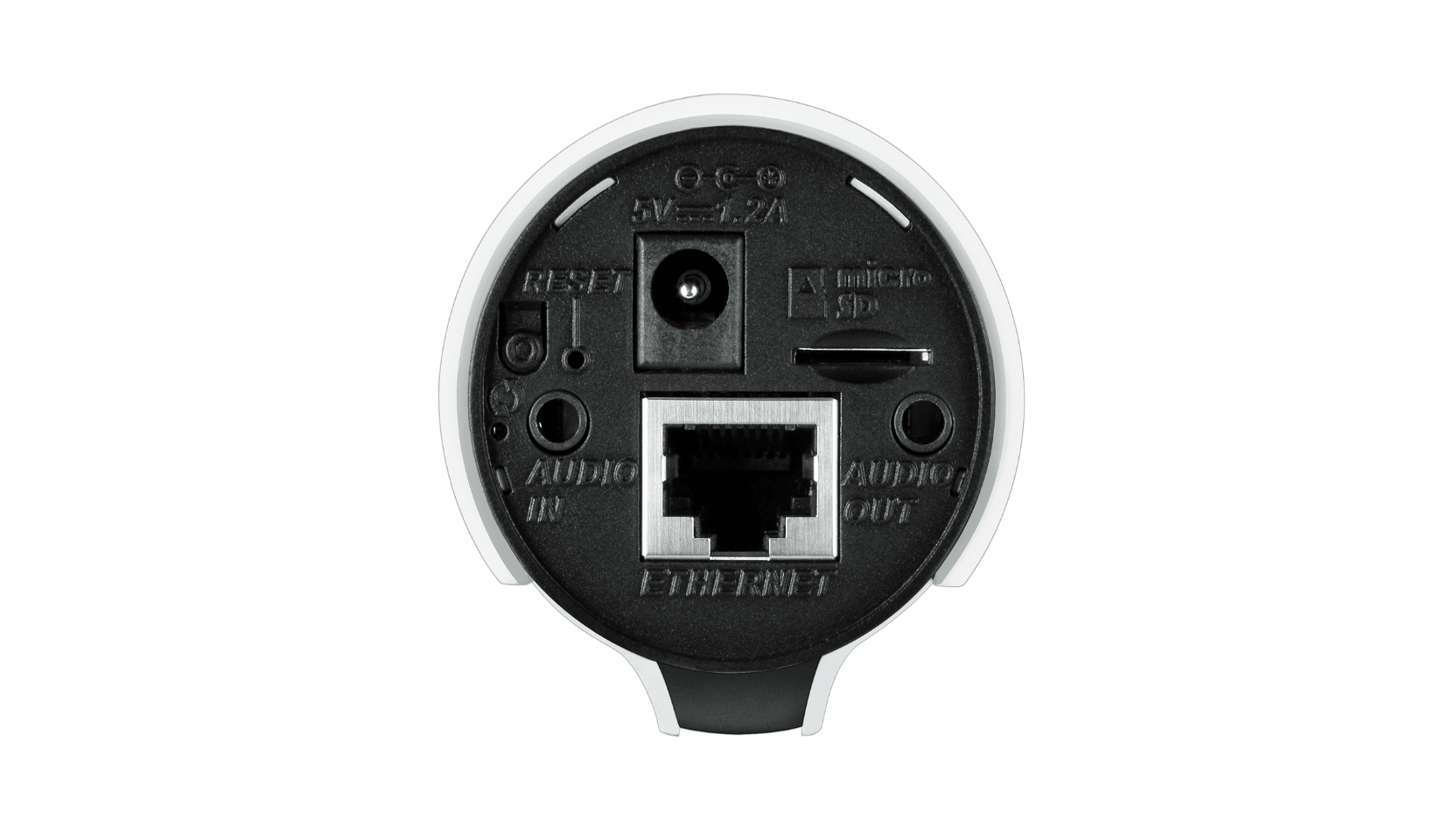

The DCS-7000L comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. The camera can detect motion, allowing it to automatically record video and send you a notification when motion is detected. Audio in and out connectors can be connected to a microphone and speaker, allowing for 2-way communication and making the DCS-7000L ideal for use in entryways.

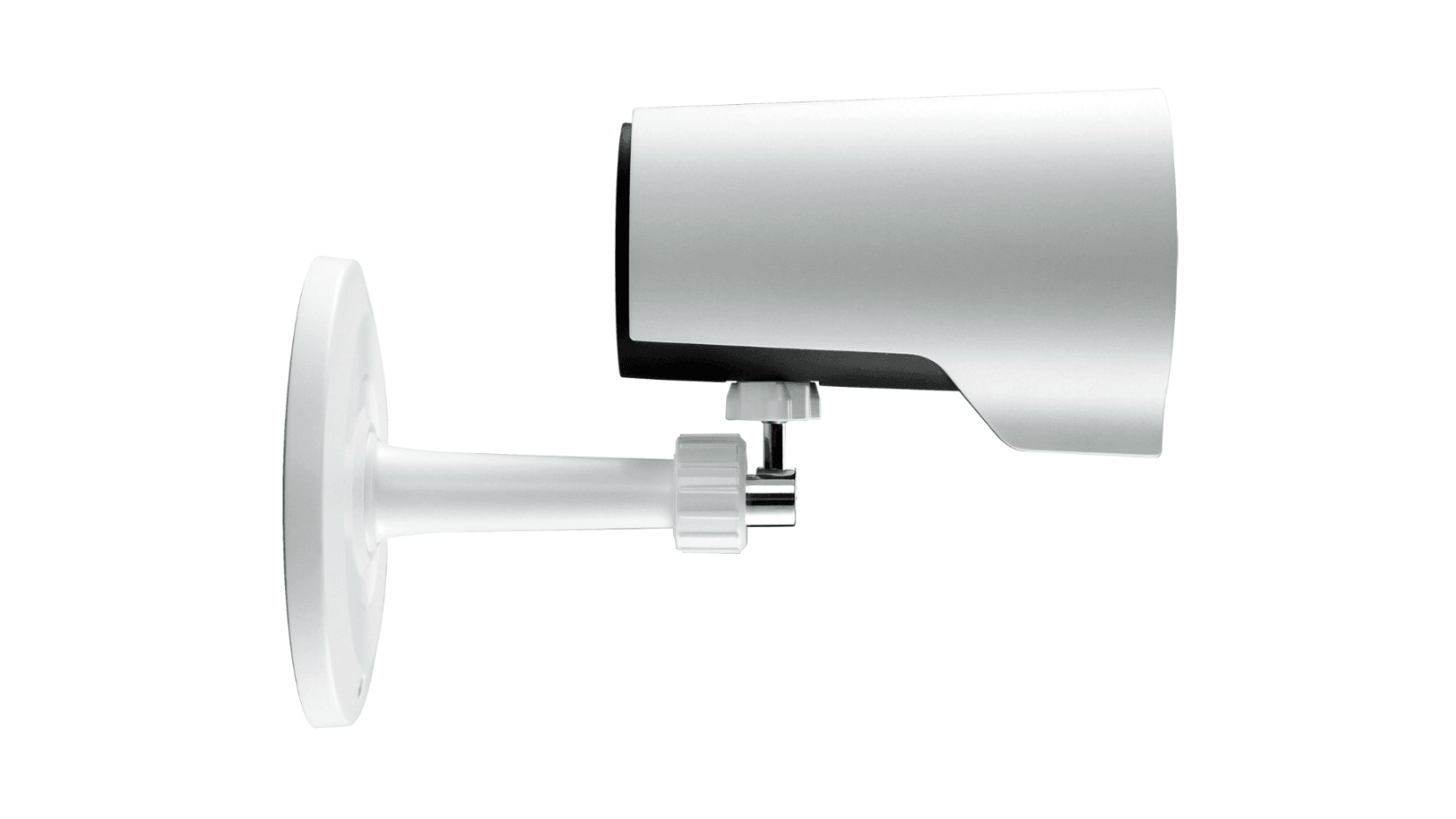

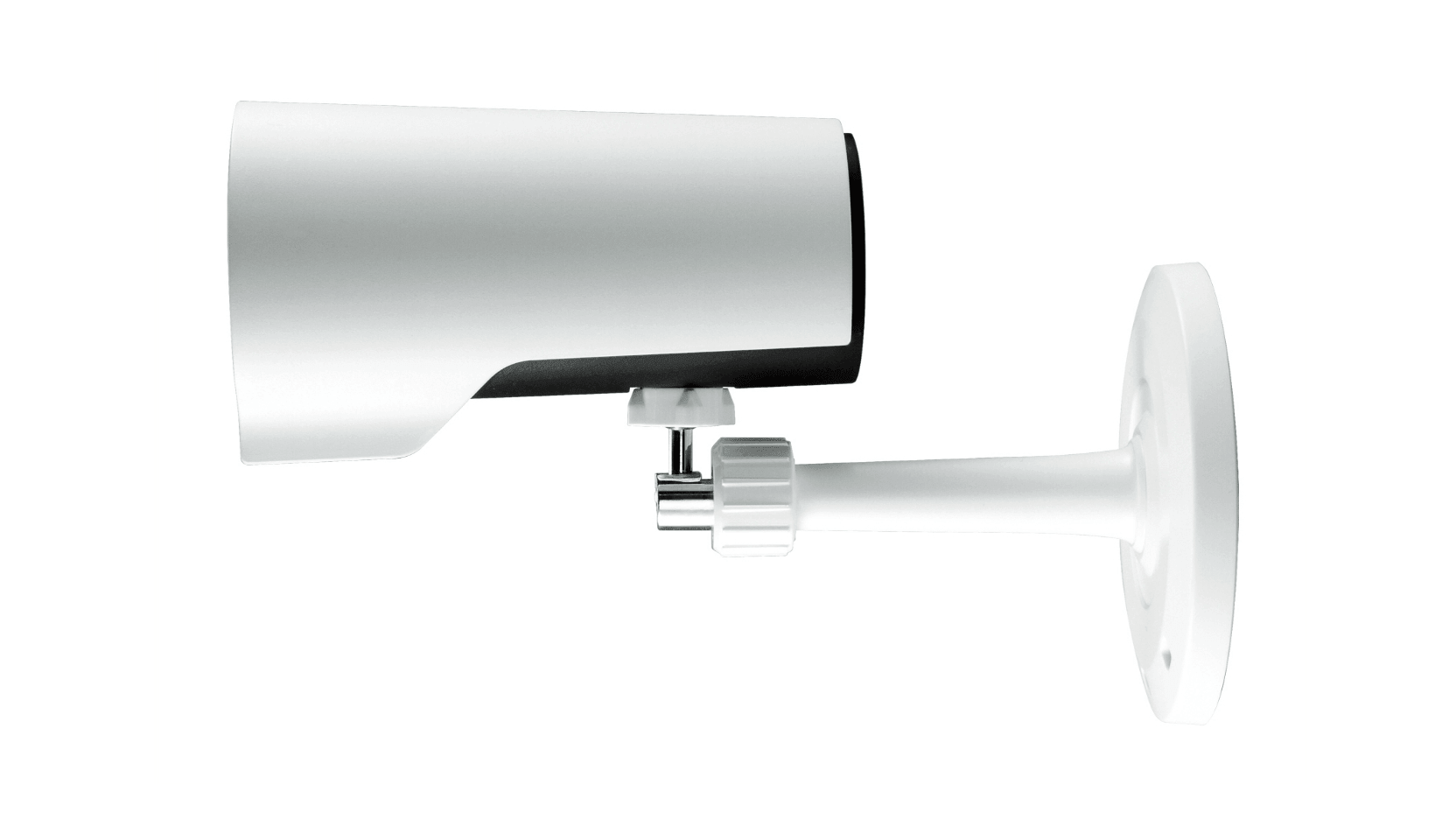

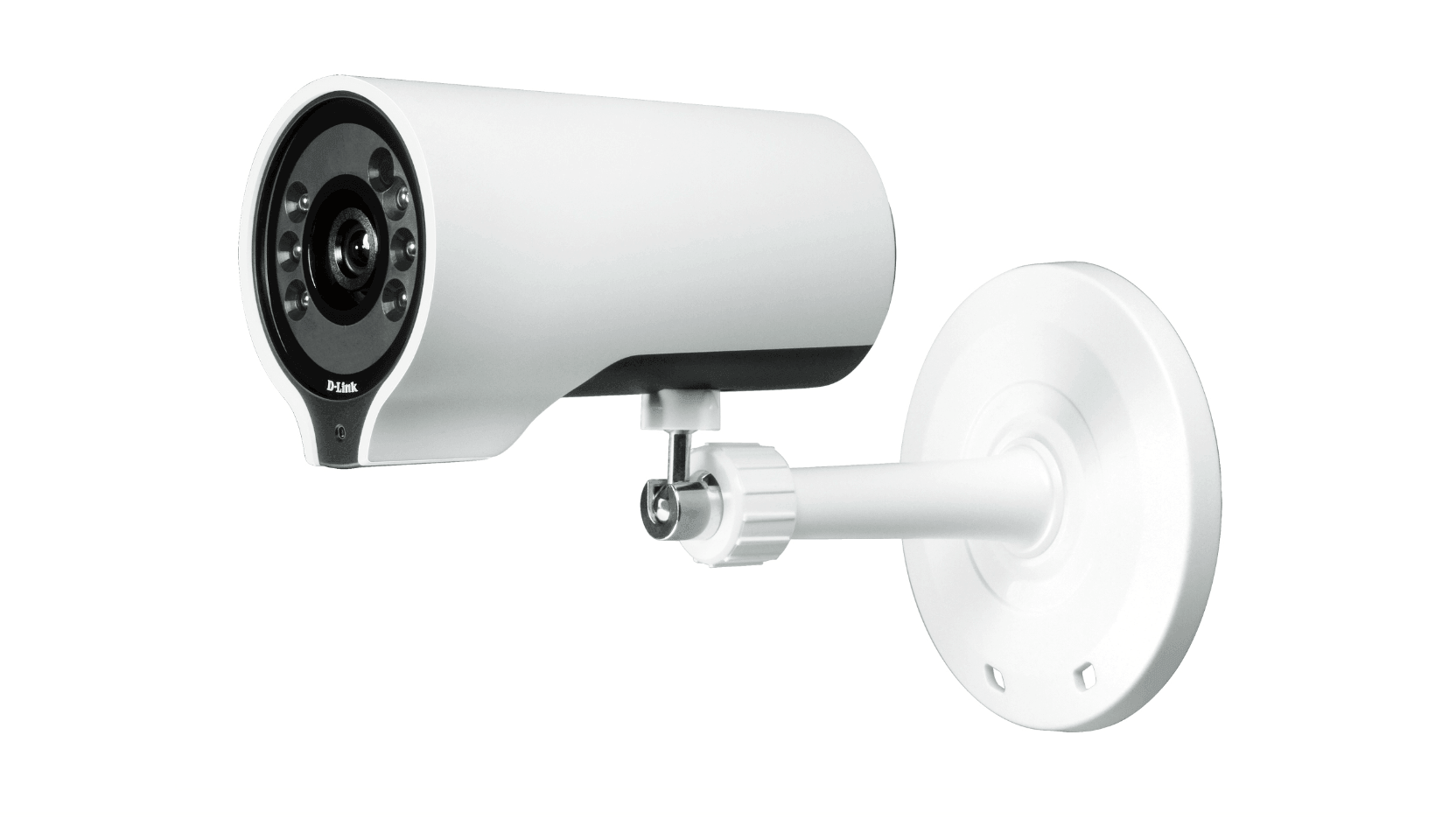

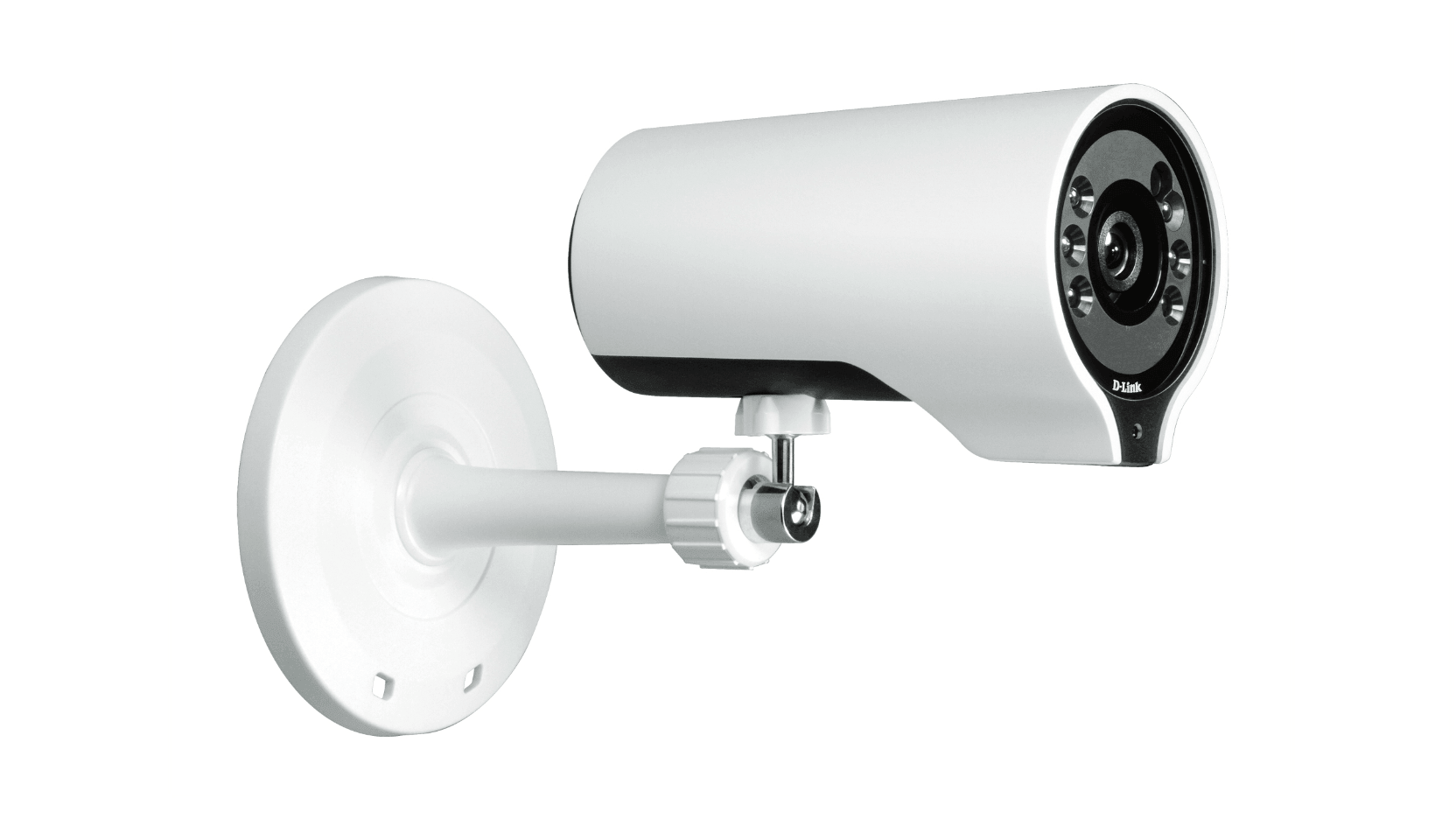

Compact Design with Wireless AC

Connect the DCS-7000L to your wireless network with Wireless AC, which provides improved speed and range over previous wireless standards. This helps when streaming video across your network by providing more bandwidth and creating a more reliable connection. It also gives you the freedom to install your camera in more places, thanks to increased wireless coverage. Compact, miniature design gives more flexibility on where the DCS-7000L can be placed. The camera can be mounted in areas that need to be monitored without the camera being easily spotted.

Zero Configuration

If you have a mydlink-enabled Cloud Router, setting up and configuring your DCS-7000L is a snap, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your mydlink‑enabled Cloud Router with an Ethernet cable - the camera will automatically be added to your account. mydlink does the hard work for you, allowing even novice users to set up and use their mydlink-enabled cameras immediately.


1 Frame rates when streaming video may vary depending on network conditions and method used.
2 SD card not included. An SDXC Class 6 or above card is recommended. Supports capacities up to 128 GB.

Indoor/outdoor
Indoor
Connectivity
Wireless
Resolution
HD 1 megapixel
Image sensor
1/4" 1 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 720 (16:9)
960 x 720 (other)
Lens
2.4 mm
F2.0
Fixed
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
8 m
Privacy Masks
3 zones
2-way audio
Supported
Built-in Microphone
Supported
External Microphone Input
Supported
External Speaker Output
Supported
External Card Slot
MicroSD SDHC SDXC (max 128 GB)
App Support
mydlink
Features
ONVIF
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Sound Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 21/07/2018
This product's last date of support is on: 20/07/2020
How to install and use the Mydlink Lite app on your iPhone/iPad
How to remove a camera from your Mydlink account
How to Log into a Mydlink camera
How to Setup and Install a Mydlink camera
How to configure time on a Mydlink camera
How to configure Motion Detection on a Mydlink camera
Version Date Type File Size
Datasheet - PDF 0.58mb Download
Version Description Date Type File Size
Product manual Product manual 25.11.2014 PDF 2.52mb Download
Version Description Date Type File Size
1.00 Quick installation guide 25.11.2014 PDF 0.91mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date Type
1.05.02 Firmware 20.10.2016 - Download
1.02.05 Firmware 19.10.2015 - Download
1.03.00 Firmware 16.10.2015 - Download
Firmware Release notes included 1.01.01 Firmware
Release notes included
09.01.2015 - Download
Firmware Release notes included 1.00.04 Firmware
Release notes included
25.11.2014 - Download
Version Description Date
Setup Wizard You can find the latest version of the Setup Wizard on the Mydlink Download page. Click Download to go there now.
Make sure to select the correct model and version.
13.01.2016 Download
Version Description Date
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.09.2016 Download
DEU_Quick_Guide_on_mydlink_Cameras_Rev Quick Guide on mydlink Cameras 03.12.2014 Download
DEU_CE_Doc_RevA CE declaration 25.11.2014 Download
