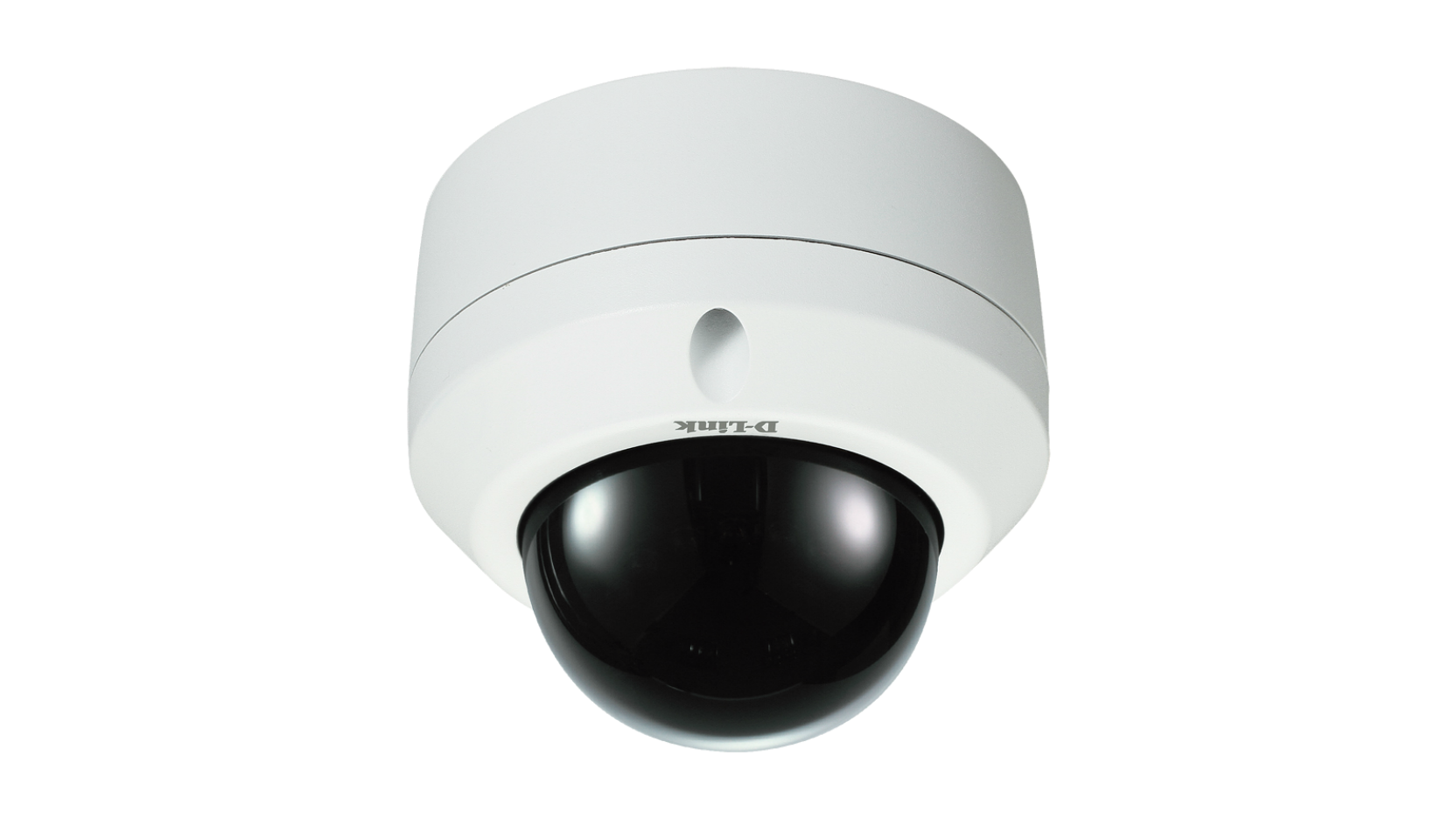

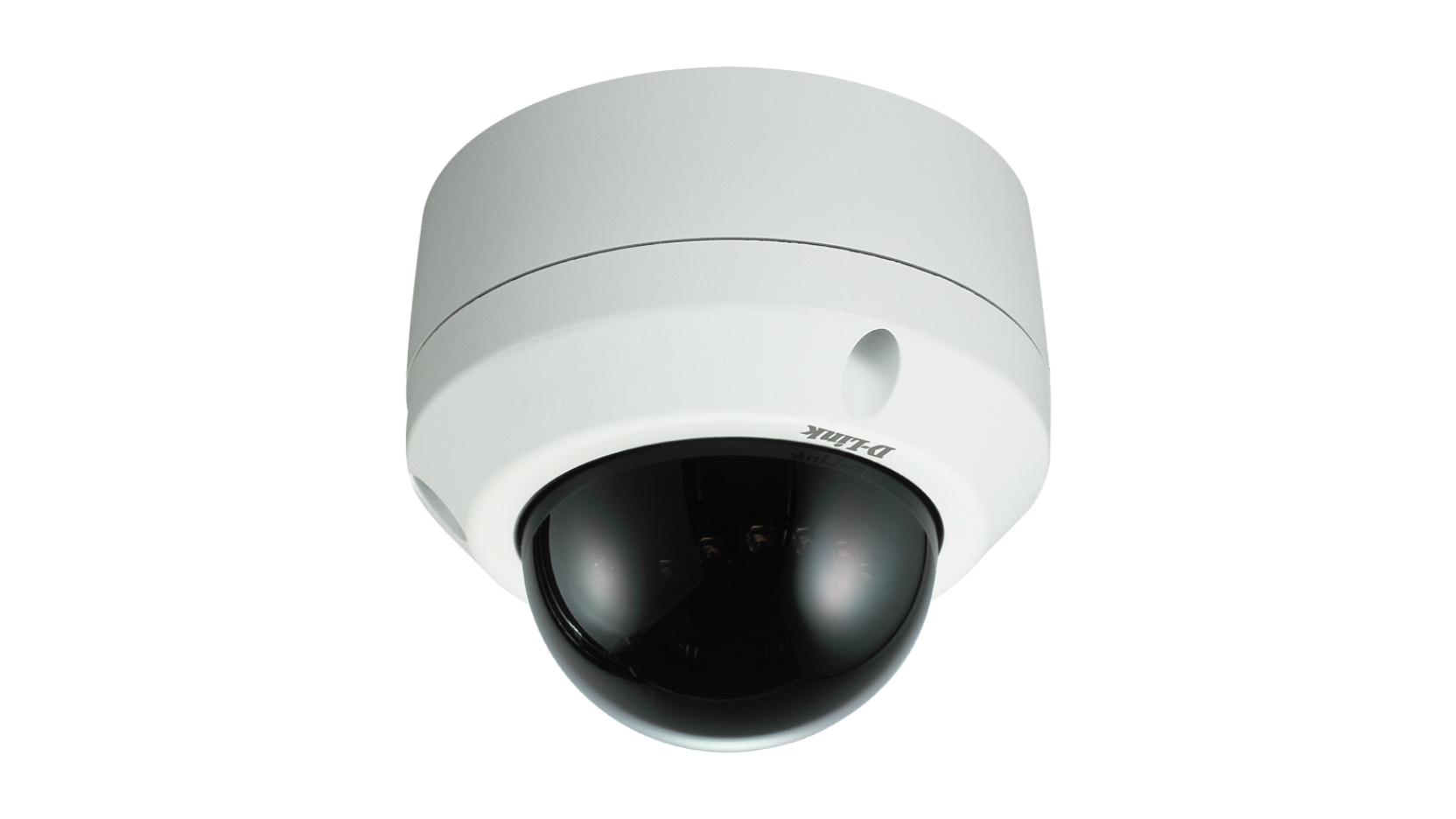

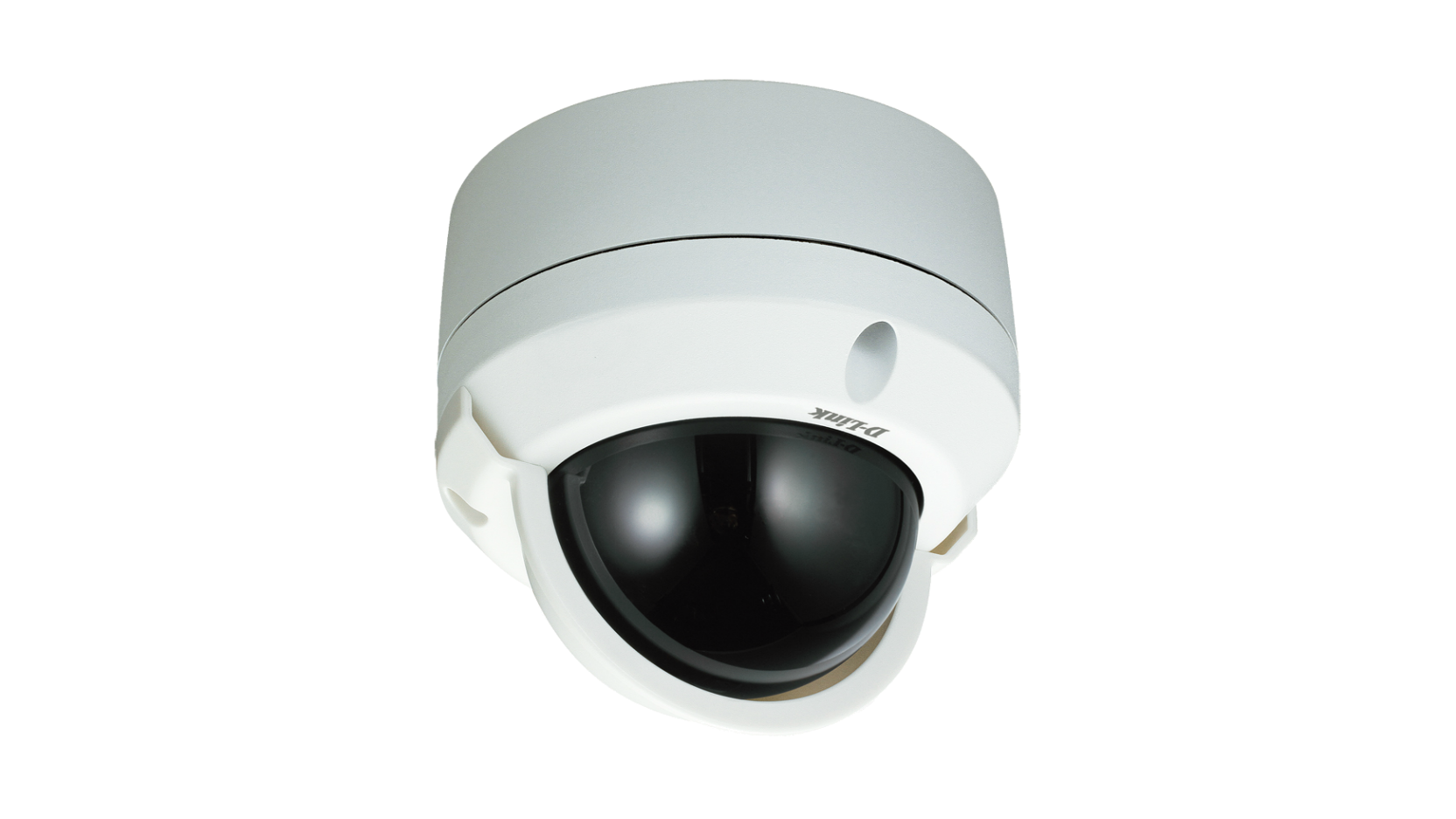

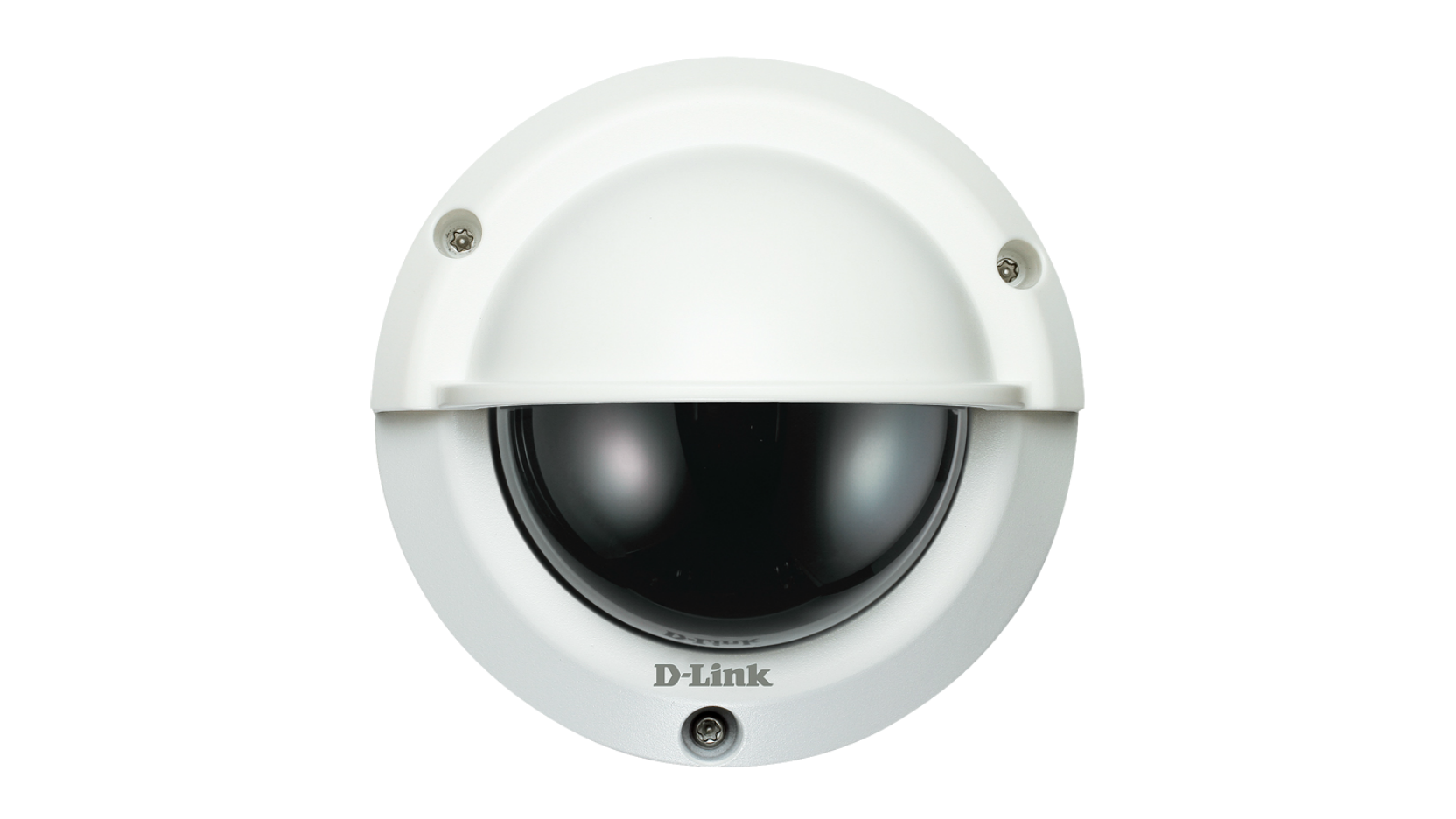

Full HD WDR Varifocal Day & Night Outdoor Smoked Dome Network Camera

DCS-6314BS

  • Product Status (Revision A): End of Life

The DCS-6314BS Full HD WDR Varifocal Day & Night Outdoor Smoked Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. Furthermore, the smoked dome offers an additional degree of surveillance by hiding the direction where the lens is actually pointing without affecting picture quality. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

High-Quality Video

To maximise bandwidth efficiency and improve image quality, the DCS-6314BS provides real-time video compression using the H.264, MPEG‑4, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to a network attached storage (NAS) device or internal Micro SD card.

Continuous Monitoring

The DCS-6314BS’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify objects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. In addition, the DCS-6314BS also has built-in IR LED illuminators with a 15 metre range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

Robust Management Software

The DCS-6314BS Full HD WDR Varifocal Day & Night Outdoor Smoked Dome Network Camera includes D-ViewCam™, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

Flexible Connectivity

The DCS-6314BS has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

Product Awards

82% in Benchmark Review

Related Products

Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
Indoor/outdoor
Outdoor
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.8" 2 megapixel WDR progressive scan CMOS (Sony Exmor)
Maximum Video Resolution
1440 x 1080 (other)
1920 x 1080 (16:9)
Lens
2.8-12 mm
F1.4
Varifocal
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
15 m
Wide Dynamic Range(WDR)
Supported
Optical Zoom
4x
Privacy Masks
3 zones
Vandal Proof
Supported
2-way audio
Supported
External Microphone Input
Supported
External Speaker Output
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC (max 32 GB)
Features
ONVIF
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 16/11/2016
This product's last date of support is on: 16/11/2018
