Full HD Mini Pan and Tilt Dome Network Camera

DCS-5615

  • Product Status: End of Life

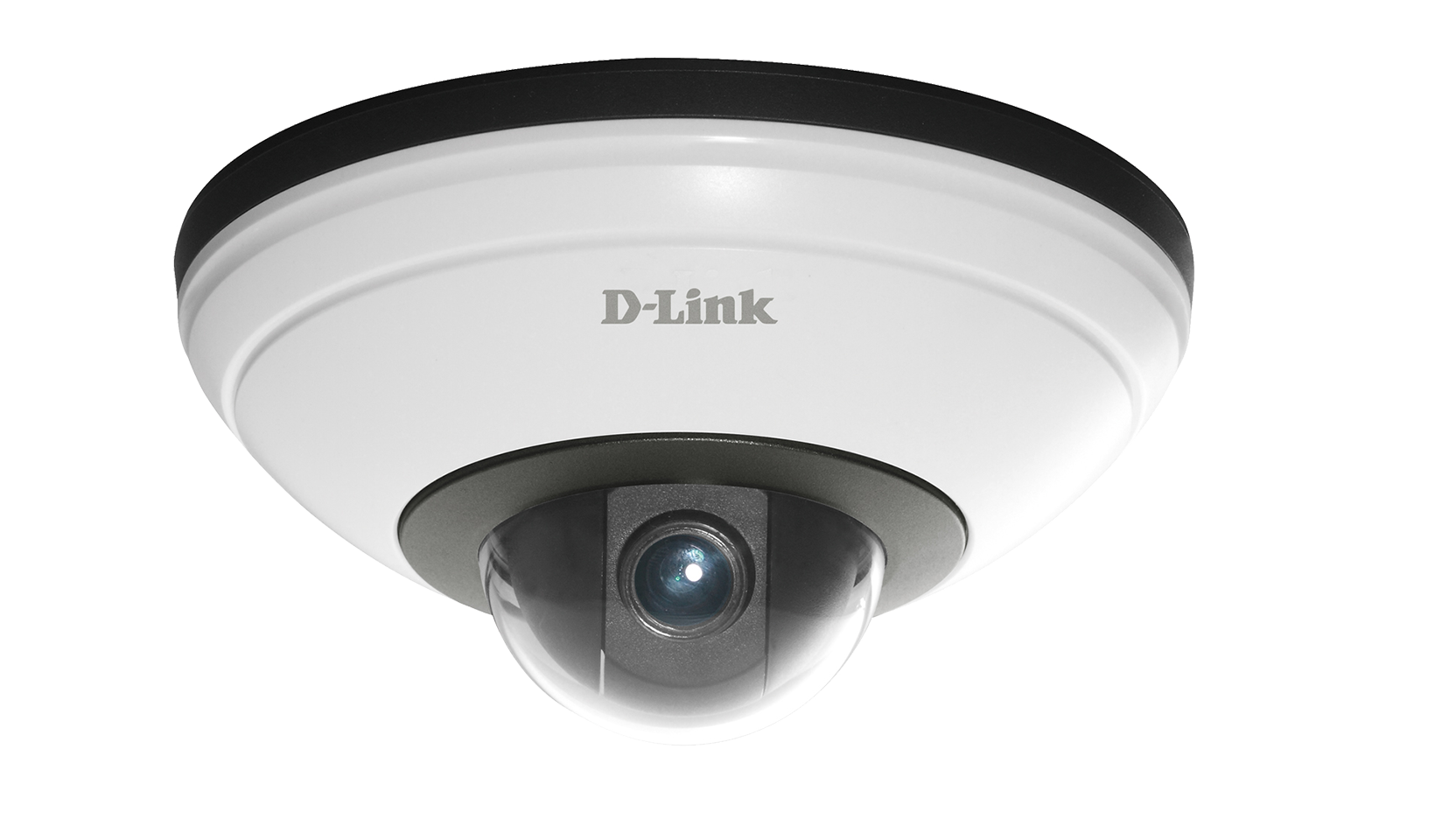

The DCS-5615 Full HD Mini Pan & Tilt Dome Network Camera features industry-leading high definition (Full HD 1080p) 2 megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. The DCS-5615 connects to a network to provide high-quality live video over the Internet.

Full HD Surveillance

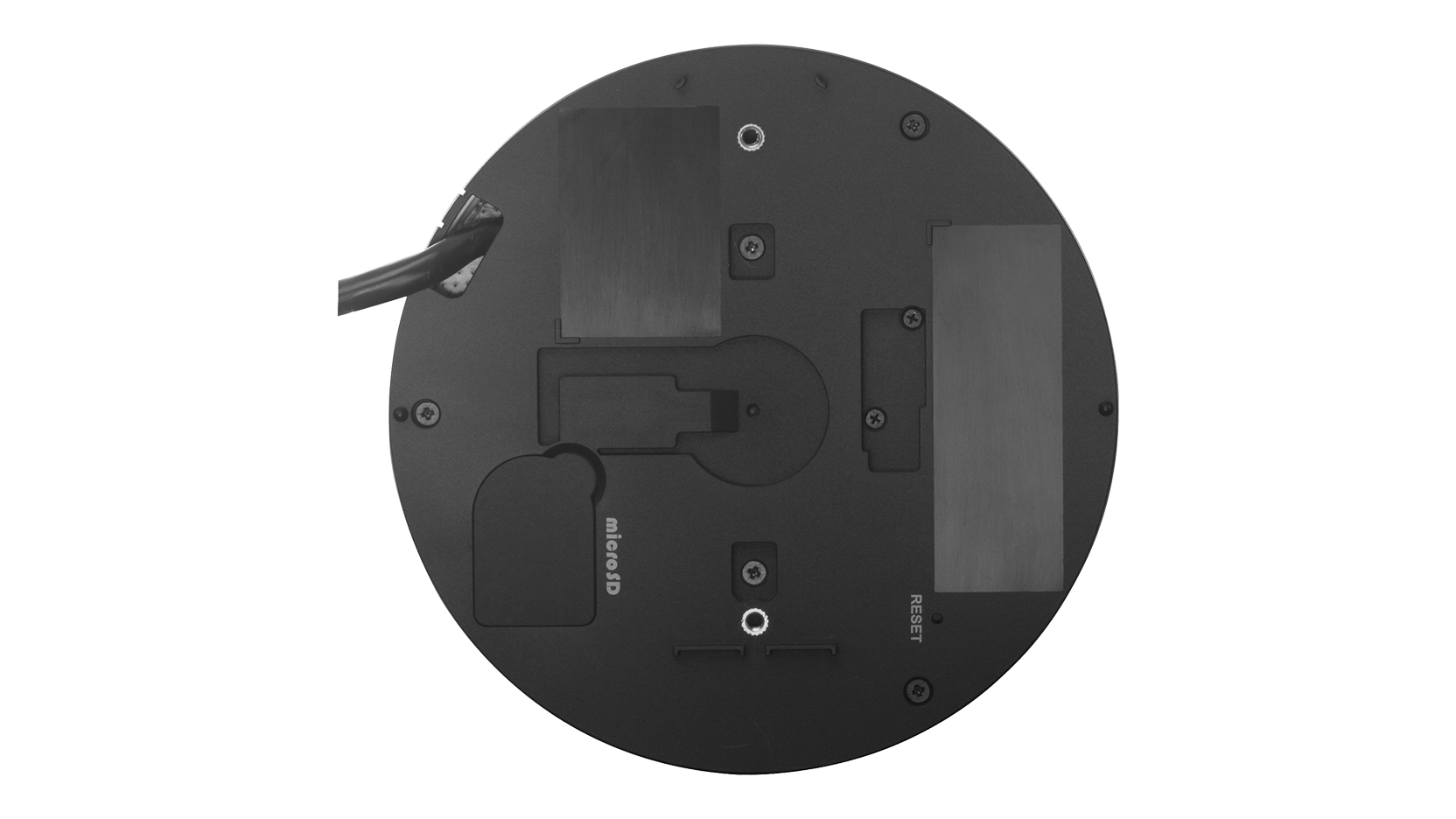

The DCS-5615 delivers Full HD 16:9 widescreen IP video surveillance and provides vivid high-quality video, making it easier to view and monitor footage. With the included D-ViewCam™ 32-channel recording software, the DCS-5615 provides a complete solution for high-quality live viewing and reliable recording. The camera also has a built-in microSD card slot which can be used for local backup by storing important events on an easily retrievable microSD card1.

Multiple Video Streams

The DCS-5615 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with a high level of detail or for use in low bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, the DCS-5615 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Sharp Image Monitoring from Different Angles

With accurate, responsive pan/tilt movement and digital zoom, the DCS-5615 gives you full control, so you can quickly scan a wide area from a variety of angles and 16x digital zoom lets you zoom in on specific areas for more detail. The DCS-5615 can also be set to automatically move to specific preset positions, allowing the camera to patrol particular areas of interest within a surveillance area.

Flexible Connectivity

The DCS-5615 includes an input port for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-5615 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Tamper-proof

Tamper-proof features make the DCS-5615 camera suitable for tamper‑prone locations such as transportation hubs, schools or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked or spray-painted, and respond promptly with a visible or audible alarm.

D-ViewCam™ for Management

The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record important events directly to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where the cameras are located, further simplifying the management process.

1. MicroSD card not included

Related Products

Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
Stackable Smart Managed Gigabit Switches
DGS-1510-20, DGS-1510-28X, DGS-1510-28P, DGS-1510-28XMP, DGS-1510-52X, DGS-1510-52XMP
Find out more
8-Port Gigabit PoE Unmanaged Desktop Switch
DGS-1008P
Find out more
Indoor/outdoor
Indoor
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.7" 2 megapixel progressive scan CMOS
Maximum Video Resolution
1920 x 1080 (16:9)
Lens
4 mm
F1.5
Fixed
Motorised Pan/Tilt
Supported
Privacy Masks
5 zones
Built-in Microphone
Supported
External Card Slot
MicroSD SDHC (max 32 GB)
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
16x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
This product was phased out on: 16/07/2016
This product's last date of support is on: 16/07/2018
