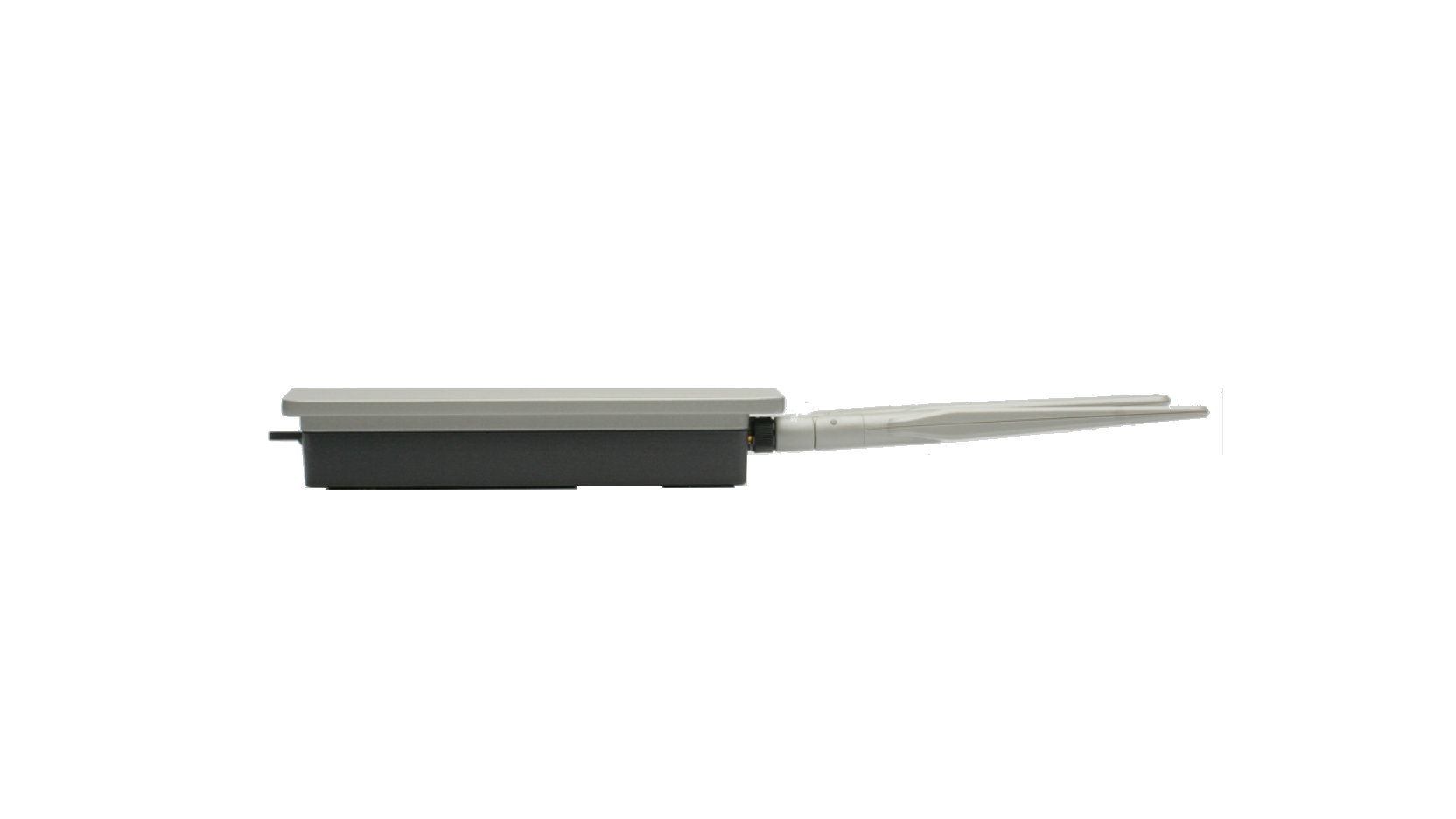

Wireless N Dual Band PoE Access Point

DAP-2590

  • Product Status: End of Life

Compatibility and performance

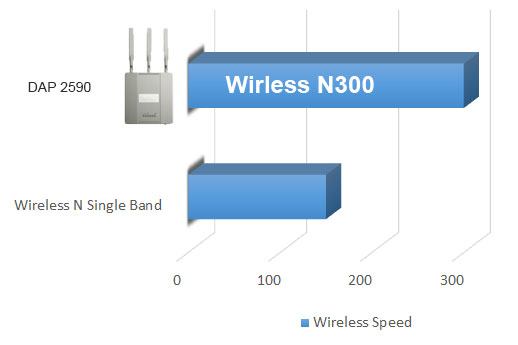

With adjustable antennas, the DAP-2590 delivers 300Mbps per band performance

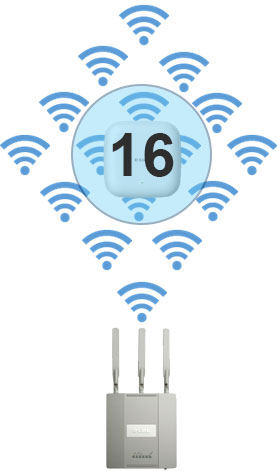

Broadcast 16 independent SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band, including station isolation

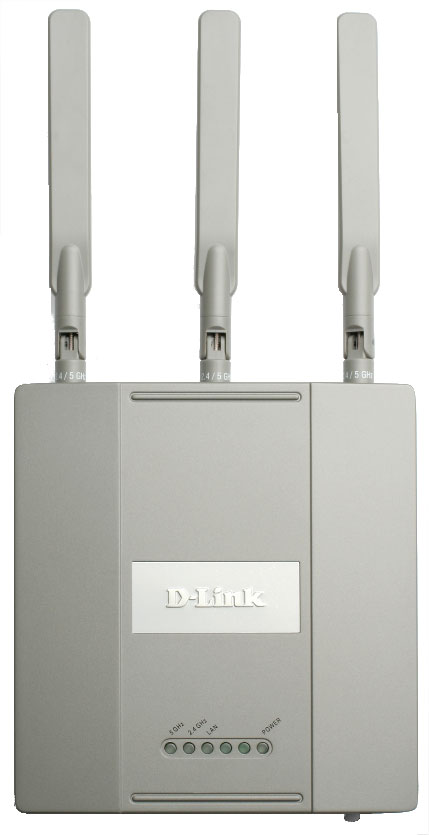

Performance and Compatibility

The DAP-2590 is a second generation Dual-Band Wireless N indoor access point designed specifically for businesses. It’s varied and comprehensive management capabilities ensures that the DAP-2590 meets the needs of almost any business.

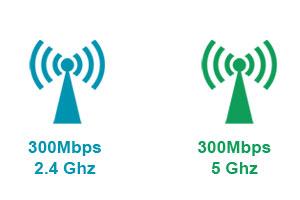

Simultaneous Dual-Band Wireless

Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

Smart Design

The DAP-2590 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Type
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Dual-band selectable
Antenna type
3 detachable omni-directional antennas
Antenna gain
4 dBi for 2.4 GHz
6 dBi for 5 GHz
Power-over-Ethernet
Yes
Wired interface
1 x Gigabit Ethernet LAN
Indoor/outdoor
Indoor
Type of housing
Metal
Plenum rated (UL-2043)
Supported
Wireless modes
Access Point (AP)
WDS bridge
WDS with AP
Wireless client
Advanced features
MIMO
Maximum number of SSIDs
8
Auto channel selection
Supported
WMM-PS/802.11e (U-APSD)
Supported
Wi-Fi scheduler
Supported
AP traffic load balance
Supported
L2 roaming
Supported
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
WPA_WPA2_PSK over WDS
Supported
WLAN partition
Supported
SSID broadcast disable
Supported
Rogue AP detection
Supported
Station isolation
Supported
MAC address filtering
Supported
802.1X authentication
Supported
DHCP server
Supported
802.1D STP
Supported
IGMP snooping
Supported
ARP spoofing
Supported
NTP
Supported
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
Telnet
Supported
SSH
Supported
Syslog
Supported
Central management (through AP Manager II and/or D-View Wireless Control Module)
Supported
This product was phased out on: 15/05/2016
This product's last date of support is on: 14/05/2021
