Wireless N Access Point


  • Product Status: Live
The DAP-2020 Wireless N Access Point allows your business to create a secure and manageable wireless network. Multiple operational modes, network management tools and security features gives network administrators more flexible deployment options. The DAP-2020 can be wall mounted or placed on a desktop to meet any wireless demands.

Download the datasheet.

Where to buy




Create a secure and manageable wireless network with ease. Multiple operational modes, network management tools and security features provide greater flexibility.










Secure Your Wireless Network

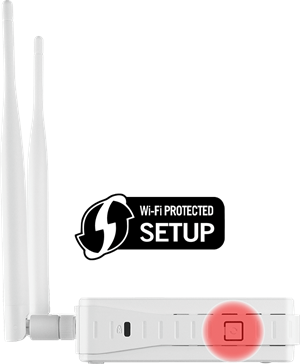

Set up your wireless network quickly and securely with Wi-Fi Protected Setup (WPS).

Latest Wi-Fi security standards ensure encrypted and secure wireless network traffic with no hassle.



Multiple Operation Modes

Configure the DAP-2020 to suit your specific wireless application needs with seven different operation modes.

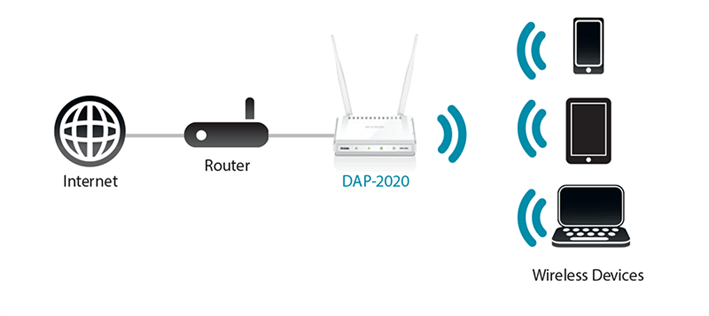

Access Point Mode

"Access point" mode allows the device to act as a central hub for wireless users. This is the most common use of an access point.

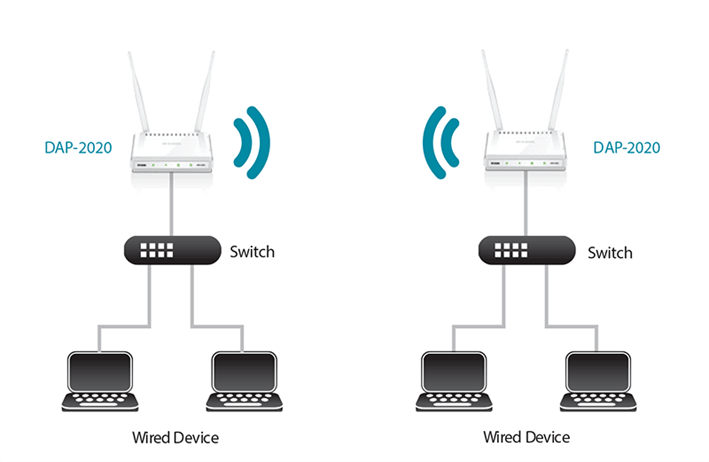

Bridge Modes

"Bridge" mode can wirelessly join two networks together, while "Bridge with AP" mode allows the device to act as a wireless hub and as a bridge at the same time.


Repeater mode extends wireless coverage to cover all dead spots.

Wireless client mode enables the DAP‑2020 to connect to another access point.

WISP client router mode allows wireless Internet service subscribers to share an Internet connection with wired computers without the need for an extra router.

WISP repeater (range extender) mode can let WISP subscribers share their Internet connection with wireless devices without any additional routers.


Quick and Easy Installation

With the D‑Link setup wizard, you can set up your wireless network in minutes. It configures your DAP‑2020’s operating mode and allows you to easily add new wireless devices to the network.


Effective Power Saving

Built-in schedule function dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.


Whats in the box?



Ethernet Cable

Power adapter
Software Managed AP
Wireless standard
Wireless N
Frequency band mode
Wireless speed
300 Mbps 2.4 GHz
Antenna type
2 detachable omni-directional antennas
Antenna gain
5 dBi for 2.4 GHz
Wired interface
1 x Fast Ethernet LAN
Type of housing
Wireless modes
Access Point (AP)

Wireless client
Advanced features
Maximum number of SSIDs
Auto channel selection
WMM-PS/802.11e (U-APSD)
Wi-Fi scheduler
WEP 64/128 bit
TKIP/AES encryption
WLAN partition
SSID broadcast disable
Station isolation
MAC address filtering
802.1X authentication
DHCP server
IGMP snooping
