48 10G SFP+ Ports & 6 x 100G QSFP28 ports Two AC modular power supplies


  • Product Status (Revision IN): Live

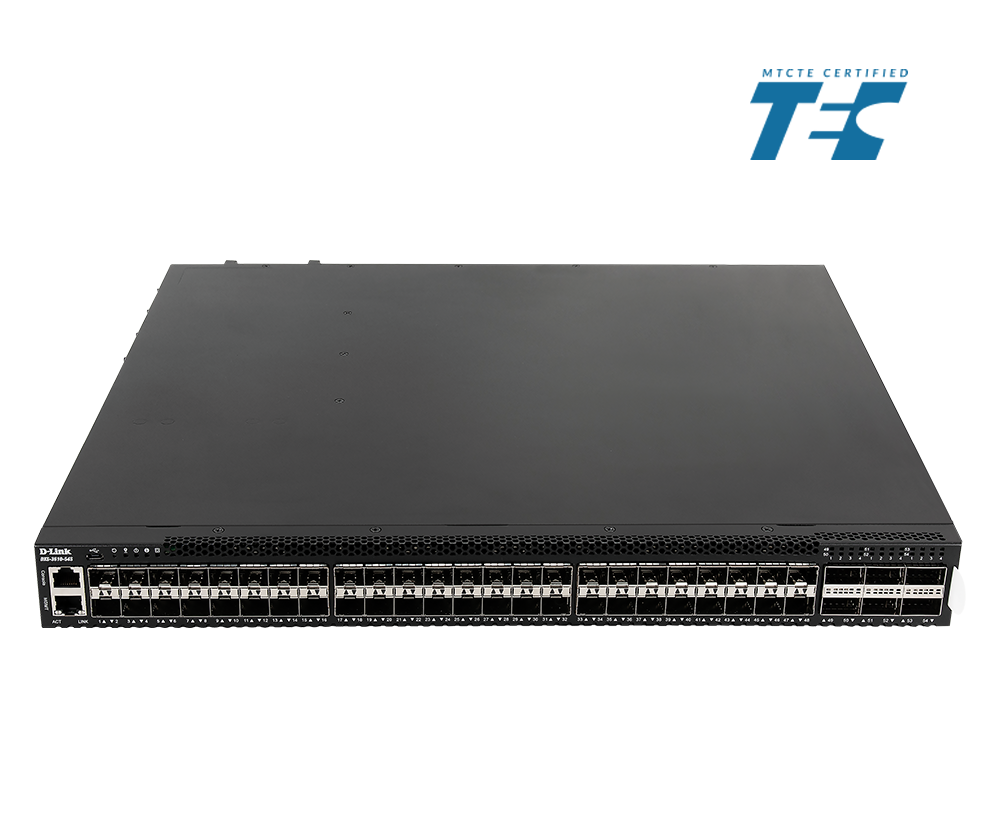

  • High port density : 48 10G SFP+ Ports & 6 x 100G QSFP28 ports
  • Open Flow v1.4 compliance for DSN-enabled network compatibility

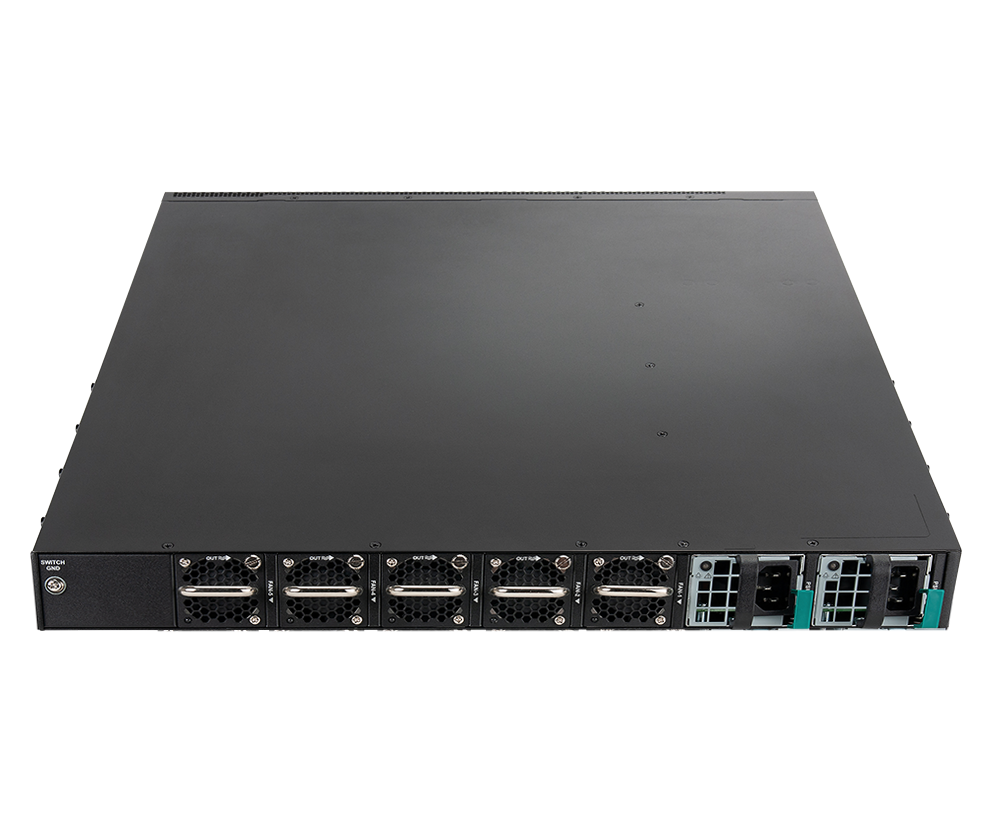

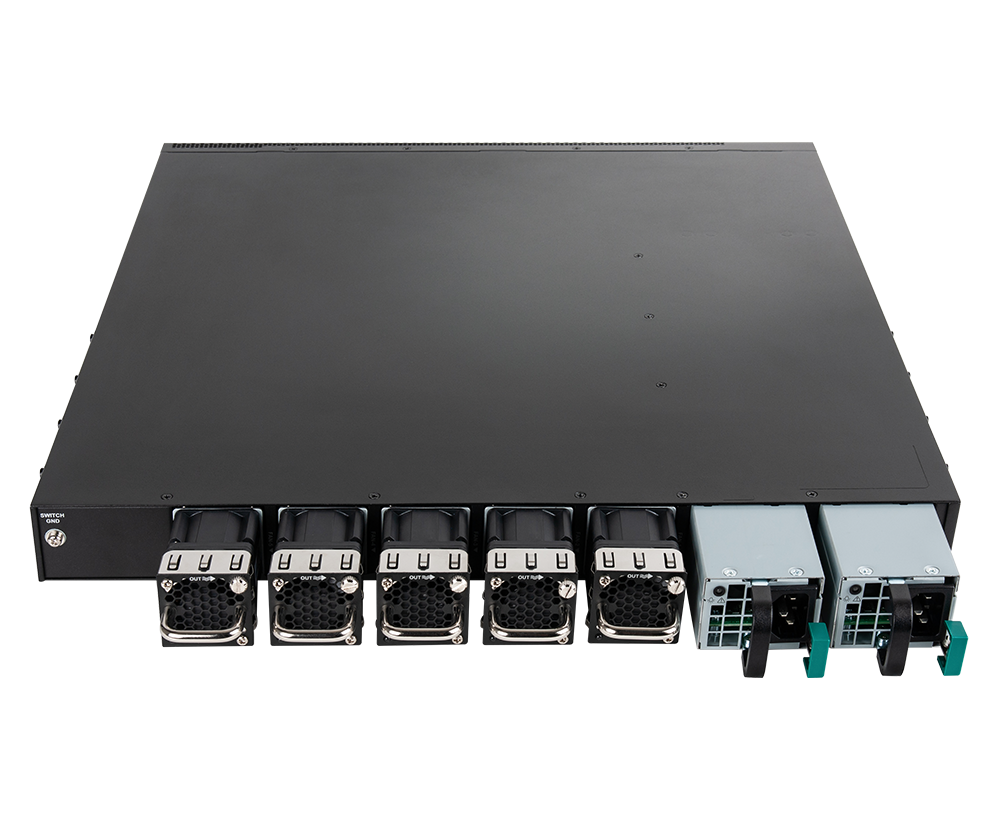

  • Modular PSU (1+1) and 5 fan modules
  • Switch locater LED and ID tag for maintenance convenience

Download the datasheet.

Where to buy

Open Flow Switching

The DXS-F3610 layer 3 is open flow switches compatible with SDN enable network architecture for deployment in high-performance data center, enterprise, and campus applications.

Size 19-inch, 1U rackmount
Interfaces 48 x 1/10GbE SFP/SFP+ ports, 6 x 40/100GbE QSFP+/QSFP28 ports
Console Port RJ-45 console port for out-of-band management
Management Port 10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management
USB Port 1 x USB 2.0 Type A port
Flash Memory 32MB SPI NOR, M.2 32GB MLC
CPU Intel Atom/Denverton C3558 2.2GHz 4 core x86 processor


Version Date Type File Size
Datasheet - PDF 1.19mb Download
