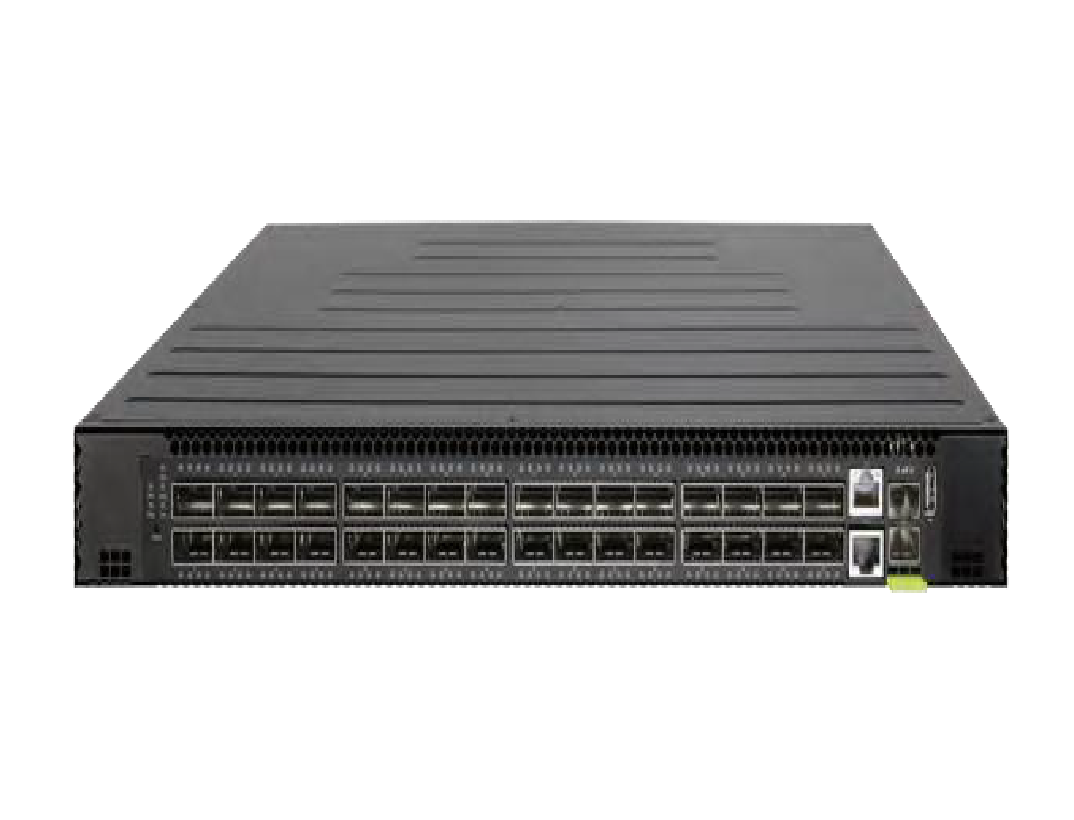

100 Gig Data Center Switch

DTS-F5000-32ZS

  • Product Status (Revision IN): Live
  • 32 x 100G QSFP28 ports
  • 3.2 Tbps non-blocking throughput
  • Powered by D-LinkNOS — enterprise SONiC with EVPN-VXLAN, RoCEv2
  • Full automation APIs built for AI/ML and hyperscale data centers
  • Wire-speed, ultra-low latency switching
  • Supports Open Network Install Environment (ONIE) for zero-touch installation of network OS
  • Dual AC/DC hot-swappable power supply modules for 1+1 redundancy and load sharing
  • Modular, 5+1 hot-swappable fan design
MTCTE CERTIFIED

Download the datasheet.

Where to buy

Key Specifications at a Glance

D-Link Inspired | Enterprise Switch Series
3.2Tbps
Switching Capacity (6.4T FDX)
32×
100G QSFP28 Ports
2Bpps
Forwarding Rate
1+1
Redundant Hot-Swap PSU
Platform Highlights

Built different.
Designed for density.

Carrier-class silicon, open networking DNA, and a software stack that speaks the language of modern data center automation.

32 × 100G QSFP28
Full-density 100G spine ports with flexible breakout.
3.2 Tbps · 6.4T FDX
Broadcom Trident3 ASIC
Cloud-scale silicon with deterministic latency.
2 Bpps · 32 MB Buffer
Open Networking — SONiC
ONIE-ready with automation ecosystem support.
ONIE · D-LinkNOS
EVPN-VXLAN Fabric
Full DC fabric features with multihoming.
EVPN · VXLAN · MC-LAG
RoCEv2 & Lossless QoS
Optimized for AI/ML and RDMA workloads.
RoCEv2 · PFC/ECN
Carrier-Class Reliability
Redundant PSU, fans, and efficient cooling.
1+1 PSU · 5+1 Fans
D-LinkNOS Software Stack

SONiC. Modular.
Cloud-native from day one.

Built on SONiC's modular architecture — every protocol running as an independent containerized service. Zero vendor lock-in.

Data Center Fabric

  • VXLAN, BGP-EVPN (Type-2/3/5), EVPN Multihoming
  • MC-LAG for active-active multi-chassis link aggregation
  • PFC, ECN, DLB — lossless traffic & RoCEv2
  • VRF, ECMP, BFD, VRRPv3, Static routing & NAT
  • Anycast Gateway, SAG, Loopback & VLAN routing

Operations & Security

  • CLI/SSH, WebUI, SNMPv1/v2c/v3, REST, NETCONF
  • gNMI, OpenConfig, Streaming Telemetry
  • Zero-Touch Provisioning (ZTP), sFlow, Syslog
  • AAA, TACACS+, RADIUS, ACLs, CoPP, Storm control
  • QoS: DSCP/CoS, WRR/WFQ, WRED, shaping & policing





























Specification

Download the datasheet.

Ports 32 × 100G QSFP28 — breakout to 4×25G / 4×10G / 2×50G
Switching Capacity 3.2 Tbps (6.4 Tbps full duplex)
Forwarding Rate 2 Bpps
ASIC Broadcom Trident3
CPU / Memory Intel x86 Quad-Core / 16 GB DDR4 / 64 GB SSD
Packet Buffer 32 MB shared buffer
Form Factor 1U — 440 × 515 × 44 mm
Cooling 6 fans (5+1 redundant), front-to-back airflow
Power Supply 1+1 redundant, hot-swappable AC — 550 W max
Operating Temp 0 °C – 45 °C
DC Fabric VXLAN, BGP-EVPN, EVPN-MH, MC-LAG, RoCEv2, PFC / ECN / DLB
Management CLI/SSH, SNMPv3, REST, NETCONF, gNMI, ZTP
Telemetry Syslog, sFlow, OpenConfig, Streaming Telemetry, INT
Software D-LinkNOS (enterprise SONiC) — ONIE compatible

Support

Version Date Type File Size
Datasheet - - - Download
