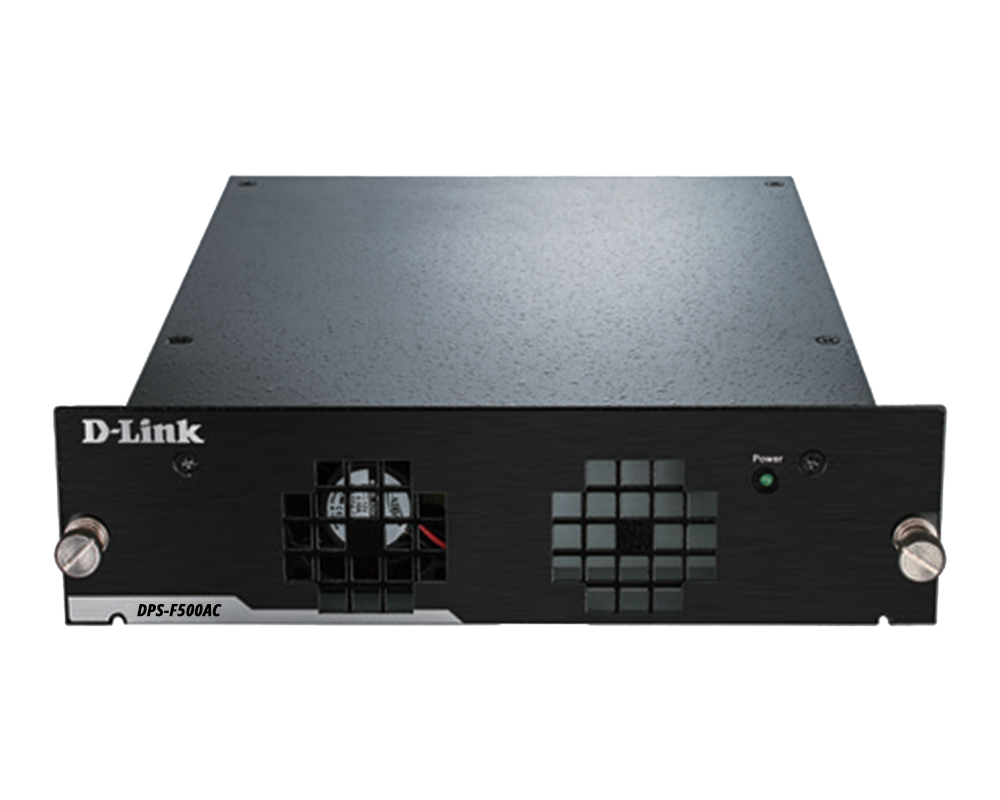

Modular redundant power supply
DPS-F500AC
- Product Status (Revision IN): Live
- Connect to D-Link Ethernet and Gigabit switches
- Delivers upto 150 watts output power
- Provide backup power for switch’s built-in power supply High-performance
- 6 KV Surge Protection on Common mode
- Easy and Flexible Deployment
- Solid metal case housing
Where to buy
Redundant Power Supply Protection for Network Reliability
The DPS-Series of redundant power supplies (RPS) provide protection from damaging surges, spikes and inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports, or an entire network.
Specification
| Input Voltage Range | 90 ~ 264VAC |
|---|---|
| Input Frequency Range | 47 ~ 63Hz |
| Max Input Current | 4 A @ 115 V AC , 2 A @ 230 V AC |
| POWER FACTOR | PF >0.95/230VAC , PF >0.98/115VAC at full load |
| EFFICIENCY (Typ.) | Higher than 90% |
| DC VOLTAGE | 12.5V |
| Rated Power | 150 W |
| Ripple & Noise | 120 mV (P-P) |
| LINE REGULATION | ±0.5% |
| Load Regulation | ±1.0% |
| Signals Generated to Switch | RPS Present, RPS Power Good |
