D-Link, the worldwide leader in innovative home and business networking, sets another new standard for broadband router performance with the D-Link Express EtherNetwork™ DI-707P.

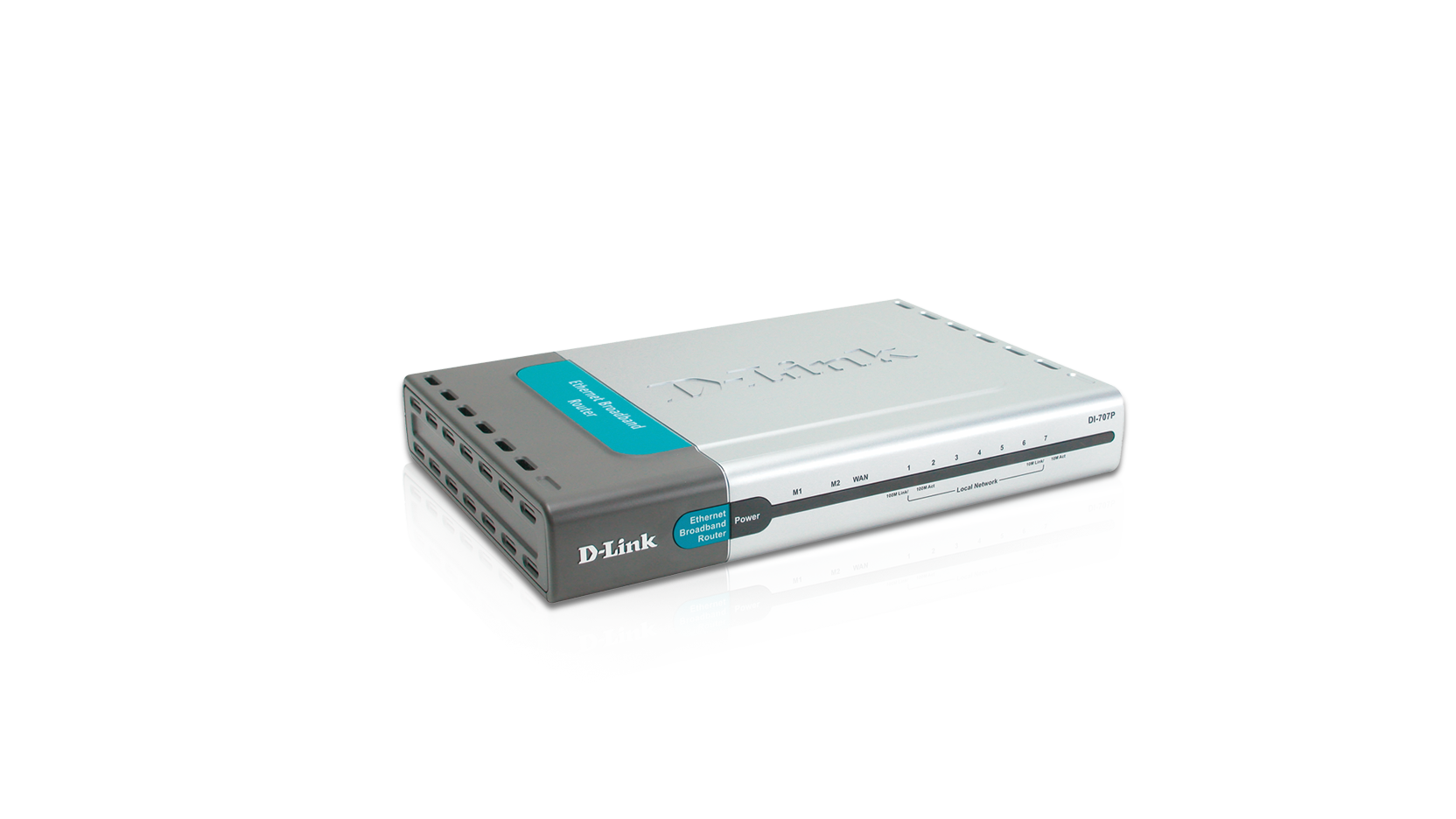

The DI-707P is an Ethernet Broadband Router with a built-in 7-port switch. It also features a parallel port to share a printer on a small office workgroup or network and includes a print server application for Windows1. As many as seven computers can be connected to the router's integrated switch, using its seven 10/100Mbps AutoMDIX Ethernet ports. The DI-707P package even includes an Ethernet cable to get you started.
The DI-707P is ideal if you're creating a small business network, or if you're a more advanced user looking for additional management settings.
The DI-707P includes an easy-to-use web-based graphical user interface (GUI) to configure the router. To keep prevent unwanted Internet intruders from accessing your network, the DI-707P also serves as a feature-rich firewall.
So, whether you're a college student who wants to network with friends and roommates or a small business owner who wants to have more control over how your employees access the Internet, then the D-Link Express EtherNetwork DI-707P is the networking solution for you, even if you don't know much about networking.
1—Printer Server software included is for Windows Operating Systems only. Postscript Level 1 and 2 printers can be connected to the DI-707P for Macintosh OS 9.x or X computers. The DI-707P does not support non-Postscript printers with Macintosh OS.
The DI-707P is an Ethernet Broadband Router with a built-in 7-port switch. It also features a parallel port to share a printer on a small office workgroup or network and includes a print server application for Windows1. As many as seven computers can be connected to the router's integrated switch, using its seven 10/100Mbps AutoMDIX Ethernet ports. The DI-707P package even includes an Ethernet cable to get you started.
The DI-707P is ideal if you're creating a small business network, or if you're a more advanced user looking for additional management settings.
The DI-707P includes an easy-to-use web-based graphical user interface (GUI) to configure the router. To keep prevent unwanted Internet intruders from accessing your network, the DI-707P also serves as a feature-rich firewall.
So, whether you're a college student who wants to network with friends and roommates or a small business owner who wants to have more control over how your employees access the Internet, then the D-Link Express EtherNetwork DI-707P is the networking solution for you, even if you don't know much about networking.
1—Printer Server software included is for Windows Operating Systems only. Postscript Level 1 and 2 printers can be connected to the DI-707P for Macintosh OS 9.x or X computers. The DI-707P does not support non-Postscript printers with Macintosh OS.
Specification
Standards
VPN Pass Through
Ports
Device Management
LEDs
Operating Temperature
Power Input
Safety & Emissions
Dimensions
Weight
Warranty
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE 802.3 NWay Auto-Negotiation
VPN Pass Through
- PPTP
- L2TP
- IPSec
Ports
- One WAN
- Seven LAN
Device Management
- Web-Based – requires at least Microsoft Internet
- Explorer v5 or later; Netscape Navigator v4
- or later; or other Java-enabled browsers
LEDs
- Power
- WAN
- Local Network—10/100
Operating Temperature
- 32°F to 131°F ( 0°C to 55°C)
- 95% maximum (non-condensing)
Power Input
- External Power Supply
- DC 5V, 2A
Safety & Emissions
- FCC
- UL
Dimensions
- L = 7.56 inches (192mm)
- W = 4.64 inches (118mm)
- H = 1.22 inches (31mm)
Weight
- 0.68 lbs (0.31g)
Warranty
- One Year
Support
This product was phased out on: 05/12/2006
This product's last date of support is on: 04/12/2008
