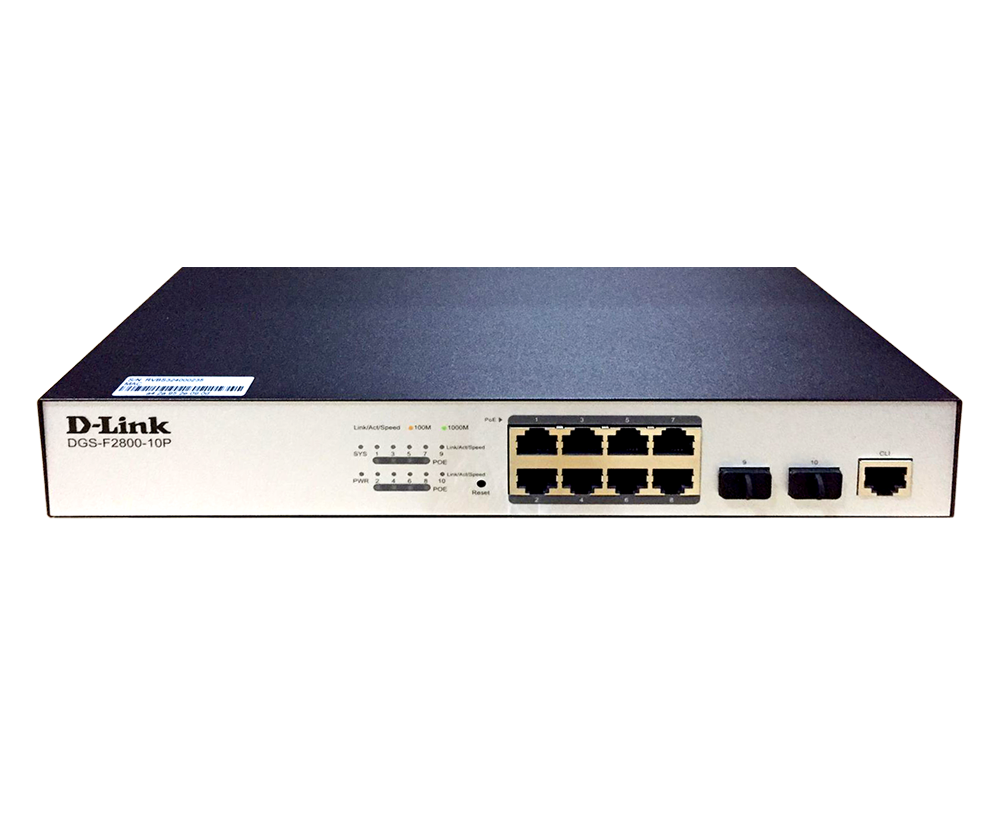

Lite L3 PoE Managed Switch
DGS-F2800-10P
- Product Status (DGS_F2800_10P_IN): Live
- 8*10/100/1000 Base-T Ethernet PoE+ ports
- 2*Gigabit SFP ports
- 130 watts available PoE
- Flow control for protection against data loss
- Light protection 6KV
- Operating Temperature: 0 to 40 deg C (32 to 104 deg F)
Where to buy
High Availability and Flexibility
The DGS-F2800-10P is a 10/100/1000 Mbps copper port that offer Power-over-Ethernet (PoE) so network devices such as PoE IP cameras can be installed in remote locations without immediate access to power outlets. Simply use an Ethernet cable to connect to these devices at the deployment location and it can act as a conduit not only for data, but for power as well.
Security and Control
Security is paramount in modern network environments. The DGS-F2800-10P offers comprehensive security features to protect your network and data.
Quality of Service (QoS) and Traffic Management
The DGS-F2800-10P is equipped with a comprehensive set of QoS features that ensure critical network services such as voice over IP (VoIP), video conferencing, and IPTV receives the bandwidth and priority they require.
Cost-Effective Solution
Balancing performance and cost, the DGS-F2800-10P delivers enterprise-grade features without the hefty price tag.
Specification
|
Hardware version
|
B1 |
|---|---|
|
Number of Ports
|
8 x 10/100/1000 Mbps PoE |
|
Switching Capacity
|
20 Gbps |
|
Dimensions
|
280mm x 180 mm x 44mm |
|
PoE Power Budget
|
130 W |
|
Standards
|
IEEE 802.3 100BASE-T Ethernet IEEE 802.3 10BASE-T Ethernet IEEE 802.3ab 1000BASE-T |
|
Environment
|
Indoor |
|
VLAN
|
802.1Q Voice VLAN |
|
Security
|
DoS Attack Prevention Traffic Segmentation |
|
Certifications
|
CE |
|
MTBF
|
1,082,534 hours |
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
