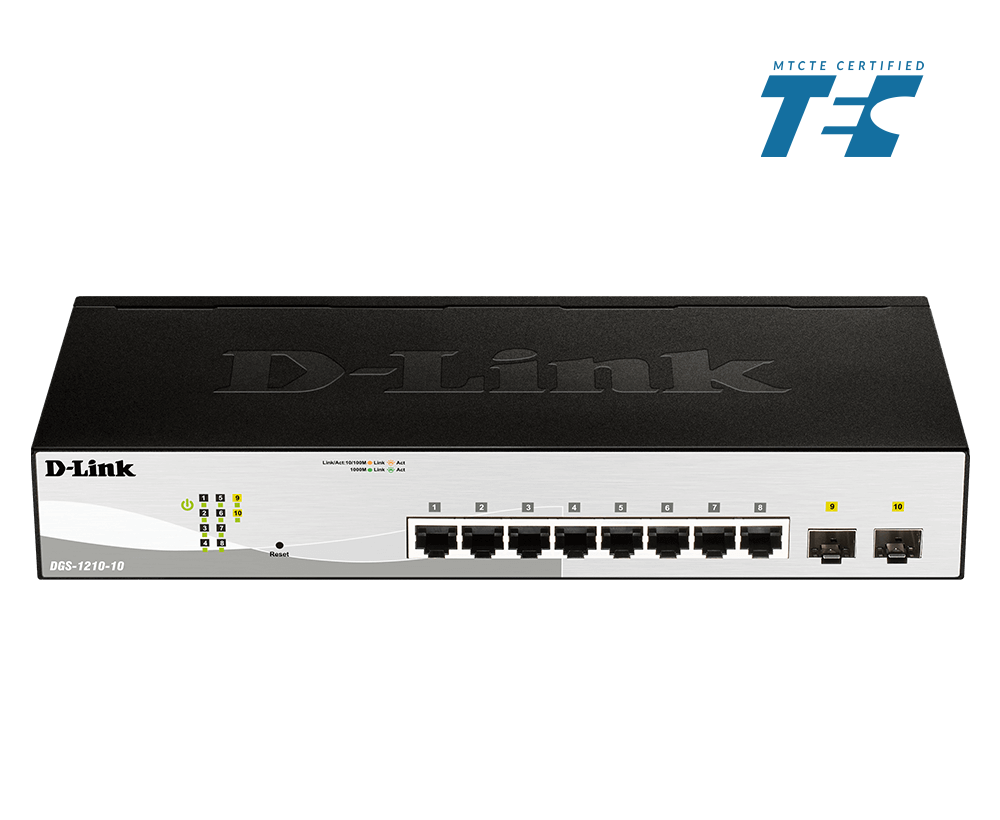

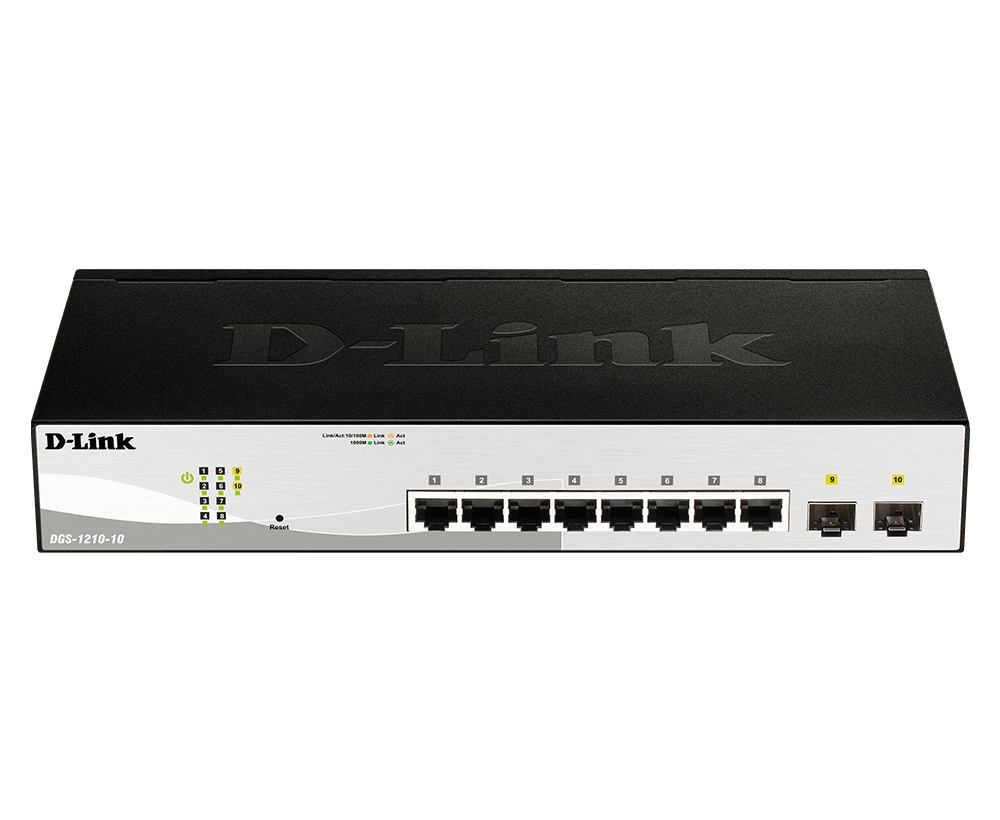

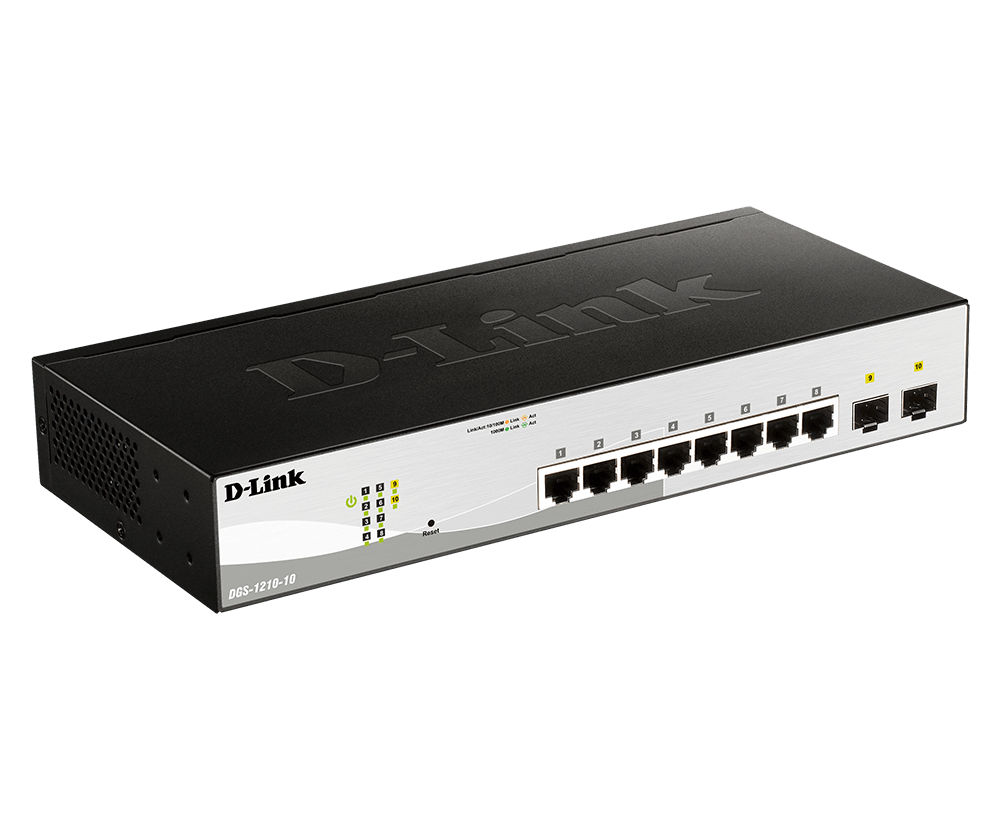

10-Port Gigabit Smart Managed Switch

DGS-1210-10

  • Product Status (DGS1210_SeriesFX_IN): Live
  • 8 x 10/100/1000BASE-T ports
  • 2 x Gigabit SFP ports
  • Advanced L2 switching and security features
  • L2+ Static Routing
  • Optional “standard mode” or “surveillance mode” management user interface
MTCTE certificate

Download the datasheet.

Where to buy

Powerful, yet Cost-Efficient

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

PoE Support

Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

Automatic Configuration

The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

Comprehensive Security Features to Protect Your Network

D-Link's innovative Safeguard Engine protects switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

Extensive Management and Layer 2 Features

The DGS-1210 Series comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers.

The Series also supports advanced features such as static routing, which allows for communication between different user groups in different VLAN segments in a network. The switch can directly handle inter VLAN routing using multiple interfaces, making the network run faster and more efficiently. And, because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

DGS-1210 Sereis

Product DGS-1210-10
DGS-1210-10
10-Port Gigabit Smart Managed Switch
DGS-1210-10MP
DGS-1210-10MP
10-Port Gigabit Smart Managed PoE Switch
DGS-1210-10P
DGS-1210-10P
10-Port Gigabit Smart Managed PoE Switch
DGS-1210-20
DGS-1210-20
20-Port Gigabit Smart Managed Switch
DGS-1210-26
DGS-1210-26
26-Port Gigabit Smart Managed Switch
DGS-1210-52MPP
DGS-1210-52MPP
52-Port Gigabit Smart Managed PoE Switch
Interface
  • 8 x 10/100/1000BASE-T ports
  • 2 x SFP ports
  • 8 x 10/100/1000BASE-T PoE ports
  • 2 x SFP ports
  • 8 x 10/100/1000BASE-T PoE ports
  • 2 x SFP ports
  • 16 x 10/100/1000BASE-T ports
  • 4 x Combo 10/100/1000BASE-T/SFP ports
  • 24 x 10/100/1000BASE-T ports
  • 2 x SFP ports
  • 48 x 10/100/1000BASE-T PoE ports
  • 4 x SFP ports
Performance
Switch Capacity20 Gbps20 Gbps20 Gbps40 Gbps52 Gbps104 Gbps
Max. Packet Forwarding Rate14.88 Mpps14.88 Mpps14.88 Mpps29.8 Mpps38.7Mpps77.4 Mpps
PoE
PoE Budget130 W65 W740 W
Technical Specification
Maximum Heat Dissipation21.53 BTU/hr (100V)
21.59 BTU/hr (240V)
519.51 BTU/hr (100 V)
507.23 BTU/hr (240 V)
279.59 BTU/hr (100 V)
275.04 BTU/hr (240 V)
44.62 BTU/hr (100V)
44.41 BTU/hr (240V)
51.93 BTU/hr (100V)
51.57 BTU/hr (240V)
3,301.08 BTU/hr
Maximum Power Consumption6.31 W/100 V
6.33 W/240 V
152.3 W/100 V, 148.7 W/240 V (PoE on)
8.5 W/100 V, 9.4 W/240 V (PoE off)
81.9 W/100 V, 80.6 W/240 V (PoE on)
7.6 W/100 V, 7.5 W/240 V (PoE off)
13.08 W/100 V
13.02 W/240 V
15.22 W/100 V
15.11 W/240 V
967.5 W (PoE on)
53.1 W (PoE off)
MTBF1,380,058 hours1,274,005 hours729,258 hours1,087,100 hours1,082,534 hours350,728 hours

Acoustic
0 dB
CPU Speed
500MHz
Dimensions
280 x 126 x 44 mm
DRAM Size
DDR3 128MB
FAN
Fanless
Flash Memory Size
32 MB
Humidity
Operating: 0% - 95% RH
Storage: 0% - 95% RH
Interfaces
2 x SFP ports
8 x 10/100/1000 BASE-T ports
Max. Packet Forwarding Rate
14.88 Mpps
Maximum Heat Dissipation
21.53 BTU/hr (100V)
21.59 BTU/hr (240V)
Maximum Power Consumption
6.31 W/100 V
6.33 W/240 V
MTBF
1,380,058 hours
Operating Altitude
1500 m
Packet Buffer Size
4.1Mbits

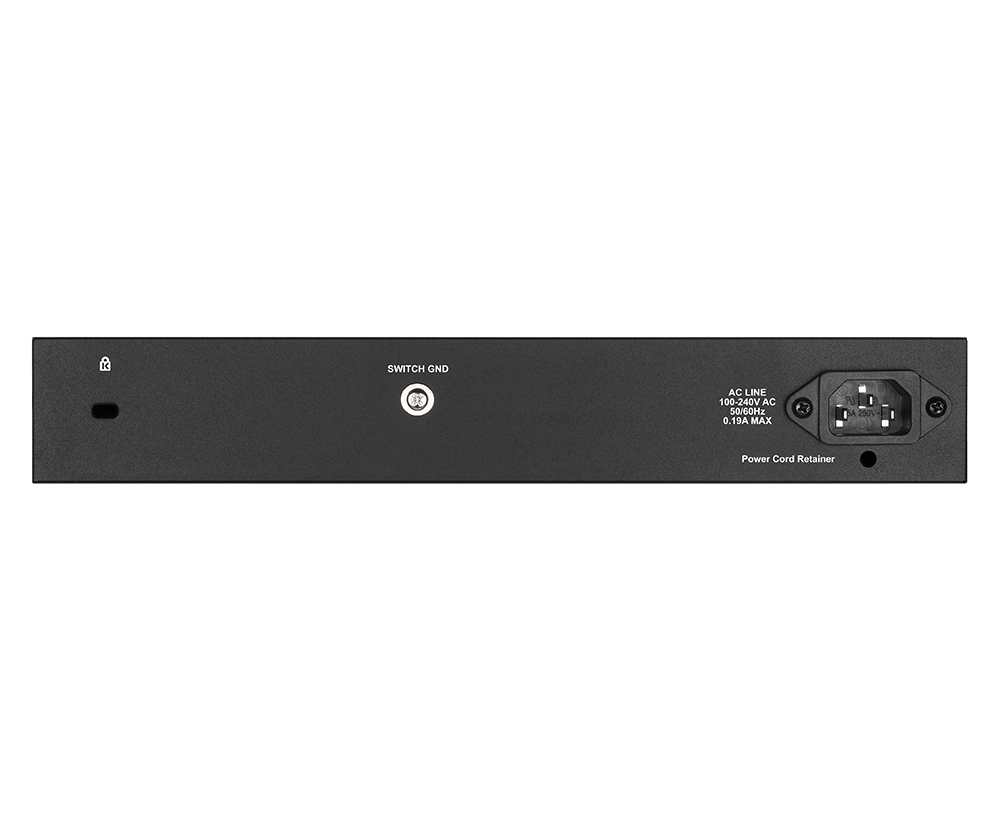

Power Input
100 to 240 V AC
Standby Power Consumption
2.03 W/100V
2.07 W/240V
Switch Capacity
20 Gbps
Temperature
Operating: -5 to 50° C (23 to 122° F)
Storage -20 - 70°C
Weight
0.98 kg
