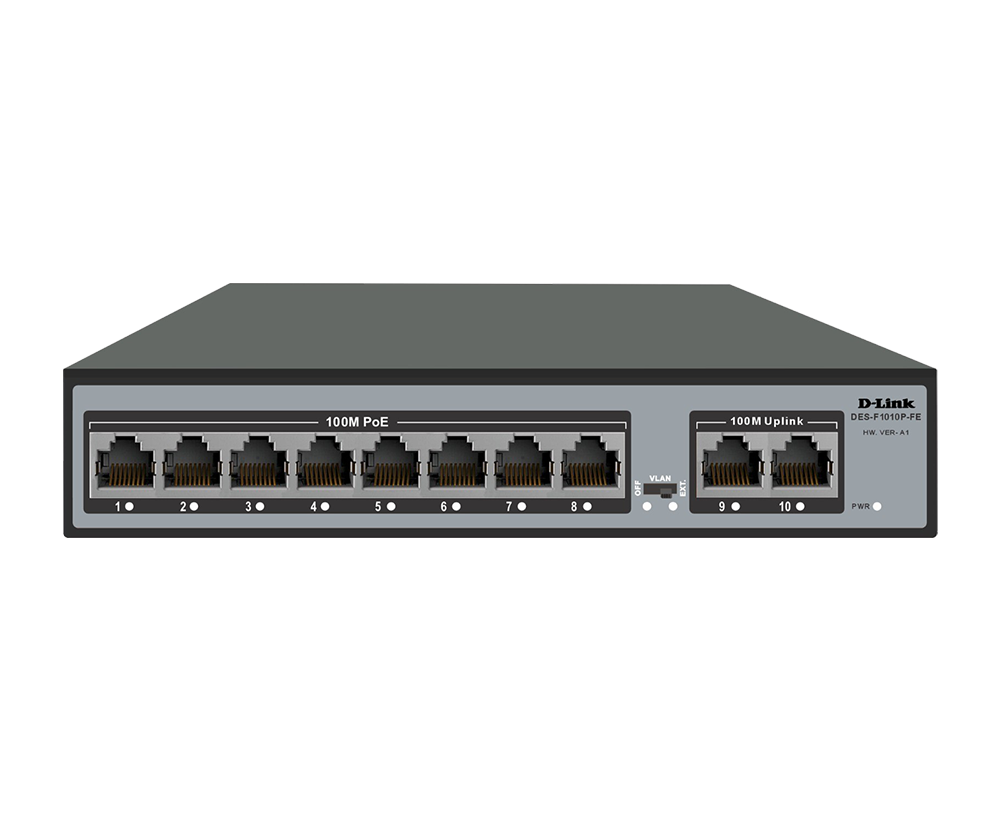

8 + 2 100Mbps 250m PoE Switch
DES-F1010P-FE
- Product Status (DESF1010PFE_IN): Live
- Support upward port auto MDI/MDIX.
- Adopted storage forward switch system
- Smart power and minimum consumption guarantee PD requirement.
- With power supply circuit protection function and protection back-end device safety
- Automatically provide the adaptive device
- Fanless design, energy saving and environmental protection.
- 8 10/100 Mbps POE port
- 2 10/100/100 Mbps uplink port
- Support saving power function when port connection
Where to buy
Specification
| Network Interface | 8 10/100 Mbps PoE RJ45 port (port 1 ~port 8) 2 10/100 Mbps non-PoE RJ45 port (port 9~port 10) |
|---|---|
| Transmission Rate | 10/100 Mbps Each port supports MDI / MDIX auto-flip and auto- Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port |
| Protocols and Standards | IEEE802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T ANSI/IEEE 802.3 NWay auto-negotiation IEEE802.3x Flow Control IEEE 802.3af/at standard |
| Performance | Bandwidth: 2 Gbps (no block) Network delay (100 to 100M bps): maximum 20 μs (using 64byte packet) Frame filtering and transmission rate 10M: 14,800pps 100M: 148,800pps |
| LEDs Indicator | Power LINK/ACT, POE |
| POE Pin | 1/2(+) 3/6(-); |
| Power | Total Power: 120W |
| Lightning protection | 6KV |
| Physical specifications | Dimensions (LxWxH): 186mm x 122mm x 33mm Weight: 0.82kg |
| Environmental norms | Operating Temperature: 0°C~40°C Storage Temperature: -10°C~70°C Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| EMC | CE |
