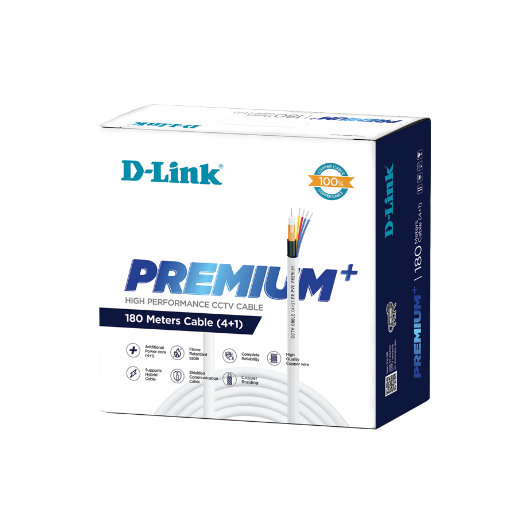

| CCTV Cable | |
| Model No | DCC-WHI-180-4 |
|---|---|
| Color & Material of Outer Sheath | FR PVC_White (IEC 60332-1) |
| Cable Diameter (Oval) | 5.9 +/-0.4mm |
| Jacket Thickness | 0.70 + /- 0.2mm |

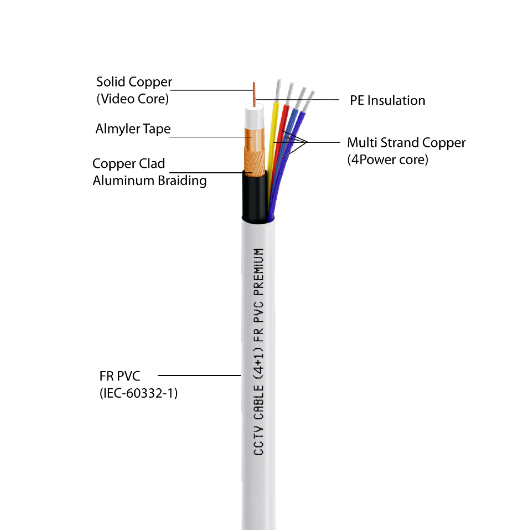

| COAXIAL Cable |
|
| Inner Conductor | Copper |
| No. of Conductors | 1 |
| Dielectric | Solid PE |
| Color | Natural |
| Diameter | 1.31+ / -0.20 mm |
| Shield | (Copper colour Aluminum Myler tape) |
| Shield - Braiding | Copper braiding |
| No. of Braiding wires | 48 |
| Coax jacket | PVC Type ST1 |
| Dia. of Braid Wire | 0.09 +/- 0.02mm |
| Conductor | |
| No. of Strands | 14 |
| Strand Diameter | 0.1+ / -0.02mm |
| Insulation | PVC Type A |
| Diameter (Average) | 1.18+/- 0.2mm |
| Core Colour | Red, Yellow, Grey |
