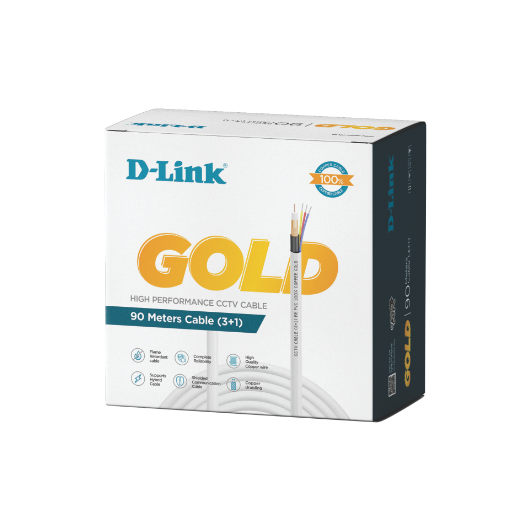

| CCTV Cable | |
| Model No | DCC-CCU-90 |
|---|---|
| Color & Material of Outer Sheath | FR PVC_White (IEC 60332-1) |
| Cable Diameter (Oval) | 5.8 +/-0.4mm |
| Jacket Thickness | 0.75 + /- 0.2mm |
| COAXIAL Cable |
|
| Inner Conductor | Copper |
| No. of Conductors | 1 |
| Dielectric | Solid PE |
| Color | Natural |
| Diameter | 0.60 +/ -0.03mm |
| Shield | 6mm (Copper Color Aluminum Myler tape) |
| Shield - Braiding | Copper braiding |
| No. of Braiding wires | 48 |
| Coax jacket | PVC Type ST1 |
| Dia. of Braid Wire | 0.11 +/- 0.02mm |
| Power Audio Core | |
| No. of Strands | 16 |
| Strand Diameter | 0.10 +/- 0.020mm |
| Insulation | PVC Type A |
| Diameter (Average) | 1.45+/-0.20mm |
| Core Colour | Red, Yellow, Grey |
