| CCTV Cable | |
| Model No | DCC-CAL-180-3F |
|---|---|
| Color & Material of Outer Sheath | FR PVC_White (IEC 60332-1) |
| Cable Diameter (Oval) | 6.100+ / -0.4mm |
| Jacket Thickness | 0.60 + /- 0.2mm |

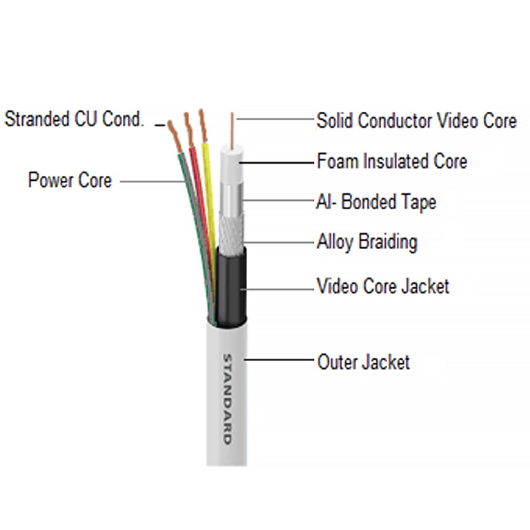

| COAXIAL Cable |
|
| Inner Conductor | Copper |
| No. of Conductors | 1.00 |
| Dielectric | Foamed PE |
| Color | Natural |
| Diameter | 2.00+ / -0.01 mm |
| Shield | Copper Foil Al-Mylar |
| Shield - Braiding | Al-Mg Allow braiding |
| No. of Braiding wires | 48 |
| Coax jacket | PVC Type |
| Dia. of Braid Wire | 0.12 +/- 0.02mm |
| Conductor | |
| No. of Strands | 14 |
| Strand Diameter | 0.1+ / -0.02mm |
| Insulation | PVC |
| Diameter (Average) | 1.25+/- 0.2mm |
| Core Colour | Red, Yellow, Grey |
