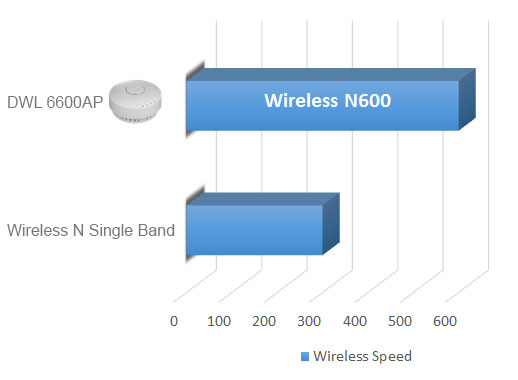

Performance without Compromise
Using the latest generation of Wireless N technology, the DWL-6600AP delivers great wireless performance and coverage in a compact design.
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_performance.jpg)

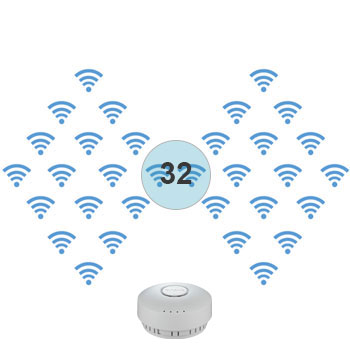

Broadcast on 32 SSIDs Simultaneously
Supports up to 32 SSIDs, 16 per radio, including Station Isolation
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_32_ssid.jpg)
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_smart_design.jpg)

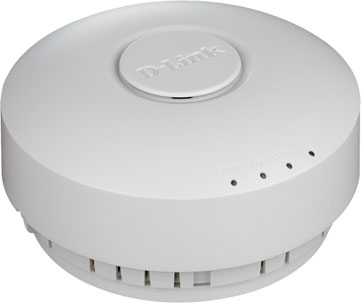

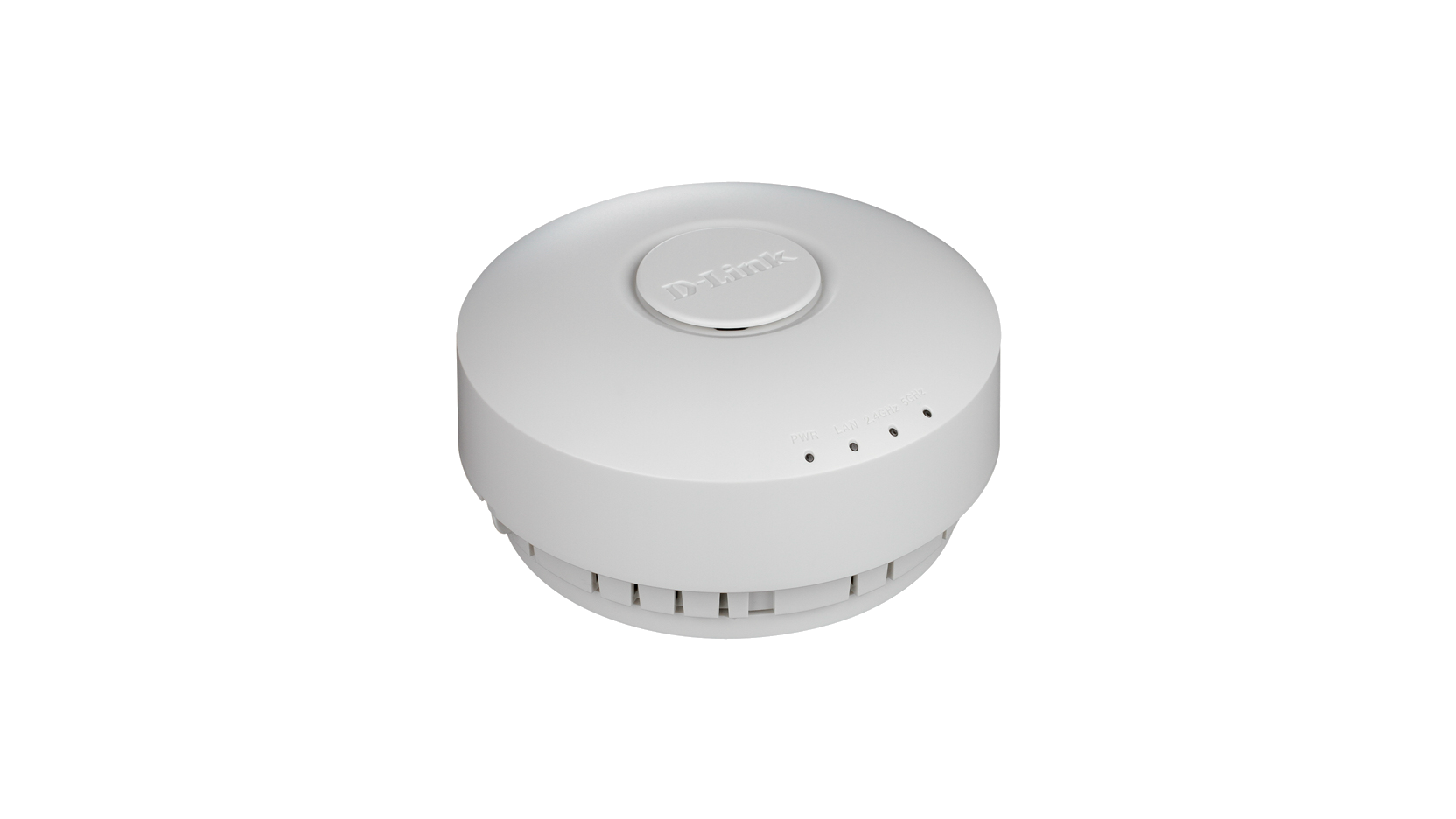

Smart Design
The DWL-6600AP has an discrete design, similar in look to a smoke detector, so that it can be mounted easily onto any wall or ceiling without looking out of place in a office or home. DWL-6600AP comes with a choice of fire regulations compliant plenum-rated (DWL-6600AP) or non-plenum (DWL-6600AP/PC) housing.
![](/cz/cs/-/media/images/b2b_icons/access_points/wireless_n.jpg)
![](/cz/cs/-/media/images/b2b_icons/access_points/speed600.jpg)
![](/cz/cs/-/media/images/b2b_icons/access_points/range110m.jpg)
![](/cz/cs/-/media/images/b2b_icons/access_points/dual_band.jpg)
![](/cz/cs/-/media/images/b2b_icons/access_points/unified_wireless.jpg)

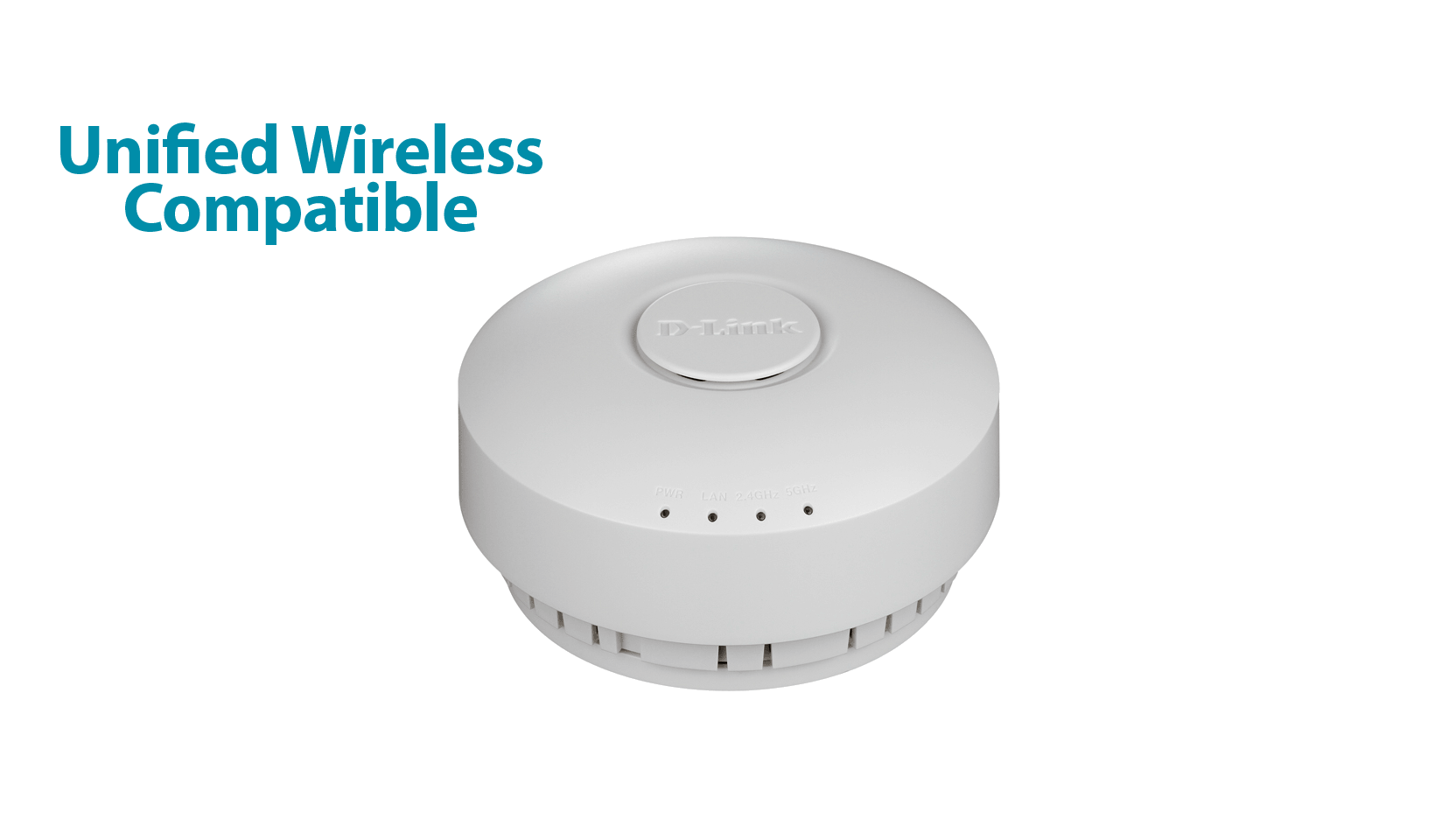

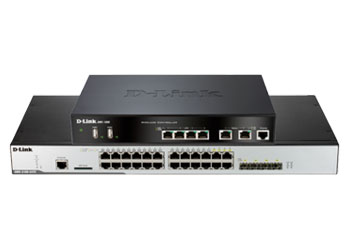

Managed using D-Link’s Wireless Controller or Unified Wireless Switch
All D-Link’s Unified Wireless Access Points can be managed using D-Link’s Wireless Controller or Unified Switch.
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_unified_wireless.jpg)

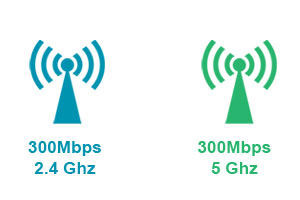

Simultaneous Dual-Band Wireless
Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_dual_band.jpg)

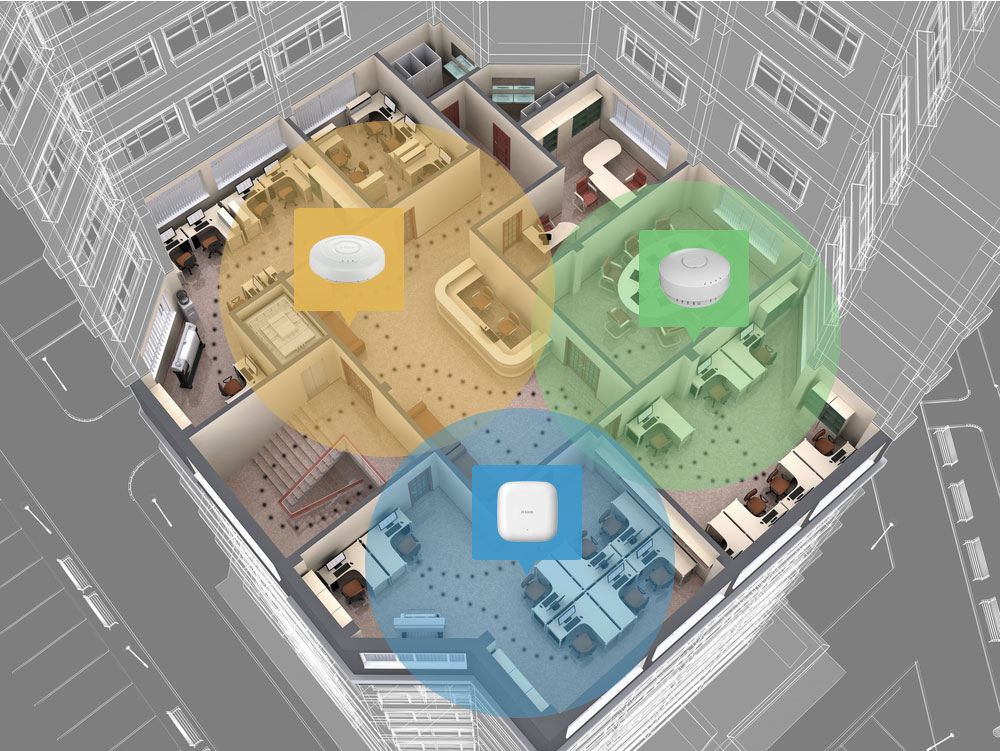

Fast seamless roaming
Combining the DWL-6600AP with a Unified Wireless Switch or Controller allows you to create a wireless network that enables people to move freely around a building without losing connectivity.
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_roaming.jpg)

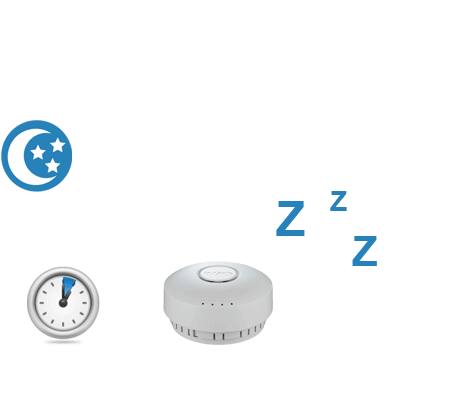

Secure and Green Design
The DWL-6600AP has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_secure_design.jpg)

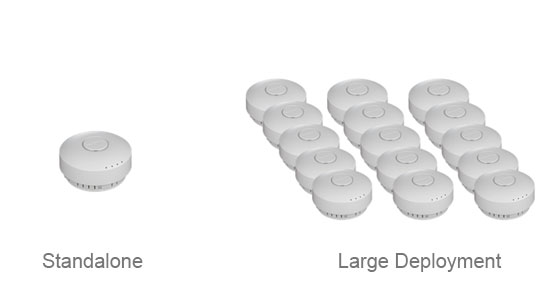

Versatility built as Standard
Whether you intend to use a single Access Point or roll out a large corporate network, the DWL-6600AP coupled with a D-Link Wireless Controller or Switch makes managing your wireless network simple.
![](/cz/cs/-/media/product-pages/dwl/6600ap/dwl6600ap_versatility.jpg)
Product Comparison
![]() |
![]() |
![]() |
![]() |
|
---|---|---|---|---|
DWL-2600AP | DWL-3600AP | DWL-6600AP | DWL-8610AP | |
Wireless Standard | B, G, N | B, G, N | B, G, N | B, G, N, AC |
Frequency | 2.4GHz | 2.4GHz | 2.4GHz, 5GHz | 2.4GHz, 5GHz |
2.4GHz Throughput | 300Mbps | 300Mbps | 300Mbps | 450Mbps |
5GHz Throughput | - | - | 300Mbps | 1300Mbps |
Aspect | Indoor | Indoor | Indoor | Outdoor |
Range* | 100m | 100m | 100m | 100m |
Suggested number of users | Up to 25 users |
Up to 40 users |
Up to 75 users |
Up to 250 users |
* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.
Související produkty
![](/cz/cs/-/media/product-pages/dwc/1000/hwc/dwc1000c1imagelfront.png?h=100&w=178&la=cs-CZ&hash=FC85D29F1035D864AECE646F5A2D6A63)
![DWC 1000 Front](/cz/cs/-/media/product-pages/dwc/2000/dwc2000front1664x936.png?h=100&w=178&la=cs-CZ&hash=D462A861F35E9B778DCD9EA6B73D9AB6)
Technické specifikace produktu
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless N |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
300 Mbps 2.4 GHz 300 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas External antenna connectors |
Antenna gain
|
5 dBi for 2.4 GHz 6 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Plenum rated (UL-2043)
|
Supported
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP |
Advanced features
|
MIMO |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 DWS-3160 DWS-4026 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
