How to Configure VLANs – Example (HTTP and CLI) DGS-1510-Series

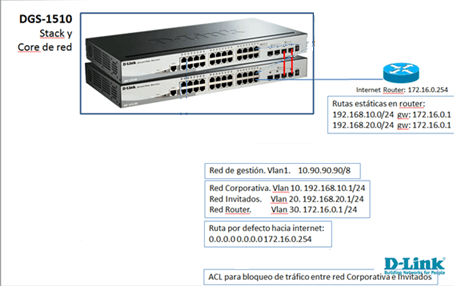

Example Setup:

DGS_1510_Escenario_configuracion_VLAN
•   VLAN configuration

Step 1 - Create the vlan

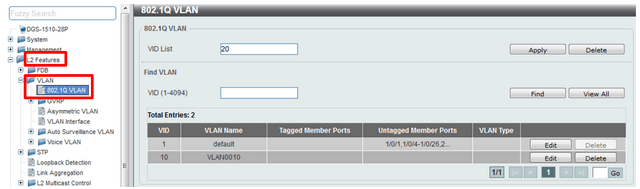

Add the id vlan and click “Apply” -  L2 Features > VLAN > 802.1Q VLAN

CLI commands:
vlan 10

D-Link

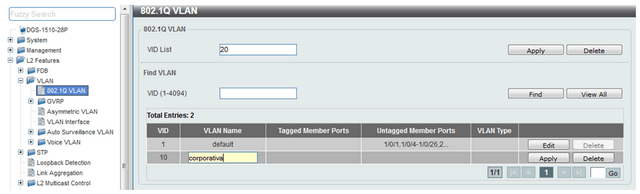

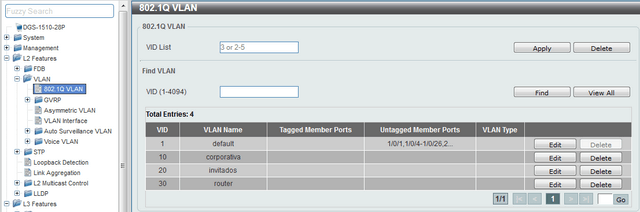

Step 2 - Edit the name
     VLAN Name: corporative

Click “Edit” and change the name of the VLAN in the VLAN Name column, once changed the name pique at the end of the line Apply.

CLI commands:
vlan 10
name corporative

D-Link

CLI commands:

vlan 20
name guests
exit
vlan 30
name router
exit

D-Link

Step 3 - Configuring Ports

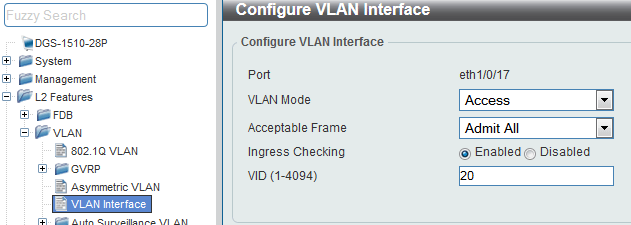

We have 3 types of ports - L2 Features > VLAN > VLAN Interface

Hybrid
Access
Trunk

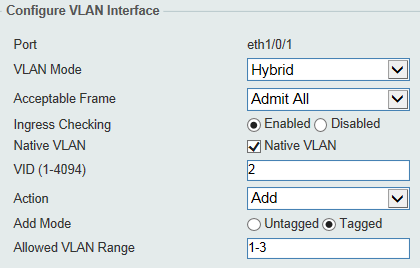

 Example: Hybrid mode:

 - A Vlan untagged (Native)
- Multiple Tagged vlan
(VID 2 untagged, ID 1 and 3 Tagged)
CLI commands:

configure terminal
interface ethernet 1/0/1
switchport hybrid native vlan 2
switchport hybrid allowed vlan tagged 1-3
end

D-Link

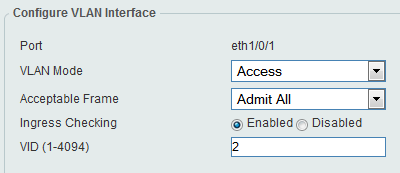

Example: Access mode VLAN2 (untagged)

CLI commands:

interface ethernet 1/0/1
switchport mode access
switchport access vlan 2
acceptable-frame admit-all
end

D-Link

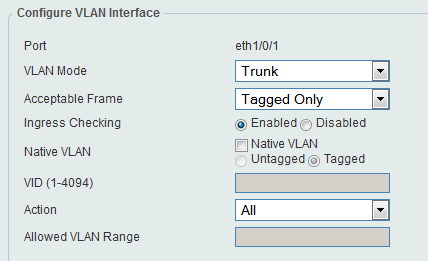

Example: Trunk port

Only allow tagged vlans

CLI commands:

configure terminal
interface ethernet 1/0/1
switchport mode trunk
switchport trunk native vlan tag
acceptable-frame tagged-only
end

D-Link

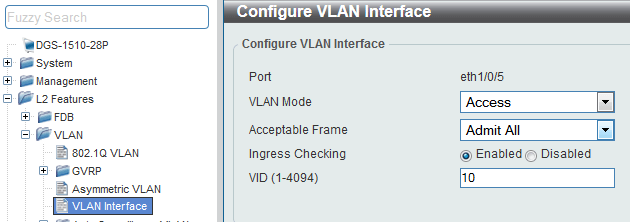

Step 3.1- Corporate VLAN

5-16 ports of each unit, where users will connect using the Access mode.

D-Link

CLI commands:
configure terminal
interface range ethernet 1/0/5-1/0/16
switchport mode access
switchport access vlan 10
acceptable-frame admit-all
end

configure terminal
interface range ethernet 2/0/5-2/0/16
switchport mode access
switchport access vlan 10
acceptable-frame admit-all
end

Step 3.2 - Guest VLAN

In ports 17-22 of each unit, where guests can connect using the Access mode.

D-Link

CLI commands:
configure terminal
interface range ethernet 1/0/17-1/0/22
switchport mode access
switchport access vlan 20
acceptable-frame admit-all
end

configure terminal
interface range ethernet 2/0/17-2/0/22
switchport mode access
switchport access vlan 20
acceptable-frame admit-all
end

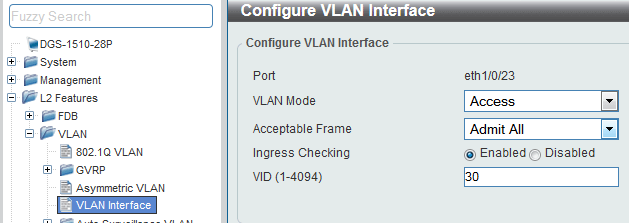

Step 3.3
- VLAN for router

Port 24 is where a router will be connected

D-Link

CLI commands:

configure terminal
interface range ethernet 1/0/23-1/0/24
switchport mode access
switchport access vlan 30
acceptable-frame admit-all
end

configure terminal
interface range ethernet 2/0/23-2/0/24
switchport mode access
switchport access vlan 30
acceptable-frame admit-all
end

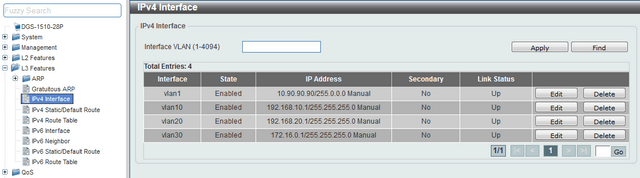

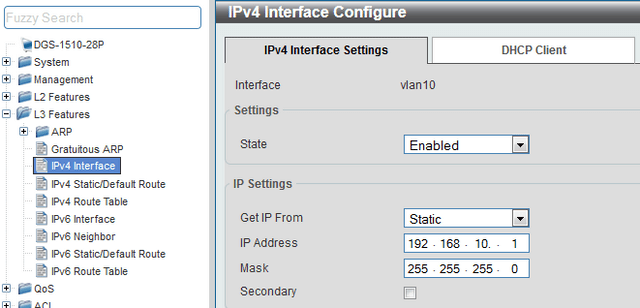

Step 4 - Configuring IP interfaces for each VLAN - L3 Features > IPv4 Interface

Enter in IPv4 interface, enter the corresponding VLAN ID in the box "VLAN Interface" and pique Apply, then pique Edit to configure the IP interface and pique Apply to confirm the settings.

CLI commands:
interface vlan 10
ip address 192.168.10.1 255.255.255.0
exit

D-Link

CLI commands:
interface vlan 20
ip address 192.168.20.1 255.255.255.0
exit

D-Link

CLI commands:
interface vlan 30
ip address 172.16.0.1 255.255.255.0
exit

D-Link

DGS_1510_Escenario_configuracion_VLAN

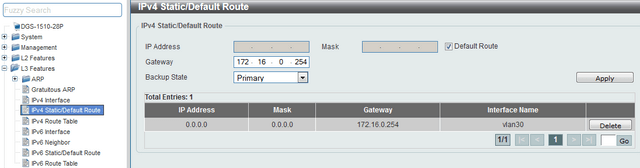

Step 5 - Create a Static Route

We will create a default route to the router that provides internet connection through VLAN30

D-Link

CLI commands:
configure terminal
ip route 0.0.0.0 0.0.0.0 172.16.0.254 primary
end

Step 6 - Create ACLs to block access from “Guest” network to the “Corporate” network.

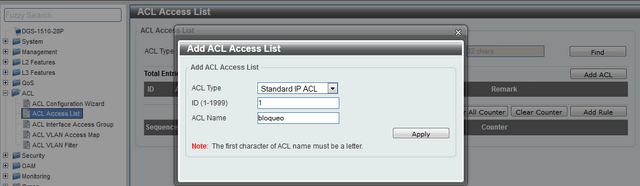

Enter the ACL > ACL Access List option, select the ALL Type ACL option and click the “Add” ACL to create an ACL for IP Standard (basic) type and thus deny access network 192.168.20.0/24 to 192.168. 10.0 /24
Remember that rules are executed sequentially.

CLI commands:
ip access-list  block 1

D-Link

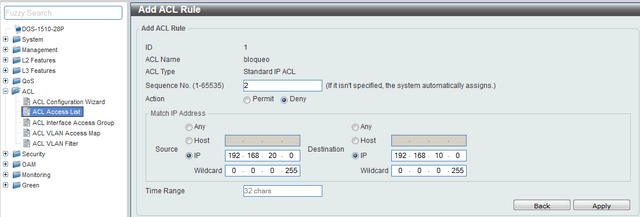

Once the rule is created, close the window (Add ACL Access List) and then edit the rule created by clicking “Edit”, in the access list to add the two necessary rules clicking on “Add Rule”

CLI :commands
interface range ethernet 1/0/5-1/0/16
ip access-group bloqueo in
exit

D-Link

Add the inverse rule

D-Link

CLI commands:
ip access-list  block 1
1 deny 192.168.10.0 0.0.0.255 192.168.20.0 0.0.0.255
2 deny 192.168.20.0 0.0.0.255 192.168.10.0 0.0.0.255
exit

Step 7 - Assign ACLs to the ports involved

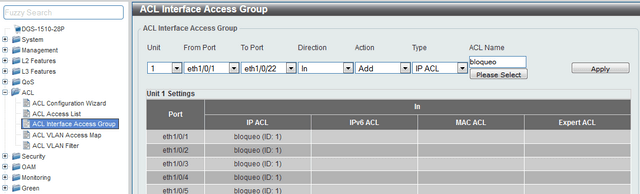

Enter ACL > ACL Access Interface Group and associate the name of the ACL created to the appropriate port

D-Link

CLI Commands:
interface range ethernet 1/0/5-1/0/16
ip access-group bloqueo in
exit
