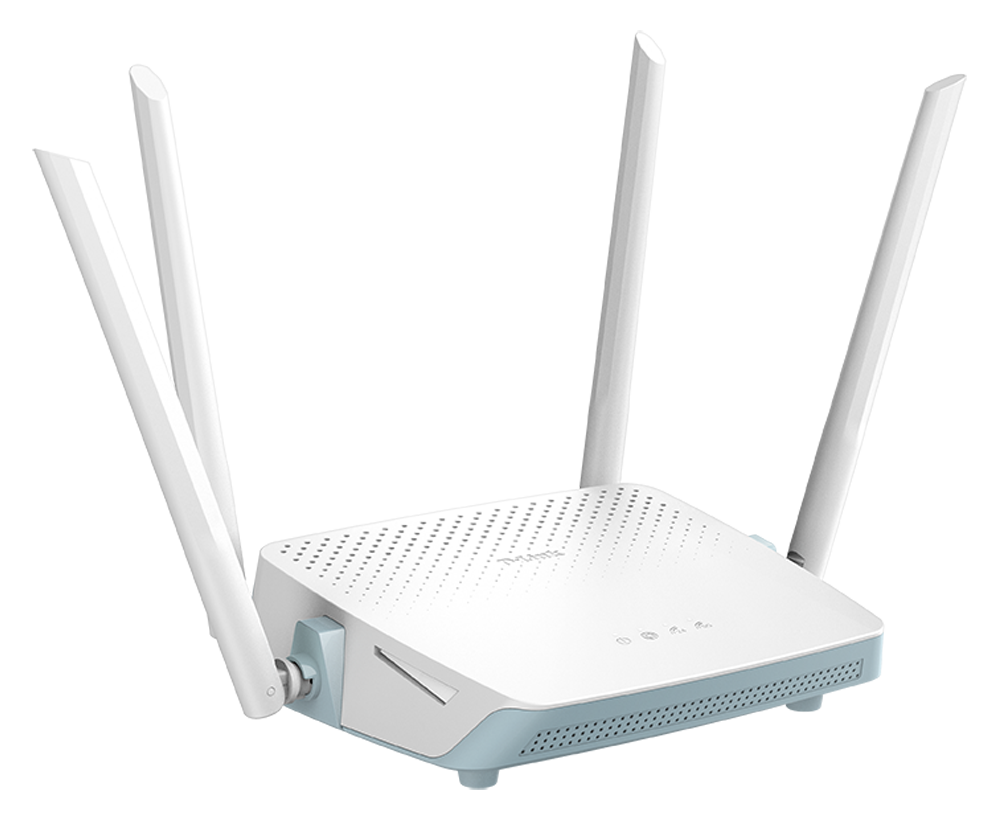

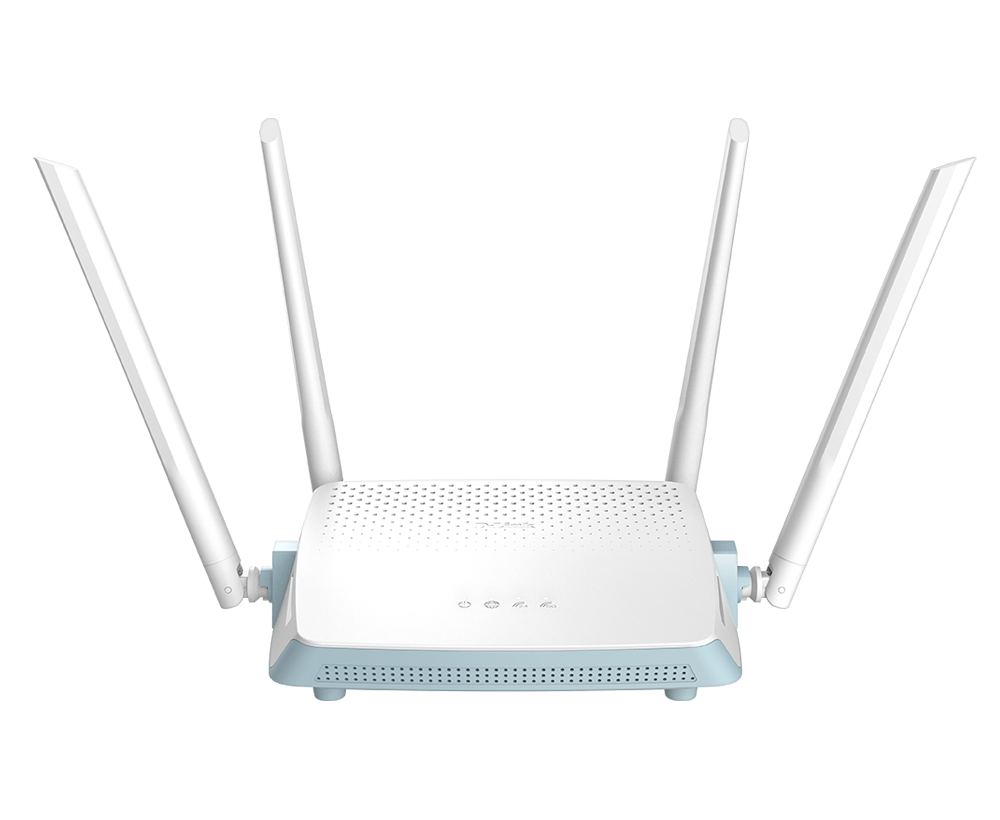

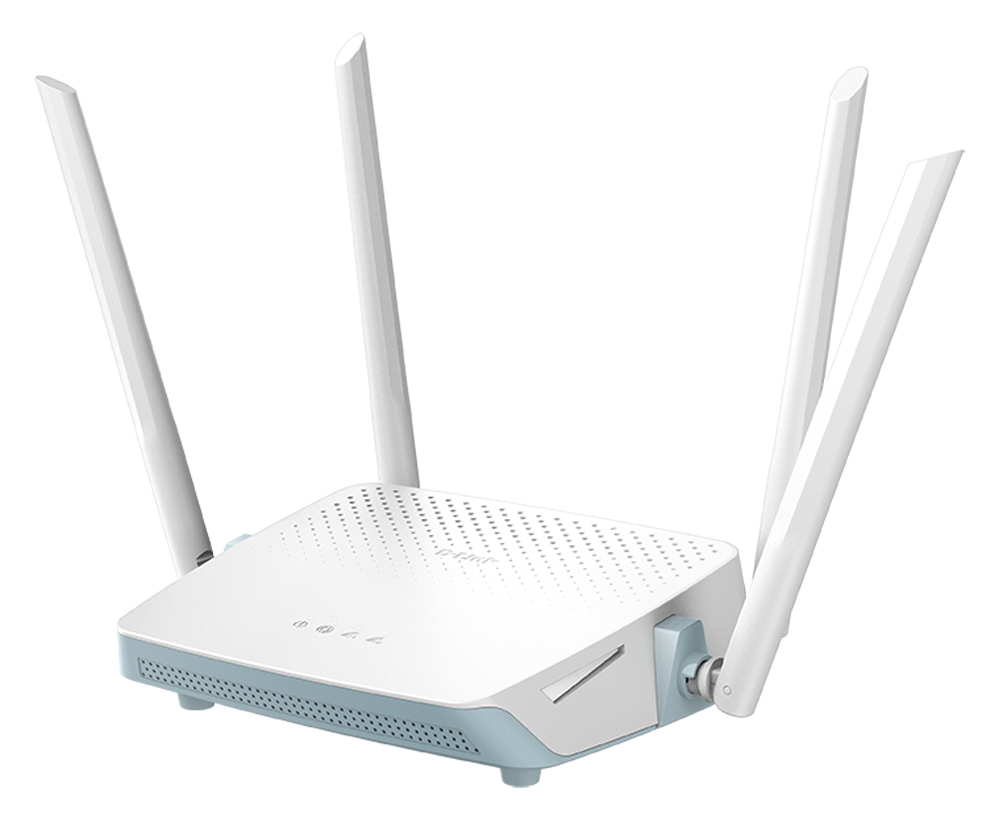

AC1200 Smart Router
R12
- Product Status (Revision A1 v1.40): Live
- High-speed, dual-band Wi-Fi 5 (802.11ac) wireless reduces congestion
- Up to 867Mbps (5GHz) and 300Mbps (2.4GHz) Speeds
- 1x 10/100/1000 Gigabit Ethernet WAN Port
- 4x 10/100/1000 Gigabit Ethernet LAN Ports
- Dual Band 2.4 GHz, 5GHz 2x2
- Supports WPA,WPA2, and the latest WPA3 Wi-Fi Security
- EAGLE PRO AI features including
- AI Wi-Fi Optimizer
- AI Traffic Optimizer
- AI Parental Controls
- AI Assistant
Where to buy
Optimization
Coverage
Connectivity
Security
Dual-Band with a Kick
The R12 has the smarts to handle multiple wireless devices and enable smooth streaming and sharing across your entire home network. Dual-Band technology provides better performance and a lag-free wireless experience. Use the 2.4 GHz band for everyday tasks, while leaving the high-speed, lower interference 5 GHz band free for HD video streaming, online gaming and large file transfers.
Supports WPA3 – The Latest Wi-Fi Security
The R12 supports the latest WPA3 Wi-Fi Security Protocol, which can help prevent brute-force password hacks, allows for more natural passwords, and secures past transmissions from being read, even if your password is exposed.
Always the Best Connection Possible
AI Wi-Fi Optimizer continuously scans the environment to keep you connected to the cleanest channel available.
Quality of Service
The Quality of Service (QoS) is evaluated data size and data size is used to filter the High and Lower priority data transmission. So, the users can set the manual priority based on their essentials in EAGLE PRO AI App.
Keep Playtime Safe and Healthy
AI Parental Control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.
Health Mode
- Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
- Schedule Wi-Fi access hours to maintain a balanced family lifestyle
- Turn off Wi-Fi entirely to conserve energy
For Everything Wi-Fi, there’s D-Link EAGLE PRO AI
The EAGLE PRO AI App brings you a personal AI Assistant to continuously monitor
data usage and provide actionable recommendations and weekly reports. Managing your Wi-Fi has never been easier.
Voice Control works with Google Assistant or Alexa
Easily integrates with Amazon Echo’s Alexa
or the Google Assistant for convenient hands-free voice control.
*Please check availability in your region
Related Products
Specification
|
Interfaces
|

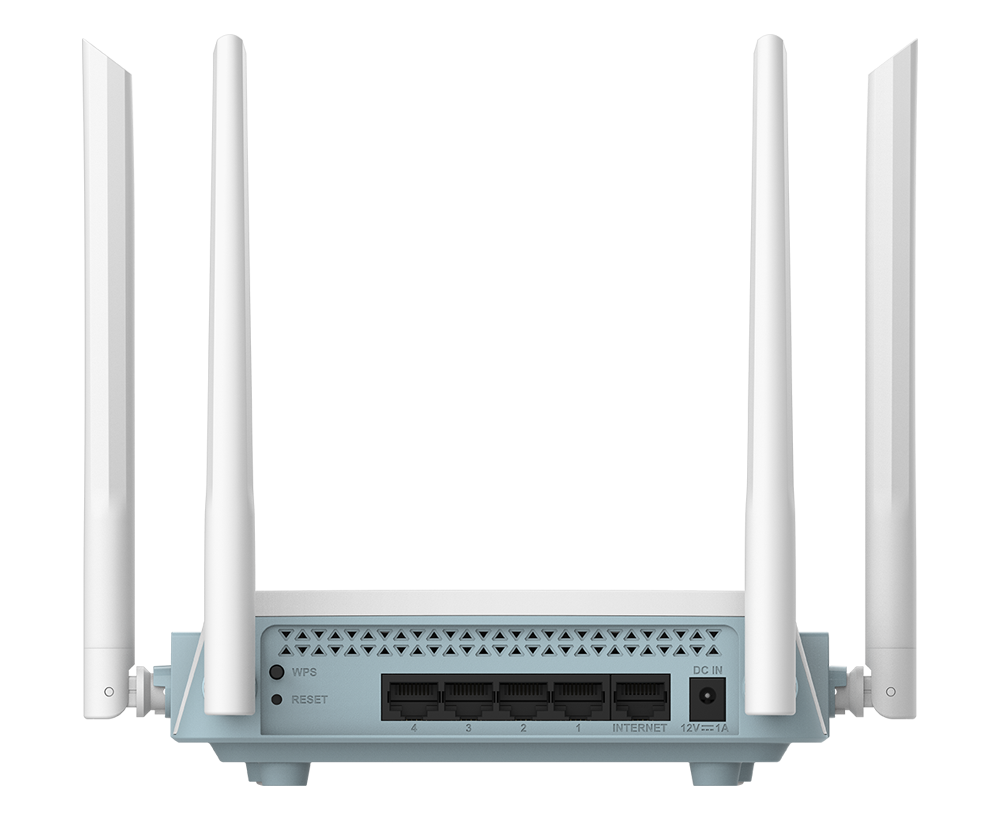

4 x Gigabit Ethernet LAN port 1x Gigabit Ethernet WAN port 1 x WPS button 1 x reset button 1 x power connector |
|---|---|
|
Antenna
|
4 x External antennas |
|
Wireless Standard
|
IEEE 802.11ax/ac/n/g/b/k/v/a/h IEEE 802.3u/ab |
|
Minimum Requirements
|
Cable_DSL modem or other ISP equipment with Ethernet port Card Network Interface Windows 10/8.1/8/7/Vista or Mac OS X 10.6 or higher Supports Internet Explorer 10/Firefox 28.0/Chrome 28.0/Safari 6.0 and up |
|
WAN
|
Concurrent session: 32,000 DS-Lite Dynamic IP L2TP PPPoE PPTP Static IP Supports 802.1p & 802.1q VLAN tagging and Priority bit |
|
Security Protocol
|
WPA2 (Wi-Fi Protected Access) WPA3Wi_Fi Protected Access WPS Wi_Fi Protected Setup |
|
Firewall
|
DoS Stateful Packet Inspection Anti-spoofing Checking IP/MAC Address Filtering 1 x DMZ |
|
QoS
|
D-Link Intelligent QoS Technology |
|
Device Management
|
EAGLE PRO AI app (iOS and Android) Web UI |
|
Voice Assistant
|
Google Assistant Amazon Alexa |
|
Dimensions
|
L: 177 mm (6.96 in), W: 139 mm (5.47 in), H: 50 mm (1.96 in) |
|
Weight
|
250 g |
|
Power Input
|
12V/1A |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Storage Temperature
|
-20 to 65 °C (-4 to 149 °F) |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Certifications
|
CE FCC IC |
