10G Layer 3 Stackable Managed Switch_x

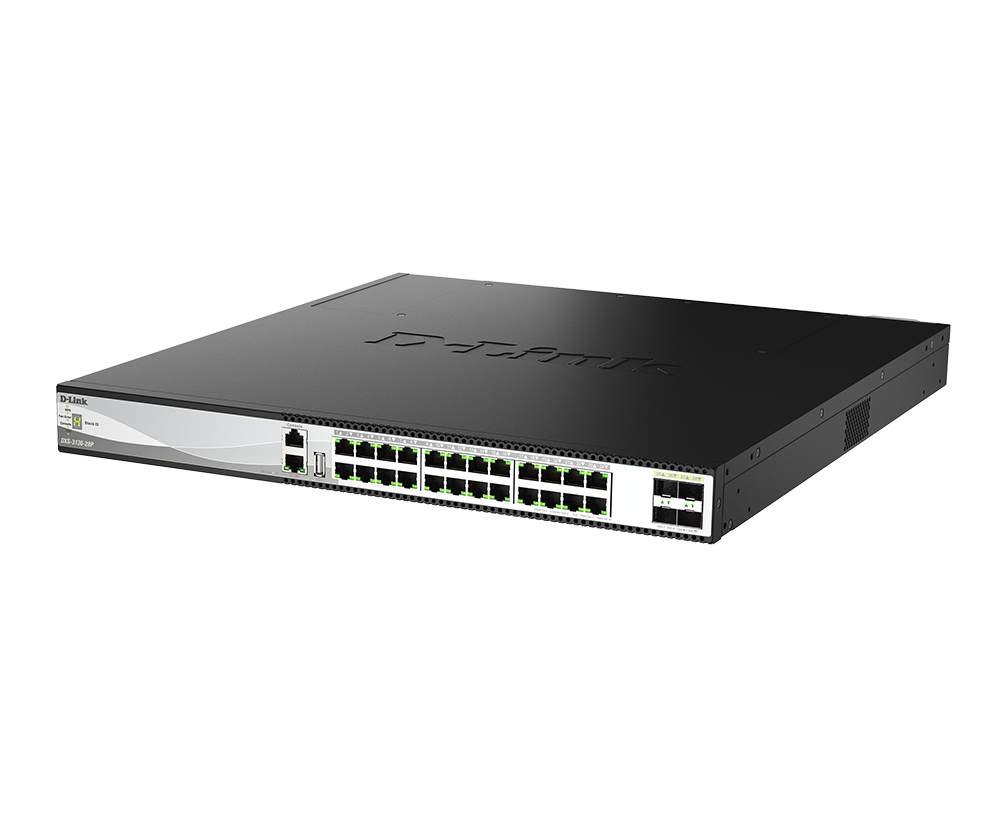

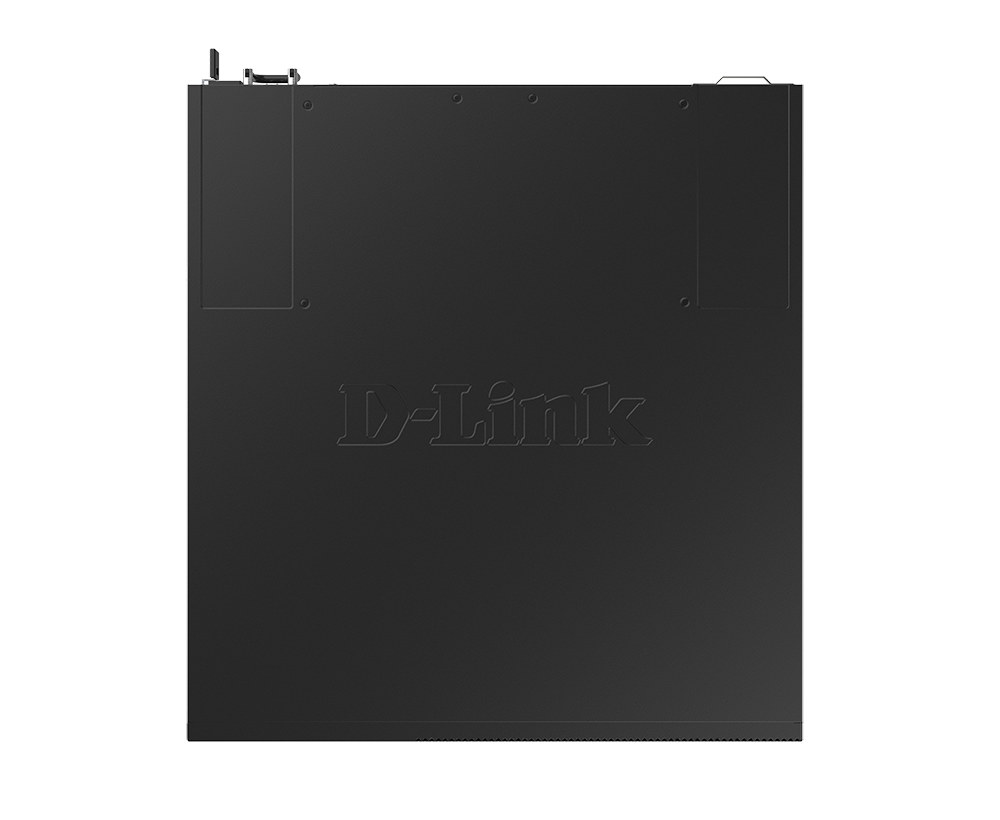

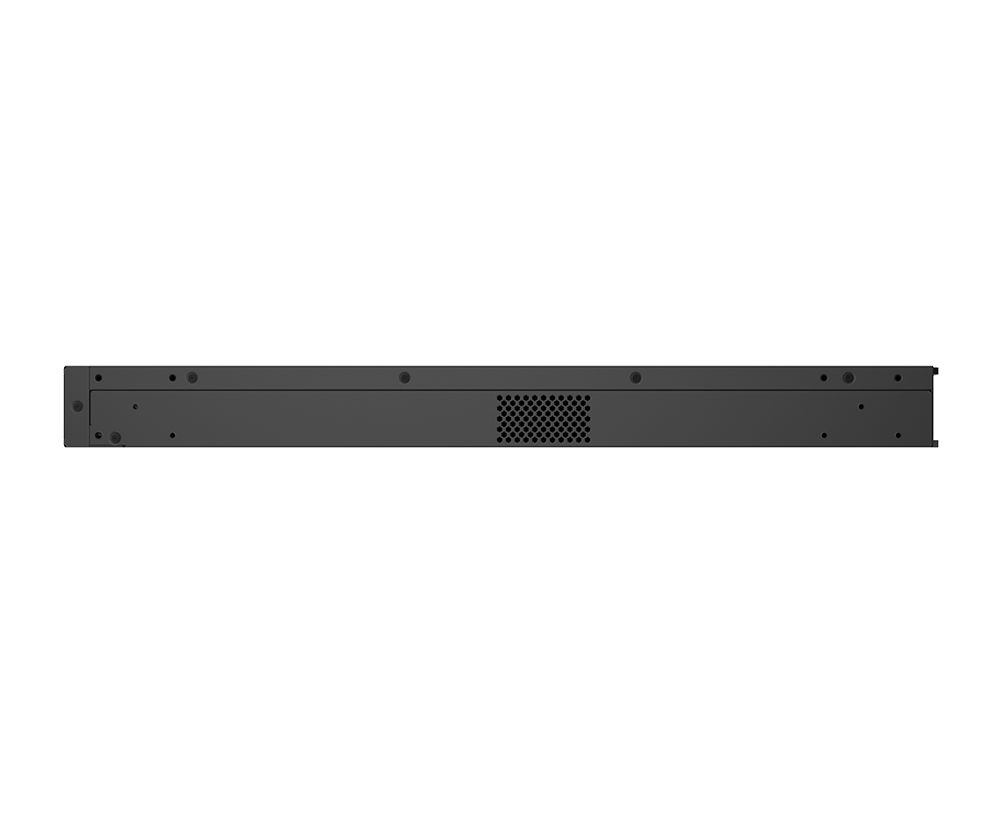

DXS-3130-28P

Product Status (Revision A1 v1.01): Live

24 x 10G/multi-Gigabit ports and 4 x 10/25G SFP28 ports to provide 10/25 Gigabit connectivity
Equipped with 24 PoE ports supporting 802.3af, 802.3at, and 802.3bt provide max. power up to 60W per port, ideal for 10G PoE applications
790W PoE Budget, expandable to 1440W with dual power supplies
2 hot-swappable power modules for 1+1 power redundancy and load sharing
Physical stacking up to 9 switches with up to 200 Gbps bandwidth per unit, virtual stacking up to 32 switches
Advanced L2 & L3 Features to build the reliable and flexible network
6kV Surge protection on all PoE ports
Provide Intuitive Web UI and industrial standard CLI
Support Nuclias Network Controller management*
* All functions of the DMS/DXS-3130 can be configured through Nuclias Connect v1.3.1 via remote CLI and Remote Web.

Download the datasheet.

Where to buy

High Speed Connectivity

Boost your network with 10G speeds and flexible port options for optimal performance and low latency.

High PoE Budget

Provides 790W PoE, expandable to 1440W with dual power supplies, supporting more devices and efficient data transmission over one cable.

Physical Stacking

Stack up to 9 units to increase bandwidth, elevate network capacity, and simplify management.

Solidly Reliable

Offers versatile features to enhance network resilience, ensuring high security and maximum uptime for the business network.

Security Controls

Provides the latest comprehensive security features to protect and manage user access control.

Layer 2 Features

The L2 features prioritize critical network services, ensuring stability and efficient use of network resources.

Advanced Layer 3 Features

Advanced L3 features support a scalable, robust network performance, providing efficient solutions for businesses of all sizes.

Easy Management

Administrators can easily control access and deployment with management tools like a web UI and authentication mechanisms.

Leading the Future of 10G Connectivity

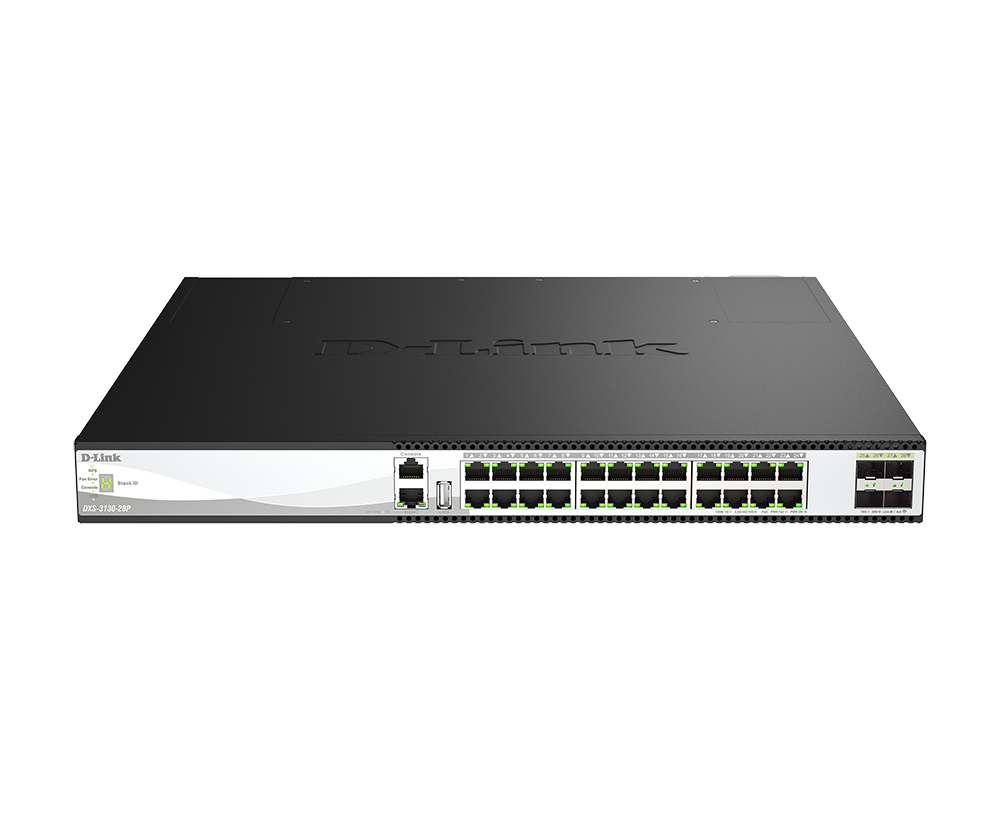

The DXS-3130-28P is equipped with twenty-four 10G Multi-Gigabit 802.3bt 60W PoE++ ports and four 10/25G SFP28 ports, offering versatile, high-speed networking. The uplink ports handle higher bandwidth and faster speeds, while the integrated 100M/1G/2.5G/5G/10G speeds boost performance and enhance operational efficiency.

Tailored for secure connectivity in various applications, the DXS-3130-28P features 25G ports, rich software capabilities, and enhanced security. It can serve as a core switch for SMBs, an aggregation switch for enterprises, or as the edge layer for Metro Ethernet. The DXS-3130-28P is ideal for meeting your networking needs.

PoE for Unstoppable Power Stability

The DXS-3130-28P supports Power-over-Ethernet (PoE) across IEEE 802.3af, IEEE 802.3at PoE+, and IEEE 802.3bt PoE++ standards, delivering up to 60W per port. It also offers Perpetual PoE and Fast PoE.

The DXS-3130-28P features a 790 W PoE power budget which can be increased to 1440 W when outfitted with dual power supplies, that can power up even more devices.

PoE simplifies the deployment of IP cameras, VoIP phones, Wireless Access Points, and other powered devices through a standard Ethernet that eliminates the cost for additional electrical cabling.

Perpetual PoE

Delivers uninterrupted power to connected powered devices(PD) even when the power sourcing equipment (PSE) switch is booting.

Fast PoE

Enables the switch to supply power to connected endpoint devices in a relatively short time without waiting for the operating system to boot up.

PD-Alive

The PD-Alive feature is perfect for IP surveillance networks to monitor the status of connected powered devices and verify their activity.

6 kV Surge Protection

The Frontline Against Electrical Surges

The DXS-3130-28P has built-in 6 kV surge protection on all Ethernet ports without external surge protection equipment, safeguarding against sudden electrical surges like lightning strikes. This effectively reducing maintenance costs by minimizing the need for expensive equipment repairs or replacement.

Unified the Power, Stack for Success

Scale your network with the DXS-3130-28P by combining multiple switches into a single physical or virtual stack. The stacking function simplifies management, enhances redundancy, and allows you to control the entire stack with a single IP address across multiple physical units.

Physical stacking supports up to nine switches with 200Gbps of stacking bandwidth per device, enabling seamless scalability as network demands grow.

World-class Reliability

The DXS-3130-28P targets users who require a high level of network security and maximum uptime. It supports hot-swappable internal redundant power supplies and incorporates essential reliability features including 802.1D Spanning Tree (STP), Ethernet Ring Protection Switching (ERPS) ,and Loopback Detection (LBD) to enhance network resilience.

With Ethernet Ring Protection Switching (ERPS), recovery time can be minimized to just 50 ms. Loopback Detection prevents accidental port shutdowns, ensuring continuous operation. The DXS-3130-28P maintains a secure and highly reliable network for your critical infrastructure.

Comprehensive security

The DXS-3130-28P offers advanced security features such as Multi-layer, Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. With its robust security functions, you can easily enhance user access control, and experience a stronger network safeguard.

Easy Access Control Policy

The DXS-3130-28P supports authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control for strict access control and easy deployment. Individual policies, including VLAN membership, QoS policies, and ACL rules, can be assigned to each host after authentication, ensuring all access remains under your control.
