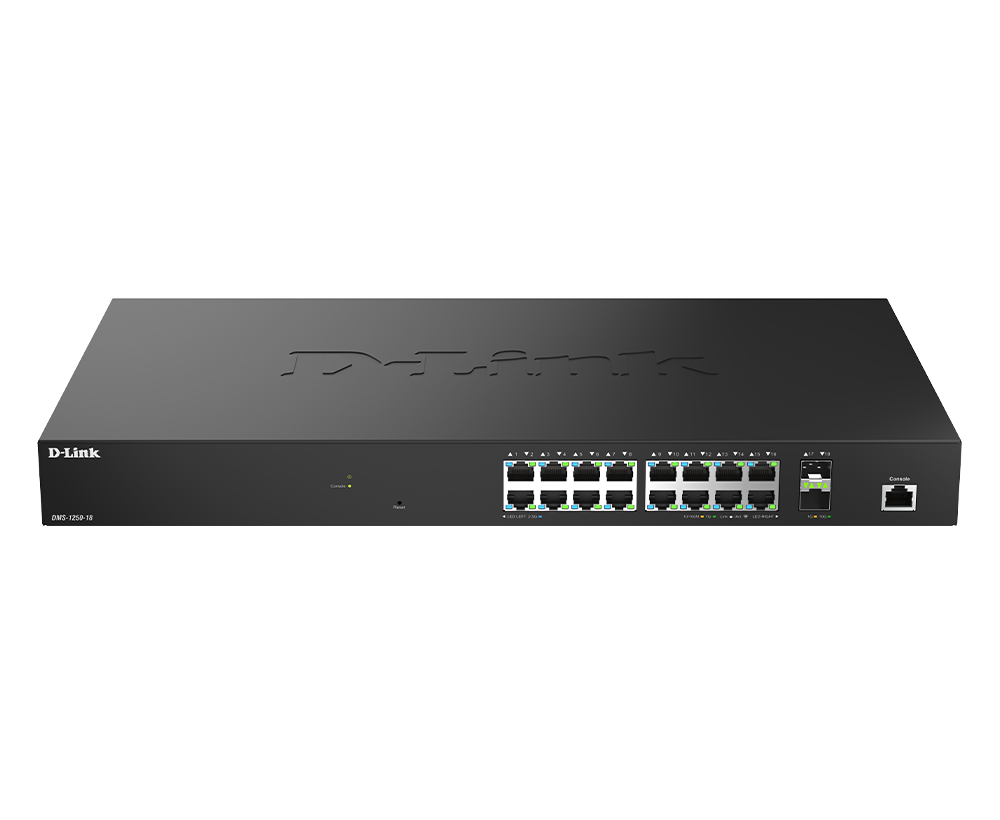

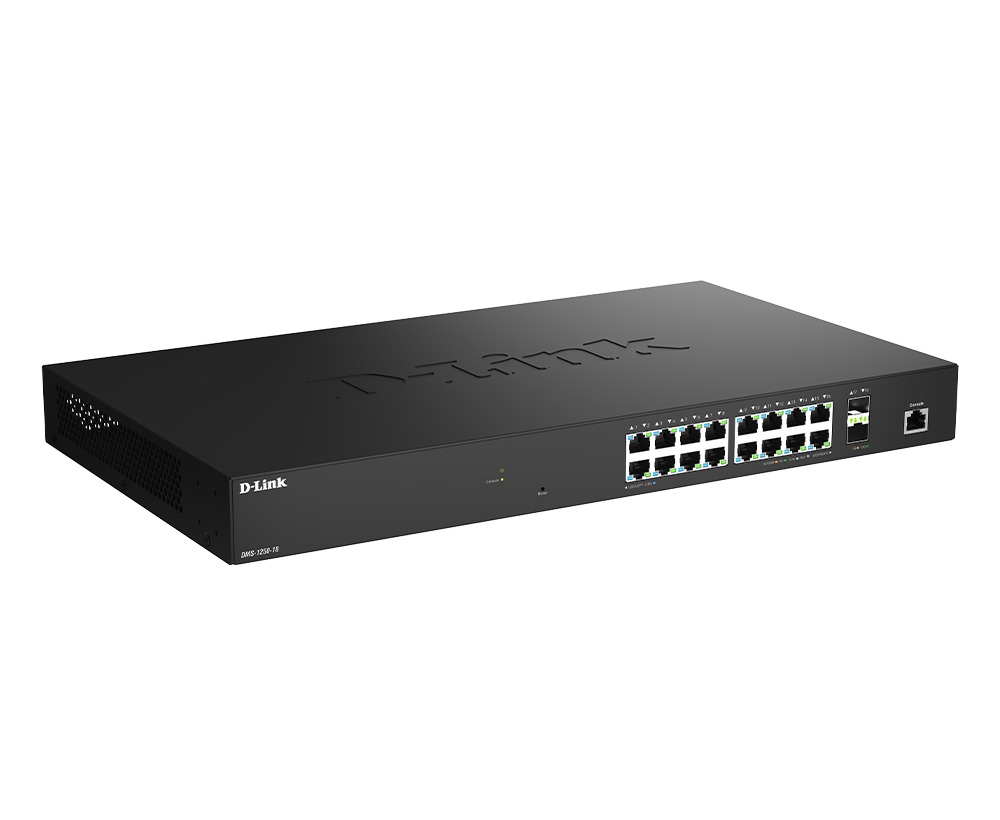

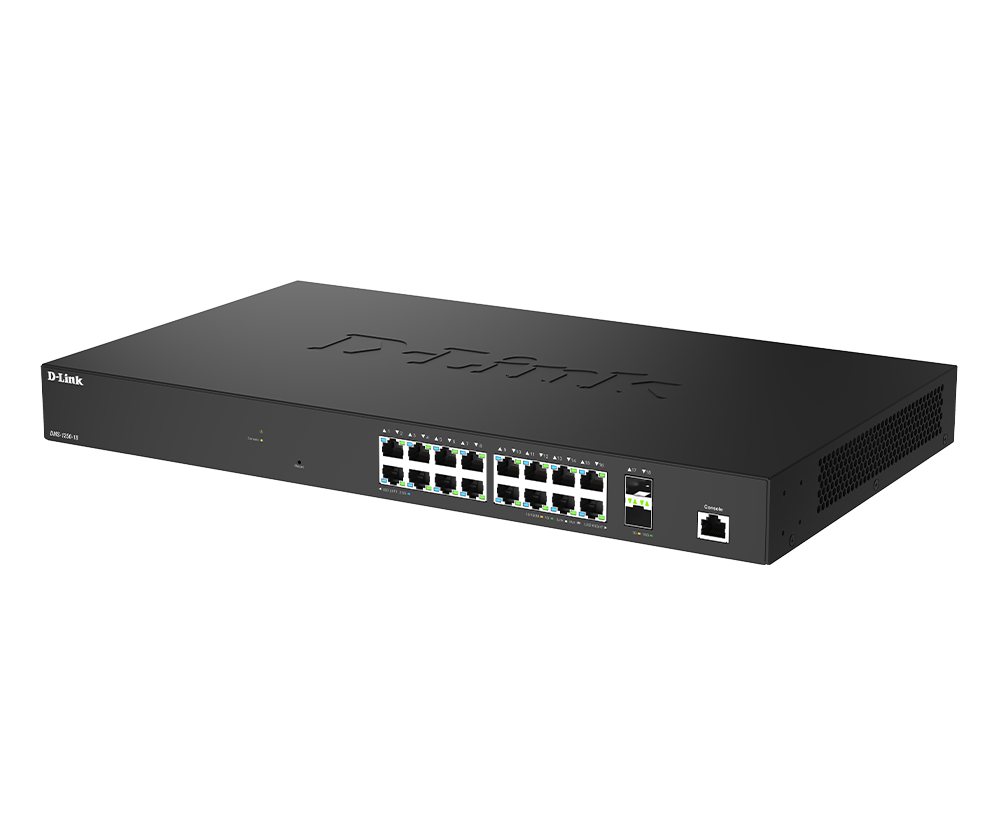

18-Port 2.5G Layer 2 Standard Smart Switch

DMS-1250-18

  • Product Status (A1 v1.06): Live
  • 16 Ports 2.5GE for downlink
  • 2 Ports 10G SFP+ for uplink
  • 6kV surge protection on all 2.5G ethernet ports
  • Support LACP 802.3ad Link Aggregation
  • Support Static Routing
  • Support Loopback Detection
  • Support Spanning Tree Protocol(STP/RSTP/MSTP)
  • AAA support for RADIUS/TACACS+
  • Support D-Link Safeguard Engine
  • Manage through the Nuclias Network Controller

Download the datasheet.

Where to buy

User Benefits​

Flexible Connectivity

Supports a wide range of physical interfaces for rich network connections.

Hassel-Free Management​

The user-friendly Web UI allowing for efficient and tailored network control.

Enhanced Security

Support versatile functions to increase the network security

Cost-Effective Solution

Offers advanced features and network power at an affordable price.

2.5G Speeds: Built for Wi-Fi 6 and Beyond

The DMS-1250 Series switches elevate your network with 2.5 Gbps ports, optimized for Wi-Fi 6 access points to maximize throughput and speed. Multi-Gigabit Ethernet eliminates bottlenecks, fully utilizing Wi-Fi 6’s high performance.

6 kV Surge Protection for All Ethernet Ports

The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.​

Support L2+ Features

The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:

  • ERPS
  • GVRP
  • ISM VLAN
  • VLAN Translation
  • Double VLAN (Q-in-Q)
  • Spanning Tree Protocol (STP/MSTP/RSTP)
  • Link Aggregation Control Protocol (LACP)
  • IGMP and MLD Snooping
* Please note that support is only available in version R2 or later.

Nuclias Network Controller

The DMS-1250 Series switches support the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.

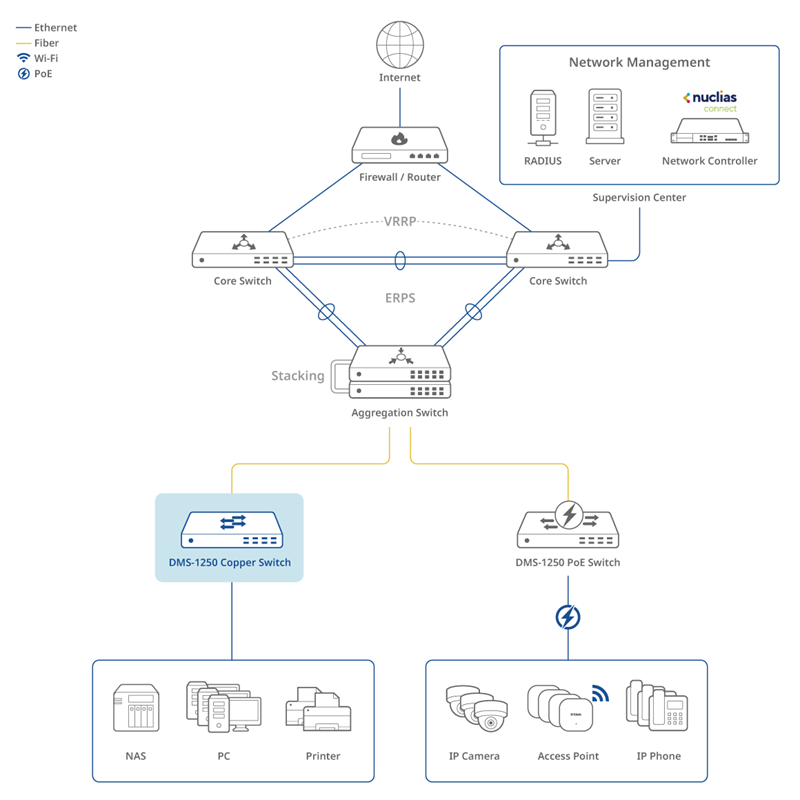

Connection Diagram

The DMS-1250 Series is engineered for high-speed, secure, and intelligent switching to support the evolving needs of growing business networks. With 10G uplink support, it delivers ultra-fast data transfers and seamless performance for bandwidth-heavy applications like video streaming, VoIP, and large file sharing.

Network Controller

Learn More

Access Point

Learn More

Applications

Startup Office (Enterprise)

Learn More

Dormitory (Building)

Learn More

Transnational University (Education)

Learn More

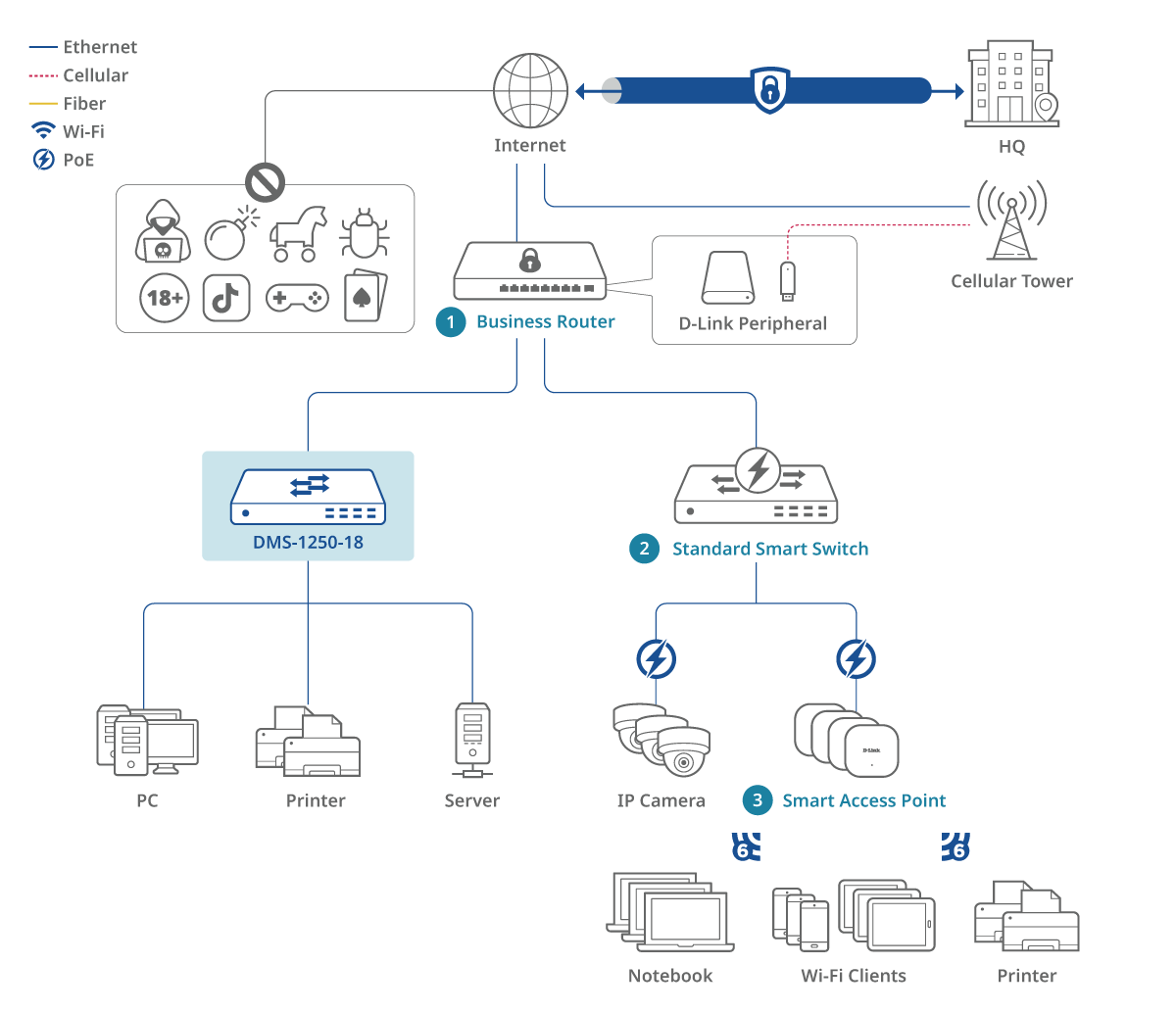

Startup Office (Enterprise)

User benefits :

  • Delivers high-speed connections for bandwidth-heavy tasks
  • Simplify network deployment and management
  • Enhances performance for Wi-Fi AP backhaul
  • Enables future-proof network upgrades
  • Compact and fanless design for quiet operation

Learn more :

  1. Business Router : DBR-700
  2. Standard Smart Switch : DMS-1250 Series
  3. Smart Access Point : DBR-X3000-AP

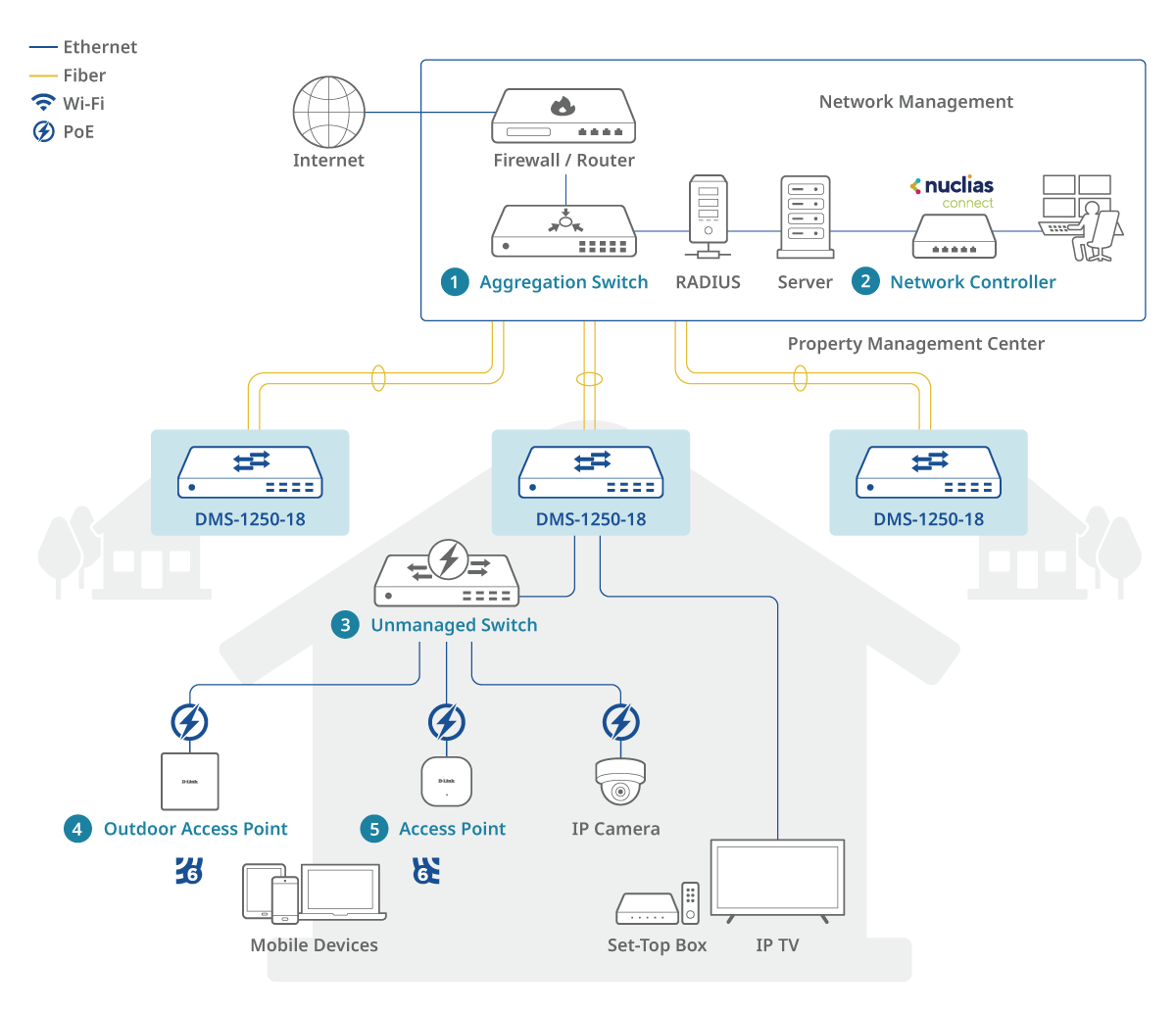

　Dormitory (Building)

User benefits :
  • Provide high-bandwidth connectivity for all residents
  • Smooth 4K streaming and online gaming
  • Handles high device density with ease
  • Prevents network disruption with loopback detection
  • Simplify network management with intuitive tools

Learn more :

  1. Aggregation Swtich : DXS-3130-32S ( Coming Soon )
  2. Network Controller : DNH-1000
  3. Unmanaged Switch : DMS-108P

  4. Outdoor Access Point : DAP-X3060OU

  5. Access Point : DAP-X3060

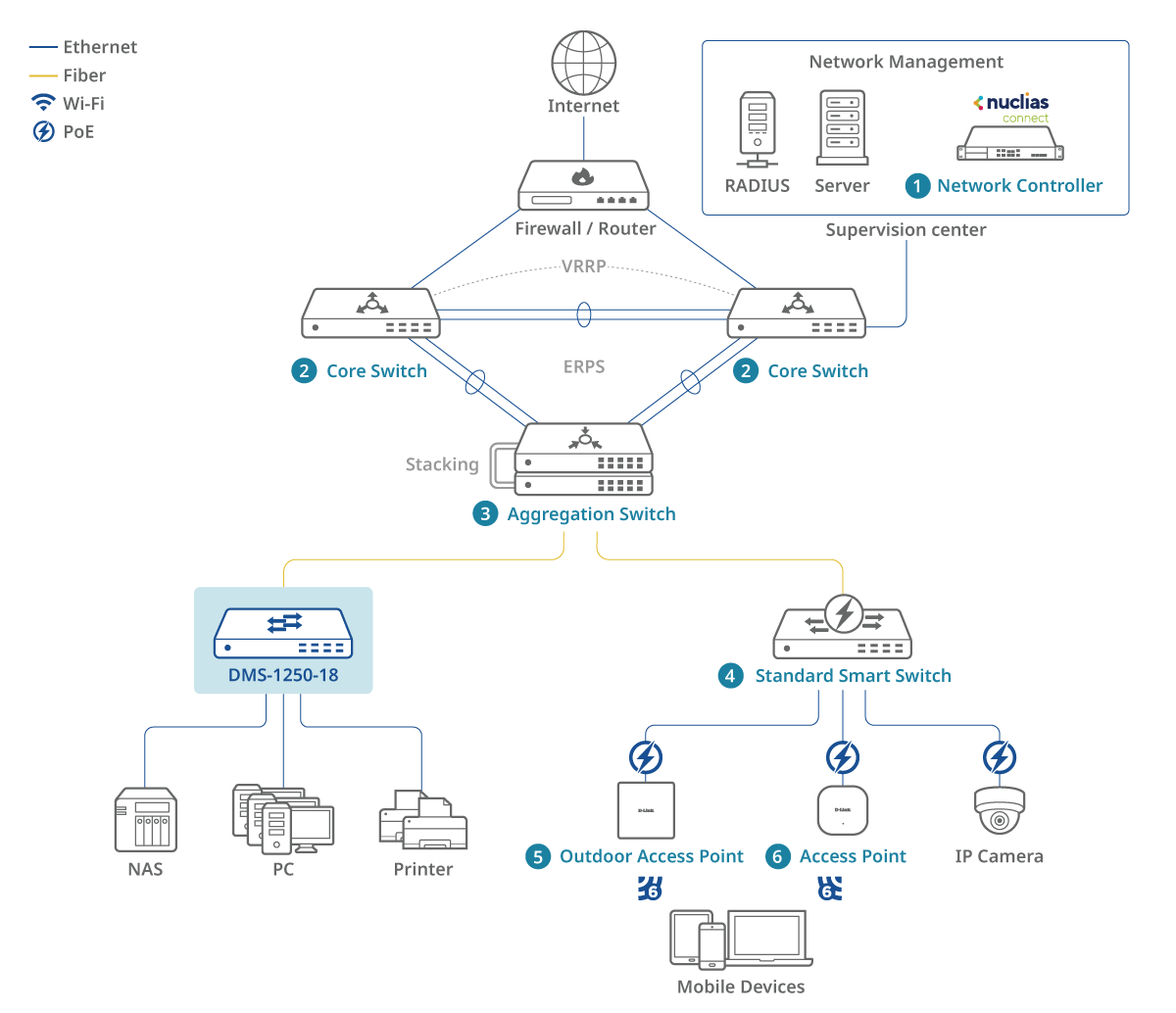

Transnational University (Education)

User benefits :

  • Deliver fast and reliable seamless connectivity
  • Secure network access with 802.1X authentication
  • Enhances network stability with STP and secure access via AAA
  • Simplify network expansion with 10G uplinks
  • Centralized management for efficient control

Learn more :

  1. Network Controller : DNH-3000
  2. Core Switch : DXS-3610-54S
  3. Aggregation Switch : DXS-3130-32S ( Coming Soon )

  4. Standard Smart Switch : DMS-1250 Series

  5. Outdoor Access Point : DAP-X3060OU

  6. Access Point : DAP-X3060

Specification

Download the datasheet.

Interfaces
16 x 2.5GE
2 x 10G SFP+
Switching Capacity
120Gbps
Max. Packet Forwarding Rate
89.26Mbps
Max Power Consumption
22W
Dimensions
440 x 250 x 44 mm
Weight
2.968 kg
Surge Protection
IEEE61000-4-5 surge protection compliance
6kV surge protection on all 2.5-Gigabit Ethernet ports
FAN
Fanless
Operating Temperature
-5 to 50°C (23 to 122°F)
Storage Temperature
-20˚C to 70˚C (-4˚F to 158˚F)
Storage Humidity
0% to 95% relative humidity
Console Port
Yes
Power Supply Type
Internal
