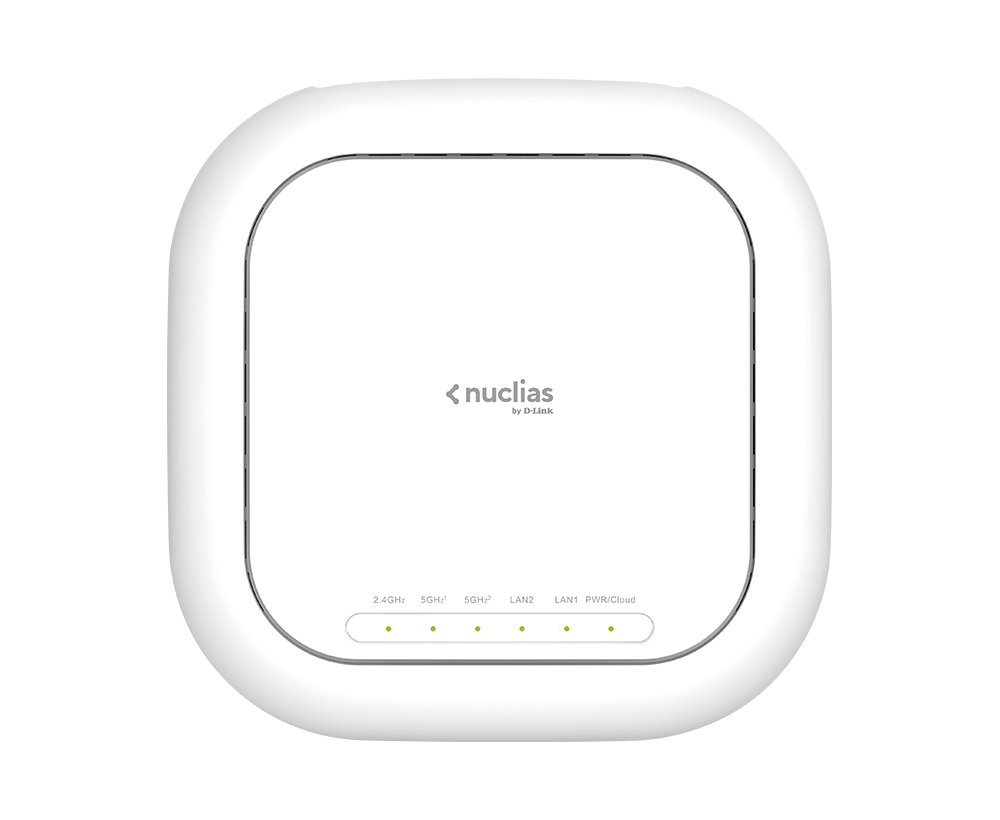

Nuclias Cloud Managed AC2200 Wave 2 PoE Access Point

DBA-2720P

  • Product Status (Revision A1_v101): Live
  • Centralized cloud-based management, with intuitive web and app-based interface
  • Slice through congestion with better handling of multiple connections thanks to IEEE 802.11ac Wave 2 wireless
  • Superior throughput with tri-band transfer speeds of up to 400 Mbps in the 2.4 GHz band and two 867 Mbps 5 GHz bands
  • Supports Power over Ethernet (PoE 802.3at) for simpler installation with less cable clutter
  • With Zero Touch Deployment, swift plug and play installation eliminates the need for on-site setup
  • Equipped with an integrated DHCP Server
  • Supports RADIUS client and Cipher negotiation
  • Supports WPA3™ - the latest WiFi security for more protection
  • Supports Link Aggregation for an overall more stable network

Download the datasheet.

Where to buy

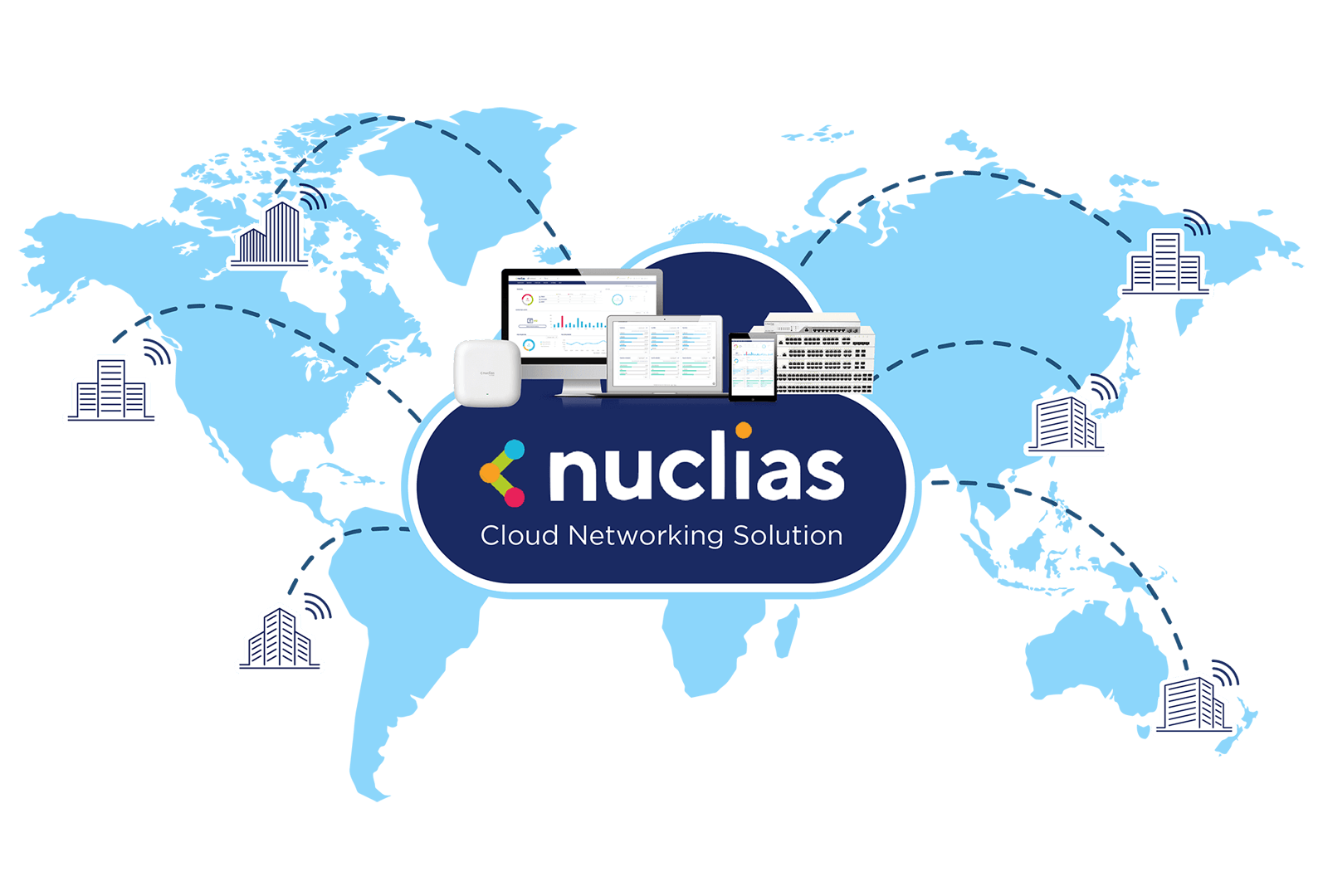

Harness the Power of Cloud Networking

This device is part of the Nuclias Cloud Solution. Businesses of any size and level of IT resources can reap all the benefits of Cloud Networking to boost productivity and enhance competitiveness.

✓ Zero Touch Deployment
✓ Hassle-Free Management
✓ Unlimited Scalability

Tri-Band Wi-Fi: A Choice As Easy As One-Two-Three

If collaboration or productivity has slowed to a crawl, your business needs the DBA-2720P: the ultimate solution for busy congested offices and public spaces. Tri-band Wi-Fi offers a formidable 2200 Mbps throughput across the 2.4 GHz band and two 5 GHz bands.

2.4 GHz Rate


400 Mbps

5 GHz Rate


867 Mbps

5 GHz Rate


867 Mbps

Paired with two Gigabit LAN ports that support Link Aggregation, you have got exceptionally fast backhaul to the network. It gets business back operating at full steam.

2 Gbps uplink

Features To Supercharge Your Wi-Fi

The DBA-Series comes packed with features that boost throughput, handle more users more efficiently, and creates an overall simply better Wi-Fi experience.

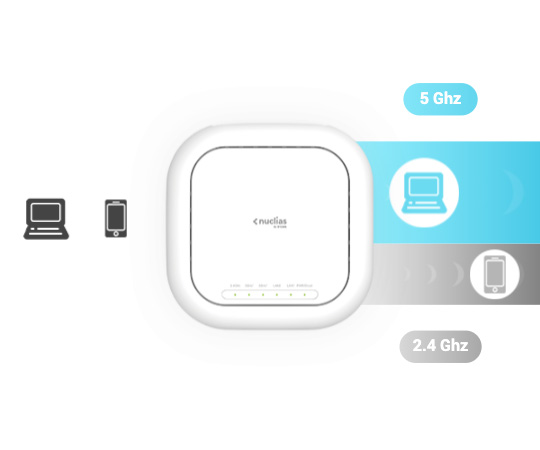

Band Steering

The 5 GHz band is the fast lane of your Wi-Fi. Band Steering automatically drives capable devices such as smart phones or tablets onto the 5 GHz band, delivering them a better experience, especially in situations such as HD video streaming or VoIP.

MU-MIMO

This feature is the ultimate weapon in handling congestion by being able to support more simultaneous streams of data. Your Access Points can serve more people at the same time. That’s less waiting time all round.

Load Balancing

Redress the balance with Load Balancing. Connections are shared out fairly to surrounding Access Points, avoiding any single point in your Wi-Fi becoming overwhelmed.
The result? A steady, consistent connection for every user.

Beamforming

Beamforming technology continuously optimizes the wireless signal, focusing and it towards receiving devices and following them. This adaptive beamforming enhances spectral efficiency and link quality.

Your Guests Online in No Time with a Captive Portal

With your tri-band Wi-Fi up and running, it is time to get everyone connected. A captive portal is an immensely easy method for getting users online quickly. Simplify further with Social Login so guests can get online whichever way suits them best.

And not only does it also increase brand recognition, but businesses can collect valuable data to better understand users.

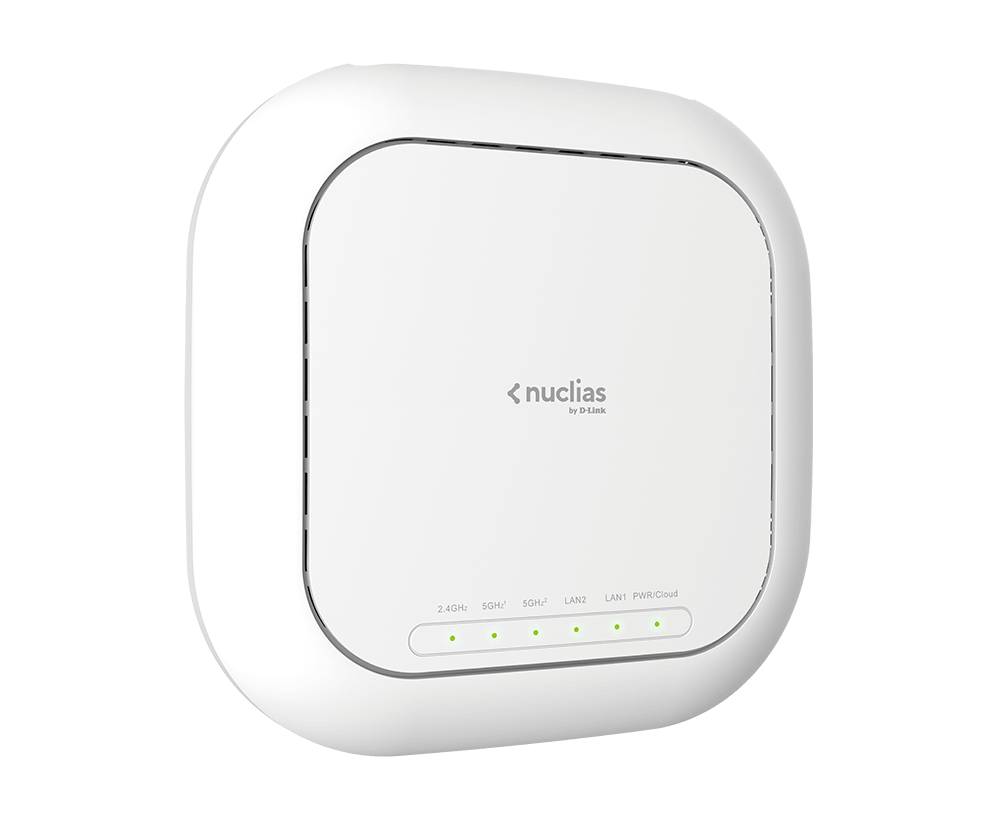

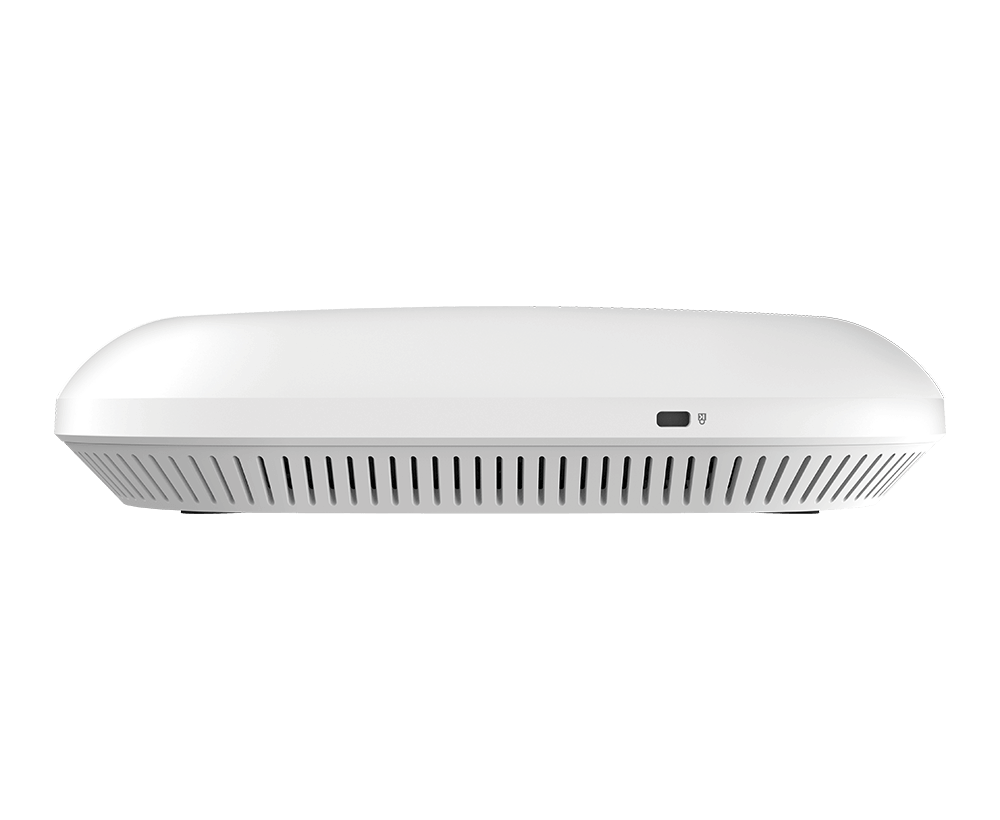

It can be hard to look good while still being functional. Yet the DBA-Series strikes the balance just right.

The smooth case in crisp white makes for an elegant design that can effortlessly fit into any setting.

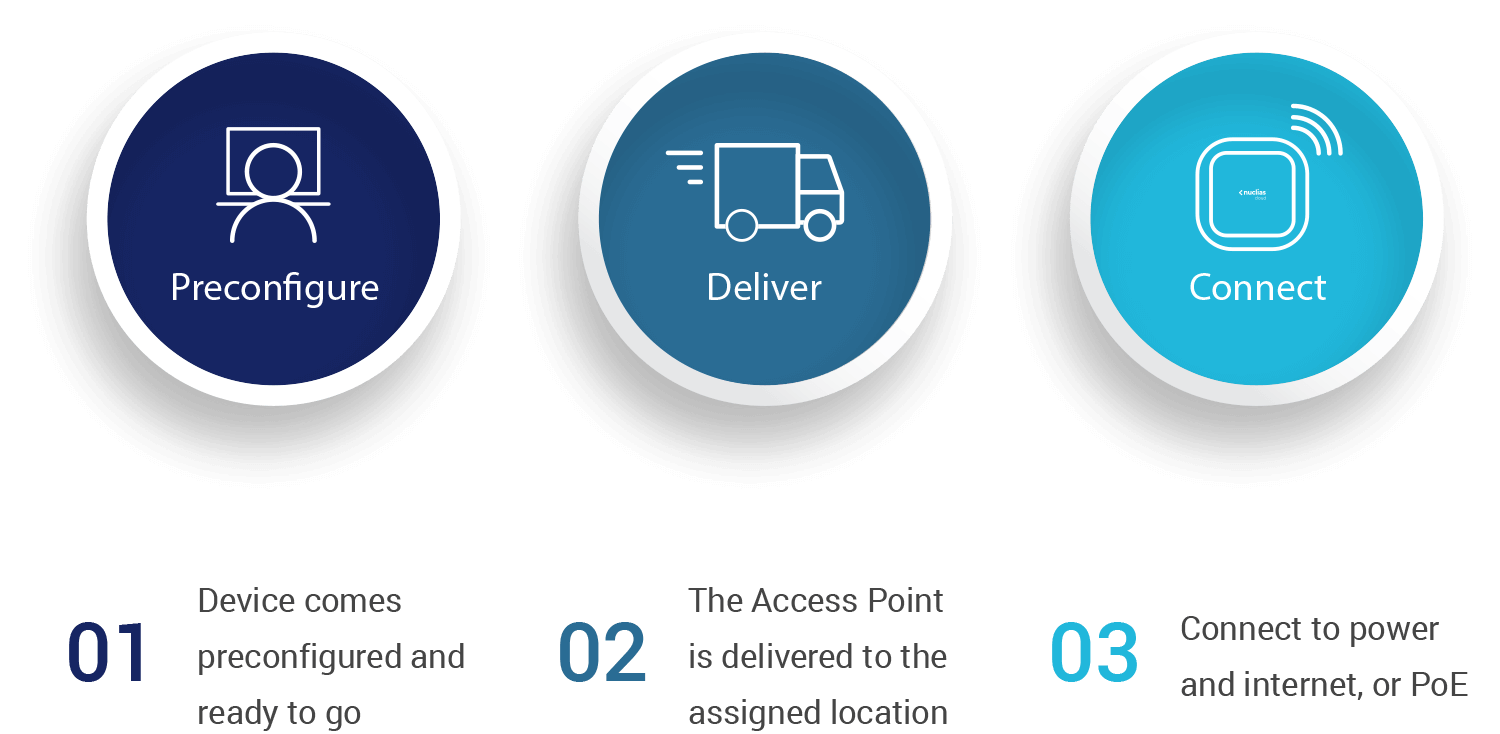

Zero Touch Deployment for Simple Installation

The DBA-2720P Nuclias Cloud-Managed Wave 2 Access Point is deployed as a pre-managed, zero-configuration access point. No need to send out your most experienced engineer for every installation. With Nuclias Zero Touch Deployment, you can power-up the access points on site, plug them in, and remotely set up and manage them through the Nuclias Connect cloud software.

Complete Control over your Network’s Access

Complete control comes as standard with the DBA-2720P. Combined with the Nuclias Cloud management software, a variety of the latest in network security and management tools are at your fingertips. You can rest assured that the best of the best are hard at work keeping your network better protected and hitch free.

  • The latest 128-bit Personal and 192-bit Enterprise Wireless Encryption
    The industry standard in data security
  • RADIUS
    Eliminate shared passwords with unique credentials for each employee
  • Customizable Captive Portal
    Separate guest and employee access
  • MAC Filtering – Limit what devices can connect
  • Rogue AP Detection – Guard against unauthorized Access Point installation
  • Wireless LAN Segmentation – Better bandwidth utilization
  • Wireless Isolation – Limit what users access on the local network
  • Wireless Broadcast Scheduling – Automate when your network is available
  • SSID Broadcast Disabling – Hide your wireless for an extra layer of security

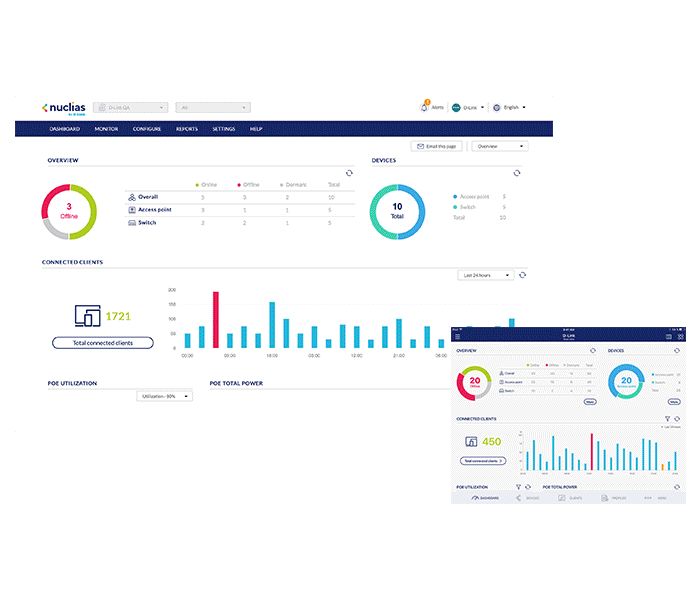

Essential Network Management Tools At Your Fingertip

Manage your entire network using D-Link’s intuitive Nuclias Cloud Management platform. All aspects of your network are easy to reach through the highly powerful centralized platform.

Tasks such as segmenting the network, managing multiple devices simultaneously, enforcing security policies, and monitoring live network statistics remotely can be done anytime, anywhere.


Nuclias
donwload on the App Store
git it on google play

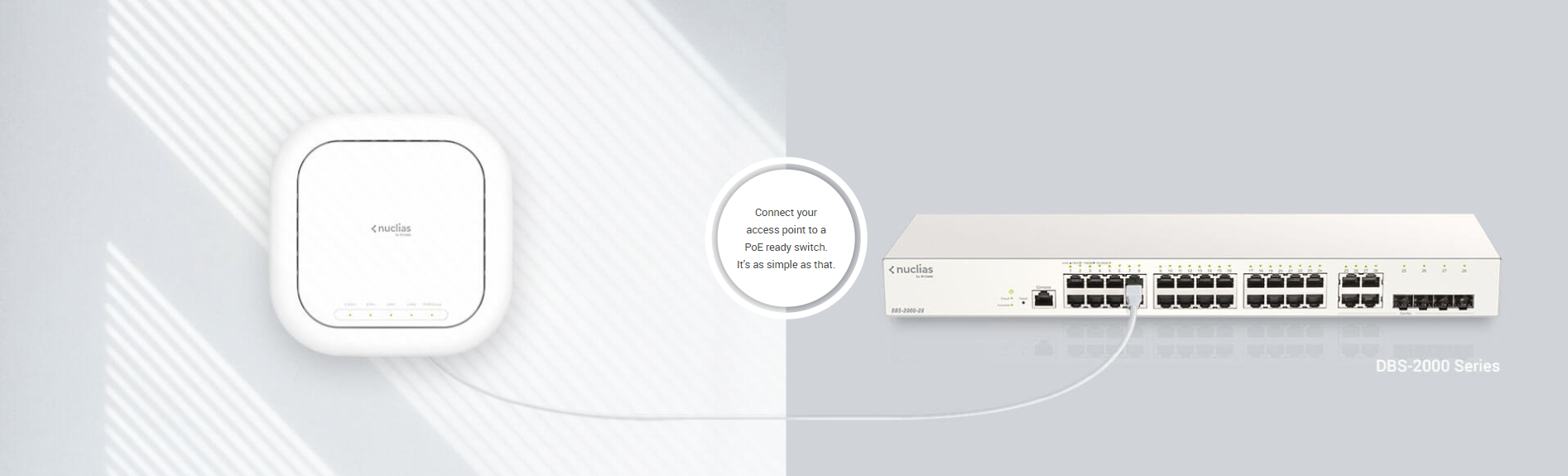

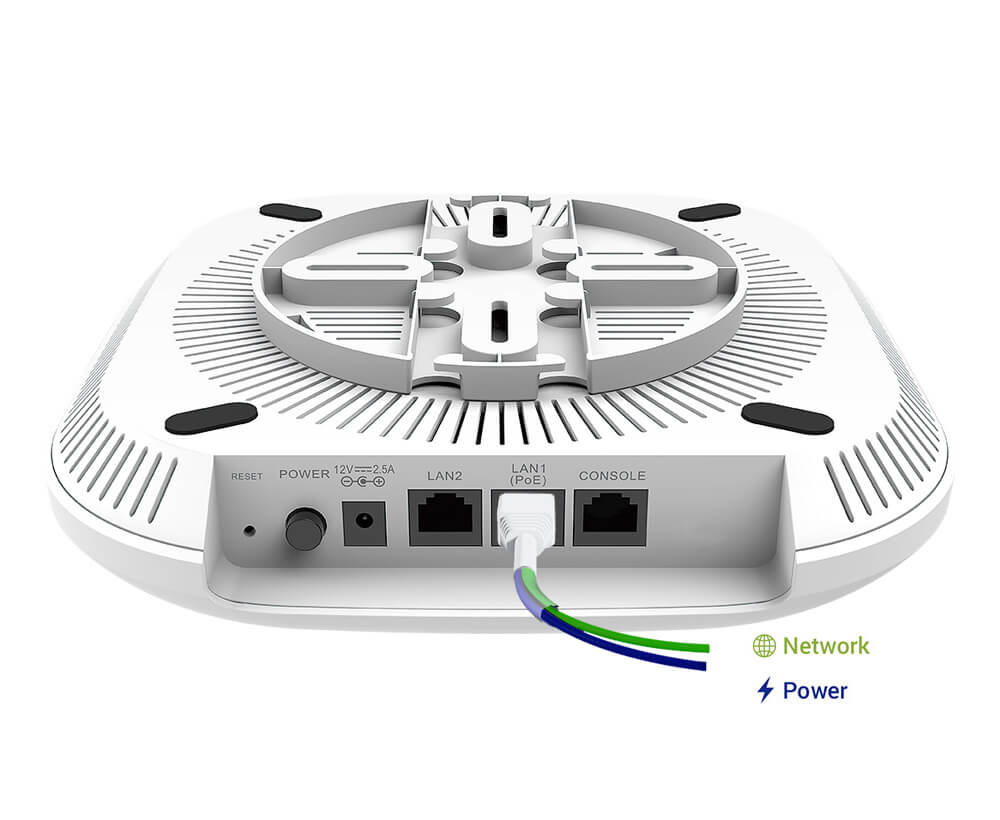

Peak Performance and Discreet Deployment with Power over Ethernet (PoE)

The DBA-2720P’s Power over Ethernet function allows for easy installation and a simple, clean setup. No need to run extra power lines, no added hassle when configuring your hardwiring and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.

Nuclias Cloud Access Points Comparison

Product

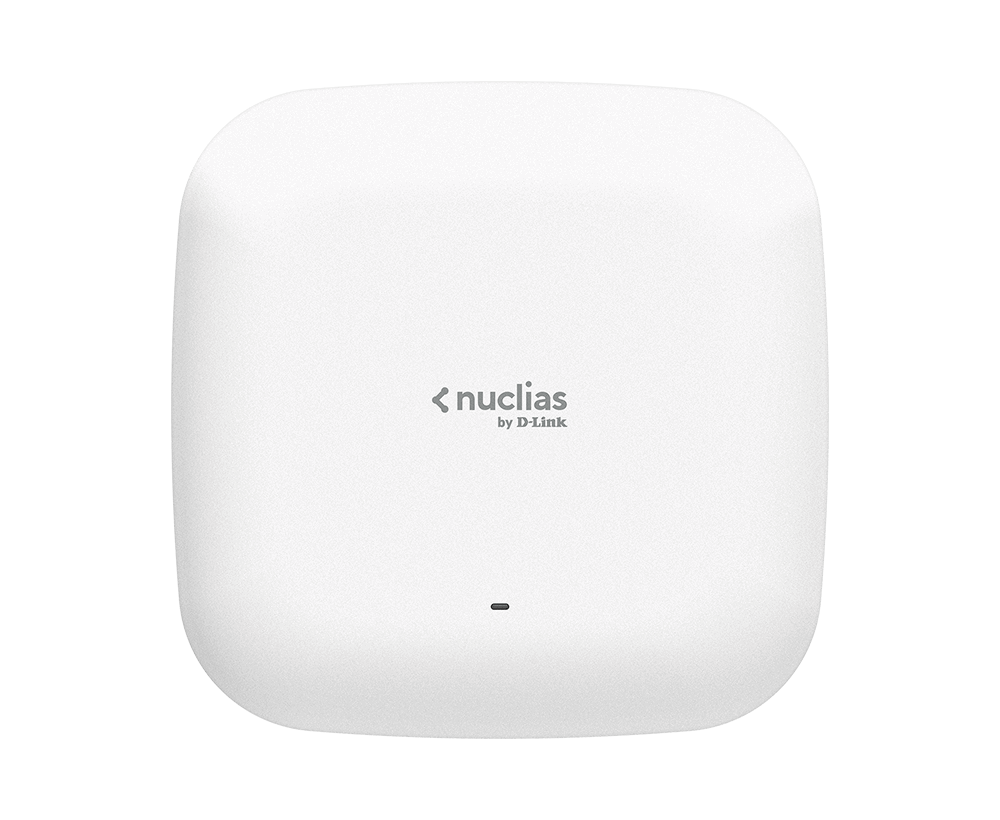

DBA-1210P
DBA-1210P

Nuclias Cloud-Managed AC1300 Wave 2 PoE Access Point

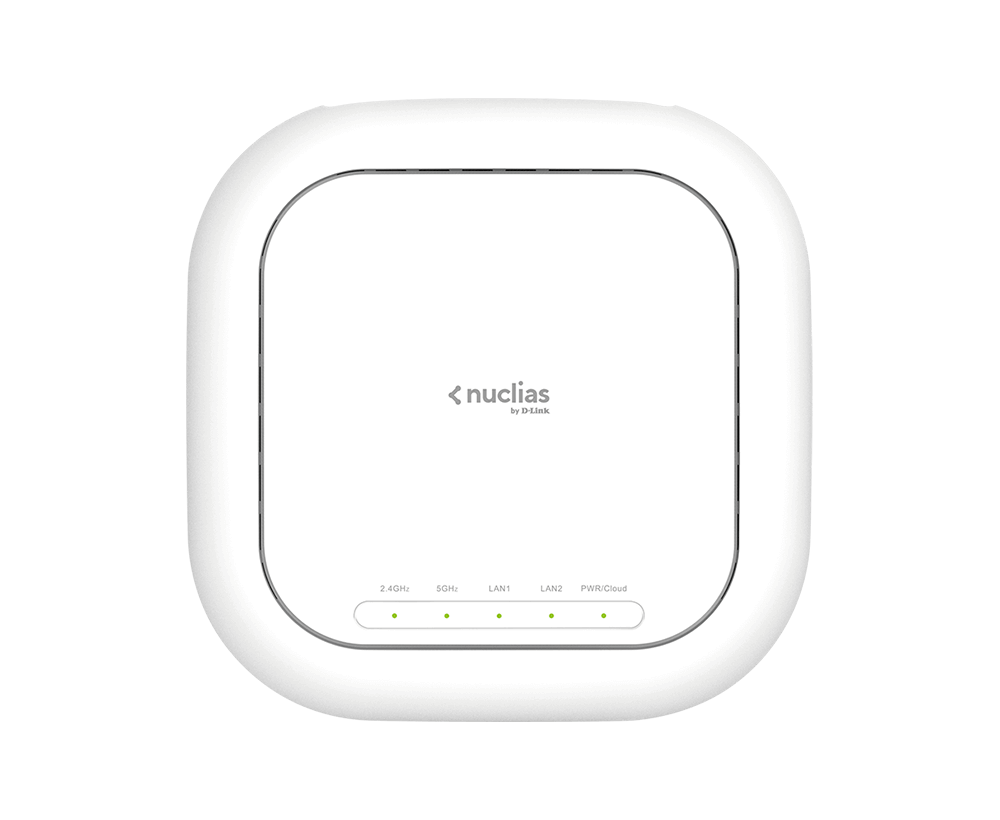

DBA-2520P
DBA-2520P

Nuclias Cloud Managed AC1900 Wave 2 PoE Access Point

DBA-2720P
DBA-2720P

Nuclias Cloud Managed AC2200 Wave 2 PoE Access Point

DBA-2820P
DBA-2820P

Nuclias Cloud Managed AC2600 Wave 2 PoE Access Point

Nuclias Cloud APs Series
Environment
Indoor
Indoor
Indoor
Indoor
Wireless Standard
11ac Wave 2
11ac Wave 2
11ac Wave 2
11ac Wave 2
2.4 GHz Radio Rate
Up to 400 Mbps
Up to 600 Mbps
Up to 400 Mbps
Up to 800 Mbps
5 GHz Radio Rate
Up to 867 Mbps
Up to 1299 Mbps
Up to 867 Mbps
Up to 1733 Mbps
Tri-Band Wifi
PoE Support
802.3af
802.3at
802.3at
802.3at

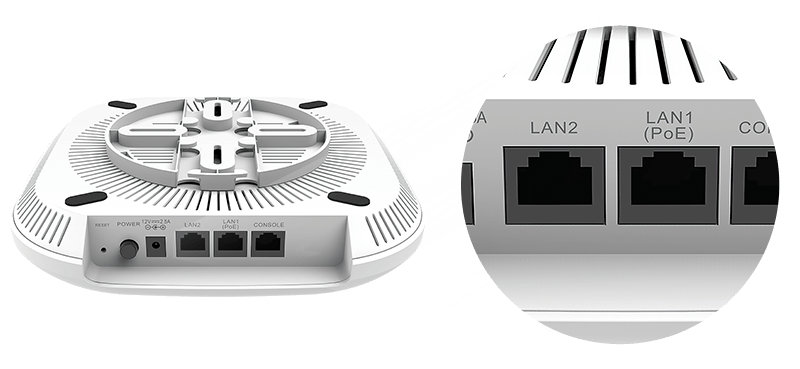

Ports
1 x 10/100/1000 Mbps Ethernet PoE port
2 x 10/100/1000 Mbps Ethernet port
1 x RJ45 Console port
2 x 10/100/1000 Mbps Ethernet port
1 x RJ45 Console port
2 x 10/100/1000 Mbps Ethernet port
1 x RJ45 Console port

Data Signal Rate²
2.4GHz 400 Mbps

5GHz 867 Mbps + 867 Mbps
Environment
Indoor
Features
MU-MIMO

Tx beamforming

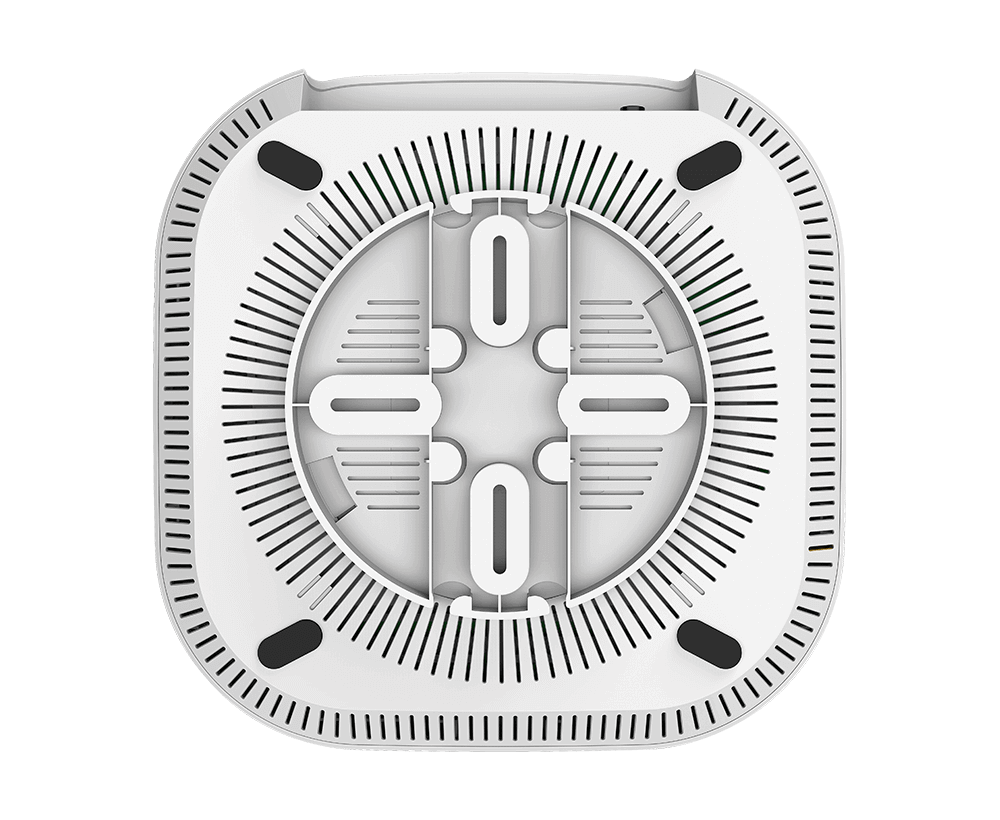

Mounting
Wall/Ceiling
Power Output
2.4G Hz : 26 dBm

5 GHz (1) : 26 dBm

5 GHz (2) : 26 dBm
Dimensions
224.5 x 223.85 x 50 mm
Interfaces
2 x 10/100/1000 Ethernet port
