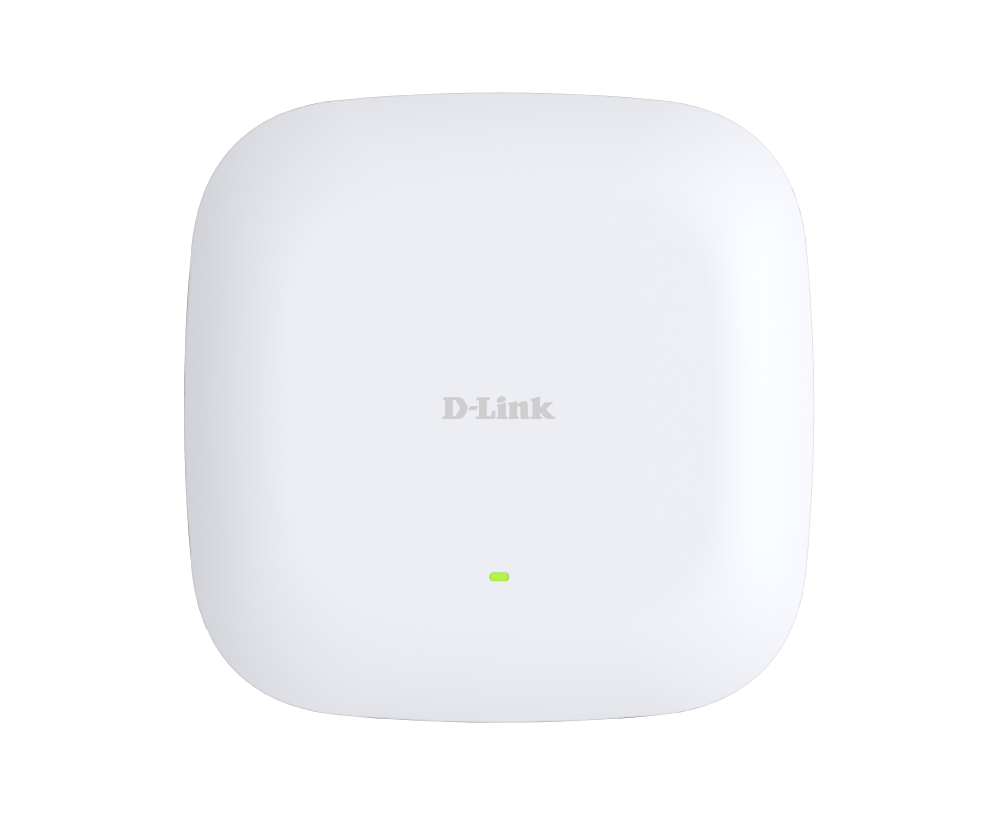

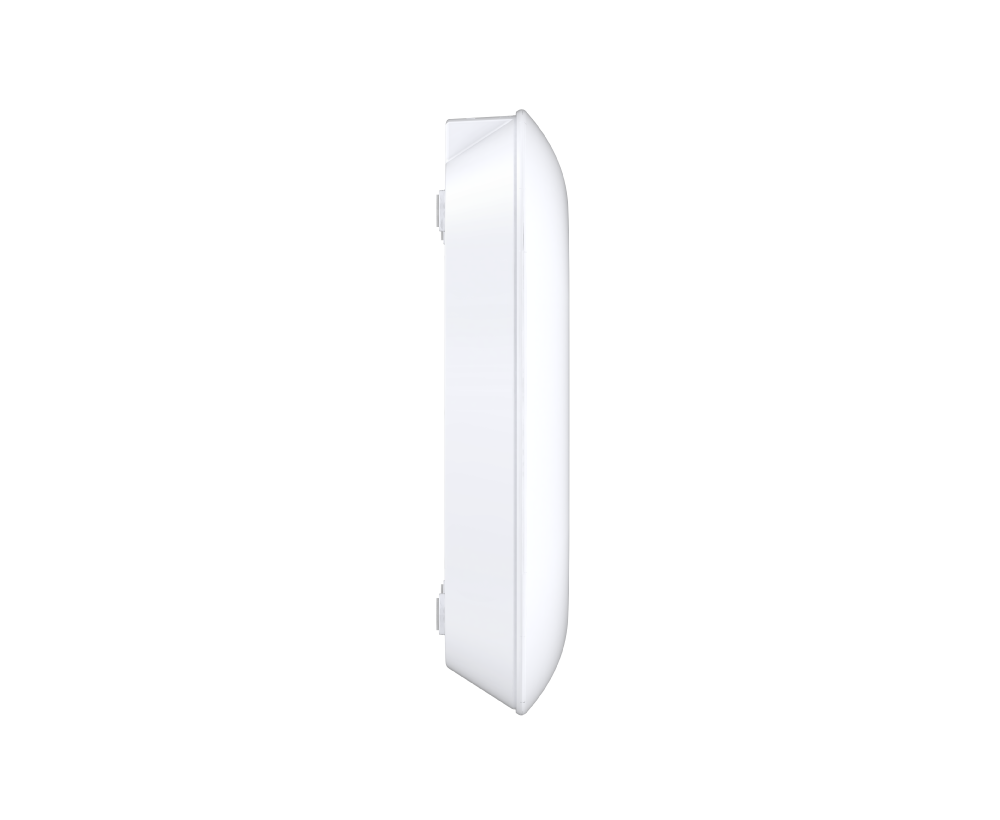

BE9500 Wi-Fi 7 Ceiling Mount Access Point

DAP-E9560

  • Product Status (v100 WW): Live
  • Wi-Fi 7 BE9500 Tri-band high-speed connectivity
  • 1x 10 Gigabit (PoE) + 1x 2.5 Gigabit Ethernet LAN
  • Powered by 802.3bt PoE, USB-C adapter
  • Max. channel bandwidth support (320MHz)
  • 4096-QAM – Up to 20% faster than Wi-Fi 6
  • Flexible use of multiple operating modes
  • WPA3 encryption for enhanced Wi-Fi security
  • Customizable Captive Portal for user access
  • Multi-Link Operation boosts connection stability
  • Centrally managed via Nuclias Network Controller

Download the datasheet.

Where to buy

Enhanced Performance for All Applications

Wi-Fi 7 will reduce interference and enhance the performance of your wireless network, making it suitable for various usage environments and applications, such as remote work, video conferencing, large file transfers, streaming media, AR/VR, and cloud service access.

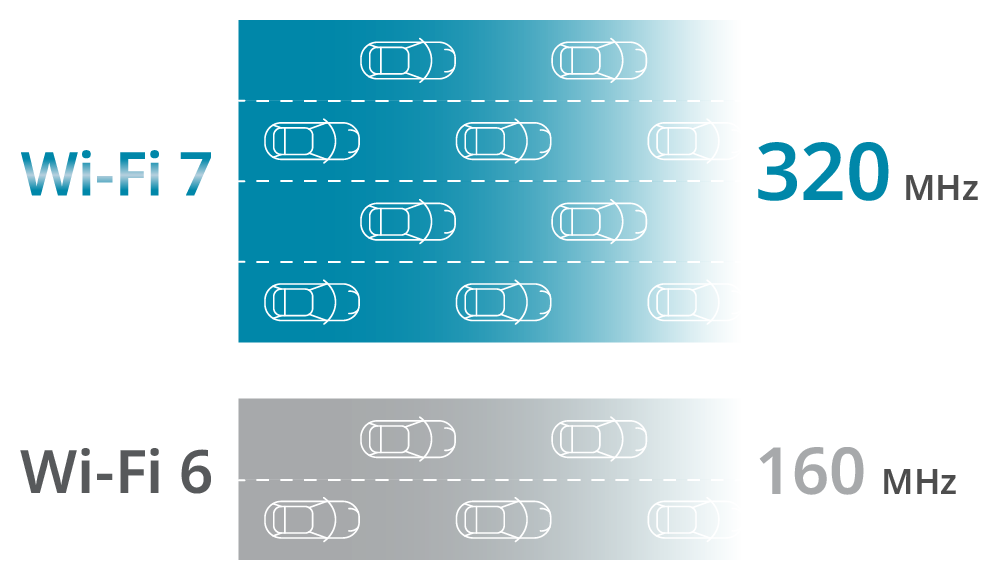

Double the bandwidth from 160 MHz to 320 MHz

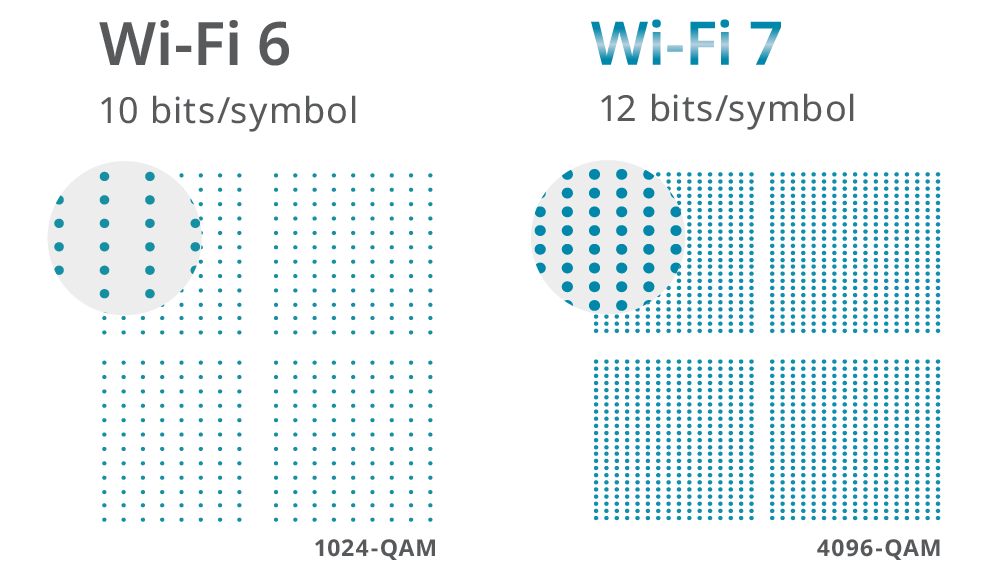

4096 QAM Modulation - 20 % data transmission increase than Wi-Fi 6

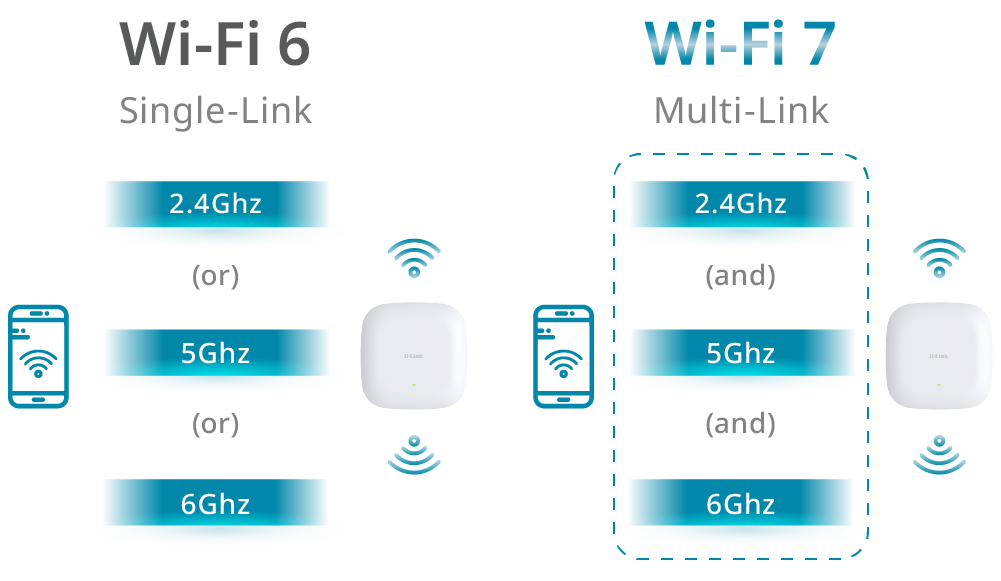

Multi-Link Operation (MLO) - Improves speed and stability

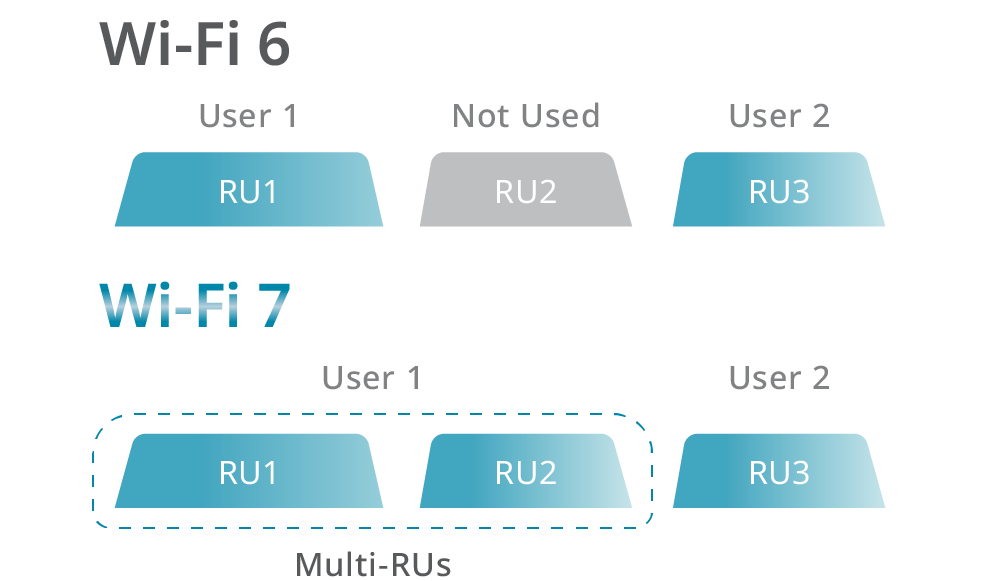

Multi-RUs and Puncturing – Channel bandwidth can be used more efficiently

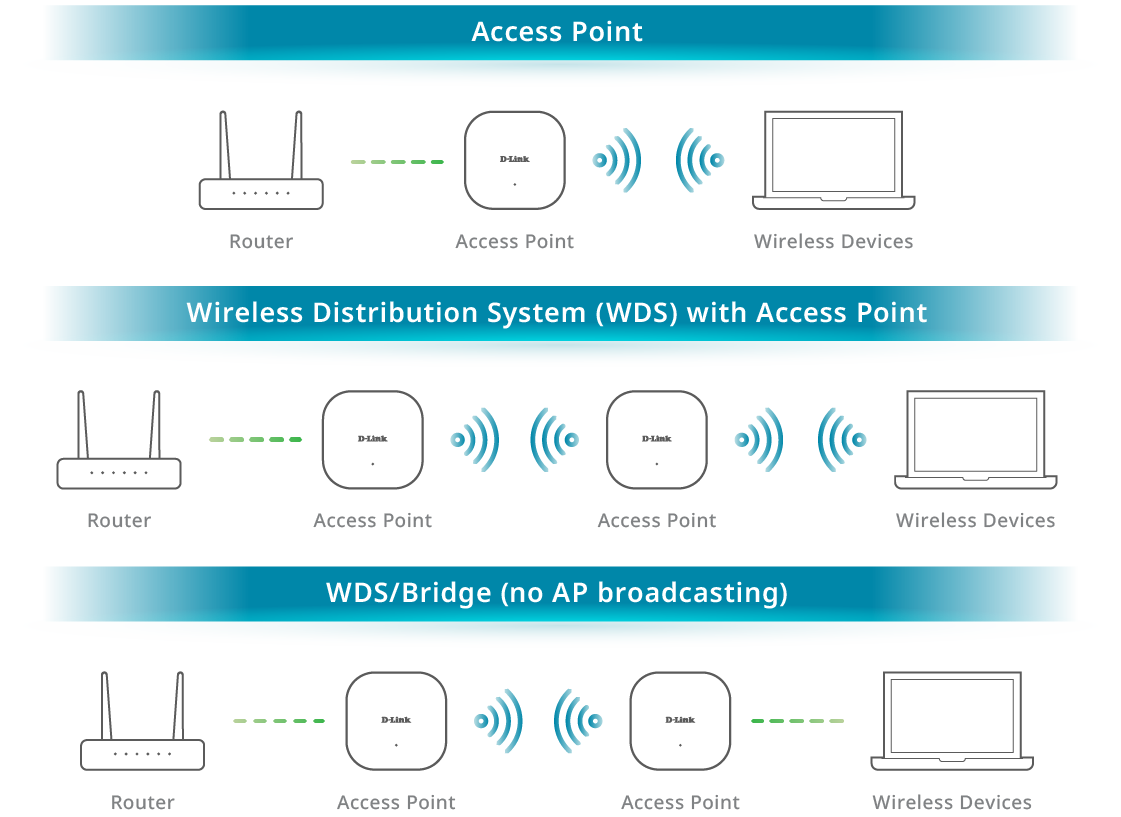

Multiple Operation Modes

The DAP-E9560 can be configured to fit the needs of your network and optimize performance.

.Access Point
.Wireless Distribution System (WDS) with Access Point
.WDS/Bridge (no AP broadcasting)

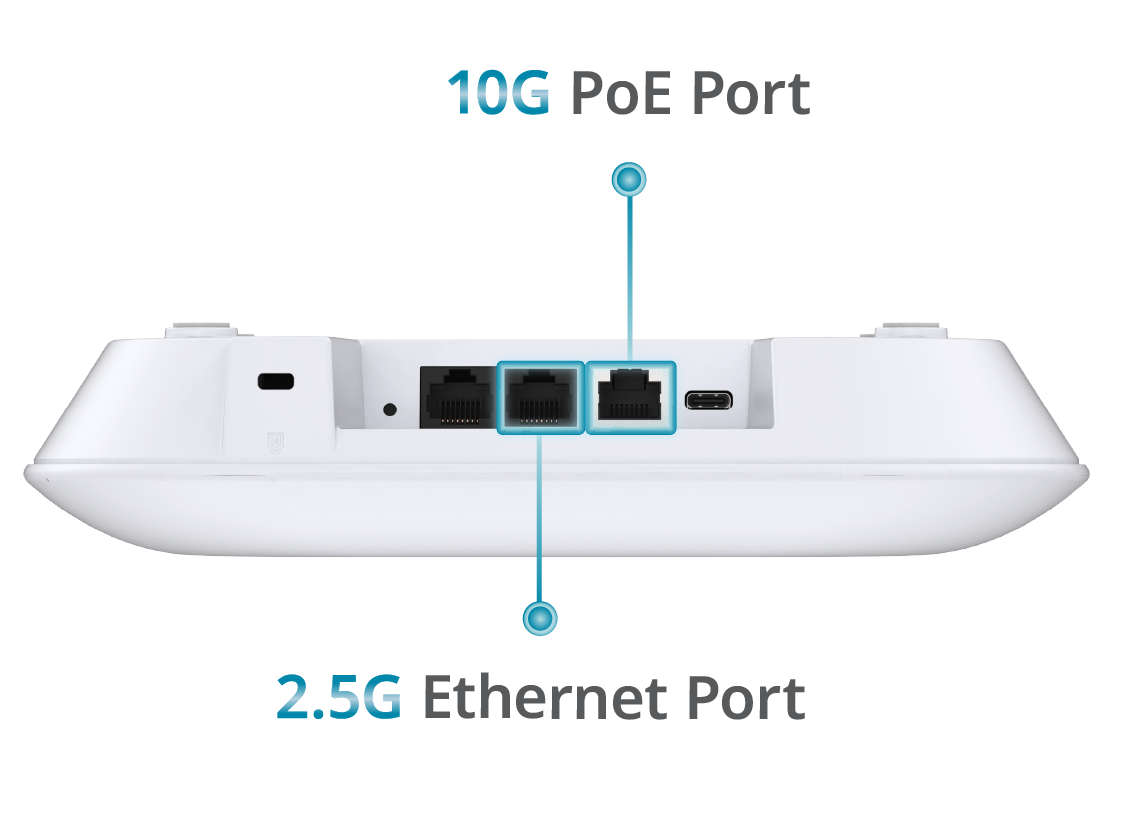

Optimized Wired Performance with 10G PoE and 2.5G Ports

Equipped with both a high-speed 10G PoE Ethernet port and an additional 2.5G Ethernet port, the DAP-E9560 ensures exceptional wired backhaul and flexible uplink options. This advanced design maximizes wired throughput for demanding enterprise environments, fully unleashing the ultra-fast potential of Wi-Fi 7 and supporting high-density, high-performance deployments.

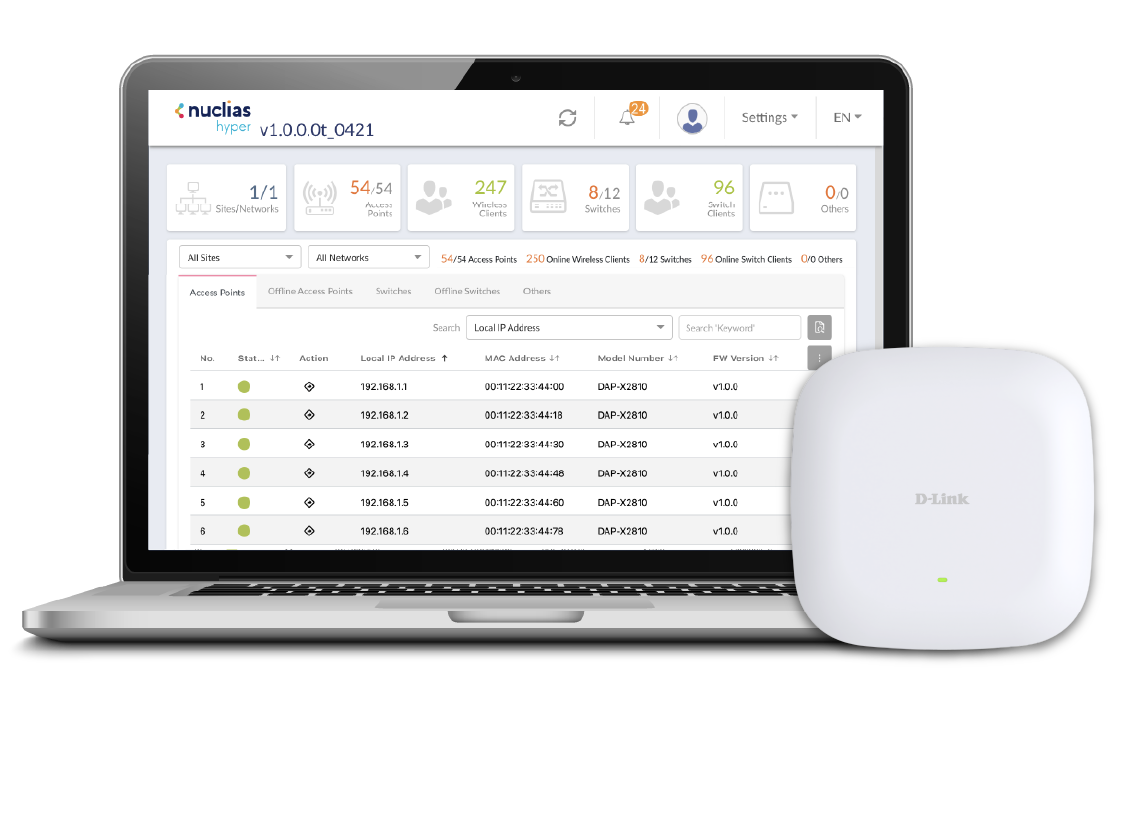

Centralized Network Control Made Simple

The DAP-E9560 integrates seamlessly with D-Link’s Nuclias Network Controller and software-based management platform, empowering businesses with centralized, remote management capabilities. Accessible from anywhere via an internet connection, this solution enables streamlined network control, automation, and effortless scalability. With built-in analytics and reporting, it delivers actionable insights across your network down to each access point for smarter decision-making.

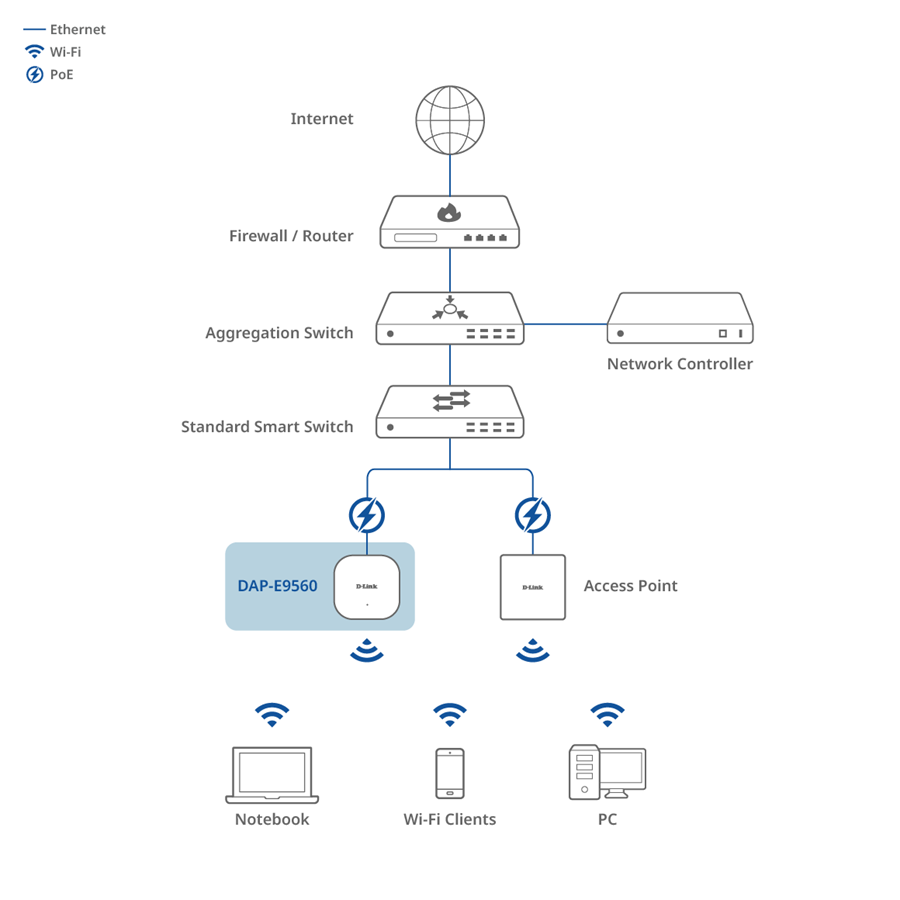

Connection Diagram

DAP-E9560 is designed for ultra-fast, secure, and efficient wireless connectivity to meet the demands of modern high-density environments. With Tri-band support, 320 MHz channels, 4096-QAM, and 10G Ethernet, it delivers exceptional performance for latency-sensitive applications like video conferencing, cloud access, and real-time collaboration.

Business    Router

Aggregation Switch

Network Controller

Standard Smart Switch

Access    Point

Related Products

AX3000 Wi-Fi 6 Outdoor PoE Access Point
DAP-X3060OU
Find out more

Applications

SME (Enterprise)

Department Store (Business)

Transnational University (Education)

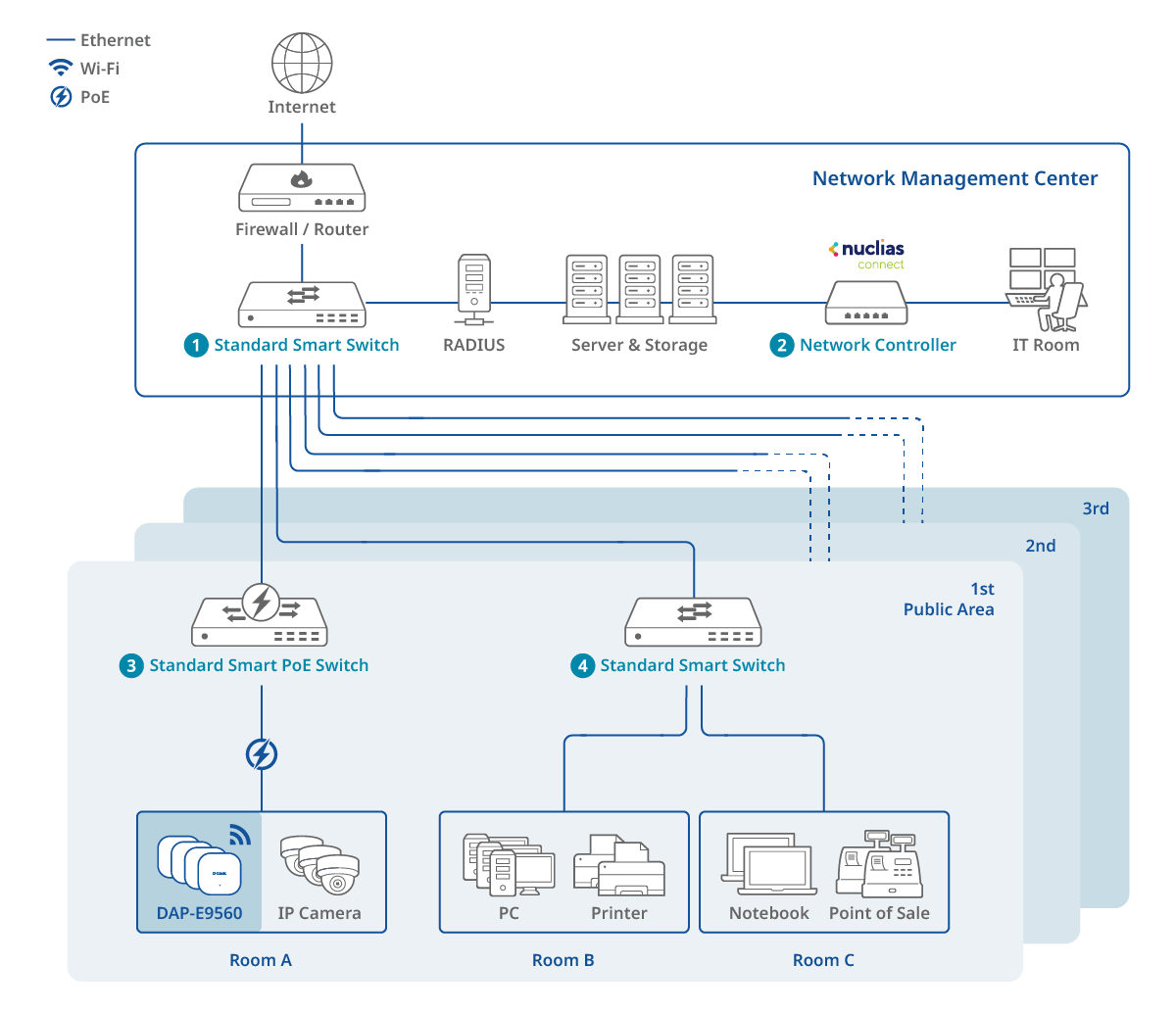

SME (Enterprise)

User benefits :

  • High-speed data for better productivity
  • Smooth video calls and collaboration
  • Stable performance for many devices
  • Fast roaming across floors
  • Enhanced your productivity
  • Secure access with WPA3 and VLANs

Learn more :

  1. Standard Smart Switch : DXS-1210-12SC
  2. Network Controller : DNH-1000
  3. Standard Smart PoE Switch : DXS-1250-28YP (Coming soon)
  4. Standard Smart Switch : DMS-1250-18

 Department Store (Business)

User benefits :
  • High-bandwidth uplinks for fast, stable connections
  • Rapid fault recovery for reliable performance
  • Comprehensive security to protect critical data
  • Supports long-distance connectivity
  • VLAN and QoS to optimize the learning experience

Learn more :

  1. Aggregation Switch : DXS-3130-32S (Coming Soon)
  2. Network Controller : DNC-5000
  3. Standard Smart PoE Switch : DXS-1250-28YP (Coming Soon)
  4. Stackable Smart Switch : DGS-1530 Series

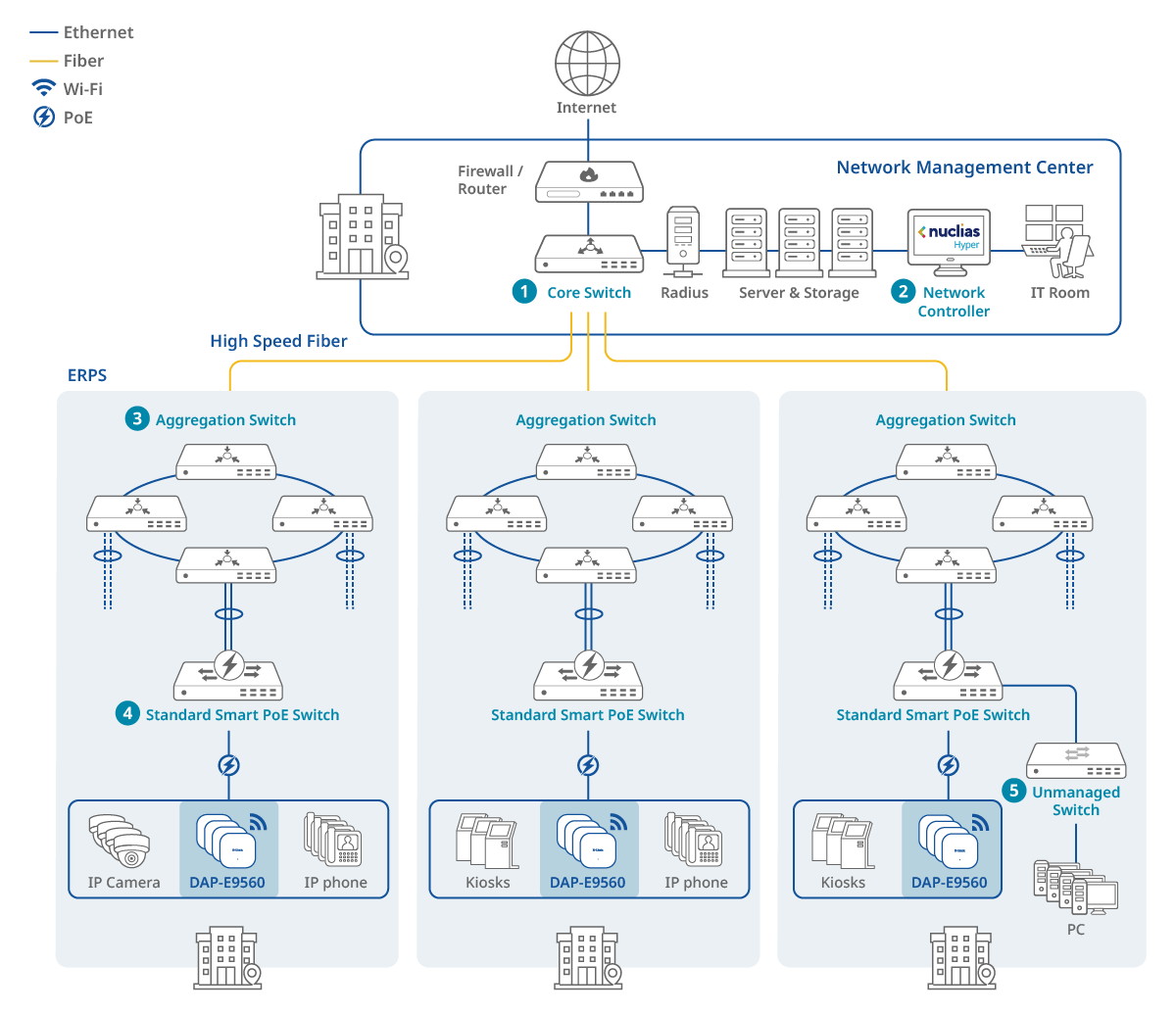

Transnational University (Education)

User benefits :
  • High-speed connectivity across campus
  • Reliable performance in high-density areas
  • Low latency for online learning and research
  • Fast roaming between buildings
  • Supports AR/VR and 4K applications
  • Secure access for all user groups

Learn more :

  1. Core Switch : DXS-3610-54S
  2. Network Controller : DNC-5000
  3. Aggregation Switch : DXS-3130-32S (Coming soon)
  4. Standard Smart PoE Switch : DXS-1250-28YP (Coming soon)
  5. Unmanaged Switch : DMS-1024

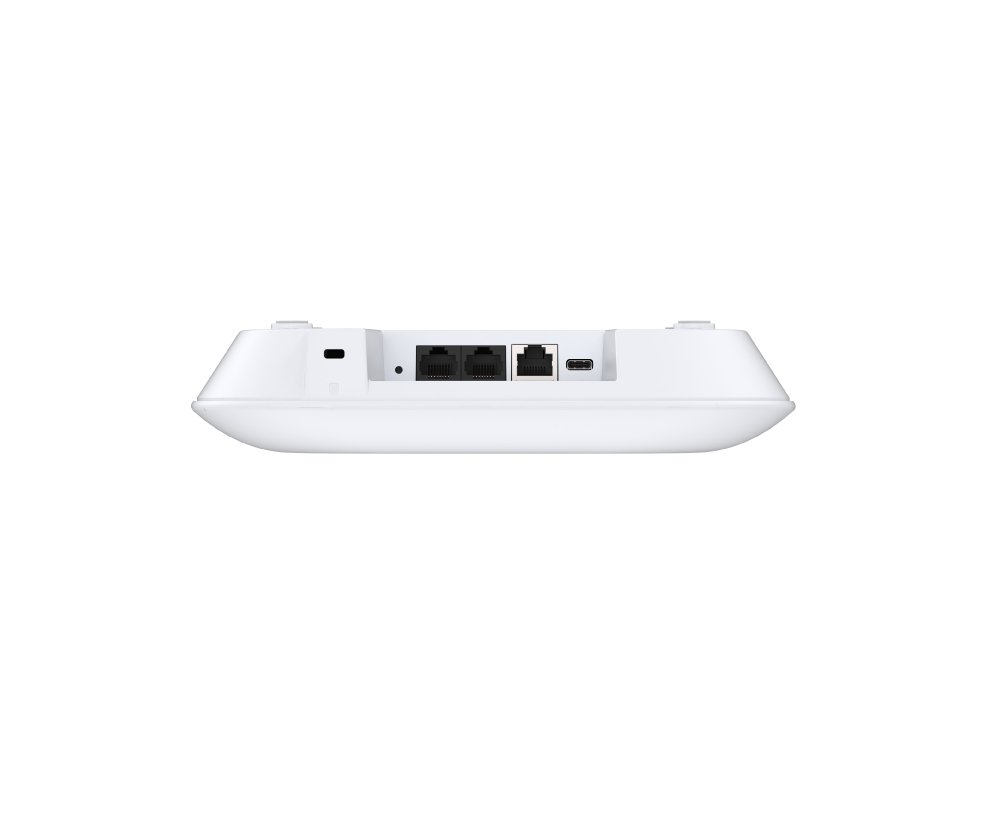

Interfaces
1 x 10-Gigabit Ethernet PoE LAN port
1 x 2.5-Gigabit Ethernet LAN port
Antenna type
2 x 2.4 GHz internal antennas
2 x 5 GHz internal antennas
2 x 6 GHz internal antennas
IEEE Standard
IEEE 802.11be/ax/ac/n/g/b/a
IEEE 802.3u/ab/an
IEEE 802.3bt PoE
Security Protocol
WPA/WPA2/WPA3™ Personal/Enterprise
WEP 64/128-bit
SSID broadcast disable
Enhanced Open
MAC address access control
Internal RADIUS server
Operating Frequency
2.4 - 2.483 GHz
5_925 7_125 GHz
5.15 - 5.35 GHz
5.47 - 5.85 GHz
Device Management
Web (HTTP/HTTPS)
Telnet/SSH
Nuclias Network Controller
SNMP
Dimensions
212 x 212 x 44.5 mm (W x D x H)
Power Input
20V/2.25A
Operating Temperature
0 - 40 °C (32 - 104 °F)
Operating Humidity
10% to 90% non-condensing
Storage Humidity
5% to 95% non-condensing
Console Port
RJ-45 console port
Power Supply Type
USB Type-C
