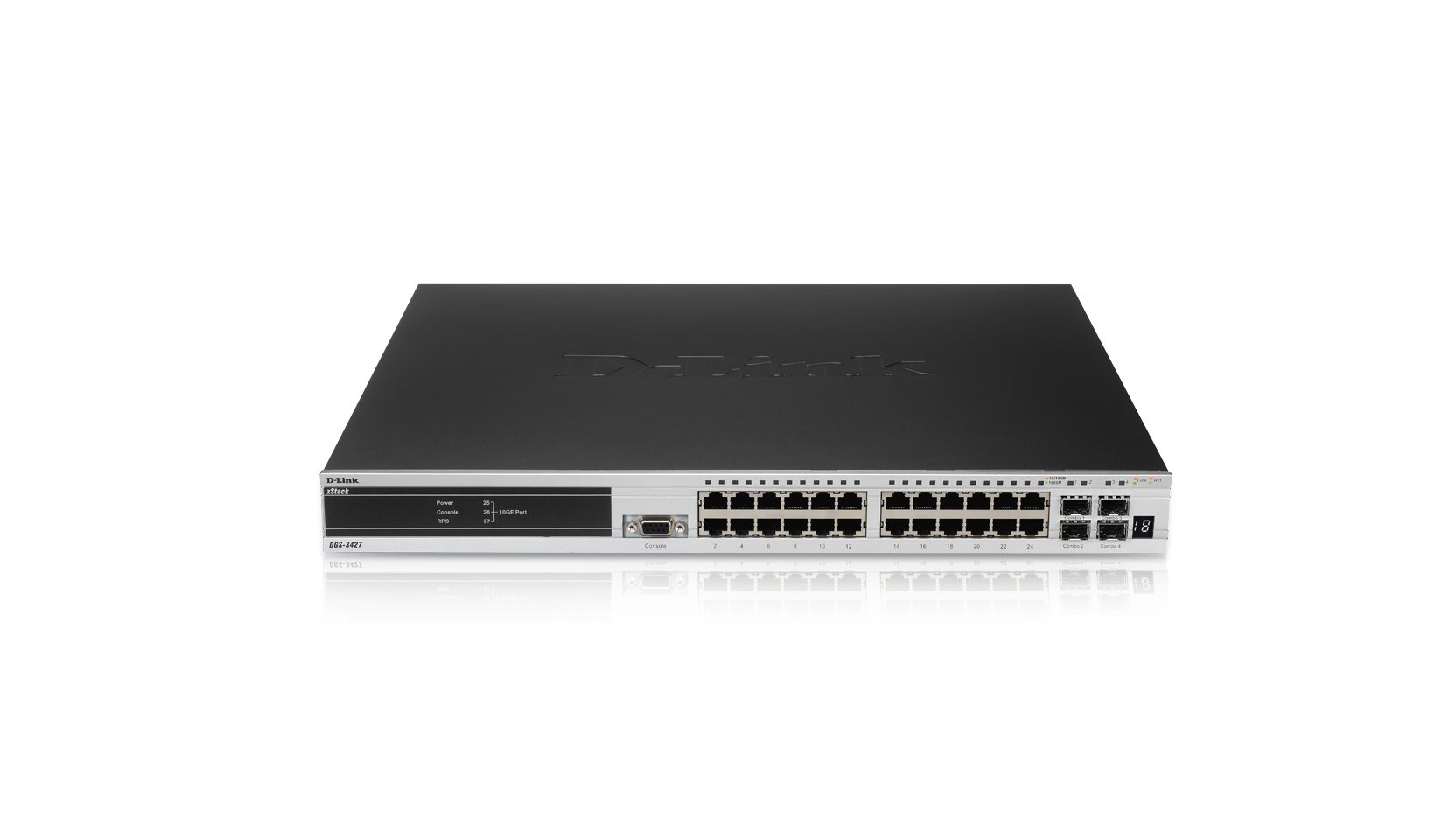

xStack 24-Port Gigabit L2+ Stackable Switch
DGS-3427
- Status produktu: Brak wsparcia
There's a new version of this product:
Gigabitowe przełączniki zarządzalne L3

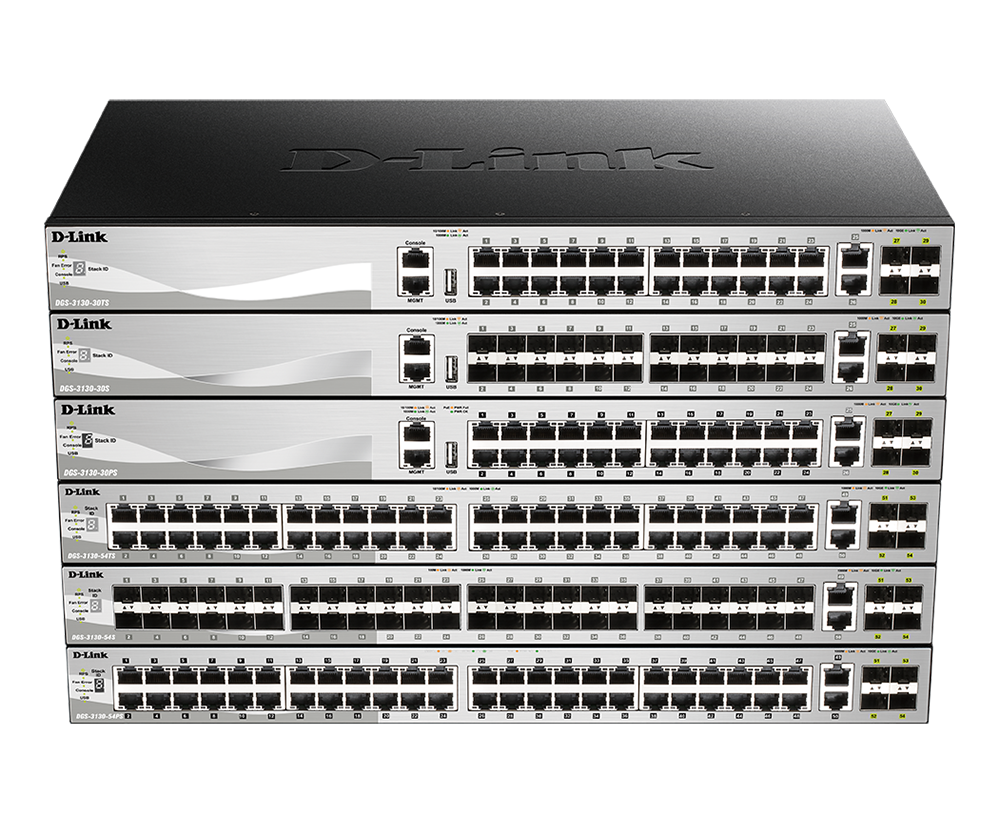

Seria DGS-3130
See Newer ProductThere's a new version of this product:
Seria DGS-3130
Gigabitowe przełączniki zarządzalne L3
Opis
- Jednolity obraz oprogramowania z rozbudowanymi funkcjami L2 i L3
- 6 portów 10G
- Ochrona przeciwprzepięciowa 6kV dla portów Gigabit Ethernet
- Opcjonalne Power over Ethernet (PoE) z budżetem mocy do 740W z RPS
- D-Link Safeguard Engine
- Dożywotnia gwarancja Limited Lifetime
Opis
- Jednolity obraz oprogramowania z rozbudowanymi funkcjami L2 i L3
- 6 portów 10G
- Ochrona przeciwprzepięciowa 6kV dla portów Gigabit Ethernet
- Opcjonalne Power over Ethernet (PoE) z budżetem mocy do 740W z RPS
- D-Link Safeguard Engine
- Dożywotnia gwarancja Limited Lifetime
The xStack DGS-3400 series of next generation switches delivers performance, flexibility, security, multi-layer Quality of Service (QoS) and redundant power option for the SMB and enterprises. With high Gigabit port densities for desktop connections, SFP fiber connectivity, 10-Gigabit uplink options and enhanced Layer 2+ functions, these switches comprise the workgroup access-layer stack for seamless integration with L3 core switches to form part of a multi-level network structured with high-speed backbone and centralized servers.
Unparalleled Flexibility.
Any switch in the DGS-3400 series can operate as a stand-alone device or part of a scalable stack. Embedded with Single IP Management capability, a standalone switch can form part of a virtual stack, where intra-stack traffic flows through the usual network wires, doing away with the costly stacking cables. Without stacking cables, cable distance barriers and physical stacking limitations, a virtual stack can comprise units that are located anywhere on the network that minimizes the impact of any single point of failure.
Redundant Ring Stacking.
Alternatively, optional 10-Gigabit modules can be installed in the open slots to create a physical stack. Up to 12 units or 576 Gigabit ports can be configured for a stack.1 Users can install one or two single-port modules, depending on whether the linear or fault-tolerant Ring stacking is implemented. With each of these ports providing 20Gbps full duplex transmission on the cost-effective coaxial cable, the DGS-3400 series provides not only high-bandwidth stacking but also cost control capability that allows users to add ports strictly on a per need basis. Modules with single 10-Gigabit XFP can also be installed in any of the open slots for uplink to servers or a fiber backbone.
More Intelligent Than Simple Layer 2 Switches.
The DGS-3400 series provides a complete set of security features, which includes L2/L3/L4 multi-layer Access Control Lists and 802.1x user authentication via TACACS+ and RADIUS servers. In addition, it offers suppression capabilities and Layer 3 IP v.4/v.6 Static Routing to increase network performance and security. Built-in D-Link ZoneDefense technology allows business to integrate the switch stack with D-Link NetDefend firewalls to implement a full coverage, proactive security architecture.
Security, Performance & Availability.
The DGS-3400 series provides extensive VLAN support including GARP/GVRP and 802.1Q VLAN to enhance security and performance. To support converged applications including VoIP, ERP, Intranet and video conference, a robust set of L2/L3/L4 QoS/CoS features ensures that critical network services are served with proper priority. For prevent malicious flooding traffic caused by worm/virus infections, the DGS-3400 series provides D-Link Safeguard Engine to increase the switch's reliability, serviceability and availability. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, per-flow bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.
Actual product appearance may differ from the image displayed on this page
Unparalleled Flexibility.
Any switch in the DGS-3400 series can operate as a stand-alone device or part of a scalable stack. Embedded with Single IP Management capability, a standalone switch can form part of a virtual stack, where intra-stack traffic flows through the usual network wires, doing away with the costly stacking cables. Without stacking cables, cable distance barriers and physical stacking limitations, a virtual stack can comprise units that are located anywhere on the network that minimizes the impact of any single point of failure.
Redundant Ring Stacking.
Alternatively, optional 10-Gigabit modules can be installed in the open slots to create a physical stack. Up to 12 units or 576 Gigabit ports can be configured for a stack.1 Users can install one or two single-port modules, depending on whether the linear or fault-tolerant Ring stacking is implemented. With each of these ports providing 20Gbps full duplex transmission on the cost-effective coaxial cable, the DGS-3400 series provides not only high-bandwidth stacking but also cost control capability that allows users to add ports strictly on a per need basis. Modules with single 10-Gigabit XFP can also be installed in any of the open slots for uplink to servers or a fiber backbone.
More Intelligent Than Simple Layer 2 Switches.
The DGS-3400 series provides a complete set of security features, which includes L2/L3/L4 multi-layer Access Control Lists and 802.1x user authentication via TACACS+ and RADIUS servers. In addition, it offers suppression capabilities and Layer 3 IP v.4/v.6 Static Routing to increase network performance and security. Built-in D-Link ZoneDefense technology allows business to integrate the switch stack with D-Link NetDefend firewalls to implement a full coverage, proactive security architecture.
Security, Performance & Availability.
The DGS-3400 series provides extensive VLAN support including GARP/GVRP and 802.1Q VLAN to enhance security and performance. To support converged applications including VoIP, ERP, Intranet and video conference, a robust set of L2/L3/L4 QoS/CoS features ensures that critical network services are served with proper priority. For prevent malicious flooding traffic caused by worm/virus infections, the DGS-3400 series provides D-Link Safeguard Engine to increase the switch's reliability, serviceability and availability. Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, per-flow bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.
Actual product appearance may differ from the image displayed on this page
Sugerowane urządzenia
Jednoportowy minimoduł GBIC dla 1000BaseLX (LC Duplex)
DEM-310GT
Wielomodowy światłowodowy przekaźnik SFP 1000Base‑SX
DEM-311GT
Wsparcie techniczne
Urządzenie zostało wycofane ze sprzedaży dnia: 24/02/2014
Wsparcie dla produktu skończy się dnia: 23/02/2019
