Wireless N Day & Night Home Network Camera

DCS-932

  • Status produktu: Brak wsparcia

There's a new version of this product:

Kamera IP Wi-Fi Cloud

DCS-932L

See Newer Product

There's a new version of this product:

DCS-932L

Kamera IP Wi-Fi Cloud

Opis

  • Technologia Wireless N umożliwiająca bezproblemowe połączenia.
  • Sensor CMOS działający przy natężeniu 1 lux (do korzystania z kamery w słabo oświetlonych miejscach).
  • Powiadomienia pocztą elektroniczną wywoływane zarejestrowanym ruchem.
  • Wbudowany mikrofon.
  • Łatwe zabezpieczenie połączenia bezprzewodowego przy użyciu jednego przycisku dzięki funkcji Wi-Fi Protected Setup (WPS).
  • Bezpłatna usługa mydlink oferująca łatwą i szybką transmisję z kamery z dowolnego miejsca za pośrednictwem Internetu.
See Newer Product

Opis

  • Technologia Wireless N umożliwiająca bezproblemowe połączenia.
  • Sensor CMOS działający przy natężeniu 1 lux (do korzystania z kamery w słabo oświetlonych miejscach).
  • Powiadomienia pocztą elektroniczną wywoływane zarejestrowanym ruchem.
  • Wbudowany mikrofon.
  • Łatwe zabezpieczenie połączenia bezprzewodowego przy użyciu jednego przycisku dzięki funkcji Wi-Fi Protected Setup (WPS).
  • Bezpłatna usługa mydlink oferująca łatwą i szybką transmisję z kamery z dowolnego miejsca za pośrednictwem Internetu.
See Newer Product
  • Compact size
  • Wireless N technology for a flawless connection anywhere in your home
  • Built-in IR LEDs for night vision (up to 5 m.)
  • Motion-triggered alerts by email
  • Built-in microphone
  • Wireless security at the touch of a button with Wi-Fi Protected Setup (WPS)
  • Dynamic DNS support to easily access your camera from anywhere in the Internet
  • Includes D-ViewCam software


The DCS-932 is a unique and versatile surveillance solution for your home or small office. Unlike a traditional webcam, this camera is a complete system with a built-in CPU and web server that transmits high quality video images and audio for security, surveillance, and remote monitoring. Simple installation and an intuitive web based interface offer easy integration with your Ethernet or 802.11n wireless network. The DCS-932 also comes with remote monitoring, motion detection, and night vision for a complete and cost-effective home security solution.


Wireless N connectivity
This network camera includes 802.11n wireless for fast and easy integration into your existing network environment. Wireless N allows you to stream high-quality video to remote sites over the Internet. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. It also includes a standard Ethernet port for connections to traditional wired networks.


Night vision
This Wireless N camera comes with built-in infrared LEDs that allow for continuous monitoring even in complete darkness. The 5-metre illumination distance makes it suitable for small offices, baby rooms, sheds and garages.


Easy to configure and use
This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognise the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember the IP address. You may also view up to 32 cameras from a central location using the included free D-ViewCam software (DCS-100). D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform users of suspicious or unusual activities.

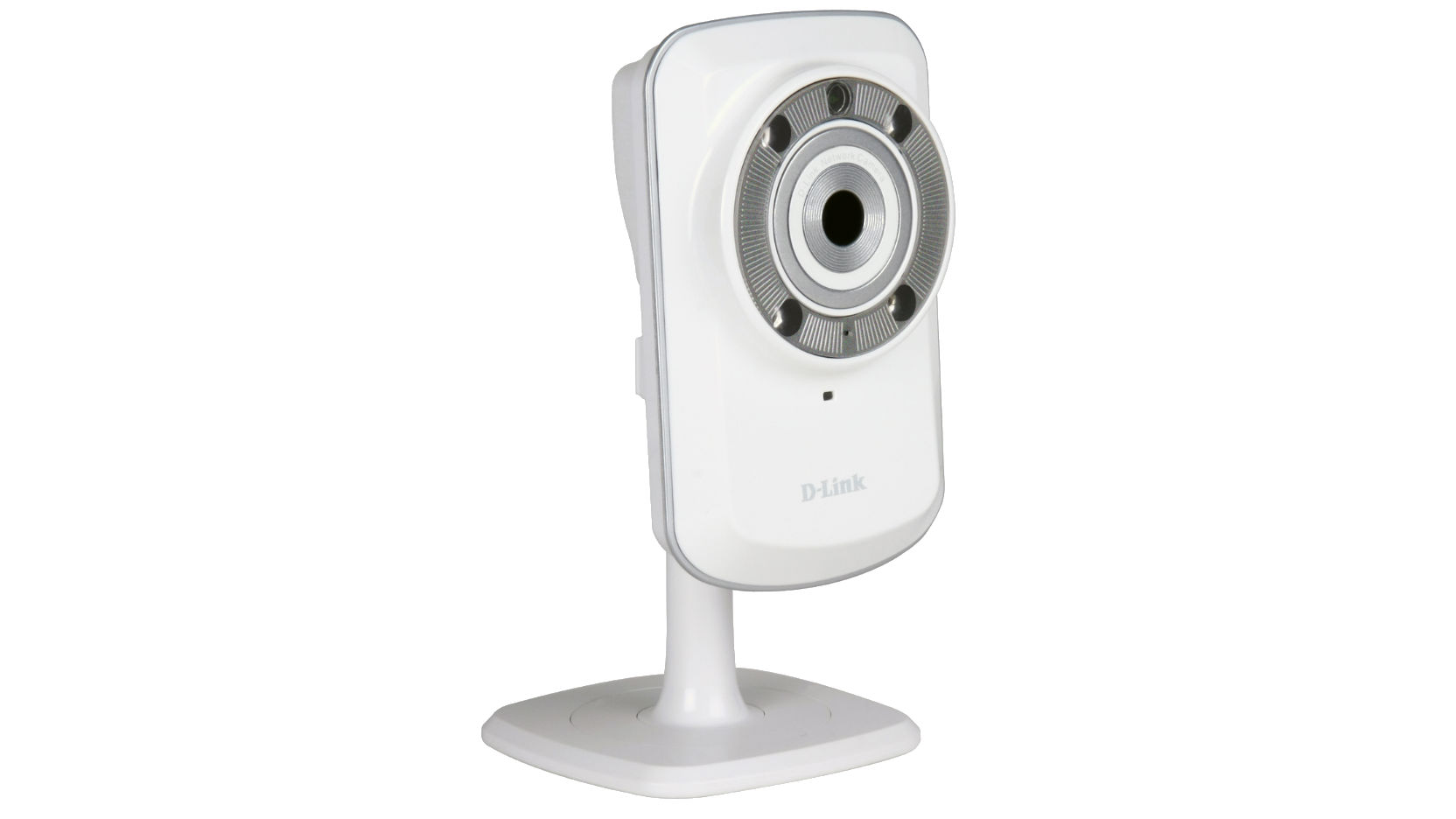

Actual product appearance may differ from the image displayed on this page

Networking Protocol
  • IPV4, ARP, TCP, UDP, ICMP
  • DHCP Client
  • NTP Client (D-Link)
  • DNS Client
  • DDNS Client (Dyndns and D-Link)
  • SMTP Client
  • FTP Client
  • HTTP Server
  • PPPoE
  • UPnP Port Forwarding
  • LLTD


Network Interface
  • 10/100BASE-TX Fast Ethernet
  • 802.11b/g/n WLAN


Wireless connectivity
  • 802.11b/g/n Wireless
  • WEP/WPA/WPA2 security


Wireless transmit output power
  • 16 dBm for 11b
  • 12 dBm for 11g
  • 12 dBm for 11n (typical)


Memory
  • SDRAM: 32 MB
  • Flash: 4 MB


Reset button
  • Reset to factory default


Video codecs
  • MJPEG
  • JPEG for still images


Video features
  • Adjustable image size and quality
  • Time stamp and text overlay
  • Flip and Mirror


Resolution
  • 640 x 480 at up to 20 fps
  • 320 x 240 at up to 30 fps
  • 160 x 120 at up to 30 fps


Lens
  • Focal length: 5.01 mm, F2.8


Sensor
  • VGA 1/5 inch CMOS Sensor


Minimum Illumination
  • 1 lux @ F2.8


View Angle
  • Horizontal: 45.3°
  • Vertical: 34.5°
  • Diagonal: 54.9°


Digital zoom
  • Up to 4x


LEDs
  • 4x IR LED
  • Illumination distance: 5 m. (16 feet)


3A control
  • AGC (Auto Gain Control)
  • AWB (Auto White Balance)
  • AES (Auto Electronic Shutter)


Power
  • Input: 100-240 V AC, 50/60 Hz
  • Output: 5 V DC, 1.2 A
  • External AC-to-DC switching power adapter


Dimensions (W x D x H)
  • Camera only: 27.2 x 60 x 96 mm
  • Including the bracket and stand: 65.8 x 65 x 126 mm


Weight
  • 76.9 g (without bracket and stand)


Max power consumption
  • 2 W


Temperature
  • Operation: 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
  • Storage: -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)


Humidity
  • 20-80% RH non-condensing


Emission (EMI), Safety & Other Certifications
  • FCC Class B
  • IC
  • C-Tick
  • CE

Wsparcie techniczne

Urządzenie zostało wycofane ze sprzedaży dnia: 21/01/2012
Wsparcie dla produktu skończy się dnia: 20/01/2014
Wersja Data Typ Rozmiar pliku
Datasheet (English) - PDF 0.62mb Pobierz
Wersja Opis Data Typ Rozmiar pliku
Manual (English) Manual (English) - PDF 3.32mb Pobierz
Wersja Opis Data Typ Rozmiar pliku
Quick Installation Guide (English) - PDF 0.54mb Pobierz
Urządzanie D-Link wykorzystuje oprogramowanie innego producenta, wraz z oprogramowaniem bazującym na licencji GNU, tj. Powszechna Licencja Publiczna („GPL”) lub Mniejszej Powszechnej Licencji Publicznej („LGPL”). Warunki działania licencji GPL oraz LGPL wraz z informacjami uzyskania dostępu do kodu GPL oraz LGPL wykorzystanego we wskazanym produkcie, znajdują się tutaj:

http://tsd.dlink.com.tw/GPL.asp

Kod GPL oraz LGPL wykorzystany w produkcie jest rozpowszechniany BEZ ŻADNEJ GWARANCJI i podlega prawom autorskim jednemu lub kilku autorom. Aby dowiedzieć się więcej, zapoznaj się z warunkami licencji GPL oraz LGPL dla tego produktu.
Wersja Opis Data Typ
Firmware 1.01b3 Firmware 10.01.2012 - Pobierz
Wersja Opis Data
Installation Wizard 1.01.0929 Installation Wizard 10.01.2012 Pobierz
Wersja Opis Data
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.09.2016 Pobierz
CE doc RevisionA1 CE document 21.06.2013 Pobierz
DEU_CE_Declaration_RevA CE Declaration 14.08.2012 Pobierz
