New

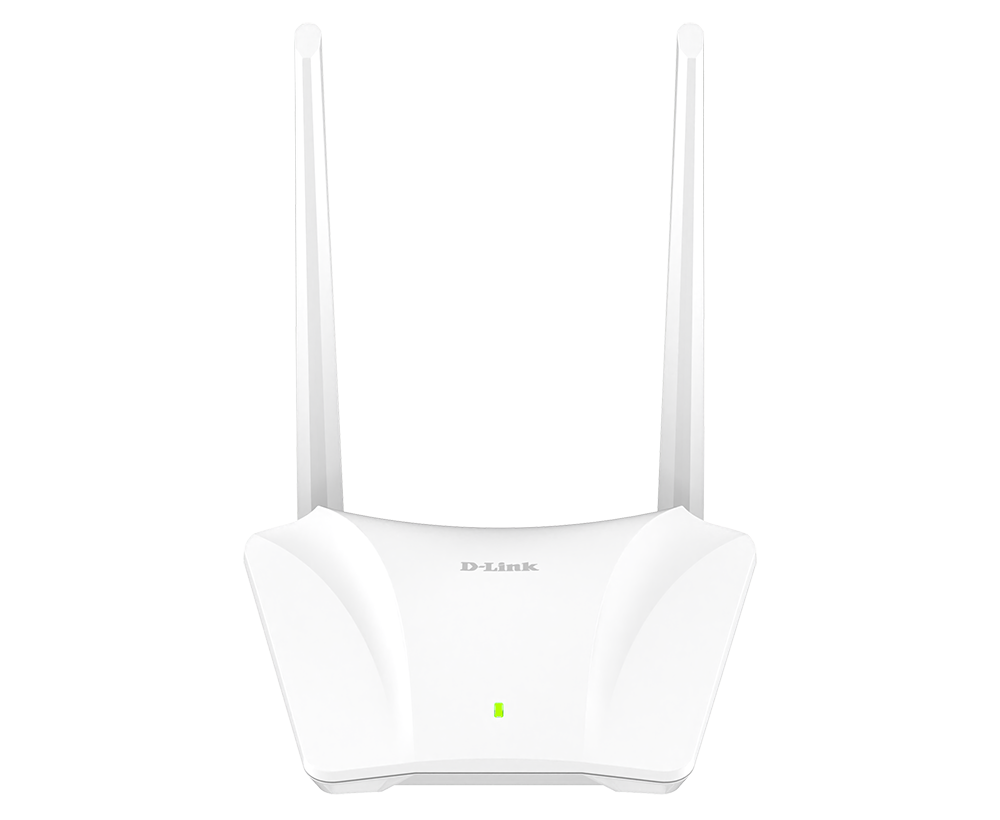

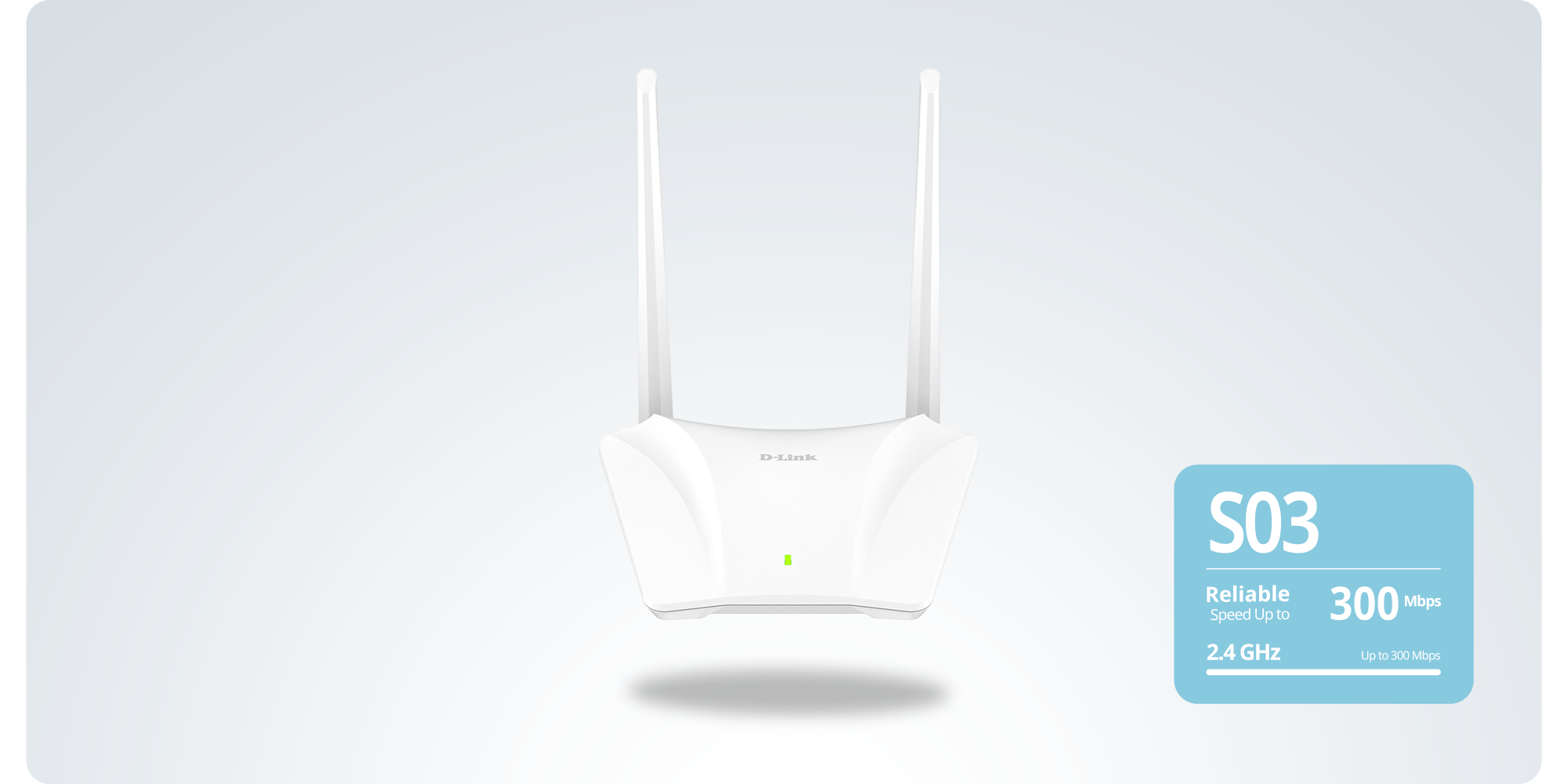

N300 Wi-Fi Router

S03

  • Dostupnost produktu (Revision A): Live
  • Reliable N300 Performance: Delivers reliable speeds up to 300 Mbps for smooth streaming and browsing¹
  • Optimize Wi-Fi Direction: Equipped with two adjustable external antennas to help improve Wi-Fi coverage2
  • Wired Connectivity: Equipped with 1x 100Mbps WAN port and 2× 100Mbps LAN ports for more reliable connections to wired devices
  • Enhanced Security: Supports WPA3 encryption,
    EN 18031 compliance, and a guest network for stronger data protection
  • Multi-Mode Networking: Supports Router, Bridge, and Repeater modes for easy network customization
  • Easy Setup: Network setup is simplified through the
    D-Link SetupGo app4

Stáhnout datasheet.

Seznam prodejců

The S Series | Wi-Fi Routers & Extenders

Simple Internet Access, Secured by Default.

Everyday Wi-Fi Made Affordable

Stay connected with simple and affordable Wi-Fi using the S03 N300 Wi-Fi Router. Ideal for basic internet needs like browsing,
messaging, and social media, it provides an easy and reliable connection for everyday use.

Browsing

Social Media

Messaging

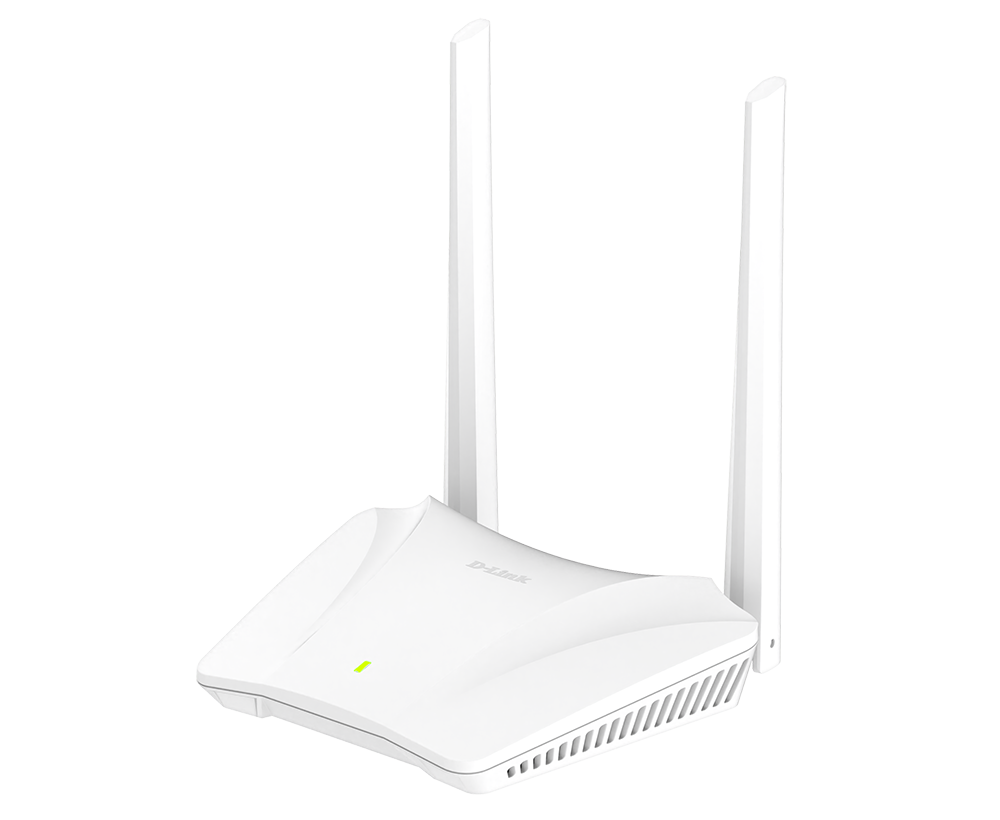

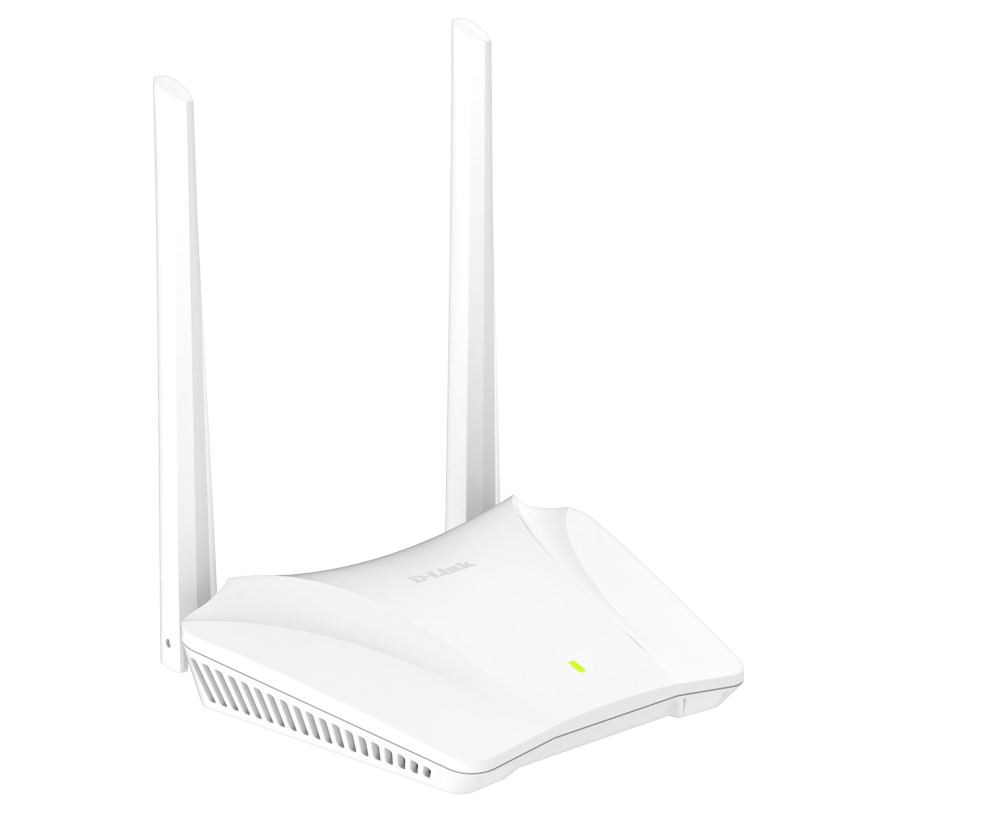

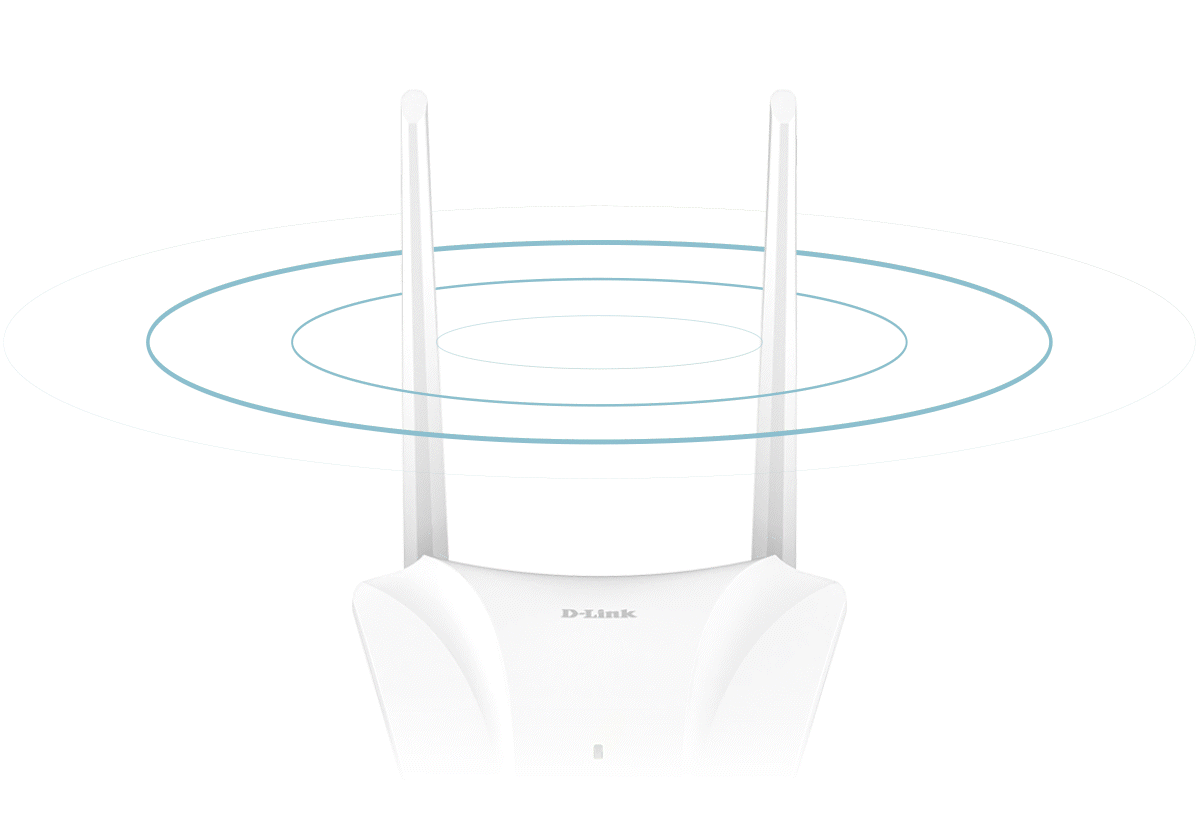

Reduce Dead Zones,
Improve Speeds

Equipped with two external high-gain antennas, the S03 helps reduce dead zones. Adjustable antenna angles let you fine-tune reception and improve speeds to your devices.2

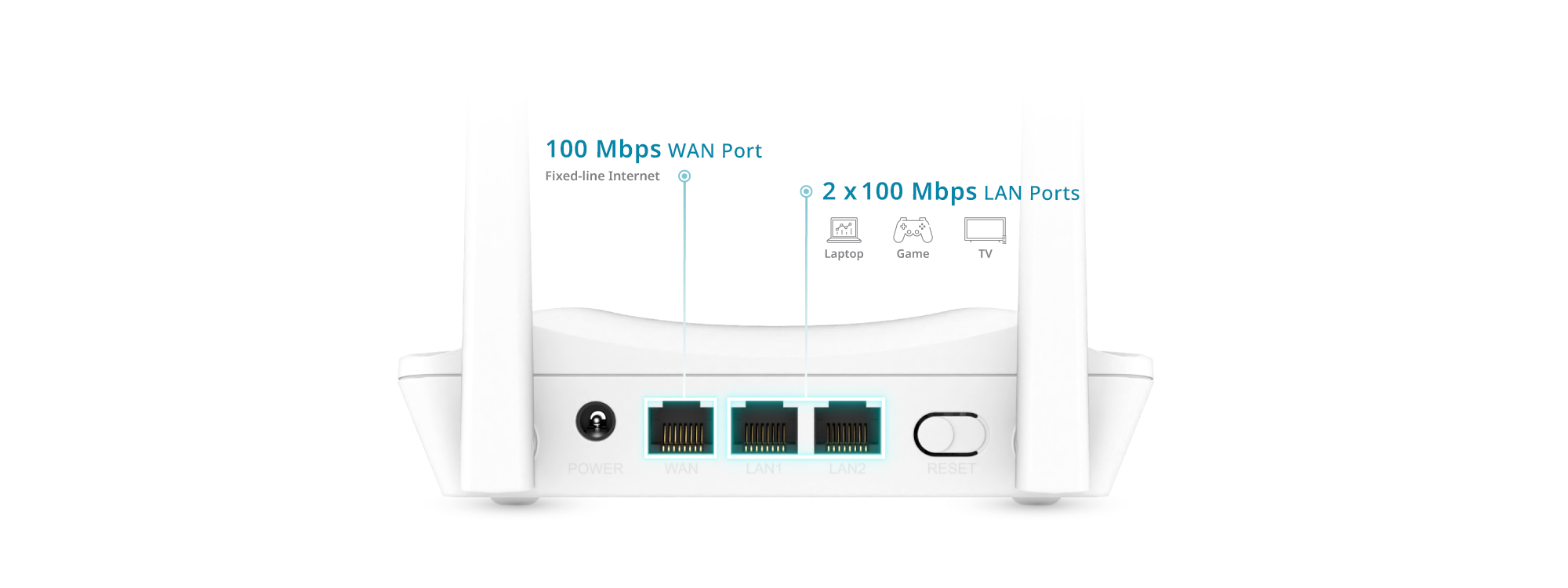

Stable Wired Connections

With 1x 100Mbps WAN port and 2× 100Mbps LAN ports, the S03 provides more reliable connections for your wired devices.

Enhanced Network Security

The S03 provides advanced security to protect your network and personal data, featuring WPA3 encryption and EN 18031 compliance to keep your network more secure.

Multi-Mode Networking

Designed for flexible networking, it supports Router, Bridge, and Repeater modes, giving you the flexibility to customize your network setup,
expand wireless coverage, and deliver stable Wi-Fi where you need it most.

Router Mode

Connects to your modem to create and
manage your network.

Bridge Mode

Adds Wi-Fi to your wired network
as a wireless access point.

Repeater Mode

Repeats your Wi-Fi signal to expand
your wireless coverage.

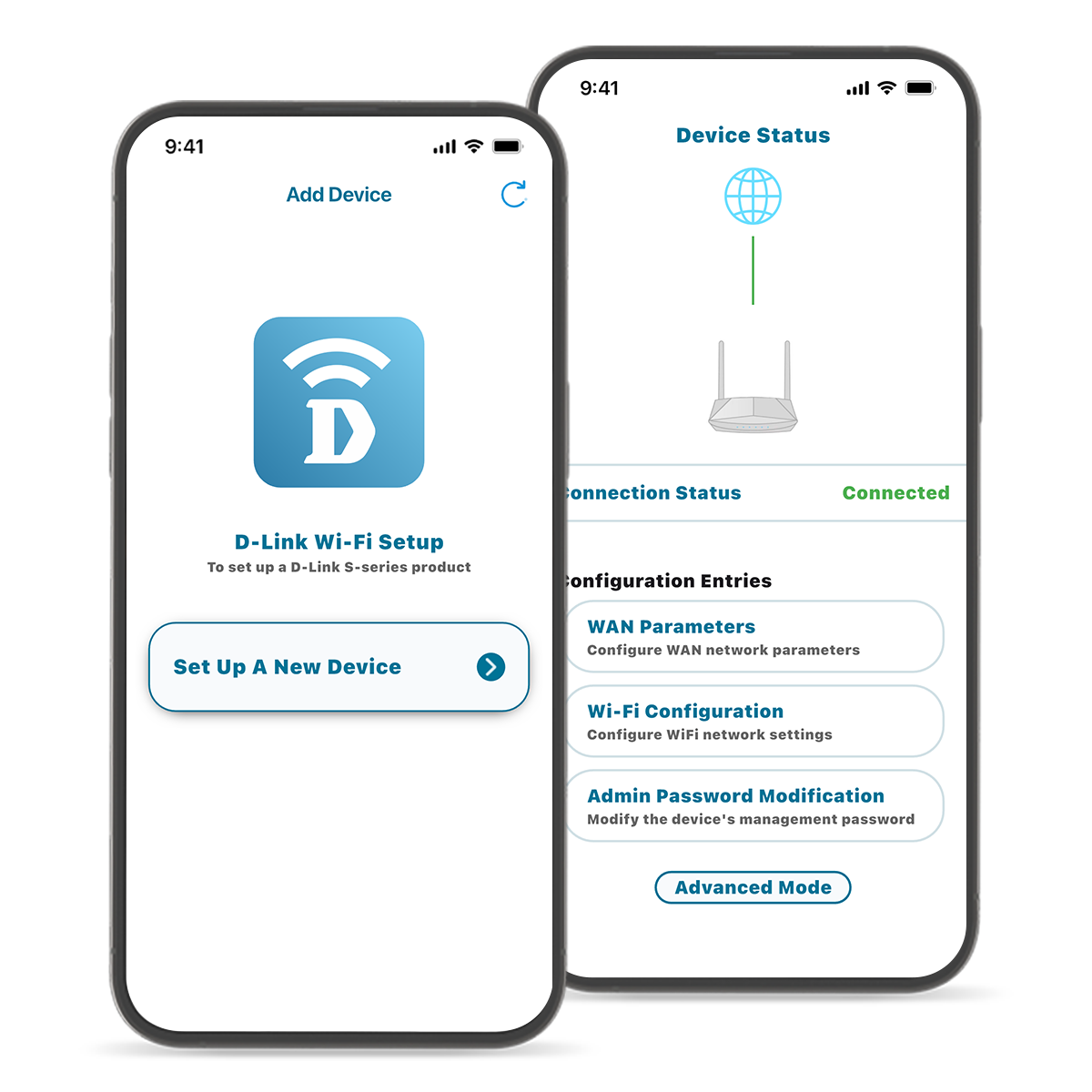

Simple Setup and Management

Set up and manage your network in minutes with the D-Link SetupGo app3,
while automatic Firmware Over-The-Air (FOTA) updates keep your router

secure and up to date.



*Google, Android, Google Play and Google Home are trademarks of Google LLC.



SetupGo APP    App Store    Google Play


1.Maximum wireless signal rate derived from IEEE 802.11n specifications. Actual data throughput may vary depending on the specific network environment and conditions.
2.The theoretical coverage in D-Link Lab testing may vary in different environments.
3.All configuration tasks must be performed while connected to the S series products' local network. Remote or external Wi-Fi or internet connections cannot access the router’s admin settings.


Related Products

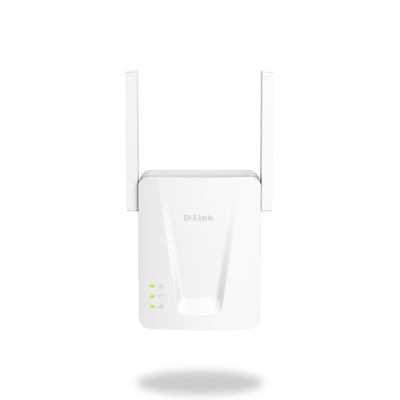

SE15

AX1500 Wi-Fi 6 Extender

Learn More

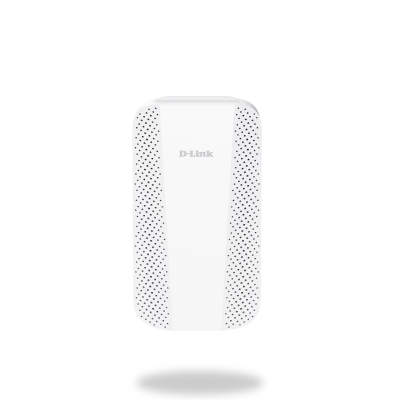

SE30

AX3000 Wi-Fi 6 Extender

Learn More

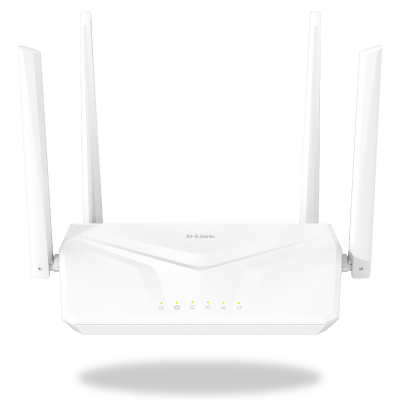

S12

AC1200 Wi-Fi Router

Learn More

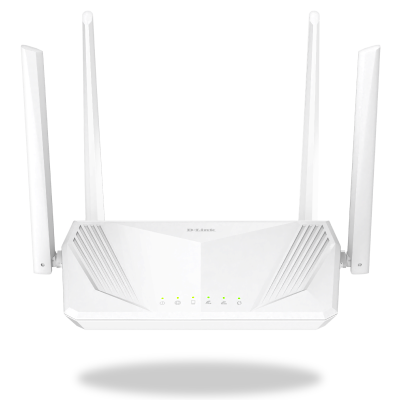

S15

AX1500 Wi-Fi 6 Router

Learn More

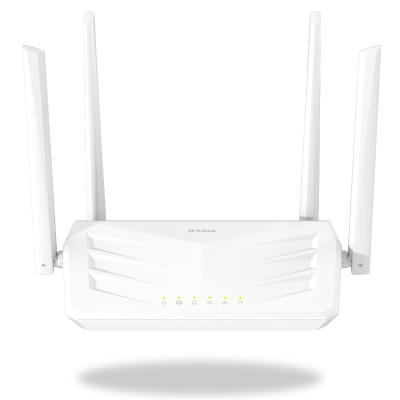

S30

AX3000 Wi-Fi 6 Router

Learn More

Technické specifikace produktu

Stáhnout datasheet.

Antenna
2 x 2.4 GHz external antennas (5 dBi)
Certifications
CE
Device Management
D-Link SetupGo app (Local Access and Basic Control)
Web UI (Advanced Management)
Dimensions
145 x 130 x 38 mm (5.71 x 5.12 x 1.50 in)
Firewall
DoS
IP/MAC Address Filtering
1 x DMZ
Wi-Fi Data Rate
2.4 GHz Up to 300 Mbps
Wireless Standard
2.4 GHz: IEEE 802.11 n/g/b
Ethernet: IEEE 802.3u
Wi-Fi Management: IEEE 802.11 k/v/h
Interfaces
1 x 10/100 Mbps Ethernet WAN port
2 x 10/100 Mbps Ethernet LAN ports
1 x WPS button
1 x reset button
1 x power connector
LED Status Indicators
Power, Internet status
Maximum Power Consumption
5W
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Power Input
5V/1A
Security Protocol
WPA - Personal
WPA2 - Personal
WPA3 - Personal
Wi-Fi Protected Setup (WPS)
Weight
129.9 g (4.58 oz)

Skutečný výkon se může lišit v závislosti na nastavení, kabeláži, teplotě, konfiguraci sítě, rozhraní, kompatibilitě zařízení, podmínkách prostředí a na místě a dalších podobných faktorech. Odkazy na výkon, rychlost signálu nebo zpracování, dosah signálu nebo vzdálenost, šifrování dat, úložnou kapacitu, vlastnosti displeje nebo jiné metriky výkonu jsou založeny na optimálních podmínkách odvozených z průmyslových standardů a jsou poskytovány pouze pro informační účely. Specifikace se mohou změnit bez předchozího upozornění.
