Description

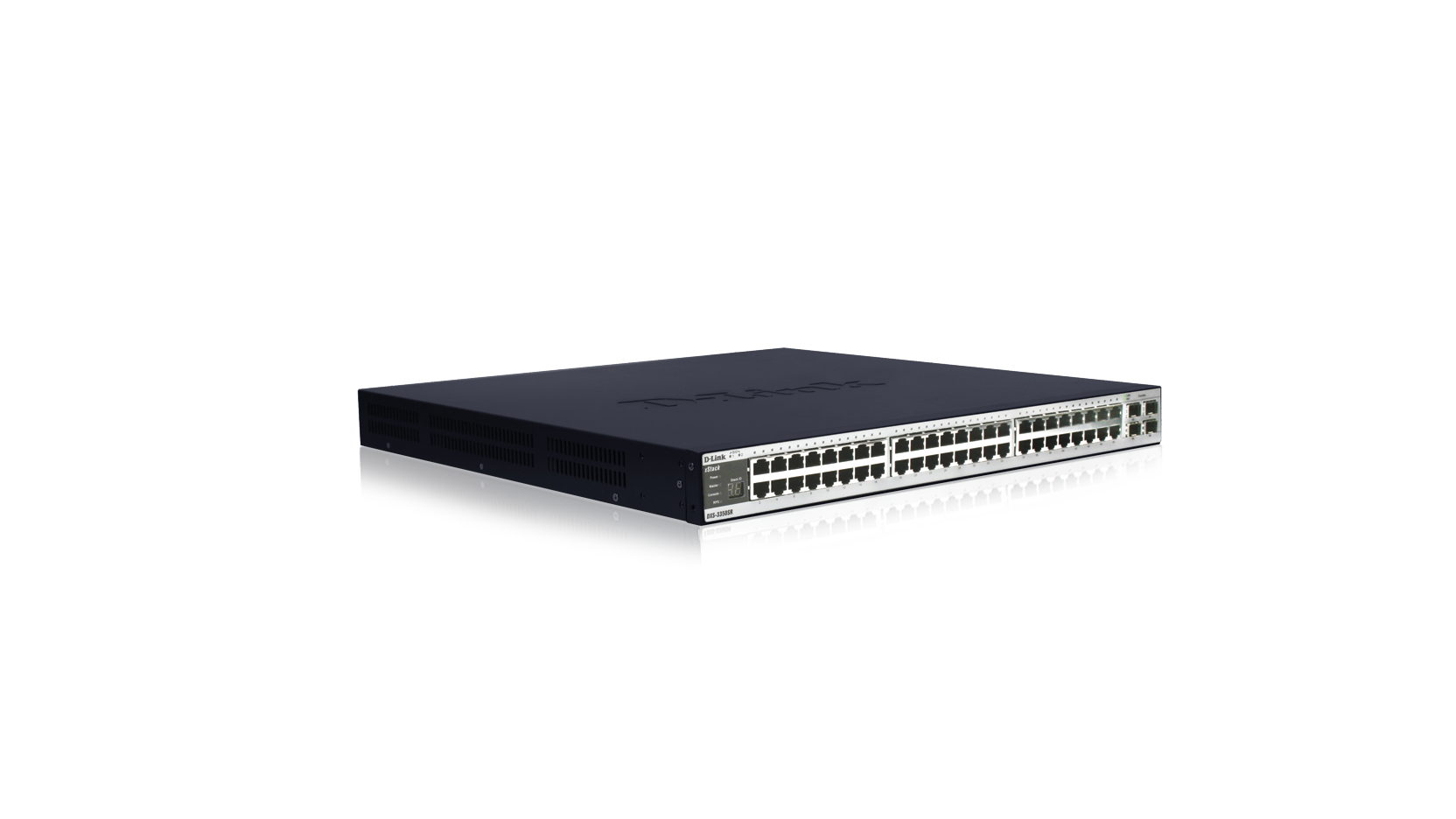

The D-Link DXS-3350SR 48-Port Managed Stackable Multilayer Switch is part of the xStack series.
D-Link’s xStack Switches are a series of “Next Generation” high performance stackable switches that deliver high scalability, wire-speed Gigabit performance, high availability, integrated 10-Gigabit stacking, redundant power options, and the option to stack in a “ring” or “star” topology. The xStack DXS-3350SR stacks up to 8 units* in a stack, providing up to 384 Gigabit ports, and up to 40Gbps of stacking bandwidth. It can stack with the other xStack switches like the DGS-3324SR, DGS-3324SRi, and DXS-3326GSR, providing unprecedented flexibility. It provides 48 built-in copper Gigabit ports, including (4) Combo SFP ports supporting either copper links or SFP transceivers for easy, flexible connection to fiber-based Gigabit media and a switching capacity of up to 176Gbps per switch. In addition, the DXS-3350SR supports an optional module to provide an additional 2 ports of either 10 Gigabit fiber XFP ports (DEM-420X) or 10 Gigabit copper CX-4 (DEM-420CX) for uplinking to servers, storage, or backbone switches.
High Availability
In a ring stacking topology, the DXS-3350SR supports “Shortest-Path” switching which improves resiliency, uptime and network efficiency. It also supports an optional Redundant Power Supply (DPS-500). It includes support for 802.3ad Link Aggregation, 802.1d Spanning Tree, and 802.1w Rapid Spanning Tree for increased network reliability and availability.
Network Management
The DXS-3350SR features a variety of network management options: console CLI, telnet, web, SNMPv1/v2/v3, RMON, TFTP, Port Mirroring, BootP, and DHCP. It also supports a variety of advanced traffic management options including: Bandwidth Control, Broadcast Storm Control, and support for IGMP Snooping v1/v2/v3. D-link exclusive SIM technology is also supported. This feature allows up to 32 units of D-link switches to be managed under a single IP, regardless of physical environment.
Advanced Enterprise Features
The DXS-3350SR provides a robust and consistent set of QoS/CoS, VLAN, and Security features. It supports 8 priority queues for 802.1p/ToS/DiffServ, with classification and marking based on MAC SA/DA, IP SA/DA, TCP/UDP, and IPv6 address and traffic class. Layer 3 dynamic routing protocols include: RIPv1/v2, OSPFv2, PIM-DM, and DVMRP. Security features include: 802.1x (Port/ MAC-based Authentication), port security, and Access Control Lists (ACL) based on MAC address, IP address, and/or TCP/UDP port numbers. It also provides extensive support for GARP/GVRP, 802.1q, and port-based VLANs for up to 4000 groups per device.
The DXS-3350SR is the latest example of D-Link’s continued commitment to our channel partners and customers to be the industry leader in cost-effective, reliable, high performance, feature-rich switches.
* Stack up to 8 DXS-3350SR. Up to 12 units in a mixed stack with other xStack 3300 series switches.
The D-Link DXS-3350SR 48-Port Managed Stackable Multilayer Switch is part of the xStack series.
D-Link’s xStack Switches are a series of “Next Generation” high performance stackable switches that deliver high scalability, wire-speed Gigabit performance, high availability, integrated 10-Gigabit stacking, redundant power options, and the option to stack in a “ring” or “star” topology. The xStack DXS-3350SR stacks up to 8 units* in a stack, providing up to 384 Gigabit ports, and up to 40Gbps of stacking bandwidth. It can stack with the other xStack switches like the DGS-3324SR, DGS-3324SRi, and DXS-3326GSR, providing unprecedented flexibility. It provides 48 built-in copper Gigabit ports, including (4) Combo SFP ports supporting either copper links or SFP transceivers for easy, flexible connection to fiber-based Gigabit media and a switching capacity of up to 176Gbps per switch. In addition, the DXS-3350SR supports an optional module to provide an additional 2 ports of either 10 Gigabit fiber XFP ports (DEM-420X) or 10 Gigabit copper CX-4 (DEM-420CX) for uplinking to servers, storage, or backbone switches.
High Availability
In a ring stacking topology, the DXS-3350SR supports “Shortest-Path” switching which improves resiliency, uptime and network efficiency. It also supports an optional Redundant Power Supply (DPS-500). It includes support for 802.3ad Link Aggregation, 802.1d Spanning Tree, and 802.1w Rapid Spanning Tree for increased network reliability and availability.
Network Management
The DXS-3350SR features a variety of network management options: console CLI, telnet, web, SNMPv1/v2/v3, RMON, TFTP, Port Mirroring, BootP, and DHCP. It also supports a variety of advanced traffic management options including: Bandwidth Control, Broadcast Storm Control, and support for IGMP Snooping v1/v2/v3. D-link exclusive SIM technology is also supported. This feature allows up to 32 units of D-link switches to be managed under a single IP, regardless of physical environment.
Advanced Enterprise Features
The DXS-3350SR provides a robust and consistent set of QoS/CoS, VLAN, and Security features. It supports 8 priority queues for 802.1p/ToS/DiffServ, with classification and marking based on MAC SA/DA, IP SA/DA, TCP/UDP, and IPv6 address and traffic class. Layer 3 dynamic routing protocols include: RIPv1/v2, OSPFv2, PIM-DM, and DVMRP. Security features include: 802.1x (Port/ MAC-based Authentication), port security, and Access Control Lists (ACL) based on MAC address, IP address, and/or TCP/UDP port numbers. It also provides extensive support for GARP/GVRP, 802.1q, and port-based VLANs for up to 4000 groups per device.
The DXS-3350SR is the latest example of D-Link’s continued commitment to our channel partners and customers to be the industry leader in cost-effective, reliable, high performance, feature-rich switches.
* Stack up to 8 DXS-3350SR. Up to 12 units in a mixed stack with other xStack 3300 series switches.
Technické specifikace produktu
Product/Performance Specifications
DXS-3350SR
Max Units In A Stack
MAC Address Table Size
Switch Fabric
802.1p Priority Queues
Jumbo Frames
Rate Limiting
802.3ad Link Aggregation
VLAN Groups
L3 Host IP Table
IP Multicast Table
Interface Options
RJ-45
SFP/mini-GBIC
Stacking Ports
RPSU
Network Management
In Band & Out of Band Configuration
Network Protocol and Standards
QoS / CoS Classification based on
Spanning Tree
VLANs
IP Multicast
RMON
Port Configuration / Monitoring
Security
Access Control Lists based on
L3 Management functions
Electrical & Electrical Emissions
Emissions
Power Supply
Safety Agency Certifications
Safety
Physical and Environmental
Dimensions
Weight
Temperature
Humidity
Warranty and Support Information
Warranty
Ordering Information
DXS-3350SR
DPS-500
DPS-800
DEM-310GT
DEM-311GT
DEM-CB50
DEM-CB100
DEM-420CX
DEM-420X
DEM-421XT
DEM-422XT
DXS-3350SR
- 48 Port 10/100/1000 Switch with 4 Combo SFP, 10GbE stacking and 2 Optional 10GbE fiber/copper uplinks
Max Units In A Stack
- Up to 12 units per stack (depending on switch model used)
MAC Address Table Size
- 16K
Switch Fabric
- 176Gbps
802.1p Priority Queues
- 8 queues per port
Jumbo Frames
- Up to 9,216 bytes
Rate Limiting
- Down to 1MB
802.3ad Link Aggregation
- Up to 32 Groups / 8 ports per group
VLAN Groups
- Up to 4K
L3 Host IP Table
- Up to 3K entries
IP Multicast Table
- Up to 256 addresses
Interface Options
RJ-45
- 10BASE-T, 100BASE-TX & 1000BASE-T
SFP/mini-GBIC
- Supports Standard SFP transceivers (LC connector)
Stacking Ports
- Dual 10-Gigabit Stacking Ports
RPSU
- Redundant Power Supply via optional DPS-500
Network Management
In Band & Out of Band Configuration
- Telnet, CLI/Console, RMON, Web-based HTTP, SNMP v1/2/3, SYSLOG, Port Mirroring, TFTP Client, BootP Client, DHCP Client, BootP/DHCP Relay agent, DNS Relay, SSH, SSL, Password enabled, TACACS+ Authentication, RADIUS Authentication, Remote Upgrade of PROM code, Traffic Segmentation, Port Security, Web GUI Traffic Monitoring, Web MAC address Browsing, SNTP, Port Description, CPU Utilization Monitoring, Dual Image support, SNMP Trap on MAC notification
Network Protocol and Standards
QoS / CoS Classification based on
- 802.1p priority, MAC SA/DA, ToS priority, IP address, TCP/UDP port, DSCP, IPv6 address, IPv6 Flow label, IPv6 traffic class
Spanning Tree
- 802.1D Spanning Tree, 802.1w Rapid Spanning Tree, 802.1s Multiple Spanning Tree
VLANs
- 802.1Q support, GARP/GVRP, Max number of VLANs 4K, Static VLANs up to 4K, Dynamic VLANs, up to 255, 802.1v
IP Multicast
- IGMP Snooping, IGMP Snooping fast leave
RMON
- 4 Groups
Port Configuration / Monitoring
- Auto Negotiation, Port Mirroring, Broadcast Storm Control
Security
- 802.1x Port & MAC based Access Control, SSH, SSL, TACACS/TACACS+, RADIUS, Cisco-like Port Security
Access Control Lists based on
- MAC Address, VLAN, IP address, Protocol Type, TCP/UDP port, 802.1p, DSCP, Port, TCP/UDP payload, IPv6 address, IPv6 traffic class, IPv6 flow control
L3 Management functions
- RIP I/II, OSPF, IPv4 Routing, IP Fragmentation support, Multiple IP interface per VLAN, floating static route, VRRP, Up to 256 static routes, Up to 50 IP interfaces, IGMPv2, IGMPv3, DVMRP, PIM DM, PIM SM
Electrical & Electrical Emissions
Emissions
- CE Mark & FCC Class A
Power Supply
- 100-120, 200-240VAC, 50/60 Hz Internal Universal Power Supply
Safety Agency Certifications
Safety
- CSA International
Physical and Environmental
Dimensions
- 441 x 430 x 44mm (17.36 x 16.9 x 1.73 in) 19 inch rack mount 1RU high
Weight
- 14.33 lb (6.5kg)
Temperature
- Operating: 32°F to 104°F (0°C to 40°C)
- Storage: -13°F to 131°F (-25°C to 55°C)
Humidity
- 5 - 95% RH non-condensing
Warranty and Support Information
Warranty
- Limited Lifetime Warranty.Support
- Free Technical Support
Ordering Information
DXS-3350SR
- 48 Port 10/100/1000 Switch with 4 Combo SFP, 10GbE stacking and 2 Optional 10GbE fiber/copper uplinks
DPS-500
- Optional Redundant Power Supply Unit
DPS-800
- Optional 2-Slot RPSU Rack Mount Chassis
DEM-310GT
- 1000Base-LX SFP/mini-GBIC, up to 10km (singlemode) or up to 550m (multimode)
DEM-311GT
- 1000Base-SX SFP/mini-GBIC, up to 550m (multimode)
DEM-CB50
- 50cm 10-Gig Stacking Cable
DEM-CB100
- 100cm 10-Gig Stacking Cable
DEM-420CX
- 2 Port CX4 10GbE module
DEM-420X
- 2-Port 10GbE XFP Uplink Module (XFP Transceivers sold seperately)
DEM-421XT
- 10GBASE-SR Multimode XFP up to 300 meters
DEM-422XT
- 10GBASE-LR Singlemode XFP up to 10km
Produktová podpora
Tento produkt byl ukončen: 26/03/2011
This product's last date of support is on: 24/03/2016
