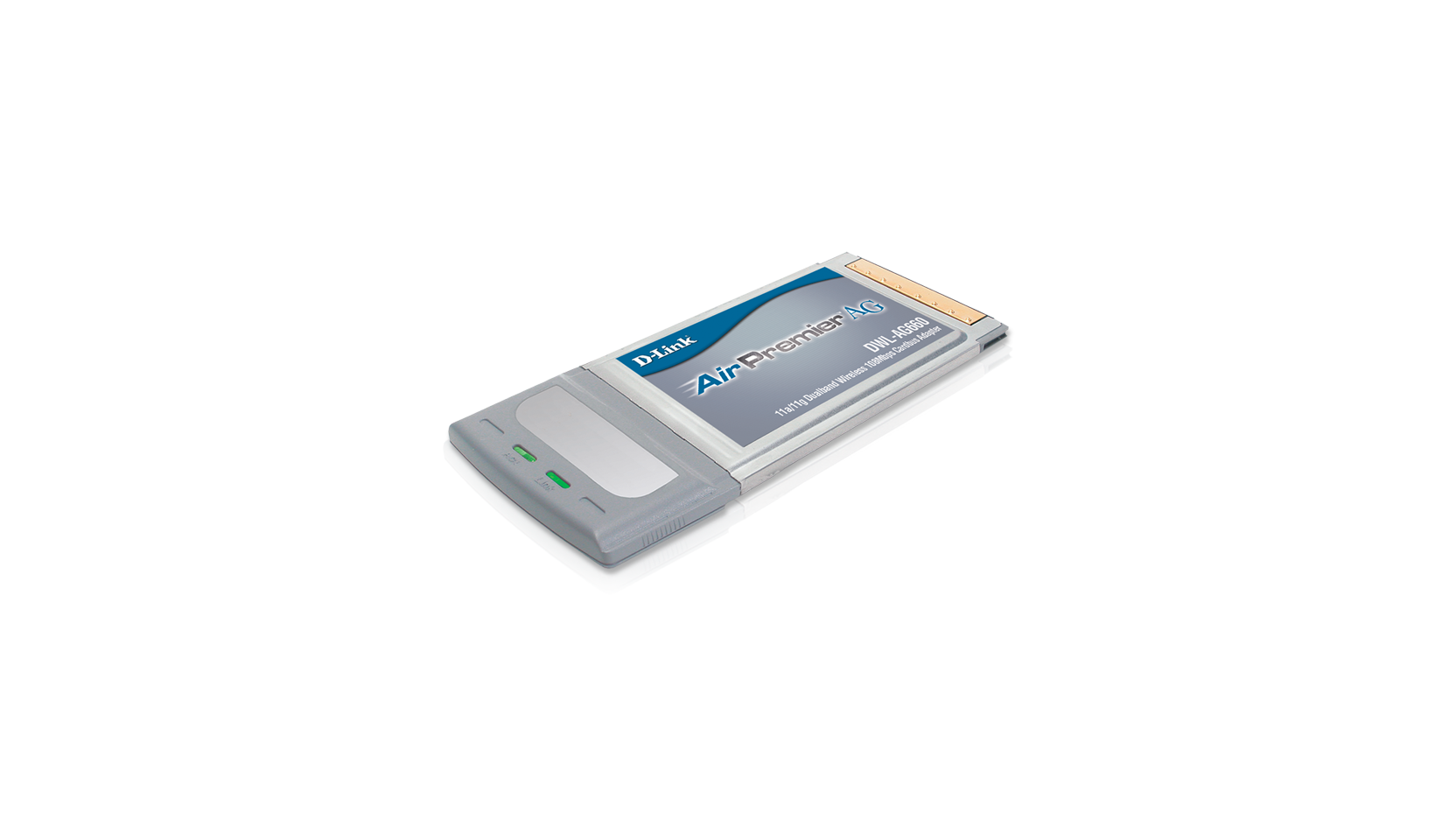

802.11a/g Tri-Mode Dualband Wireless Cardbus Adapter

DWL-AG660

  • Dostupnost produktu: End of Life

Technické specifikace produktu

Stáhnout datasheet.

System Requirements
  •   Laptop with available CardBus Type II slot
  •   Windows XP, 2000, ME or 98 SE
  •   300MHz CPU or above
  •   32MB memory or more
Standards
  •   IEEE 802.11a
  •   IEEE 802.11b
  •   IEEE 802.11g
  • PC Card Standard & Interface
  • PC Card Type II CardBus 32-bit compliant
Media Access Control
  • CSMA/CA with ACK
Data Rates
  • (With automatic fallback)
  • 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps,
  • 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps
Modulation Technology
  •   Orthogonal Frequency Division Multiplexing (OFDM)
  •   Complementary Code Keying (CCK)
  •   Direct Sequence Spread Spectrum (DSSS)
Frequency Range
  •   2.4GHz to 2.4835GHz
  •   5.15GHz to 5.250GHz
  •   Software configurable as allowable frequency will vary from country to country in the European region
Transmit Output Power
  •   802.11a:
  • 10 to 14dBm @ 54Mbps
  • 11 to 15dBm @t 48Mbps
  • 13 to 15dBm @t 36Mbps
  • 17 to 18dBm @ 24, 18, 12, 9 and 6Mbps
  •   802.11b:
  • 18dBm @ 11, 5.5, 2, and 1Mbps
  •   802.11g:
  • 10 to 14dBm @ 54Mbps
  • 11 to 15dBm @ 48Mbps
  • 13 to 15dBm @ 36Mbps
  • 17 to 18dBm @ 24, 18, 12, 9 and 6Mbps
Receive Sensitivity
  •   802.11a (@ 10% PER):
  • 87dBm for 6Mbps
  • 86dBm for 9Mbps
  • 85dBm for 12Mbps
  • 83dBm for 18Mbps
  • 80dBm for 24Mbps
  • 76dBm for 36Mbps
  • 71dBm for 48Mbps
  • 66dBm for 54Mbps
  •   802.11b (@ 8% PER):
  • 84dBm for 11Mbps
  • 90dBm for 2Mbps
  • 802.11g (@ 10% PER):
  • 87dBm for 6Mbps
  • 86dBm for 9Mbps
  • 85dBm for 12Mbps
  • 83dBm for 18Mbps
  • 80dBm for 24Mbps
  • 76dBm for 36Mbps
  • 71dBm for 48Mbps
  • 66dBm for 54Mbps
Antenna
  • 2dBi to 4dBi Gain integrated antenna
Operation Range
  •   Indoors: up to 100 meters *
  •   Outdoors: up to 400 meters *
  •   Environmental factors may adversely affect range.
Security
  •   64/128/152-bit WEP data encryption
  •   802.1x authentication
  •   WPA (Wi-FiTM Protected Access): 802.1x, Pre Share Key, WEP, TKIP, AES
LED Indicators
  •  Power
  •  Network
Operating Voltage
  • 5 VDC +/- 10%
Power Consumption
  •  Transmit mode: 1947mW
  •  Receive mode: 1056mW
  •  Sleep mode: 40mW
Dimensions
  • 118 (L) x 53 (W) x 5 (H) mm (including antenna)
  • 84 (L) x 53 (W) x 3 (H) mm (adapter only)
Weight
  • 41grams (adapter including antenna)
Operating Temperature
  • 0o to 45 oC
Storage Temperature
  • 10o to 60 oC
Humidity
  • 95% maximum (non-condensing)
EMI Certification
  •  FCC Class B
  •  CE Class B
O.S. Support
  • Windows 98 SE, ME, 2000, XP






FAQ

Produktová podpora

Tento produkt byl ukončen: 17/05/2011
This product's last date of support is on: 16/05/2013
