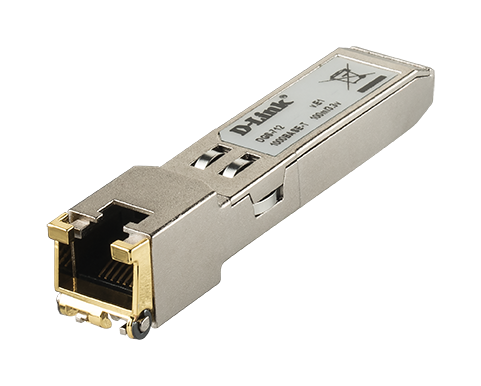

SFP 10/100/1000 BASE‑T Copper Transceiver (100 m)

DGS-712

  • Dostupnost produktu (Revision E): Live
  • Gigabit SFP+ transceiver pro CAT5e metalickou kabeláž
  • 1000Base-T kompatibilní
  • Max. dosah 100 m pro kabeláž CAT5e
  • RJ-45 konektor


Stáhnout datasheet.

Seznam prodejců
1000BASE-T metalický SFP (Small Form Pluggable) transceiver DGS-712 je založen na standardu SFP MSA (Multi Source Agreement). Je kompatibilní se standardy Gigabit Ethernet a 1000BASE-T, jak je uvedeno v IEEE 802.3z a 802.3ab. DGS-712 se vkládá do jakéhokoli standardního Gigabit SFP rozhraní a umožňuje gigabitový přenos 1000Base-T přes standardní metalickou strukturovanou kabeláž kategorie CAT5e.

Technické specifikace produktu

Stáhnout datasheet.

Standard
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • Compliant with MSA SFP Specification
Transceiver Type
  • SFP (Small Form Pluggable)

Connector
  • RJ-45

Auto MDI/MDIX
  • Automatic crossover detection enabled
  • External crossover cable not required

Data Rate
  • 1,000 Mbps (IEEE 802.3 compatible)
  • 1000 BASE-T operation requires the host system to have an SGMII interface with no clocks. With a SERDES interface, this transceiver will operate at 1000BASE-T only

Cable Type
  • Cat. 5 twisted-pair cable

Maximum Cable Distance Coverage
  • 100 meters

Supply Current
  • 350mA (typical)
  • 400mA (maximum)
  • 1.3W max power over full range of voltage and temperature

Input Voltage
  • 3.1V (minimum)
  • 3.3V (typical)
  • 3.5V (maximum)
  • Referenced to GND

Surge Current
  • 30mA
  • Hot plug above steady state current

Dimensions (W x D x H)
  • .47” x 2.95” x .47” (11mm x 75mm x 11mm)

Weight
  • .53 lbs (0.2 kg)

Operating Temperature
  • 32° to 185° F (0° to 85° C)

Storage Temperature
  • -40° to 185° F (-40° to 85° C)

Waranty
  • 2-Year Limited
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
