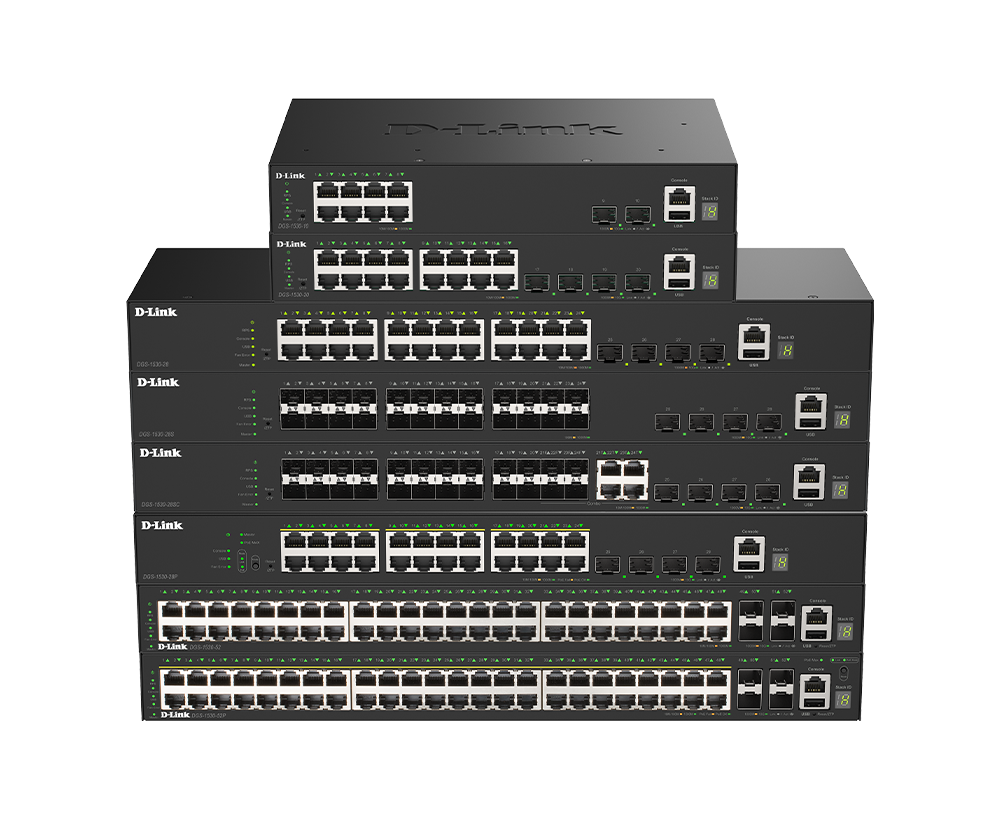

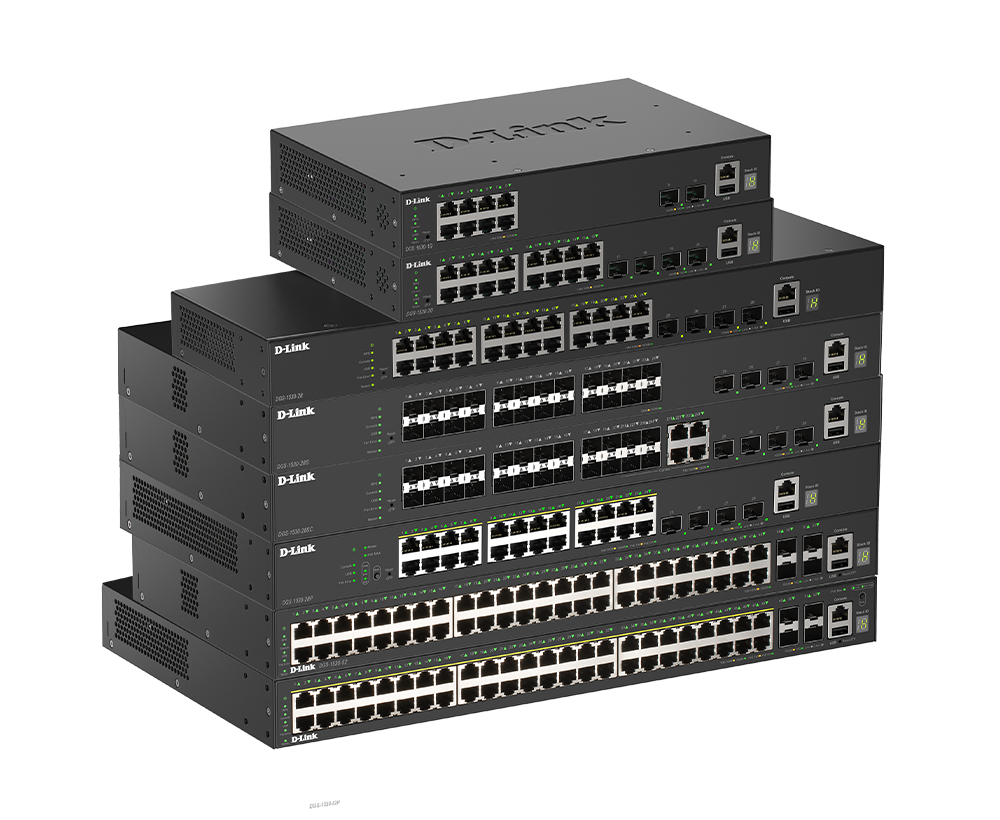

Gigabit Stackable Smart Managed Switches
DGS-1530 Series
- Dostupnost produktu (Revision A): Live
- Podpora 1G pro downlink porty
- Podpora 10G SFP+ pro uplink porty
- PoE IEEE 802.3af/at pro robustní napájení
- Přepěťová ochrana 6kV na všech portech Gigabit Ethernet
- Fyzický stack až 9 jednotek přes 10G porty
- Podporuje 802.3ad LACP pro agregaci
- Podpora statického směrování a detekce smyček
- Podpora AAA pro RADIUS/TACACS+
- Podpora D-Link Safeguard Engine
- Spravujte přes Nuclias Network Controller
*Pouze Nuclias Network Controller DNC-5000
Seznam prodejců
Why You Need It

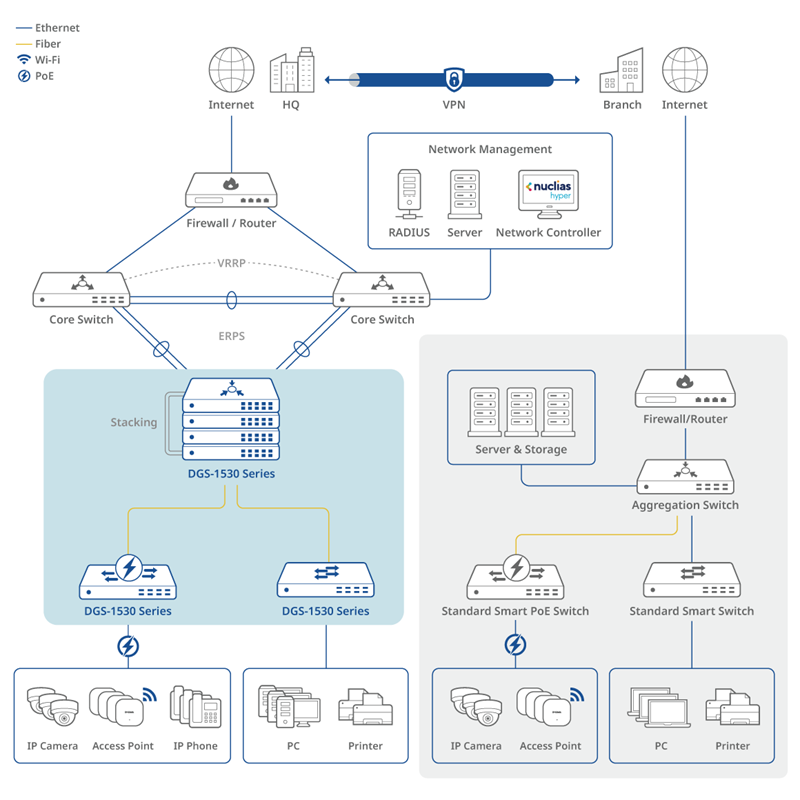

Physical Stacking
Physical stacking enables simplified management and scalable network expansion
Stay Connected
ERPS ensures fast, reliable network recovery and minimal downtime and ensure the continuous connectivity
Rich OAM Support
Comprehensive OAM streamlines monitoring, troubleshooting, and boosts network performance
Effortless Protection
Robust security strengthens safety, simplifies control, and prevents attacks for efficient operations
Static Routing
Static routes offer simplicity, stability, control, and enhanced security for network management
Uninterrupted Flow
Redundant power supply ensures uninterrupted services by backing up the built-in power and boosting PoE power
DGS-1530 Series Comparison
| Products | DGS-1530-10 | DGS-1530-20 | DGS-1530-28 | DGS-1530-28P | DGS-1530-28S | DGS-1530-52 | DGS-1530-52P | ||
|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  | |||
| Interface | 8 x 1GE | 16 x 1GE | 24 x 1GE | 24 x 1GE | 24 x 1G SFP | 24 x 1G SFP | 48 x 1GE 4 x 10G SFP+ | ||
| PoE | - | - | - | PoE+, with 370 W Power Budget | - | - | PoE+, up to 740 W (with DPS-700 RPS) Power Budget | ||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | |||
Související produkty
DGS-1530 Series Specification
Products | DGS-1530-10 | DGS-1530-20 | DGS-1530-28 | DGS-1530-28P | DGS-1530-28S | DGS-1530-52 | DGS-1530-52P | ||
|---|---|---|---|---|---|---|---|---|---|
| | | | | |  | |||
| Interface | 8 x 1GE | 16 x 1GE | 24 x 1GE | 24 x 1GE PoE | 24 x 1G SFP 4 x 10G SFP+ | 48 x 1GE | 48 x 1GE PoE | ||
| Performance | |||||||||
| Switch Capacity | 56 Gbps | 112 Gbps | 128 Gbps | 128 Gbps | 128 Gbps | 176 Gbps | 176 Gbps | ||
Max. Packet | 41.67 Mpps | 83.33 Mpps | 95.24 Mpps | 95.24 Mpps | 95.24 Mpps | 130.95 Mpps | 130.95 Mpps | ||
| PoE | |||||||||
| PoE Standard | - | - | - | IEEE802.3af/at | - | - | IEEE802.3af/at | ||
| PoE Ports | - | - | - | Port 1 ~ 24 | - | - | Port 1 ~ 48 | ||
| PoE Budget | - | - | - | 370 W | - | - | 370 W (no RPS) 740 W (with DPS-700) | ||
| Technical Specification | |||||||||
| Surge Protection | 6kV Surge Protection on all ethernet ports | ||||||||
| Fan | Fanless | Fanless | 1 Internal Fan | 3 Internal Fans | 2 Internal Fans | 2 Internal Fans | 3 Internal Fans | ||
| Console Port | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| Power Supply Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal | ||
| Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | Learn More | |||
