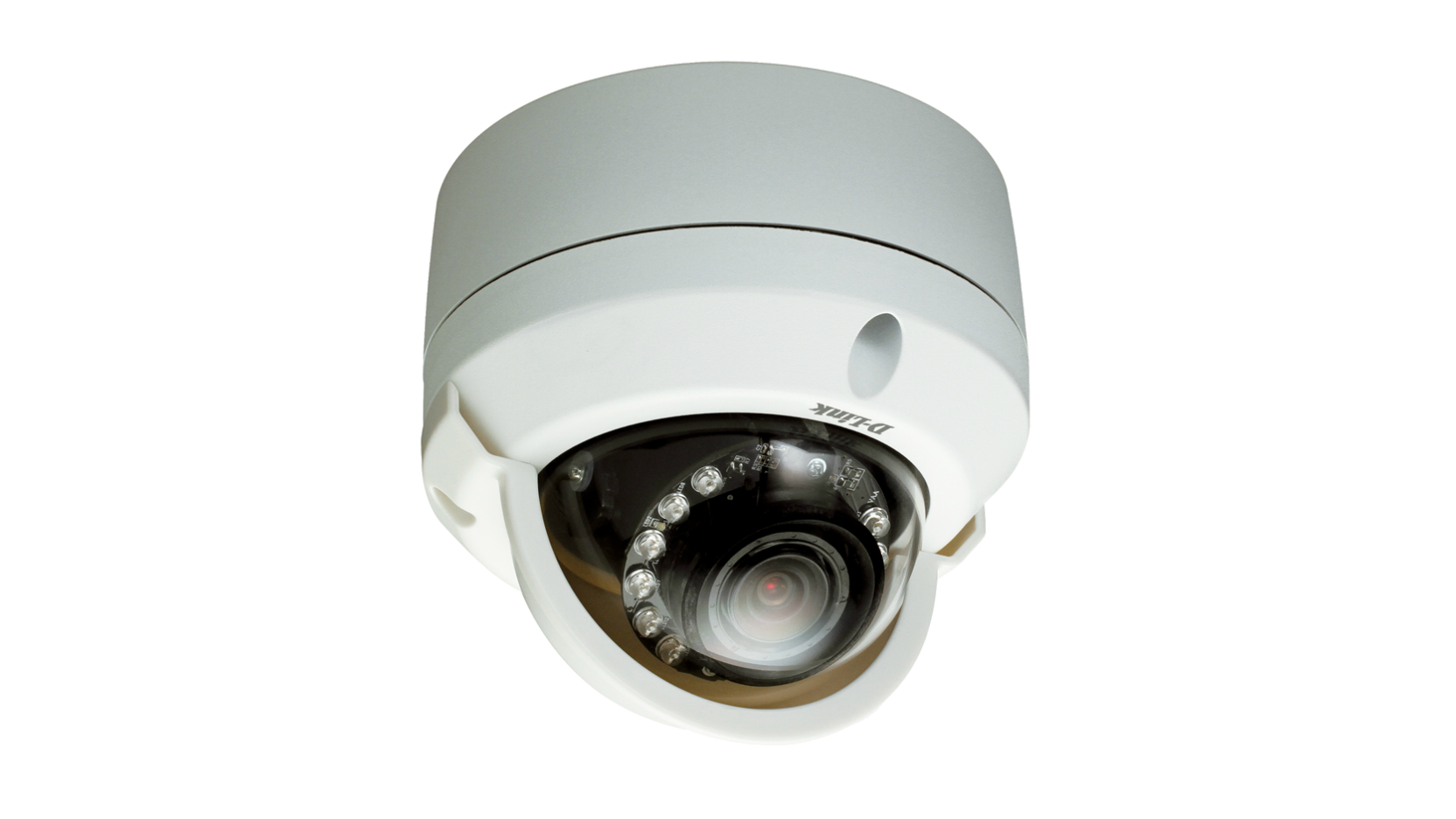

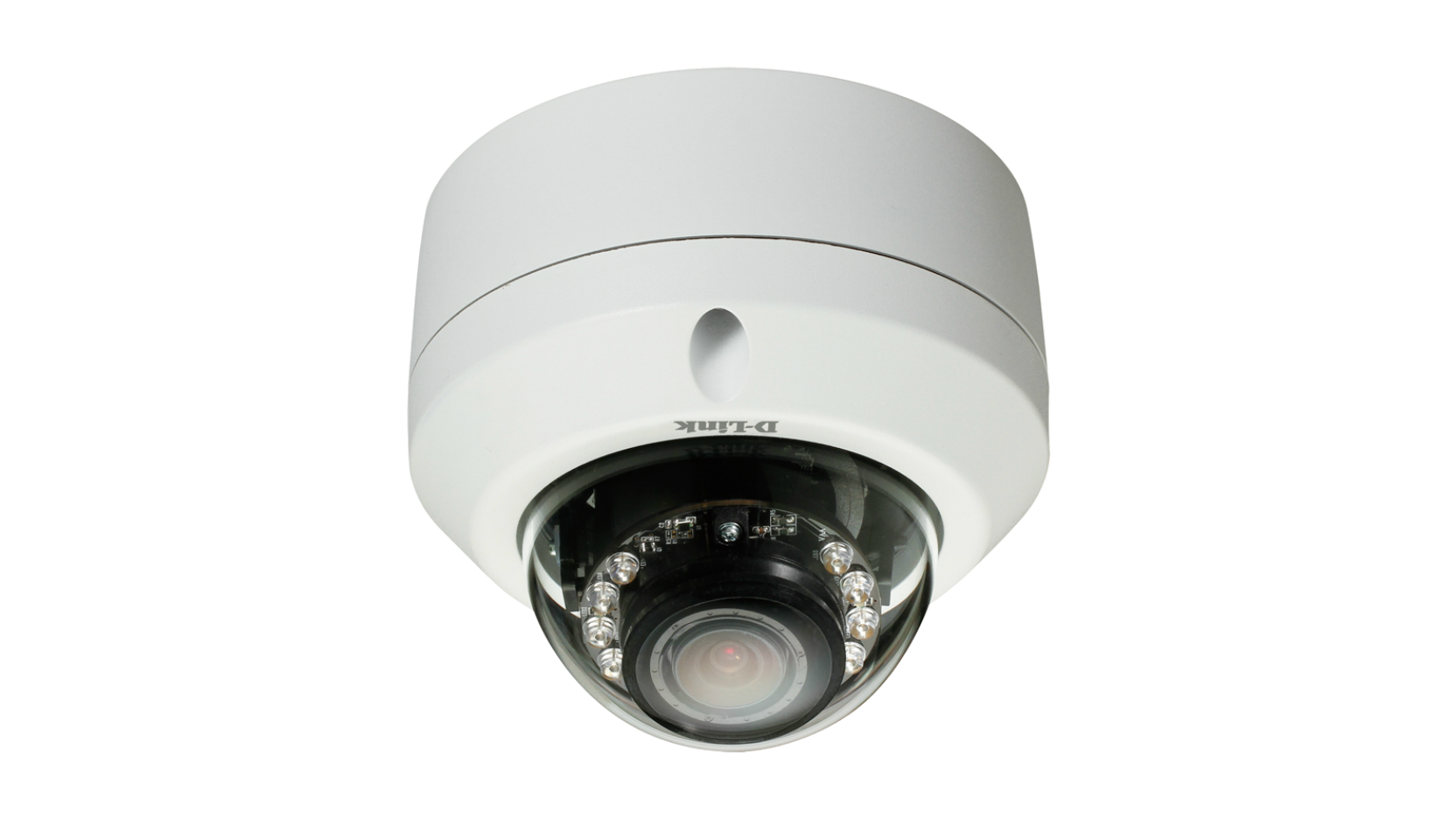

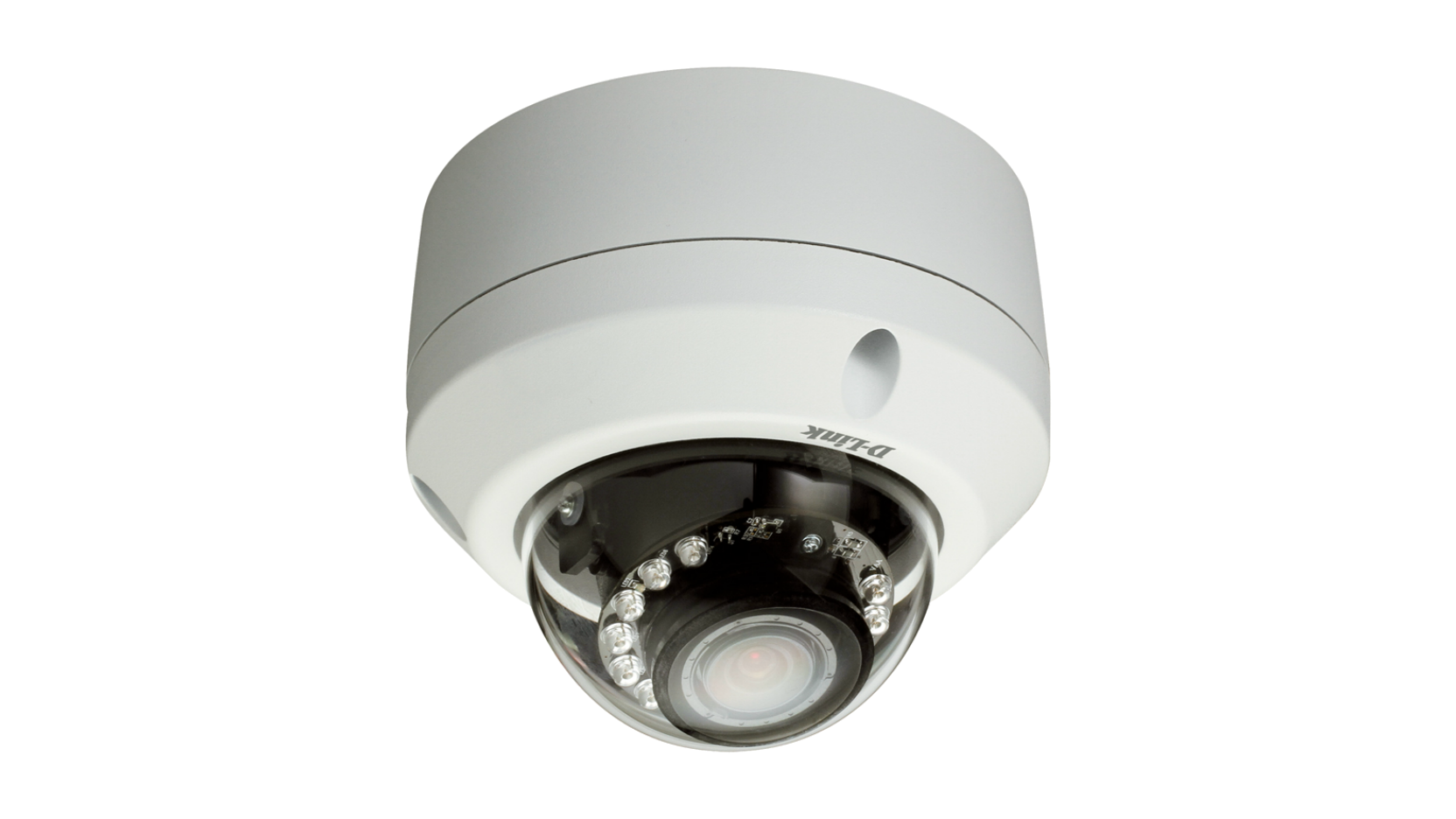

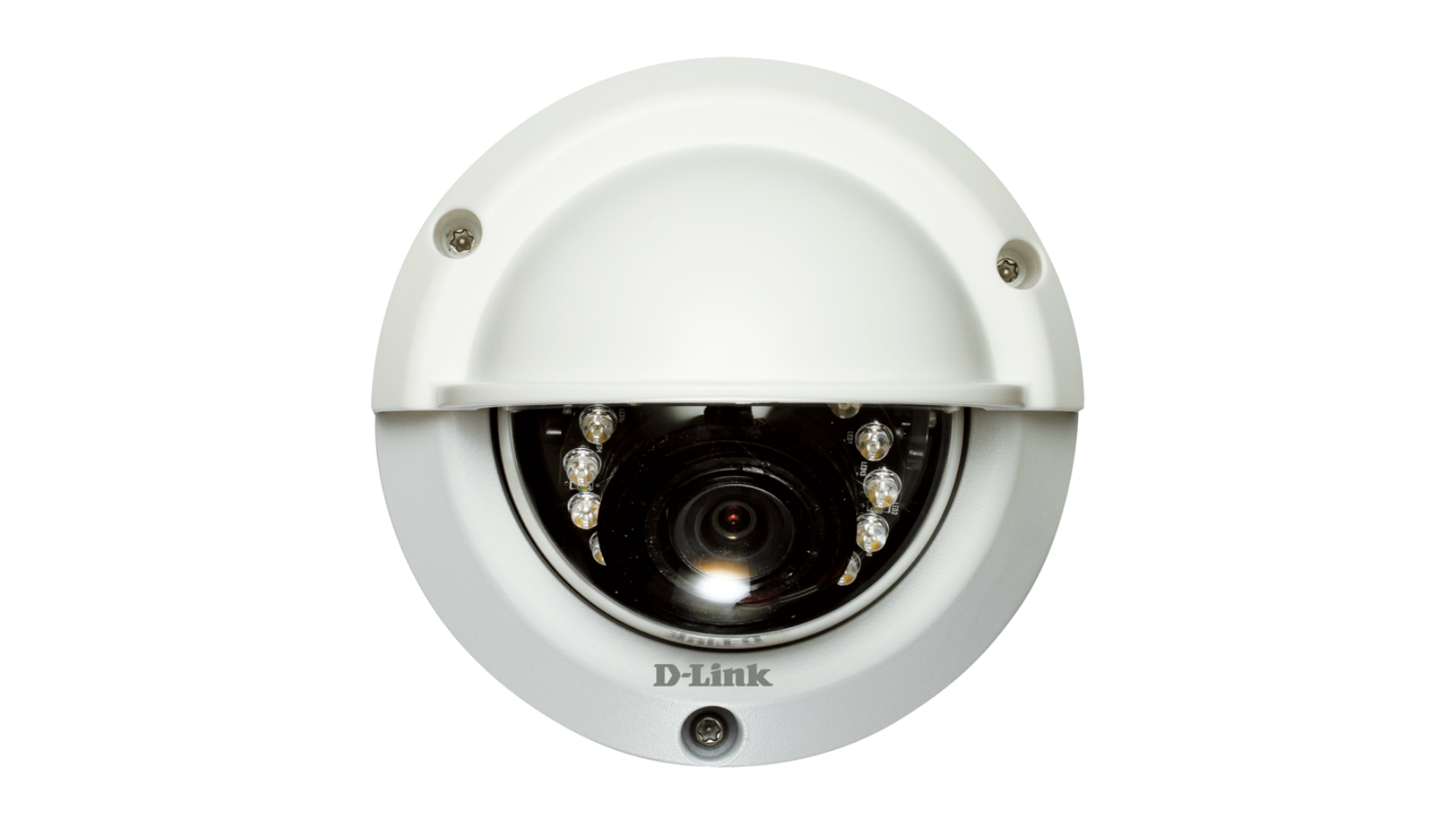

The D-Link DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.
High-Quality Video
To maximise bandwidth efficiency and improve image quality, the DCS-6314 provides real-time video compression using the H.264, MPEG‑4, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to a network attached storage (NAS) device or internal Micro SD card.
Continuous Monitoring
The DCS-6314’s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify objects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. In addition, the DCS-6314 also has built-in IR LED illuminators with a 15 meter range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.
Robust Management Software
The DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
Flexible Connectivity
The DCS-6314 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.
Ocenění produktu
![](-/media/images/awards/bmlogosmall_400x400.jpg)
Technické specifikace produktu
Indoor/outdoor
|
Outdoor |
---|---|
Connectivity
|
Wired PoE |
Resolution
|
Full HD 2 megapixel |
Image sensor
|
1/2.8" 2 megapixel WDR progressive scan CMOS (Sony Exmor) |
Maximum Video Resolution
|
1440 x 1080 (other) 1920 x 1080 (16:9) |
Lens
|
2.8-12 mm F1.4 Varifocal |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
15 m |
Wide Dynamic Range(WDR)
|
Supported
|
Optical Zoom
|
4x |
Privacy Masks
|
3 zones |
Vandal Proof
|
Supported
|
2-way audio
|
Supported
|
External Microphone Input
|
Supported
|
External Speaker Output
|
Supported
|
Digital Input/Output(DI/DO)
|
1/1 |
External Card Slot
|
MicroSD SDHC (max 32 GB) |
Features
|
ONVIF |
Video Format
|
H.264 MJPEG MPEG-4 |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
