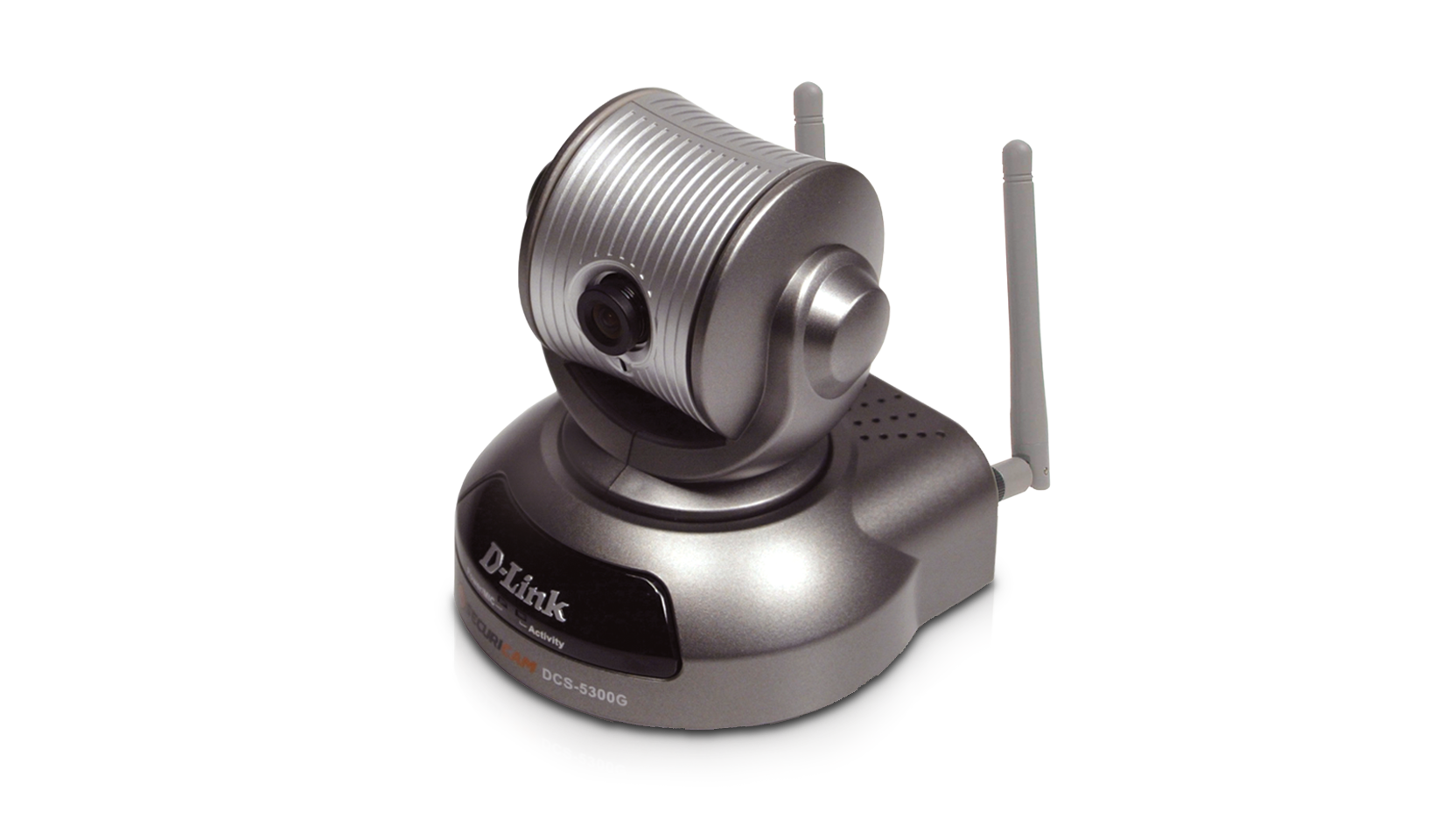

High Speed 2.4GHz 802.11g Wireless Network Camera

DCS-5300G

  • Dostupnost produktu: End of Life

Technické specifikace produktu

Stáhnout datasheet.

Power Input

  • External Power Supply
  • 12VDC 1.5A

Remote Management

  • Configuration and system log can be accessed via WEB Browser and FTP application remotely

Networking Protocol

  • TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS and DHCP

Network Application

  • DDNS support with several popular DDNS servers
  • UPnP support
  • SMTP client
  • FTP client
  • FTP server
  • HTTP server

Connectivity

  • Wireless Enhanced 802.11b
  • Wired 10BaseT or 100Base-T Fast Ethernet

Video Algorithm Supported

  • H.263+ (MPEG4 Short Header Mode)

Features

  • Built-in Motion Detection
  • MPEG4 short header mode compression for streaming video
  • JPEG compression for still images

Audio

  • 24Kbps
  • Built-in omni-directional microphone

Video Resolution

  • Up to 30fps at 160x120
  • Up to 30fps at 320x240

Pan, Tilt, and Zoom Control

  • Auto pan and auto patrol mode with preconfigured stops
  • Pan: Range 270 degrees
  • Tilt: Range 90 degrees
  • 4x Digital Zoom

General I/O

  • 1 Opto-isolated sensor input (max. 12VDC 50mA)
  • 1 relay output (max.24VDC 1A, 125VAC 0.5A)

Camera Specification

  • 1/4 inch color CCD sensor
  • AGC/AWB
  • Electronic shutter: 1/60~1/15000 sec.
  • Fixed focus glass lens, F2.0, 1 LUX

Ports

  • 10/100 Mbps Fast Ethernet
  • Audio/Video output
  • External microphone input
  • External I/O

Security

  • 256-bit WEP encryption
  • Administrator and user group protected
  • Password authentication

Viewing System Requirement Protocol
  • ActiveX

Operating System

  • Microsoft Windows® XP, 2000, Me or 98SE

Browser

  • Internet Explorer 5.x or above

LEDs

  • 2 Status indicators.
  • (1) Power
  • (2) POST, connection, and heartbeat

Dimensions

  • 4.0" L x 4.1" W x 4.4" H

Weight

  • 12.2 oz. (0.75lb)

Warranty

  • 1 Year

Produktová podpora

Tento produkt byl ukončen: 29/11/2008
This product's last date of support is on: 29/11/2010

Downloads can vary across product revisions. Please select the correct hardware revision.
