Coming Soon

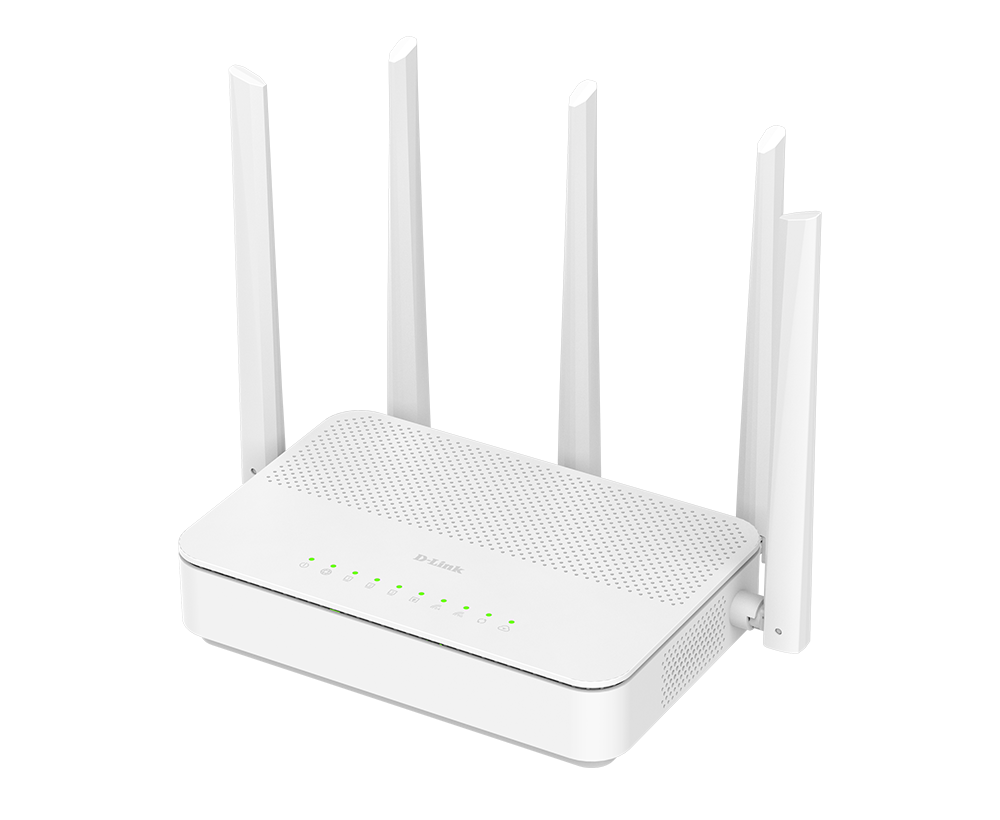

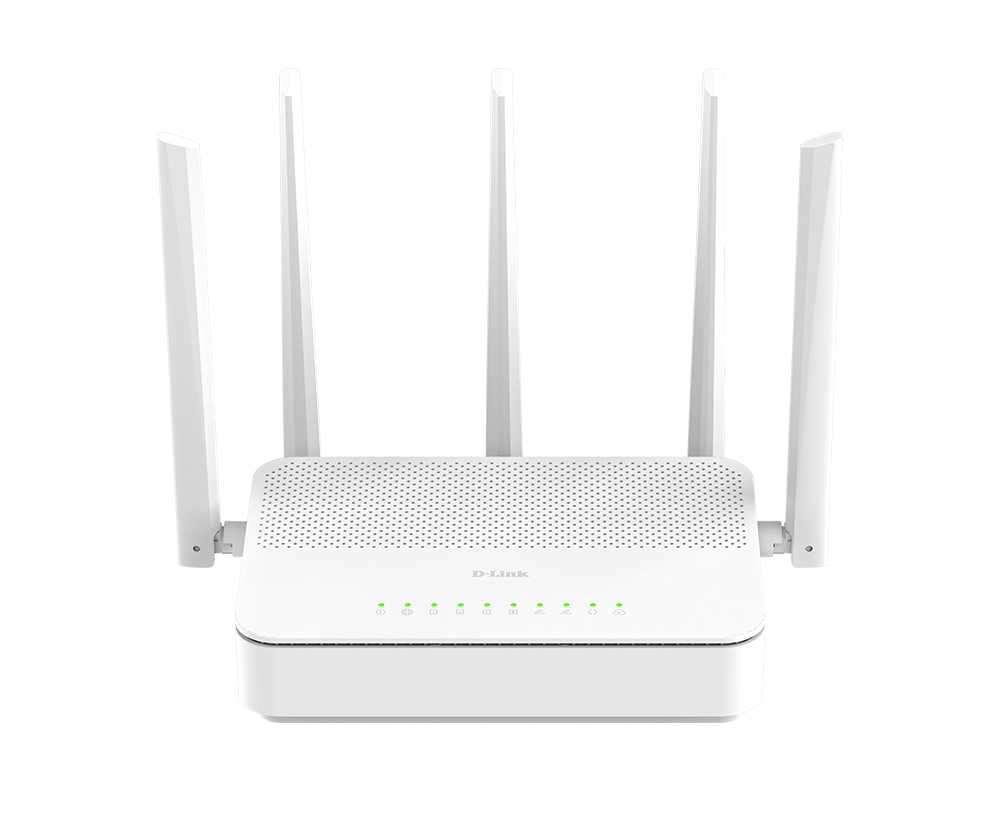

BE3600 Wi-Fi 7 Router

C36

  • Dostupnost produktu (C36_A1_Datasheet_v1_01WW): Live
  • Wi-Fi 7 Dual-Band: Delivers dual-band speeds up to 3.6 Gbps for 4K streaming, gaming, and video calls1
  • Multi-Link Operation (MLO): Simultaneously transmits data across different bands to minimise congestion
  • Maximised Coverage: Equipped with five external antennas with Beamforming technology, delivering enhanced signal reception and more reliable connections
  • 2.5 Gbps WAN Port: Ensures fast and stable high-speed wired connections
  • Mesh Expandable: Easily create a whole-home Mesh network by adding additional C series units
  • Enhanced Security: Supports WPA3 encryption and cybersecurity certification for stronger data protection
  • Simple Setup: Network setup and management are simplified through the FALCON app2

Stáhnout datasheet.

Seznam prodejců

An essential Wi-Fi 7 upgrade for your broadband home

The C36 BE3600 Wi-Fi 7 Router delivers faster, more stable Wi-Fi for everyday homes, simply and affordably. With speeds up to 3.6 Gbps¹, it ensures smoother streaming, quicker downloads, and reliable coverage, without a complicated setup.

The Essential Upgrade in Wi-Fi Technology

Learn More

Dual-Band Performance

5GHz_2.4GHz



4K StreamingVideo CallsOnline_GamingLarge File Transfers
 4K Streaming Video Calls  Online Gaming Large File Transfers

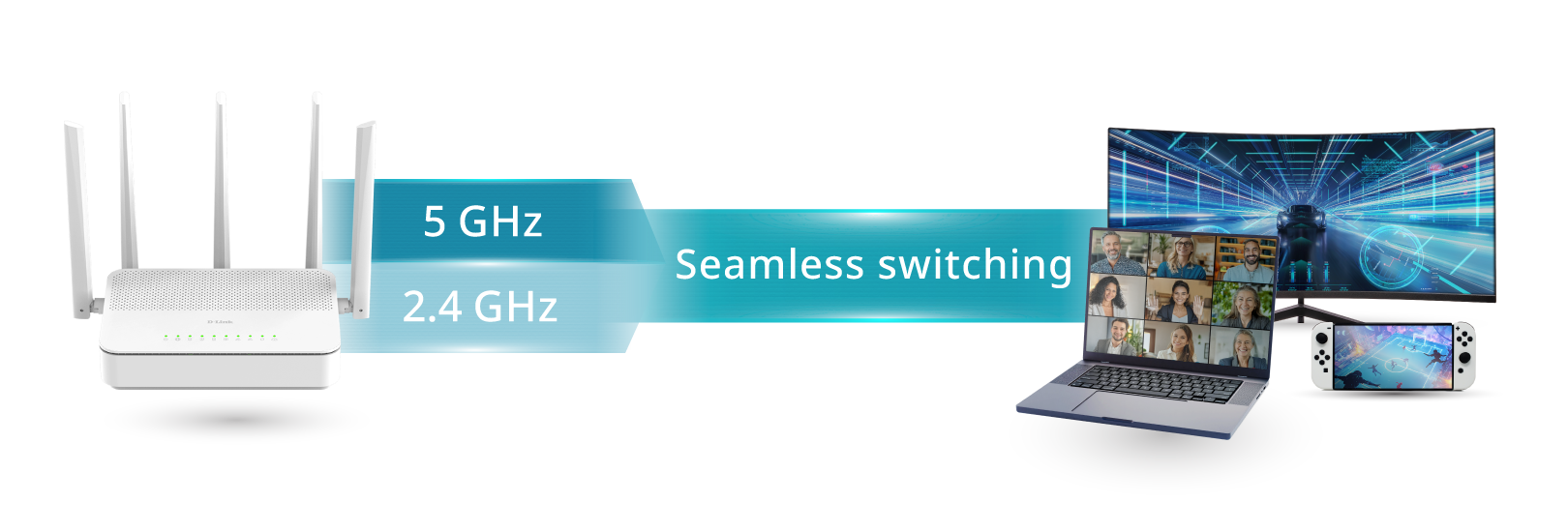

Faster, Smoother, and More Reliable with MLO

The C36 features Multi-Link Operation (MLO) technology, which boosts speed, improves reliability, and reduces latency by transmitting data across multiple bands simultaneously. MLO Mesh applies this technology to Mesh networks, strengthening the connection between the main router and its extenders for consistently reliable whole-home coverage.

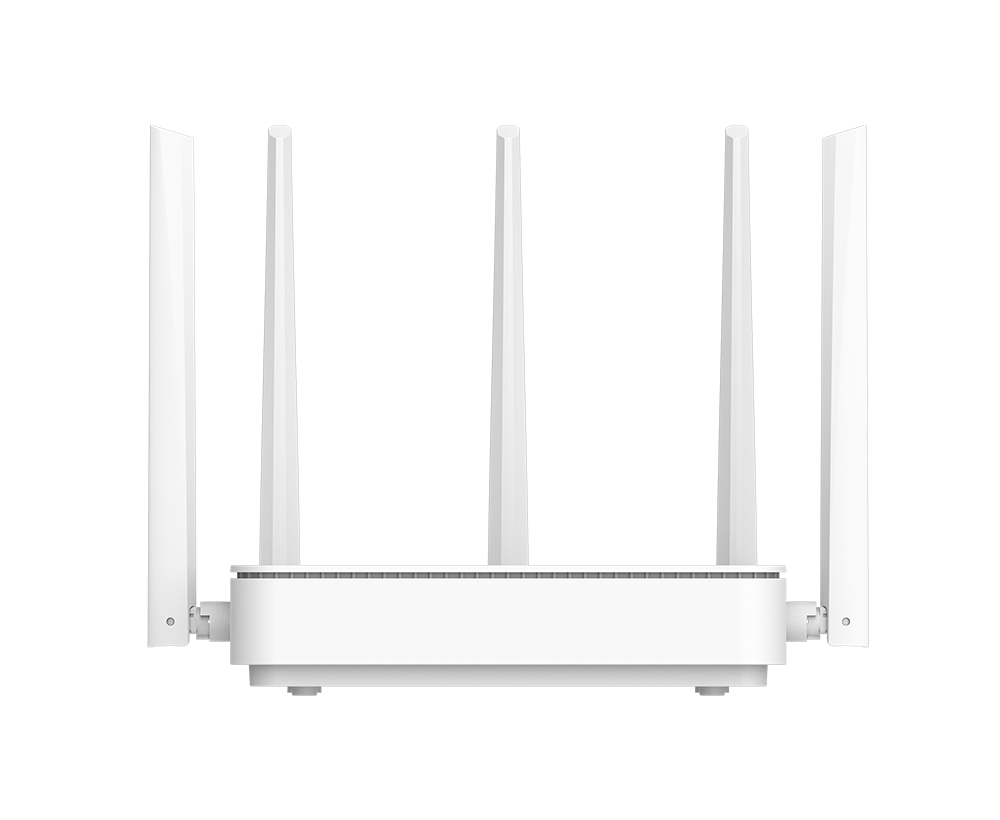

Stronger Signal, Wider Coverage

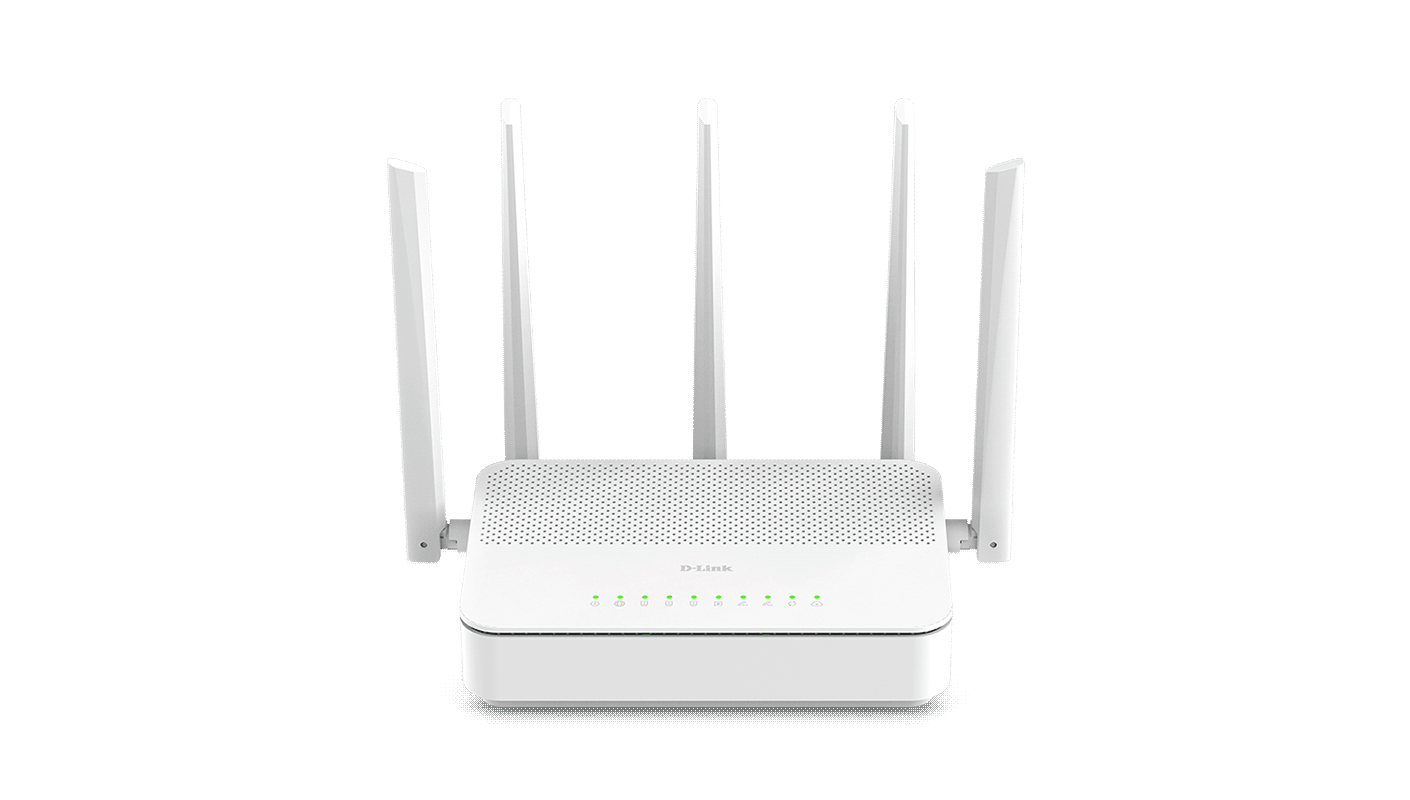

Equipped with five external high-gain antennas, including a dedicated RX antenna, the C36 boosts signal strength, expands coverage, and reduces dead zones. Adjustable angles let you fine-tune reception for optimal performance.

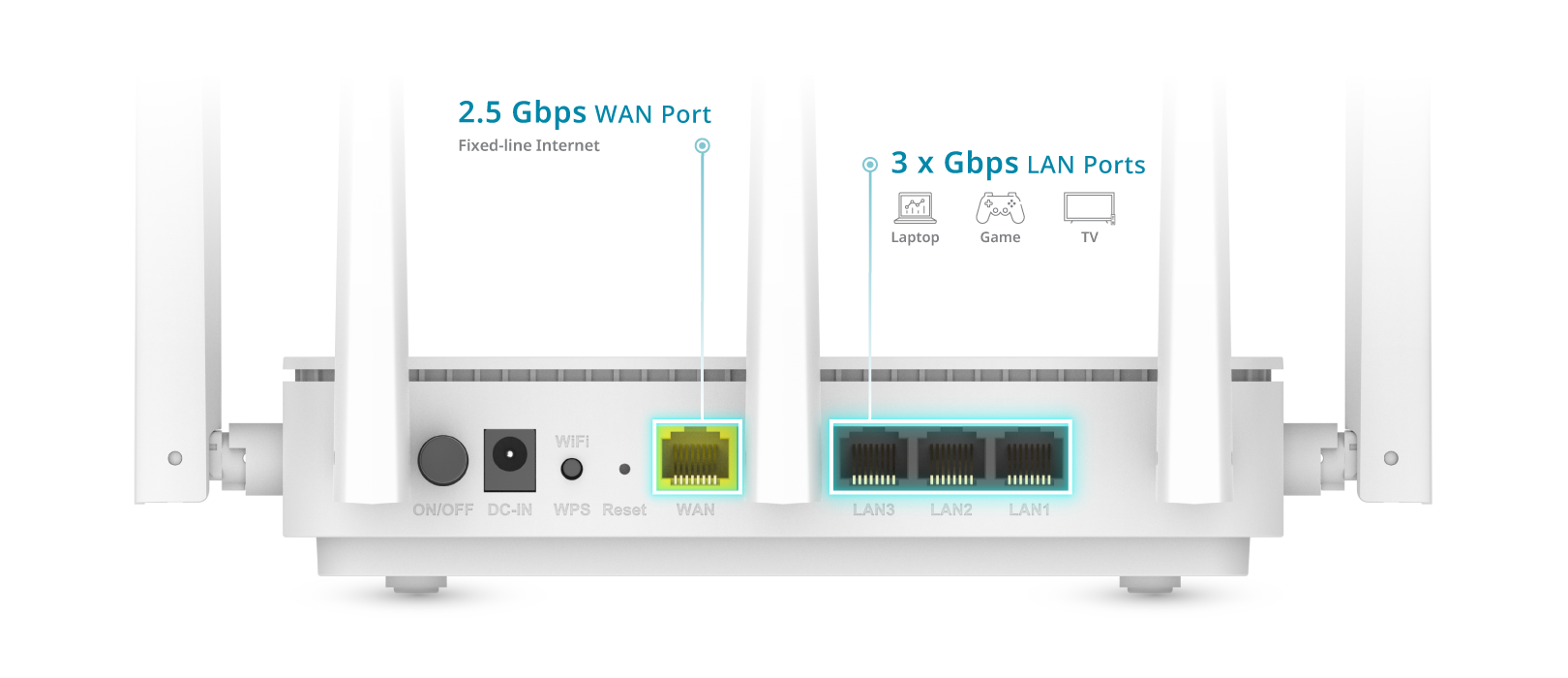

2.5 Gbps High-Speed Wired Connectivity

With a 2.5 Gbps WAN port and 3 x Gbps LAN ports, the C36 delivers fast, stable, high-speed wired connections for PCs, smart TVs, and gaming consoles.

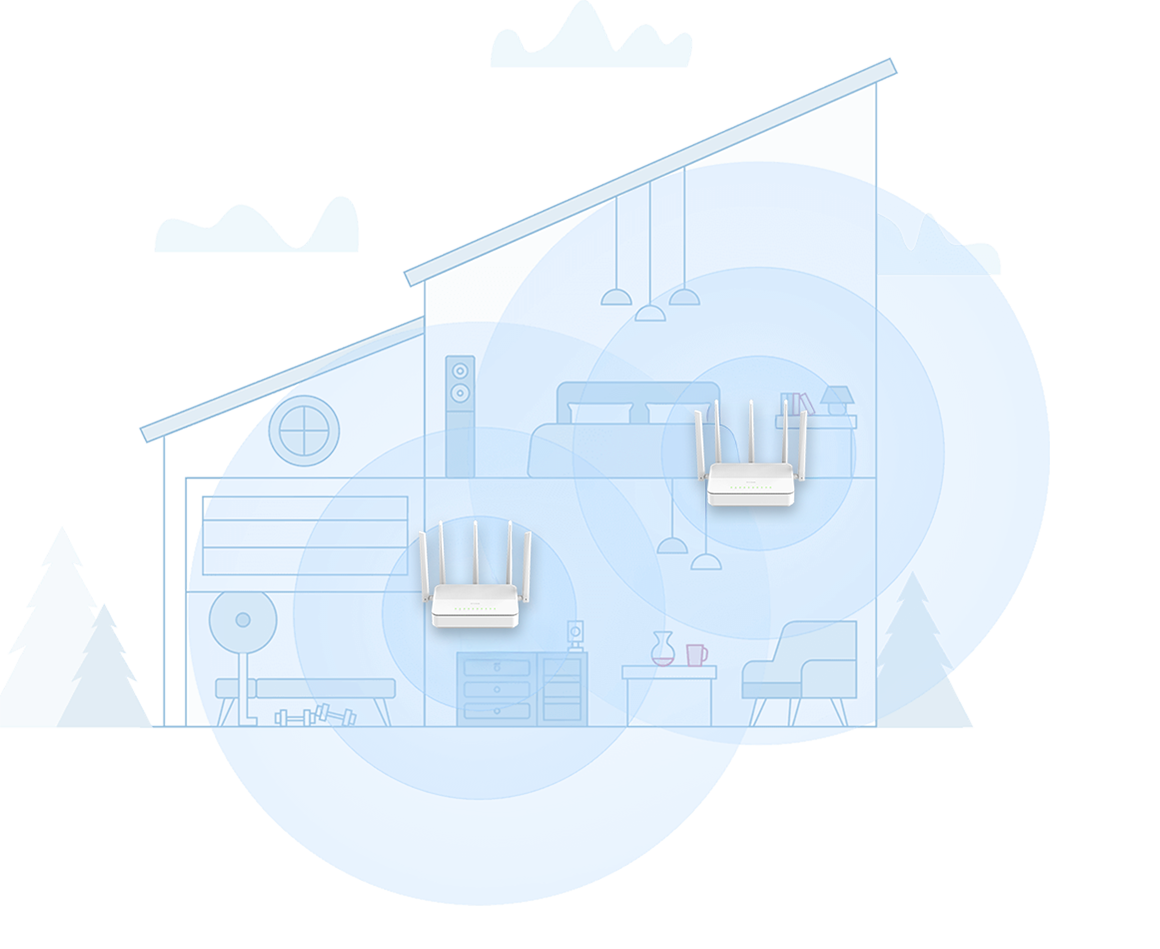

Mesh Expandable

Experience seamless, wall-to-wall connectivity by adding more C series units to create a whole-home Mesh Wi-Fi* for expanded coverage, smooth roaming, elimination of dead zones, and keeping devices connected as you move around your home.

*The C36 currently supports Mesh networking with C36 units and will support other C Series products in the future.

Enhanced Network Security

The C36 provides advanced security to protect your network and personal data, featuring WPA3 encryption, cybersecurity certification, parental controls, and a guest network, all designed to keep your network more secure.

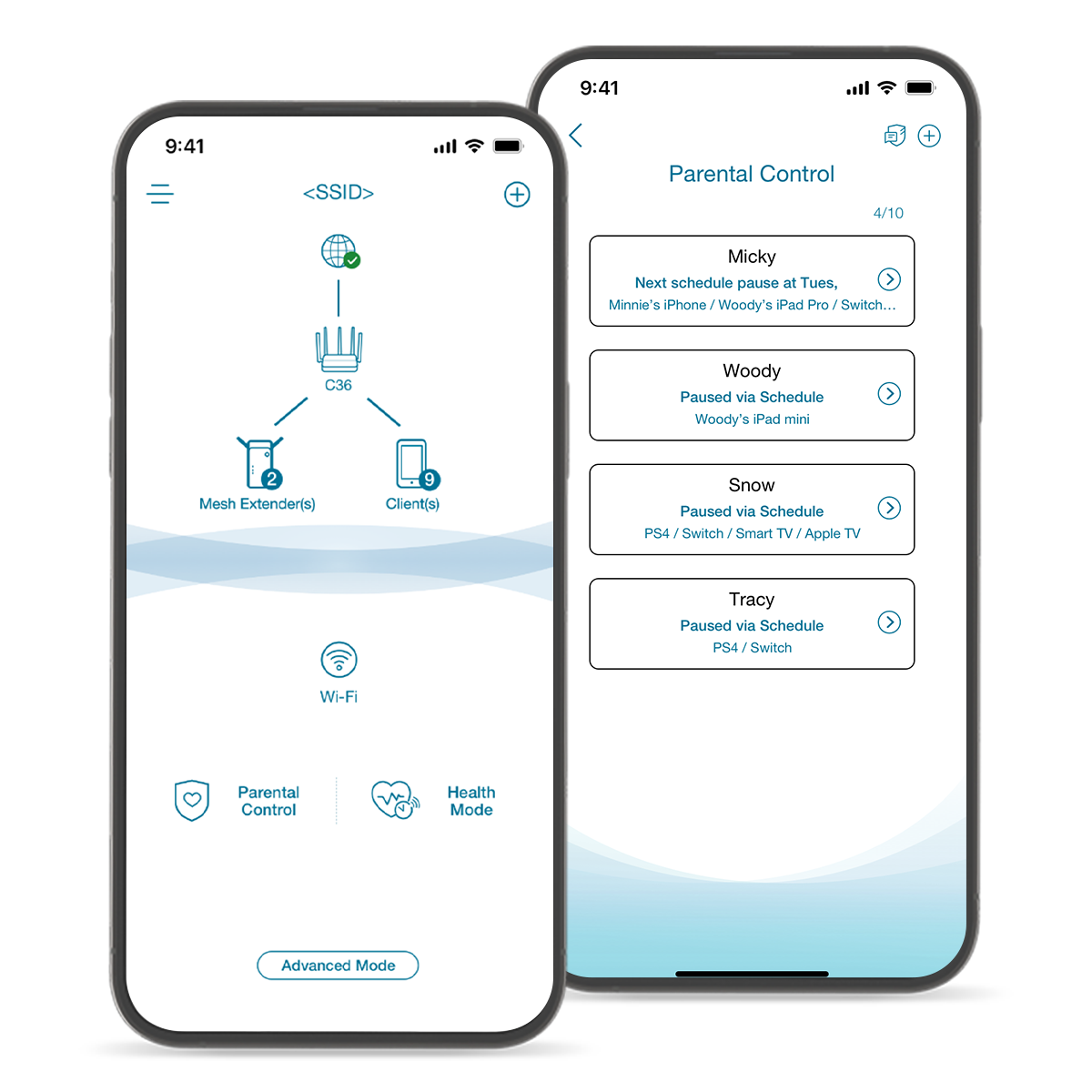

Simple Setup and Management

Set up and manage your network in minutes with the D-Link FALCON app². Configure Wi-Fi, Parental Control, and Health Mode, while automatic Firmware Over-The-Air (FOTA) updates keep your router secure and up to date.



Falcon App Icon    App Store    Google Play

Související produkty

BE3600 Wi-Fi 7 Smart Router
R36
Zjistěte více
BE9500 Wi-Fi 7 Smart Router
R95
Zjistěte více
BE3600 Wi-Fi 7 Smart Mesh Router
M36
Zjistěte více
BE9500 Wi-Fi 7 Smart Mesh Router
M95
Zjistěte více
BE6500 Wi-Fi 7 USB Adapter
AE65U
Zjistěte více

 1. Maximum wireless signal rates are based on IEEE 802.11be standards. Actual data throughput may vary depending on the specific network environment and conditions.                                                                                                                                                                                                           2. All configuration tasks must be performed while connected to the C36’s local network. Remote or external Wi-Fi or internet connections cannot access the router’s admin settings.

Technické specifikace produktu

Stáhnout datasheet.

Antenna
2 x 2.4 GHz external antennas
3 x 5 GHz external antennas
Certifications
CE
FCC
IC
Device Management
FALCON app (Local Access and Basic Control)
Web UI (Advanced Management)
Dimensions
180 x 120 x 42.2 mm (7.09 x 4.72 x 1.66 in)
Firewall
DoS
Stateful Packet Inspection
Anti-spoofing Checking
IP address filtering
1 x DMZ
Wi-Fi Data Rate
2.4 GHz up to 688 Mbps
5 GHz up to 2882 Mbps
Wireless Standard
IEEE 802.11be/ax/ac/n/g/b
IEEE 802.3u/ab/bz/k/v/h

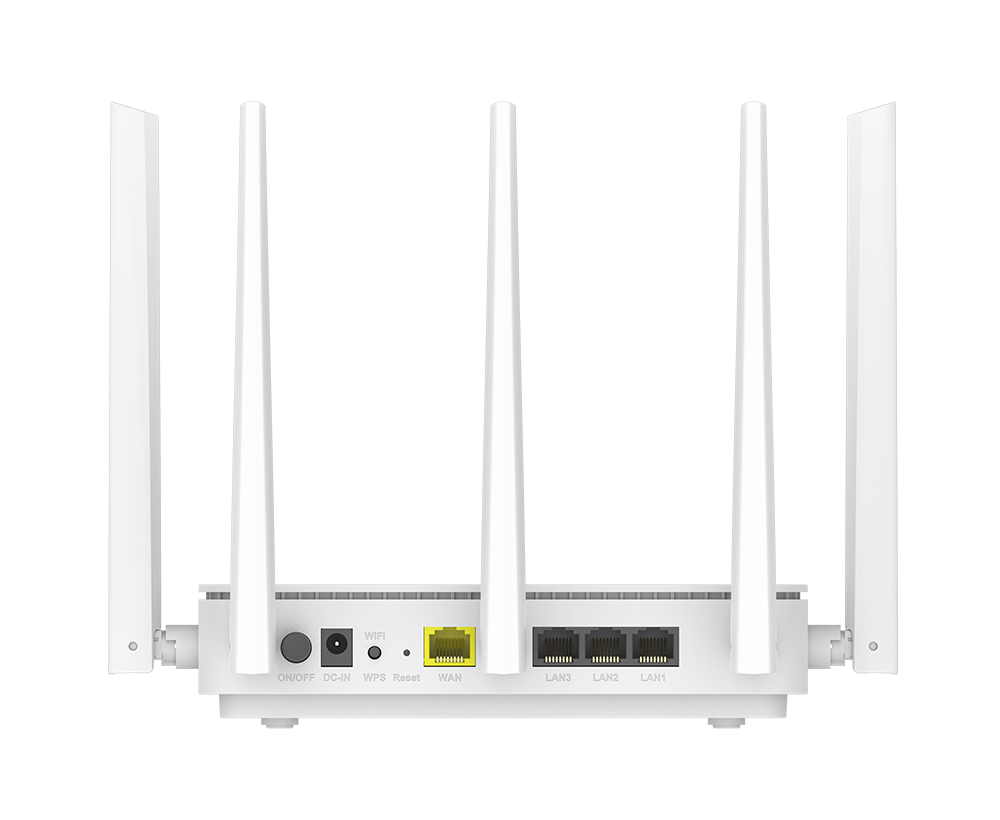

Interfaces
1 x 2.5 Gbps Ethernet WAN port
3 x Gbps Ethernet LAN port
1 x WPS button/Wi-Fi button
1 x reset button
1 x power connector
1 x power on/off button
LED Status Indicators
Power, Internet status, LAN and WAN connection status, Wi-Fi status, WPS, FW upgrade
Maximum Power Consumption
17.1 W
Mesh-Compatible Devices
C36
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Power Input
12 V / 1.5 A
Security Protocol
WPA - Personal
WPA2 - Personal
WPA3 - Personal
Weight
350 g (12.35 oz)

Skutečný výkon se může lišit v závislosti na nastavení, kabeláži, teplotě, konfiguraci sítě, rozhraní, kompatibilitě zařízení, podmínkách prostředí a na místě a dalších podobných faktorech. Odkazy na výkon, rychlost signálu nebo zpracování, dosah signálu nebo vzdálenost, šifrování dat, úložnou kapacitu, vlastnosti displeje nebo jiné metriky výkonu jsou založeny na optimálních podmínkách odvozených z průmyslových standardů a jsou poskytovány pouze pro informační účely. Specifikace se mohou změnit bez předchozího upozornění.
