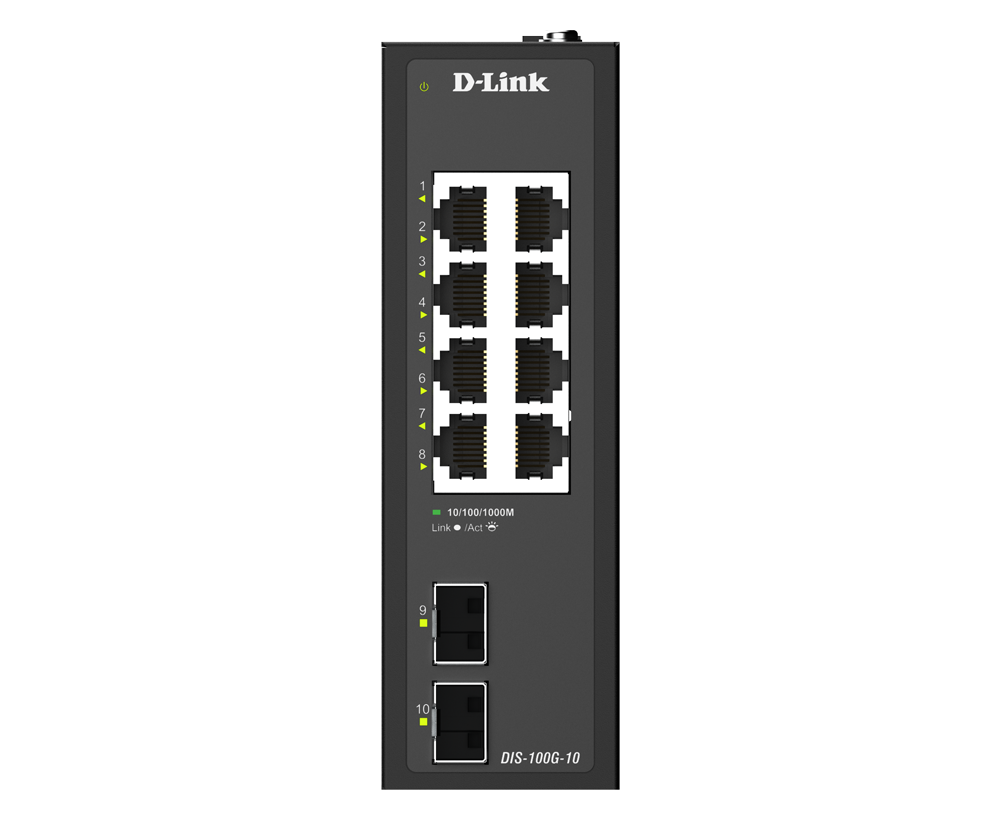

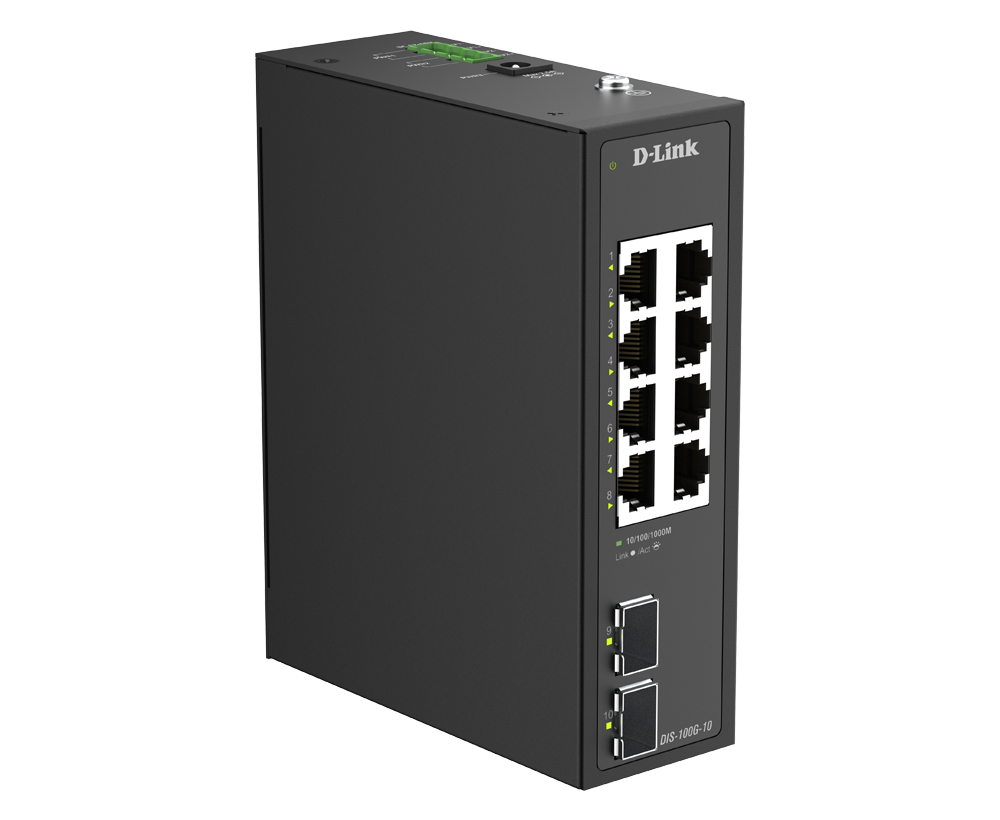

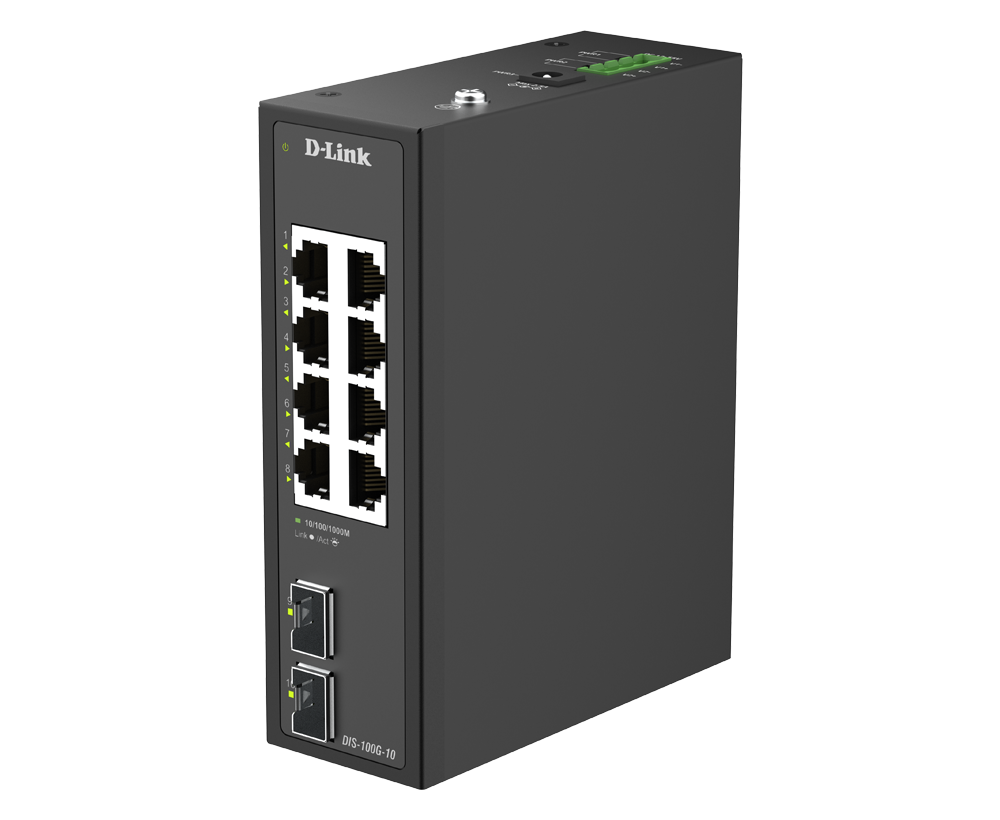

Industrial 8-Port 1G + 2-Port 1G SFP Unmanaged Switch
DIS-100G-10
- Statut produit (A1_EU): Live
- 8 x Gigabit ports for fast data transmission
- 2 x 1G SFP ports for easy network expansion
- Dual power inputs provide power redundancy
- Wide voltage compatible with various power sources
- -40°C to 75°C operation for harsh environments
- 6kV surge protection on Gigabit Ethernet ports
- DIN-rail offers efficient and flexible installation
- Fanless and IP40-rated design enhance reliability
- Plug-and-play with no configuration required
- Support 802.3az Energy Efficient Ethernet (EEE)
Télécharger la fiche technique.
Voir la liste de nos partenaires
Fiber Interface
Offer high speed, low latency and long-distance transmission
Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
Protection contre les surtensions 6 kV
Protection 6 kV : vos ports Ethernet restent intacts face aux surtensions
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
Connect Far, Transmit Fast
The DIS-100G-10 features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

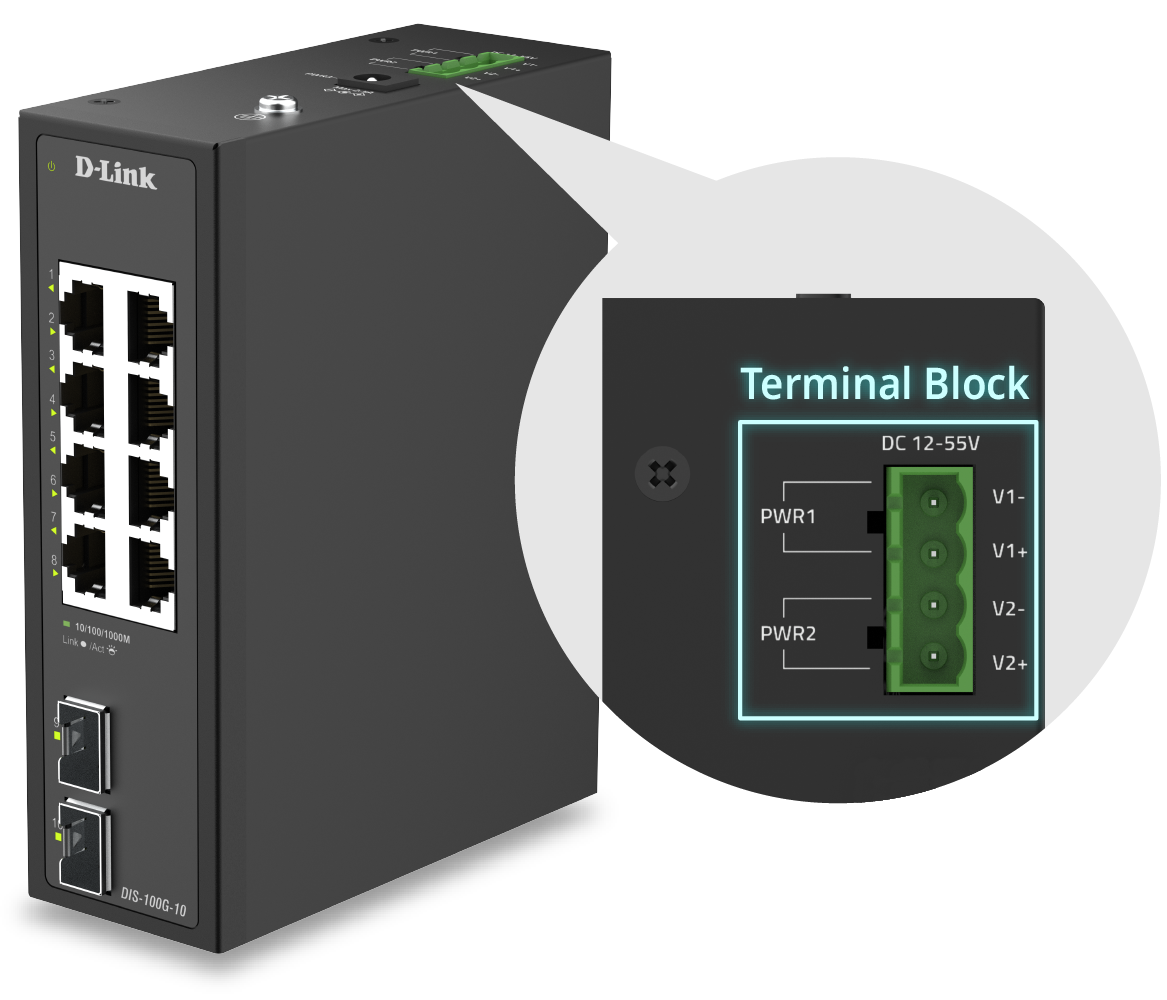

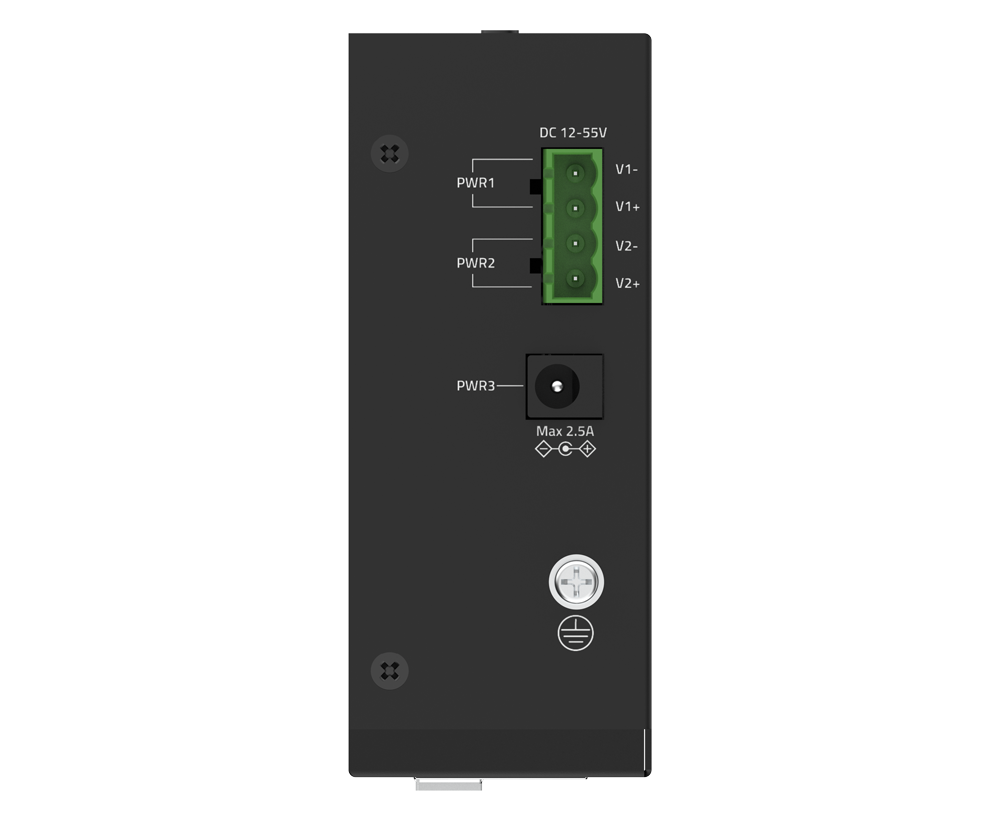

Uninterrupted Power Redundancy
The DIS-100G-10 is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 12 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection

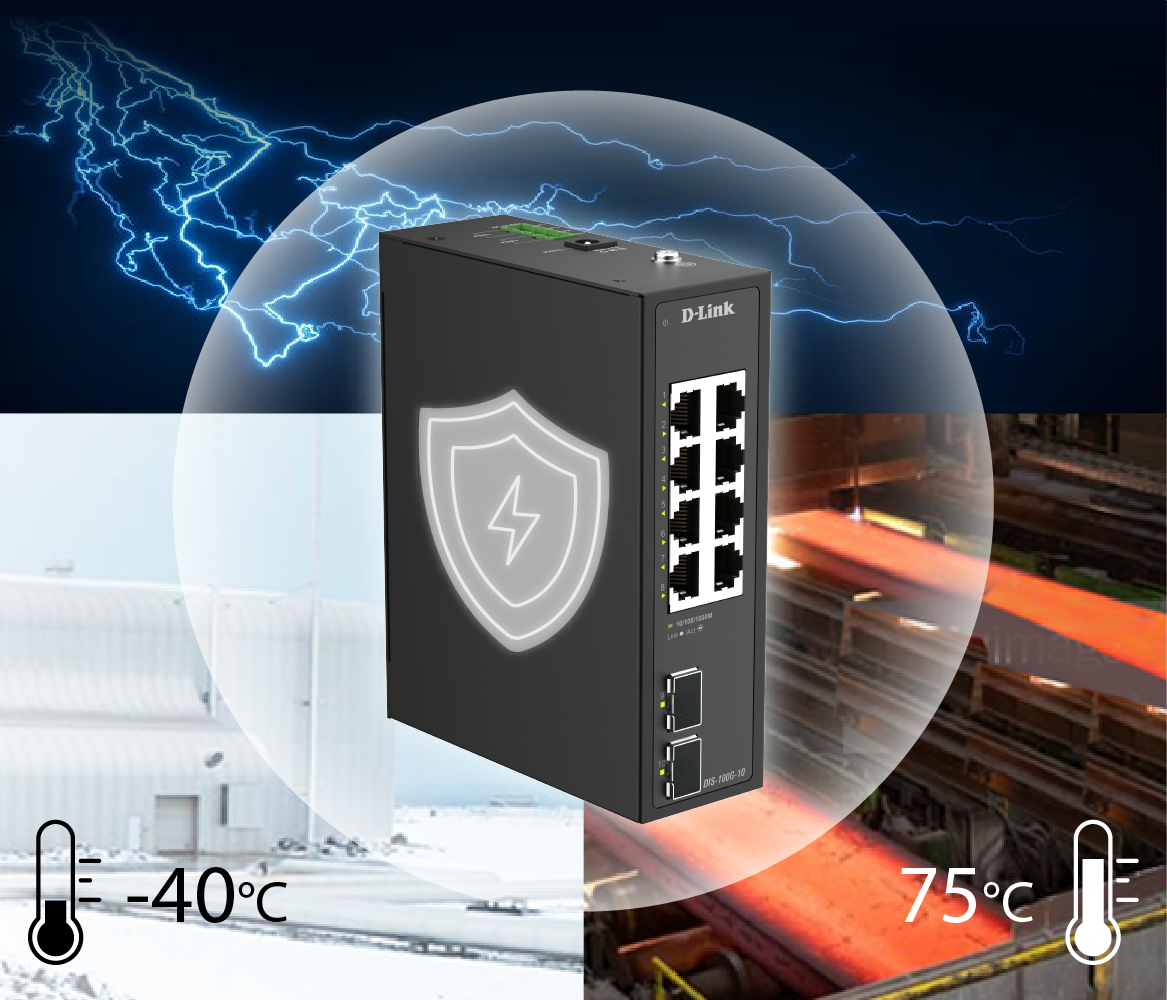

Built Tough for Demanding Conditions
The DIS-100G-10 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

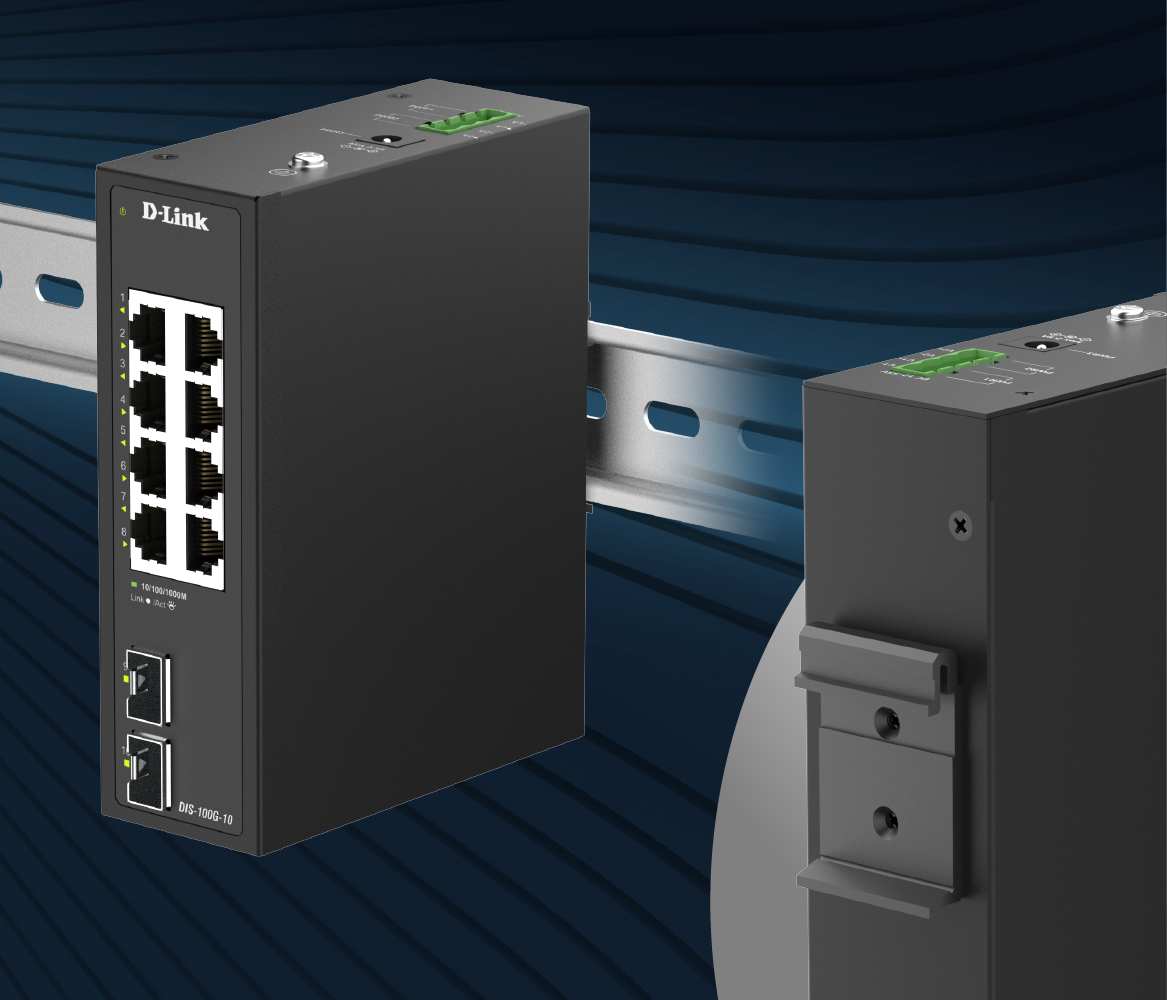

Efficient and Flexible Deployment
The DIS-100G-10 offers true plug-and-play simplicity, just connect the cables and power it up, with no configuration required. It’s an effortless way to quickly and efficiently set up a network, making it ideal for a wide range of field applications. Its compact size and supports DIN-rail mounting, saving space and allowing for easy, organized installation within industrial control cabinets, fit seamlessly into any industrial equipment infrastructure.
Produits apparentés

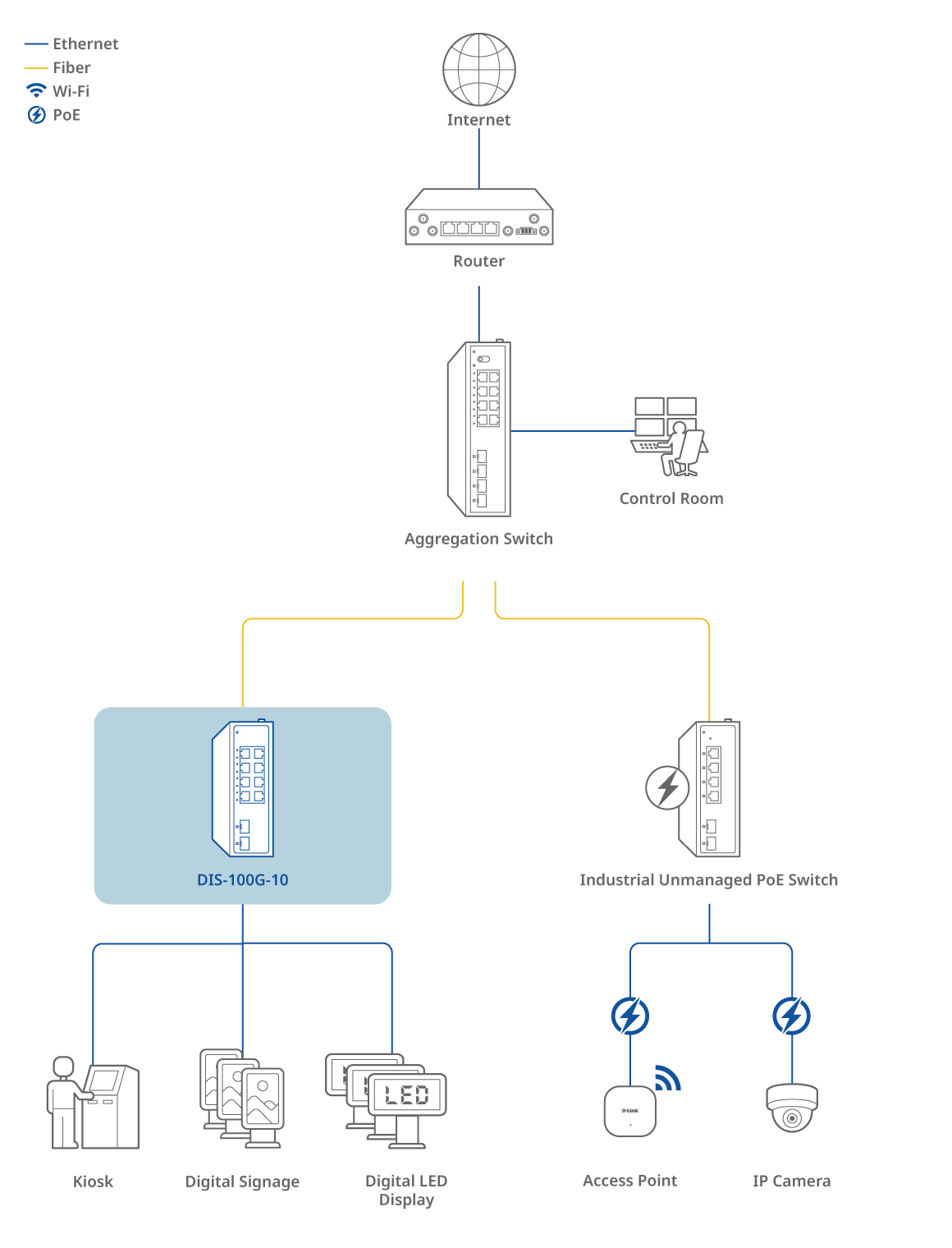

Connection Diagram
The DIS-100G-10 is an industrial unmanaged switch equipped with eight 1G ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it ensures real-time data transfer and seamless connectivity for applications such as Kiosk, digital signage, LED displays, and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
|
Type of Downlink Ports
|
1G SFP |
|---|---|
|
Type of Uplink Ports
|
1G SFP |
|
Number of Gigabit ports
|
8 |
|
Number of SFP ports
|
2 |
|
Capacité du switch
|
20 Gbps |
|
Sans ventilateur
|
Supported
|
|
802.3az EEE
|
Supported
|
|
Type d’alimentation électrique
|
DC:12~55V Dual input |
|
Installation
|
DIN-Rail |
|
Température de fonctionnement
|
-40°-75°C |
|
Protection contre les surtensions
|
6kV |
|
Dimensions
|
138 x 108 x 44 mm |
|
Ingress Protection
|
IP40 |
|
Trame Jumbo
|
9K |
|
MAC Address
|
Up to 8K |
|
Les performances peuvent varier selon les paramètres utilisés, le câblage, la température ambiante, la configuration réseau, les interfaces, la compatibilité des appareils et les conditions environnementales ou spécifiques au site. Les données relatives à la puissance, à la vitesse de traitement ou de signal, à la portée, au chiffrement, à la capacité de stockage, à l’affichage ou à tout autre indicateur de performance sont fournies à titre indicatif, sur la base de conditions optimales définies par les standards du secteur. Les caractéristiques techniques sont susceptibles d’être modifiées sans préavis. |
|
