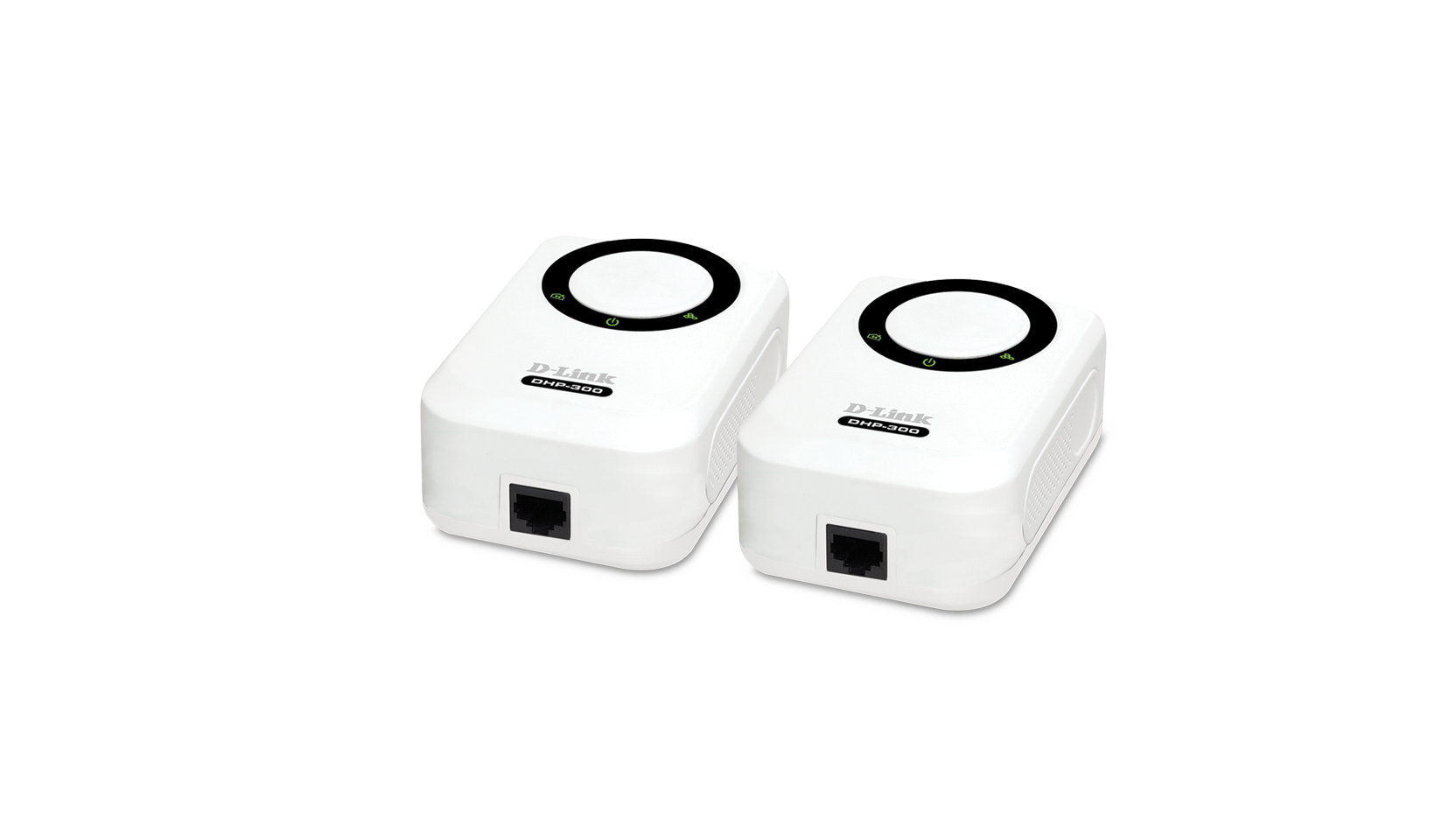

Routeur Gigabit Wireless N CPL
DHP-301
- Statut produit: End of Life
STANDARD
POWER LINE INTERFACE
ETHERNET INTERFACE
MDIX
POWER LINE MODULATION SCHEME
POWER LINE FREQUENCY BAND
DATA RATE
QoS
SECURITY
MINIMUM SYSTEM REQUIREMENTS
DIAGNOSTIC LED
AC INPUT
DIMENSIONS (Per adapter)
WEIGHT (Per adapter)
OPERATION TEMPERATURE
STORAGE TEMPERATURE
OPERATION HUMIDITY
STORAGE HUMIDITY
EMC
SAFETY
MTBF
- IEEE 802.3 Ethernet/ 802.3u Fast Ethernet
POWER LINE INTERFACE
- Power prongs
- Connector: country-dependent 3
ETHERNET INTERFACE
- Port: 10/100BASE-TX with auto MDI
MDIX
- Connector: RJ-45
POWER LINE MODULATION SCHEME
- OFDM Symbol Modulation
POWER LINE FREQUENCY BAND
- 2MHz to 32MHz
DATA RATE
- Power Line: 200Mbps (PHY rate) 2
- Ethernet: 10/100Mbps (auto-negotiation)
QoS
- 802.1P Priority Queues standard
SECURITY
- 3DES data encryption
- User-configurable Net ID (data encryption key)
- 802.1Q VLAN Tagging (fixed value, not user-configurable)
MINIMUM SYSTEM REQUIREMENTS
- (To run Utility Program)
- PC with 233MHz processor
- 64MB memory
- Windows XP SP2 or 2000 SP4
- Ethernet adapter (100Mbps)
DIAGNOSTIC LED
- Power Line Link
- Power Line Activity
- Ethernet Link/ Activity
AC INPUT
- 100 to 240VAC, 50/60Hz, 160mA
DIMENSIONS (Per adapter)
- 101 x 71 x 37 mm
- (3.98 x 2.79 x 1.46 inches)
WEIGHT (Per adapter)
- 172 grams (0.379 lb)
OPERATION TEMPERATURE
- 0˚ to 40˚C (32˚ to 104˚F)
STORAGE TEMPERATURE
- -20˚ to 70˚C (-4˚ to 158˚F)
OPERATION HUMIDITY
- 10% to 95% RH non-condensing
STORAGE HUMIDITY
- 10 to 90% RH non-condensing
EMC
- FCC Part 15 Class B
- CE
SAFETY
- UL
MTBF
- 100,000 hours or higher
FAQ
- Why is my power-line ethernet adapter slower than 200Mbps? Lire la réponse
- I have lost my password. Is there any way to reset the DHP-300? I cannot find a reset button. Lire la réponse
Support
Ce produits est en fin de vie depuis le : 31/07/2010
Dernière date de support technique 30/07/2012
Aucun téléchargement
