Description

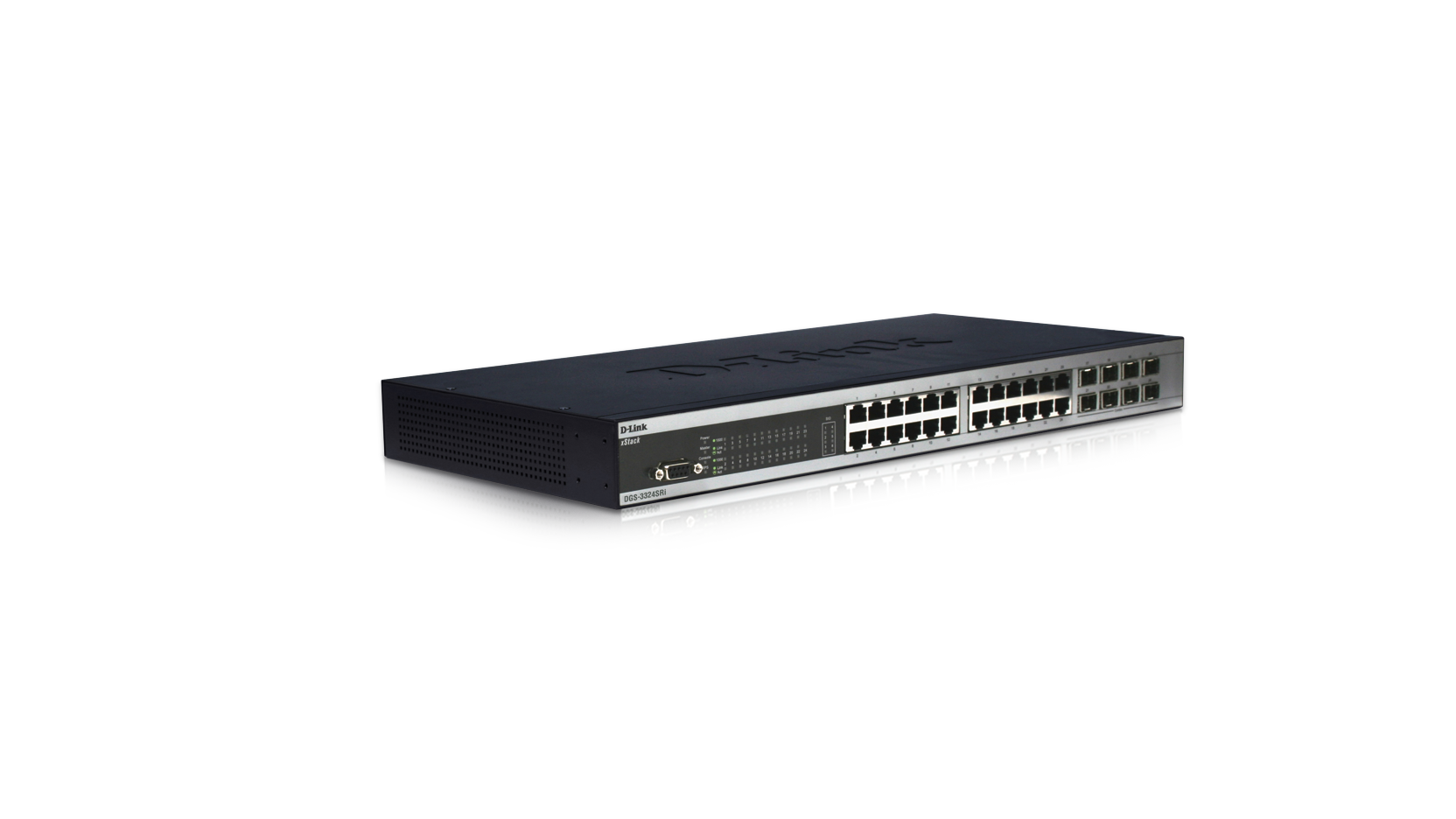

D-Link's DGS-3324SRi is a 24-port Managed Layer 2 switch that is ideal for medium to heavy voice, video and data applications.
D-Link’s xStack Switches Series is a set of “Next Generation” high performance stackable switches that deliver high scalability, wire-speed Gigabit performance, high availability, integrated 10-Gigabit stacking, redundant power options, and support for stacking in a “ring” or “star” topology. The xStack™ DGS-3324SRi operates as a high performance external switching fabric for the xStack™ DGS-3324SR, DXS-3350SR, and DXS-3326GSR. The “star” architecture of the DGS-3324SRi offers many of the same advantages as traditional chassis-based solutions such as greater switching capacity and shortest path switching. It features ASIC-based Layer 3 routing (RIPv1/v2, OSPF, and DVMRP), multi-layer traffic classification, and L2/L3/L4 Access Control Lists (ACL).
Performance
The xStack™ DGS-3324SRi is a managed, stackable, multilayer, 24-port 10/100/1000BASE-T switch with (8) combo SFP ports. It has a switching capacity of up to 168Gbps and supports 6 integrated, rear 10-Gigabit stacking ports. It can be easily added to an existing stack of xStack Series switches to reduce network latency and improve switching performance, as compared to traditional “ring stacking” architectures.
High Availability
The hardware and software features of the DGS-3324SRi work together to allow customers to build cost-effective, high performance, high availability networks. Each DGS-3324SRi unit supports D-Link’s optional Redundant Power Option (the DPS-500), 802.3ad (Link Aggregation), and 802.1w (Rapid Spanning Tree), and 802.1s (Multiple Spanning Tree) for increased network reliability and availability.
Network Management
The DGS-3324SRi supports a variety of network management options including console CLI, Telnet, Web, SNMPv1/v2/v3, RMON, TFTP, Port Mirroring, BootP, and DHCP. It can also be easily managed using D-Link’s SIM (Single IP Management) Clustering technology for single IP management of up to 32 switches. It also provides a variety of advanced traffic management options including Bandwidth Control, Broadcast Rate Limiting, and support for IGMP v1/v2/v3.
Advanced Enterprise Features
The xStack™ DGS-3324SRi implements a robust and consistent set of QoS/CoS, VLAN, and Security features. It provides 8 priority queues for 802.1p/TOS/DiffServ, with classification and marking based on MAC SA/DA, IP SA/ DA, TCP/UDP port numbers and IPv6 address and traffic class. Layer 3 dynamic routing protocols include RIPv1/v2, OSPFv2, PIM-DM, PIM-SM, DVMRP, and VRRP. Security features include 802.1x Port Based Authentication, 802.1x MAC Based Authentication; and Access Control Lists based on MAC address, IP address, TCP/UDP port numbers. It also provides extensive support for GARP/ GVRP, 802.1q VLAN, 802.1v IPv6 VLAN, and port based VLANs for a total of up to 4000 groups per device.
D-Link's DGS-3324SRi is a 24-port Managed Layer 2 switch that is ideal for medium to heavy voice, video and data applications.
D-Link’s xStack Switches Series is a set of “Next Generation” high performance stackable switches that deliver high scalability, wire-speed Gigabit performance, high availability, integrated 10-Gigabit stacking, redundant power options, and support for stacking in a “ring” or “star” topology. The xStack™ DGS-3324SRi operates as a high performance external switching fabric for the xStack™ DGS-3324SR, DXS-3350SR, and DXS-3326GSR. The “star” architecture of the DGS-3324SRi offers many of the same advantages as traditional chassis-based solutions such as greater switching capacity and shortest path switching. It features ASIC-based Layer 3 routing (RIPv1/v2, OSPF, and DVMRP), multi-layer traffic classification, and L2/L3/L4 Access Control Lists (ACL).
Performance
The xStack™ DGS-3324SRi is a managed, stackable, multilayer, 24-port 10/100/1000BASE-T switch with (8) combo SFP ports. It has a switching capacity of up to 168Gbps and supports 6 integrated, rear 10-Gigabit stacking ports. It can be easily added to an existing stack of xStack Series switches to reduce network latency and improve switching performance, as compared to traditional “ring stacking” architectures.
High Availability
The hardware and software features of the DGS-3324SRi work together to allow customers to build cost-effective, high performance, high availability networks. Each DGS-3324SRi unit supports D-Link’s optional Redundant Power Option (the DPS-500), 802.3ad (Link Aggregation), and 802.1w (Rapid Spanning Tree), and 802.1s (Multiple Spanning Tree) for increased network reliability and availability.
Network Management
The DGS-3324SRi supports a variety of network management options including console CLI, Telnet, Web, SNMPv1/v2/v3, RMON, TFTP, Port Mirroring, BootP, and DHCP. It can also be easily managed using D-Link’s SIM (Single IP Management) Clustering technology for single IP management of up to 32 switches. It also provides a variety of advanced traffic management options including Bandwidth Control, Broadcast Rate Limiting, and support for IGMP v1/v2/v3.
Advanced Enterprise Features
The xStack™ DGS-3324SRi implements a robust and consistent set of QoS/CoS, VLAN, and Security features. It provides 8 priority queues for 802.1p/TOS/DiffServ, with classification and marking based on MAC SA/DA, IP SA/ DA, TCP/UDP port numbers and IPv6 address and traffic class. Layer 3 dynamic routing protocols include RIPv1/v2, OSPFv2, PIM-DM, PIM-SM, DVMRP, and VRRP. Security features include 802.1x Port Based Authentication, 802.1x MAC Based Authentication; and Access Control Lists based on MAC address, IP address, TCP/UDP port numbers. It also provides extensive support for GARP/ GVRP, 802.1q VLAN, 802.1v IPv6 VLAN, and port based VLANs for a total of up to 4000 groups per device.
Technical Specifications
Hardware
Software
Device Ports
Unit Stacking
Stacking Architecture
Port Standard/Function Support
SFP (Mini GBIC) Support
Diagnostic LEDs
Per device:
Per 10/100/1000BASE-T port:
Per SFP port:
Per stacking port:
7-Segment Display
Software
IP Routing
* Available in future firmware upgrade
Priority Queues (CoS)
Traffic Classification (CoS)
Can be based on user-definable application types:
Network Access Security
IP Multicast
* Function supported in future firmware upgrade
Port Trunk
* Available in future firmware upgrade
Performance
Switch Fabric
Transmission Method
IP Address Table
MAC Address Table
MAC Address Learning
Packet Filtering/Forwarding Rates (half duplex)
Forwarding Rate
RAM Buffer
Jumbo Frame
Configuration & Management
Management Support
Routing Table
MIBs
RMON Groups
IP Number Self-identification
Firmware Upgrade
Console Port
Physical & Environmental
Power Input
Redundant Power Backup Support
Power Consumption
Ventilation
Dimensions
Weight
Operating Temperature
Storage Temperature
Humidity
Emission (EMI)
Safety
Ordering Information
Stacking Master Gigabit Layer 3 Switch
DGS-3324SRi
Optional Stackable Layer 3 Switch
DGS-3324SR
Optional SFP Transceiver
DEM-310GT
DEM-311GT
DEM-314GT
DEM-315GT
Optional Redundant Power Supply
DPS-500
DPS-800
DPS-900
Hardware
Software
Device Ports
- 24 auto-sensing 10/100/1000BASE-T ports (front panel)
- 8 combo SFP (mini GBIC) ports (front panel)
- 6 10Gbps stacking ports (rear panel)
- 1 RS-232 console port (front panel)
Unit Stacking
- 6 DGS-3224SR stackable switches and 1 DGS-3324SRi Stacking Master
Stacking Architecture
- Star
Port Standard/Function Support
- IEEE 802.3 10BASE-T/802.3u 100BASE-TX/802.3ab 1000BASE-T
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- Auto MDI/MDIX
- Port mirroring
SFP (Mini GBIC) Support
- IEEE 802.3z 1000BASE-LX (DEM-310GT transceiver)
- IEEE 802.3z 1000BASE-SX (DEM-311GT transceiver)
- IEEE 802.3z 1000BASE-LH (DEM-314GT transceiver)
- IEEE 802.3z 1000BASE-ZX (DEM-315GT transceiver)
Diagnostic LEDs
Per device:
- Power On/Off
- Master
- Console (login/POST status)
- RPS in use
Per 10/100/1000BASE-T port:
- 1000Mbps speed, 10/100Mbps speed
- Link
Per SFP port:
- Link/Activity
Per stacking port:
- Link/Activity
7-Segment Display
- To display unit ID in the stack
Software
IP Routing
- IP v4 support
- IP Fragmentation support
- IP multi-netting
- Routing protocols supported:
- Static routing
- RIP-1, RIP-2
- OSPF v.2
- IEEE 802.1Q Tagged VLAN
- GARP/GVRP
- Asymmetric VLAN *
- Number of VLANs: 4K static VLANs (max.) *
- Multiple IPs per VLAN
* Available in future firmware upgrade
Priority Queues (CoS)
- Standard: IEEE 802.1p
- Number of queues: 8
Traffic Classification (CoS)
Can be based on user-definable application types:
- TOS
- Diffserv (DSCP)
- Port-based
- MAC address
- IP address
- TCP/UDP port number
Network Access Security
- Port security features
- 802.1x user authentication
- RADIUS client
- Multi-layer ACL based on:
- Port number
- TOS
- Diffserv (DSCP)
- MAC address
- IP address
- User-definable applications
- 802.1D Spanning Tree compatible
- 802.1w Rapid Spanning Tree
IP Multicast
- IGMP v.2 - DVMRP
- PIM Dense mode
- PIM Sparse mode *
* Function supported in future firmware upgrade
Port Trunk
- Number of ports per trunk: 8 (max.)
- Number of trunks: 32 (max.)
- Operation mode: load sharing
- 802.3ad compatible Link Aggregation (LACP) *
* Available in future firmware upgrade
Performance
Switch Fabric
- 160 Gbps
Transmission Method
- Store-and-forward
IP Address Table
- 4 K host entries
- 4K LPM entries
MAC Address Table
- 16K entries per device
MAC Address Learning
- Dynamic entries: automatic update
- Static entries: user-defined
Packet Filtering/Forwarding Rates (half duplex)
- 1,488,100 pps per port (max.)
Forwarding Rate
- 35.7 Mpps (excluding stacking ports)
RAM Buffer
- 2MB per device
Jumbo Frame
- 9,216 bytes (max.)
Configuration & Management
Management Support
- SNMP v.1, v.2c, v.3 - Web-based management
- Web GUI traffic monitoring
- Web-based MAC address browsing
- CLI (command line interface)
- RMON monitoring
- Telnet server (up to 8 sessions)
- SYSLOG
- ACL
- DHCP/Bootp relay
- DNS relay
Routing Table
- ARP table editing supports Delete of individual IP address learned by dynamic learning
MIBs
- MIB-II (RFC 1213)
- Bridge MIB (RFC 1493)
- RMON MIB (RFC 1757)
- 802.1p Priority Queues (RFC 2674)
- 802.1Q VLAN MIB (RFC 2674)
- IGMP MIB (RFC 2833)
- If MIB (RFC 2233)
- Ethernet-like MIB (RFC 1643)
- RIP MIB (RFC 1724)
- OSPF MIB (RFC 1850)
- CIDR MIB (RFC 2096)
- D-Link enterprise MIB
RMON Groups
- 1, 2, 3, 9 (Alarm, Statistics, History, Event)
IP Number Self-identification
- Through DHCP client, Bootp client
Firmware Upgrade
- TFTP
Console Port
- DB-9 RS-232 DCE
Physical & Environmental
Power Input
- 100 to 120 VAC or 200 to 240 VAC, 50/60 Hz
- Internal power supply
Redundant Power Backup Support
- Connector to connect to external redundant power supply
Power Consumption
- 90 watts (max.)
Ventilation
- 40 x 40 mm DC fans x 2
- 60 x 60 mm DC fans x 1
Dimensions
- 441 x 207 x 44 mm (device only)
- 19-inch rack-mount width, 1 U height
Weight
- 3.15 kg (device only)
Operating Temperature
- 0° to 40° C
Storage Temperature
- -25° to 55° C
Humidity
- 5% to 95% non-condensing
Emission (EMI)
- FCC Class A
- CE Class A
Safety
- CSA International
Ordering Information
Stacking Master Gigabit Layer 3 Switch
DGS-3324SRi
- 24 10/100/1000BASE-T ports, 8 combo SFP (mini GBIC), redundant power support
Optional Stackable Layer 3 Switch
DGS-3324SR
- 24 10/100/1000BASE-T ports, 4 combo SFP (mini GBIC), redundant power support
Optional SFP Transceiver
DEM-310GT
- SFP transceiver for 1000BASE-LX, single-mode fiber, max. distance 10km, 3.3V
DEM-311GT
- SFP transceiver for 1000BASE-SX, multi-mode fiber, max. distance 550m, 3.3V
DEM-314GT
- SFP transceiver for 1000BASE-LHX, single-mode fiber, max. distance 40km, 3.3V
DEM-315GT
- SFP transceiver for 1000BASE-ZX, single-mode fiber, max. distance 80km, 3.3V
Optional Redundant Power Supply
DPS-500
- 140-watt redundant power supply
DPS-800
- 2-slot redundant power supply chassis
DPS-900
- 8-slot redundant power supply chassis
