Web Smart 16-Port 10/100 with 8 PoE 802.3af ports Switch


  • Statut produit: End of Sale

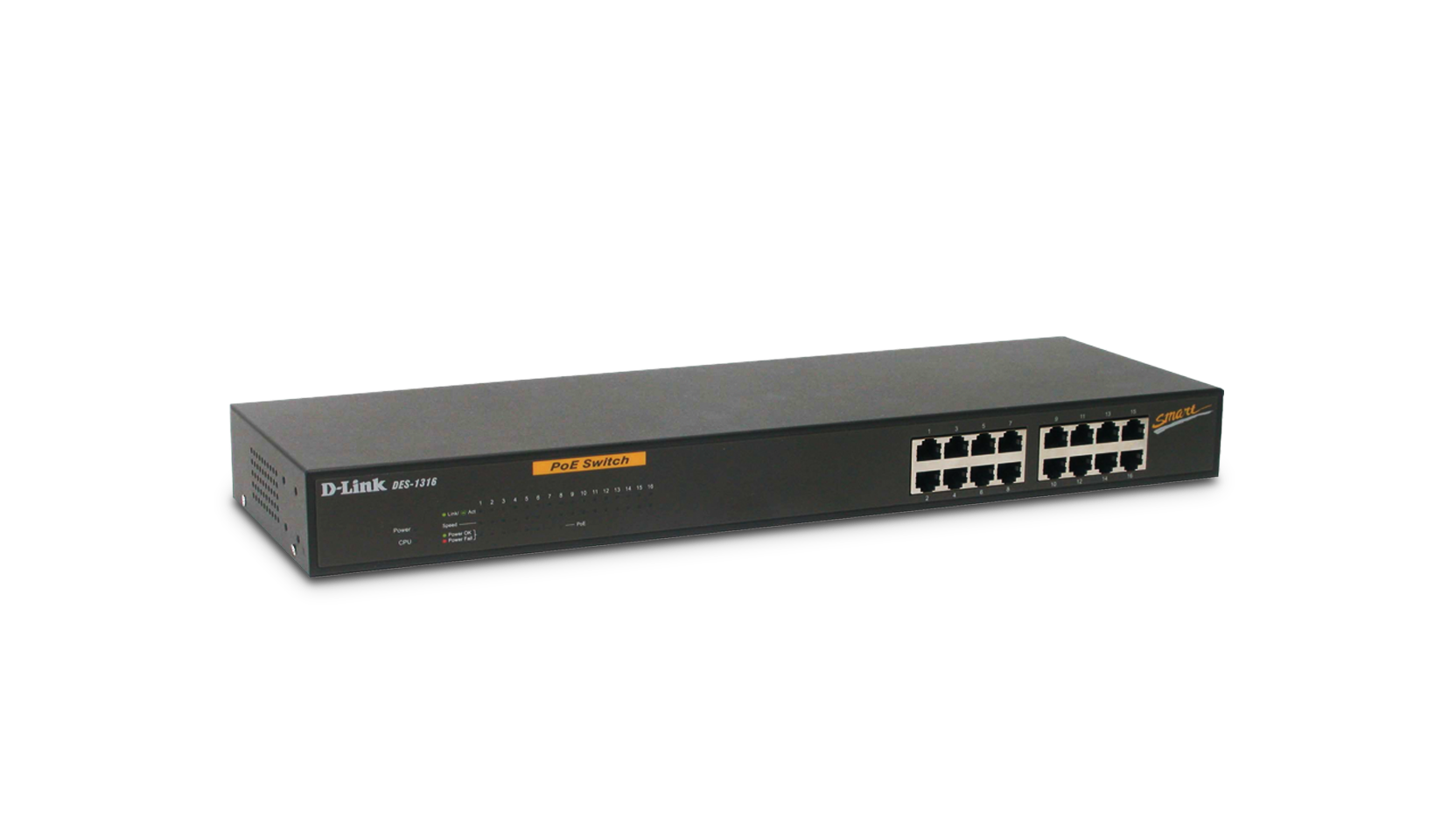

D-Link’s Web Smart DES-1316 is the first of its kind in the market. It is equipped with 16 10/100BASE-TX Fast Ethernet ports, 8 of which support 802.3af Power Over Ethernet (PoE). It is an effective solution for small and medium businesses deploying wireless networks and adding multimedia applications. It provides Smart features that are ideal for simple QoS applications and basic monitoring tools. The Power Over Ethernet option supplies power into 802.3af compliant devices such as IP phones, wireless access points, or IP cameras.

Exceptionally Smart
The Web Smart DES-1316 provides QoS features that are suitable for today’s multimedia applications. Through a Web-based interface, an administrator can set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to increase bandwidth. The DES-1316 also provides network monitoring tools such as port mirroring and basic port statistics. Best of all, the password-protected configuration interface can be accessed remotely.

Power over Ethernet 802.3af
The Web Smart DES-1316 has 8 10/100BASE-TX ports that support 802.3af PoE protocol. It is designed to inject up to 15.4Watts per port. Any device that is IEEE802.3af compliant can be attached to the switch; no additional power will be required to support the attached device. This eliminates the need for power rewiring and minimizes the clutter of power supplies and adapters in awkward places such as ceilings or walls. For devices that are not 802.3af compliant, D-Link offers PoE adapters, such as the DWL-P50. The DES-1316 is ideal for today’s popular deployment of VoIP, Wireless APs, and IP Cameras in small to medium business environment. Through its Web-Smart interface, an administrator can easily hard reboot the attached device by a simple click of a button, facilitating network troubleshooting without physically having to go to hard-to-reach places. The Web Smart DES-1316 also supports active circuit protection, which automatically disables a port if there is a short, while the other ports remain active.

Superior Performance
The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10 or 100) and intelligently adjusts for compatibility and optimal performance. If an 802.3af compliant device is attached, the switch will automatically detect the requirements of the device and will supply power accordingly. The Web Smart DES-1316 also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. It features a non-blocking wire-speed architecture with an 3.2Gbps switching capacity for maximum data throughput. With wire-speed filtering and store-and-forward switching, the Web-Smart switch also maximizes network performance while minimizing the propagation of bad network packets.


  • (8) Ports 10/100Mbps and (8) PoE 802.3af 10/100 ports

MAC Address Table
  • 4K

Switch Fabric
  • 3.2Gbps

Transmission Method
  • Store-and-forward

Diagnostic LEDs
  • Per Unit: Power, CPU
  • Per Port: Activity/Link & Speed
  • PoE port: power/error

Packet Buffer Memory
  • 512KB

  • 10BASE-T, 100BASE-TX

  • 802.3 Ethernet, 802.3u Fast Ethernet, 802.3x Flow Control, 802.3af (DTE power over MDI), 802.1Q VLANs

Smart Features

  • Smart Features
  • 802.1Q VLAN, maximum 16 groups
  • Port-based QoS, maximum 2 queues
  • Port Trunking of up to 4 10/100 ports in one trunk
  • Port Mirroring
  • Management Password-protected access
  • Port settings
  • Configuration restore/backup
  • Firmware upgrade
  • Web-based Management, Graphic User Interface
  • Configuration reset through software or reset button
  • Port Power setting
  • Auto-discovery utility to automatically find all D-Link Web Smart switches in a network

  • CE Mark, FCC Class A

Power Supply
  • 100-240VAC, 50/60 Hz Internal Universal Power

Max Power Consumption
  • 9 Watts (without any PoE devices attached)

PoE budget
  • 15.4Watts per port, for Port 1 to Port 8 Only

  • CUL (Ul60950)

  • Operating: 0° to 40° C (32° - 104° F)
  • Storage: -10° to 70° C (14° - 158° F)

  • Operating: 5% to 90% RH, Non-Condensing

Physical Specifications

Dimensions (W x D x H)
  • 17.32x 5.51 x 1.73 in, 19-inch rackmount width, 1RU

  • 4.69 lbs (2.13kg)

  • Limited Lifetime Warranty for as long as the original customer/end user owns the
  • product, or five years after product discontinuance, whichever occurs first (excluding power supplies and fans).

  • Free Technical Support

Part Number
  • Description

  • Web Smart 16-Port 10/100BASE-TX with Port 802.3af Power Over Ethernet

  • 802.3af Power Over Ethernet Adapter
