The D-Link 10GBASE SFP+ Transceivers offer customers a wide variety of 10Gbps Ethernet connectivity option for data center, enterprise wiring closet, and service provider transport applications. Compared with existing 10G XFP, 10G SFP+ is with smaller form factor, with lower cost, lower power dissipation, and allows higher port density.

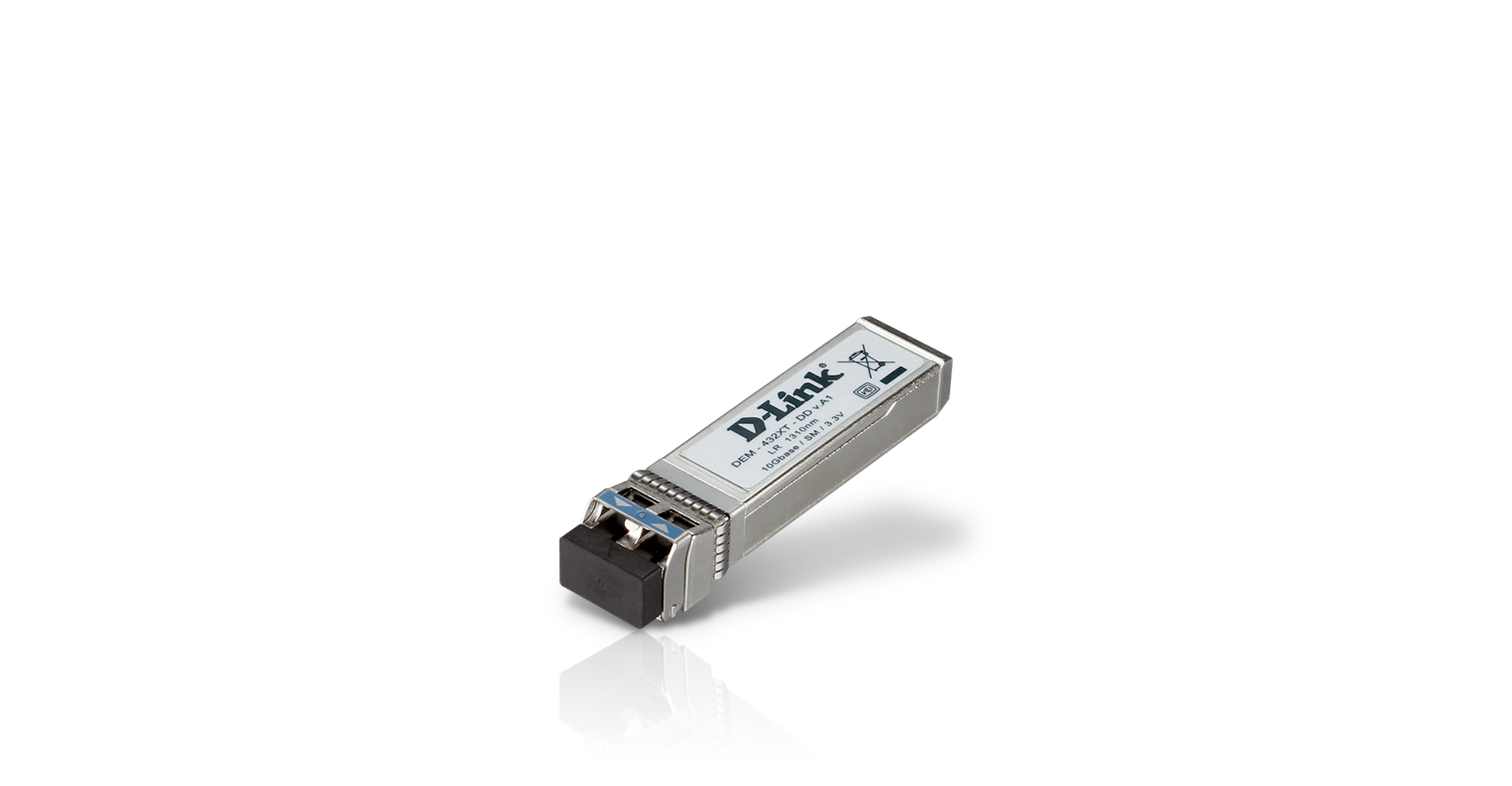

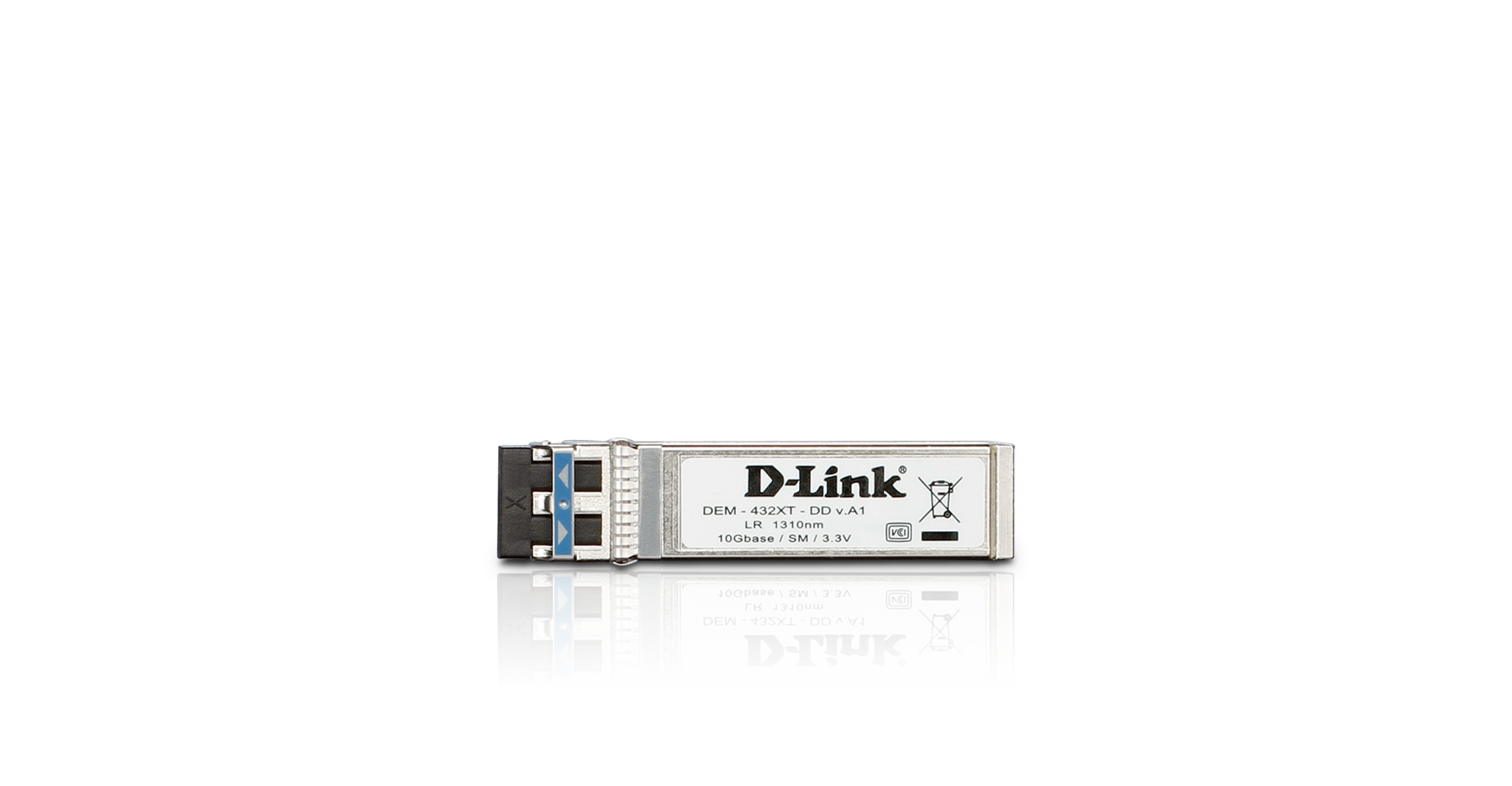

The DEM-432XT-DD is a 10GBASE-LR high performance 1310nm Single-Mode SFP+ transceiver with Digital Diagnostics Monitoring (DDM) support. It supports full duplex, 10Gigabit speeds on Single-Mode fiber for distances of up to 10Km. DDM allows Real time monitoring of critical device parameters including: bias current, transmit & receive power, temperature, and voltage. The DEM-432XT-DD is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
Specs
STANDARD
Standard Compliance
IEEE-802.3ae
10GBASE-LR
Form Factor Type
SFP+
Fibre Channel FC-PI Standard
1200-SM-LL-L
Fiber Media Support
Single-Mode
Distance Capacity
10 km
FEATURES
Hot Pluggable
Yes
MSA Compliant
Yes
RoHS Compliant
Yes
MAC Address Update
Yes
DDM (Digital Diagnostics Monitoring)
Yes
Speed
10 Gbps
INTERFACE
Connector
Duplex LC Connector
Single/Bi-Directional
Single Direction
Wavelength
1310nm
Output Optical Power (TX Optical Power)
Max.: 0.5 dBm
Min.: -8.2 dBm
Input Optical Power (RX Optical Power)
Max.: 0.5 dBm
Min.: -12.6 dBm
Sensitivity
-12.6 dBm
Cable Type
Single-mode 9/125 μm fiber
OPERATING
Power
3.3 V
Maximum Input Current
285 mA
Minimum Power Budget
4.4 dB
Maximum Power Budget
17.6 dB
Heat Generated
3.4 kJ/h
RELIABILITY
MTBF (Hours)
3,390,000
PHYSICAL & ENVIRONMENTAL
Operating Temperature
-5 to 70 °C
Storage Temperature
-40 to 85 °C
Operating Humidity
0 to 85%
Storage Humidity
0 to 85%
Weight
0.05 lbs (22g)
Dimensions(W x D x H)
0.58 x 2.22 x 0.47 inches (14.8 x 56.5 x 11.85 mm) Compliant with SFF8432
Bail Latch Color
Blue
Certifications
FCC Class A, CE Class A, ICES-003, VCCI Class A, C-Tick, BSMI
