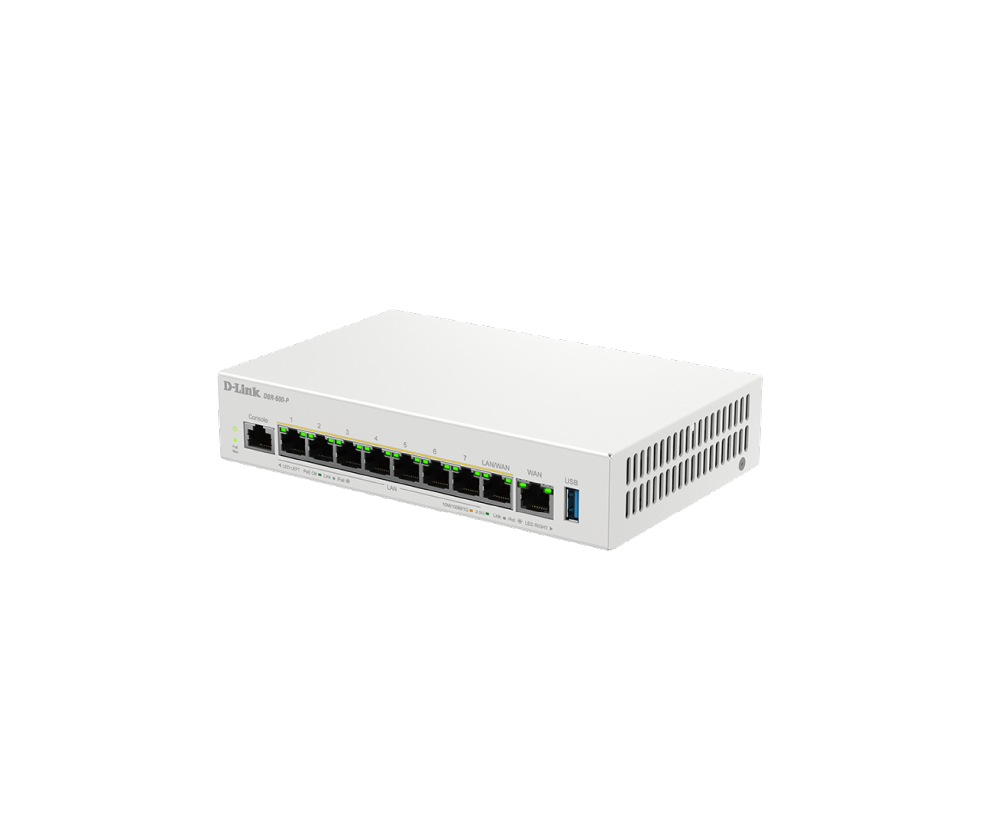

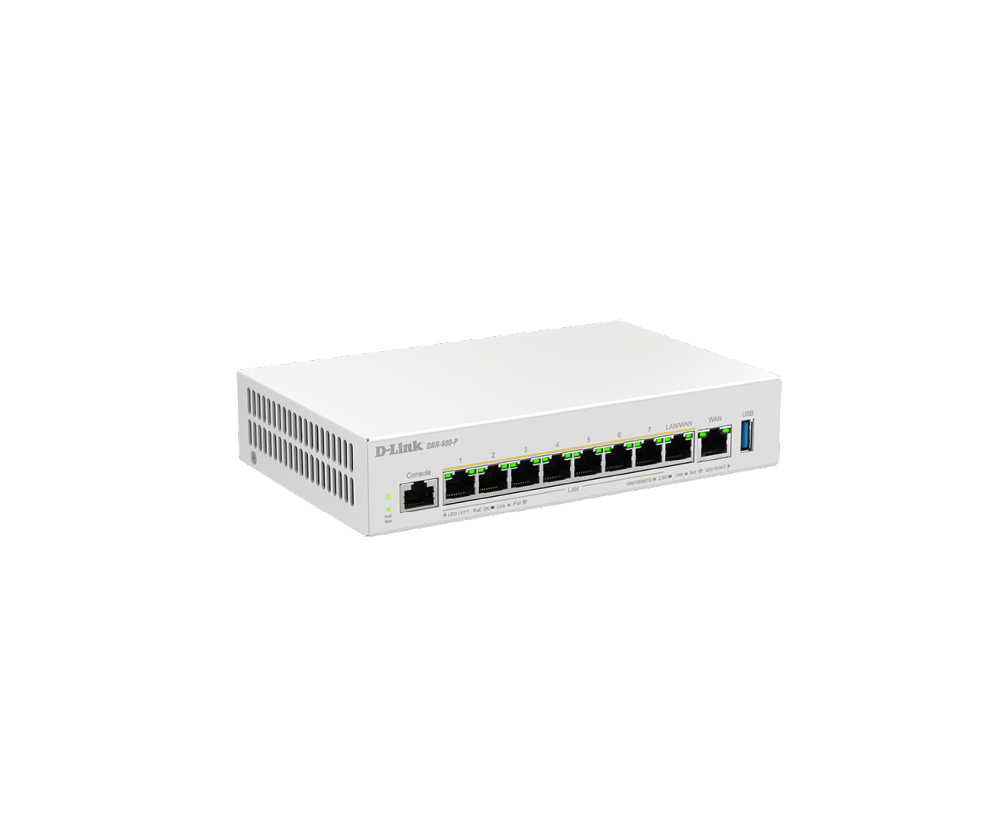

Business PoE Router

DBR-600-P

  • Statut produit: Live
  • 1 x 2.5G WAN port delivers high-speed connections
  • Up to 8 x 2.5G PoE LAN ports, 123W power budget
  • USB 3.0 integrates with the D-Link 4G/5G dongle
  • Multi-WAN enables steady and balanced connectivity
  • Advanced firewall protect the network against threats
  • Comprehensive network functionality cover all needs
  • Manage up to 10 D-Link Smart Access Point series
  • Bandwidth management optimizes service priority
  • Easy Web GUI for central monitoring and management
  • Made In Taiwan
Voir la liste de nos partenaires

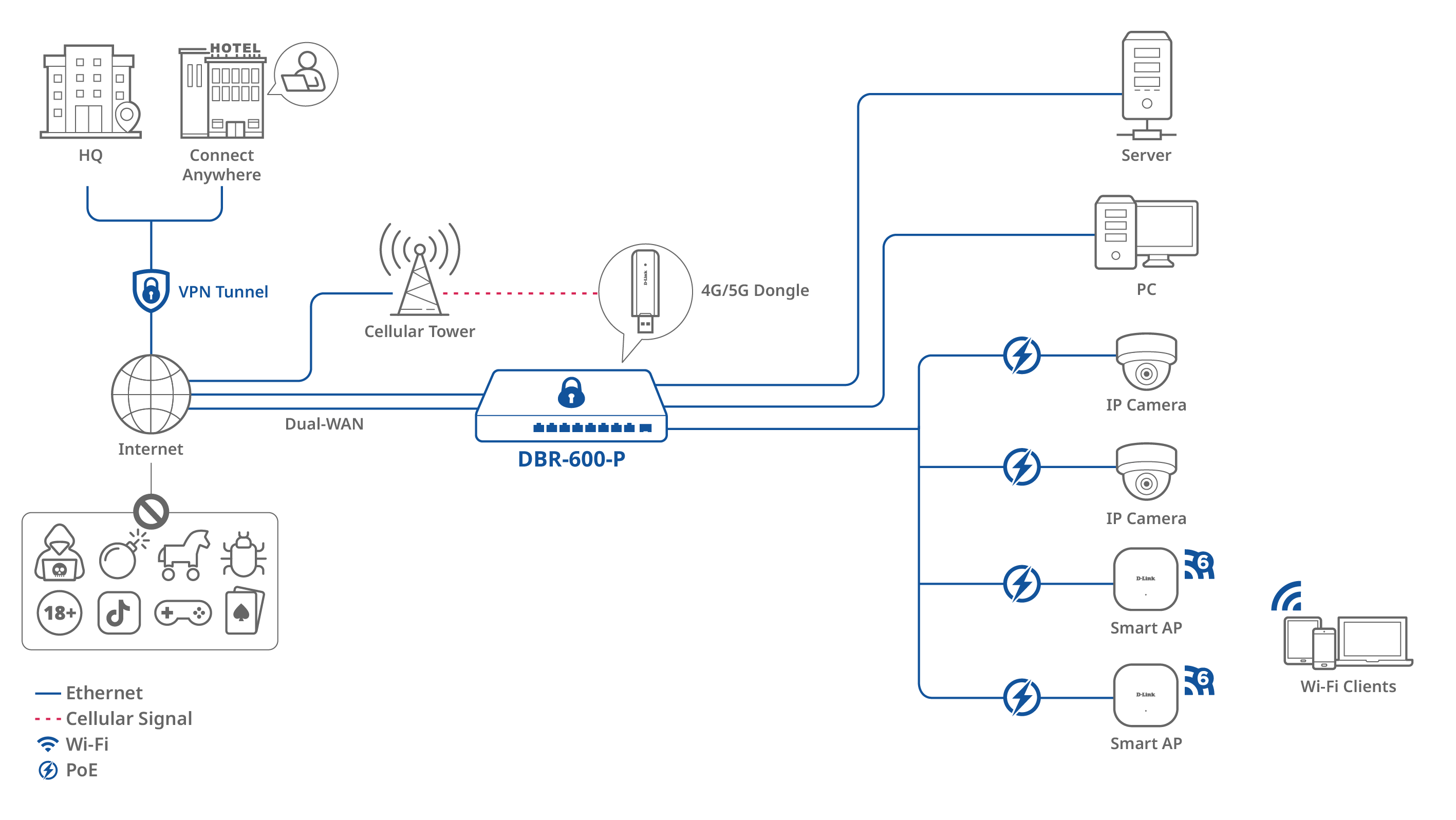

Multi-Gigabit Business VPN Router with Built-In Management

The DBR-600-P equips all port 2.5G interface and powerful processor to delivers high-performance throughput and connectivity across network devices. The multi-WAN feature offers continuous, reliable network services around the clock. Its robust firewall and VPN capabilities secure network access in and out, ensuring a protected data transmission for all connected devices and remote sites. Built-in AP management and PoE simplifies wireless access point maintenance and installation, making it an ideal solution for small businesses seeking efficient and omni features.

Send Large Files in a Snap

Enjoy faster 2.5Gbps data transfers, saving time and reducing wait

Reliable Multi-WAN Connectivity

up to 3 WAN ports for uninterrupted connectivity and optimized traffic

PoE Ports for Hassle-Free Deployment

PoE-enabled ports simplify installation and power up 8 devices

Comprehensive and Robust VPN

Powerful VPN ensures secure access for business offices and remote workers

Access Under Protection

Firewall protection keeps your network safe from unauthorized access and cyber threats

One-stop APs Management

Monitor and control smart access points easily via the built-in management platform

USB Port More Than Just a Port

Extend service with D-Link 4G/5G dongles as a backup WAN connection or additional external storage

Smart Performance Optimization

Prioritizing critical applications and balancing traffic to avoid congestion

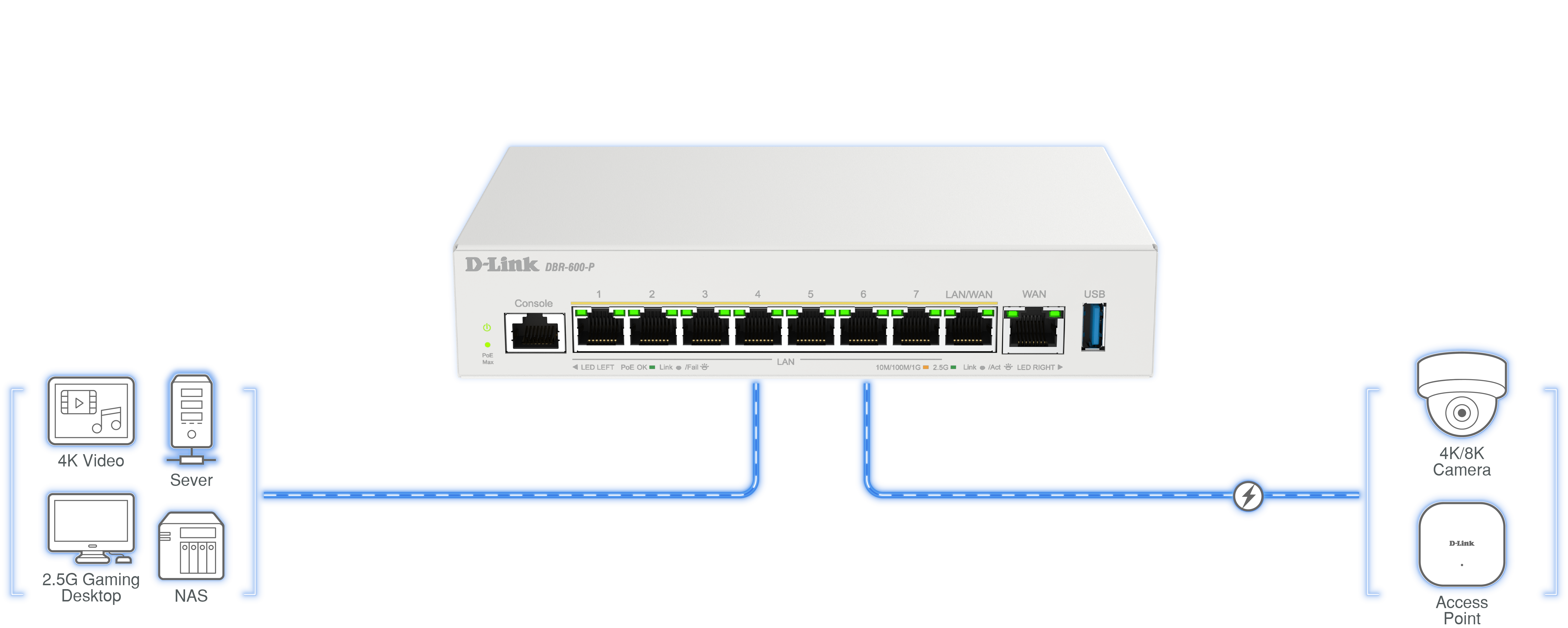

2.5G Connectivity
Drive Tomorrow's Success with Enhanced Performance

The DBR-600-P features a 2.5G interface, providing higher throughput to support faster file transmission and triple play service without congestion and latency, benefiting your business in real-time communication, enabling more stable and reliable connectivity. Its eight PoE-enabled ports up to 123W power budget make installation easily and costless by delivering both power and data through a single cable, making it perfect for devices like IP cameras and access points.

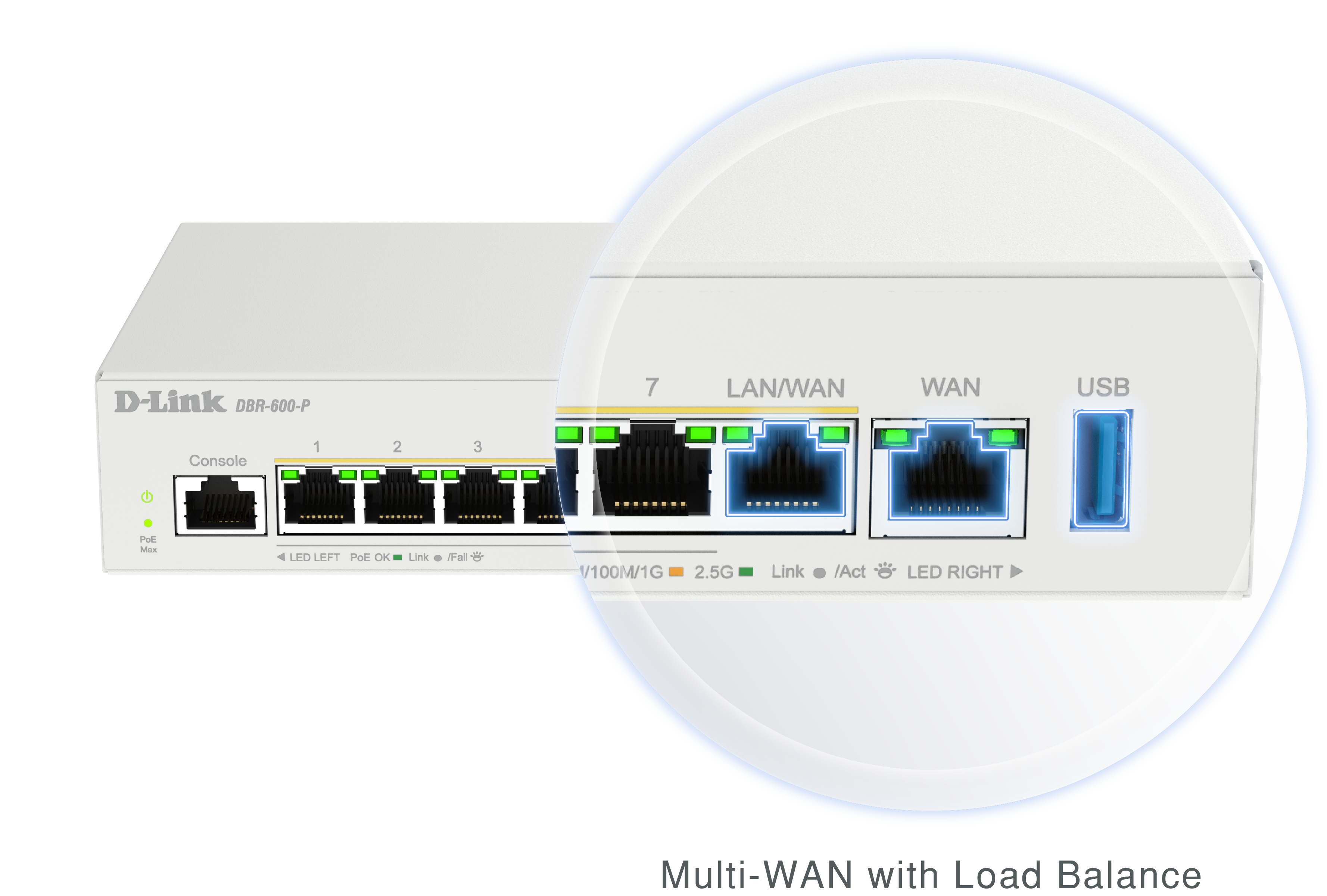

Multi-WAN
Experience Unbeatable Network Stability

In addition to one WAN/LAN port that can be set as the secondary WAN, the USB port not only extends the service by integrating with the D-Link 4G/5G dongle for WAN failover or load balance but also allows it to serve as external storage for file sharing or logging saving.

With up to 3 WAN ports, the DBR-600-P stays connected even if your primary connection goes down—automatic failover seamlessly switches to a backup. Load balancing distributes network traffic across multiple WAN connections, ensuring reliable performance and optimized traffic flow to keep your business always online and efficient without service downtime.

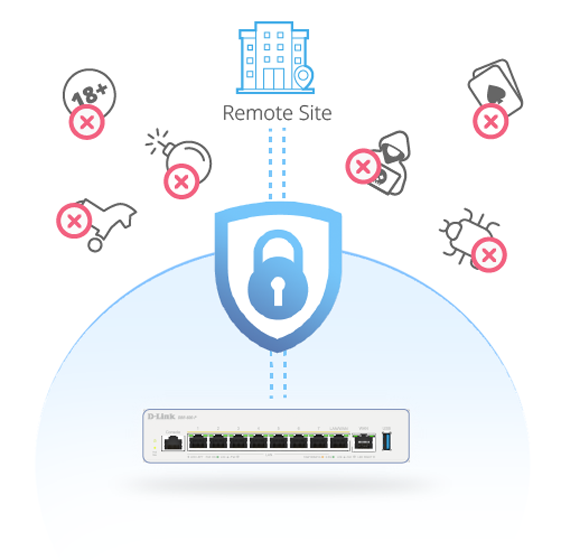

Robust Security
Always Secure Your Network and Access

Comprehensive built-in advanced security features, such as a firewall, IPS and web filtering, ensure that the internal network is securely protected. Enhanced VPN interoperability and strong encryption improve secure connection establishment with any device, deeply protecting data from unauthorized access and maintaining privacy across all network interactions.

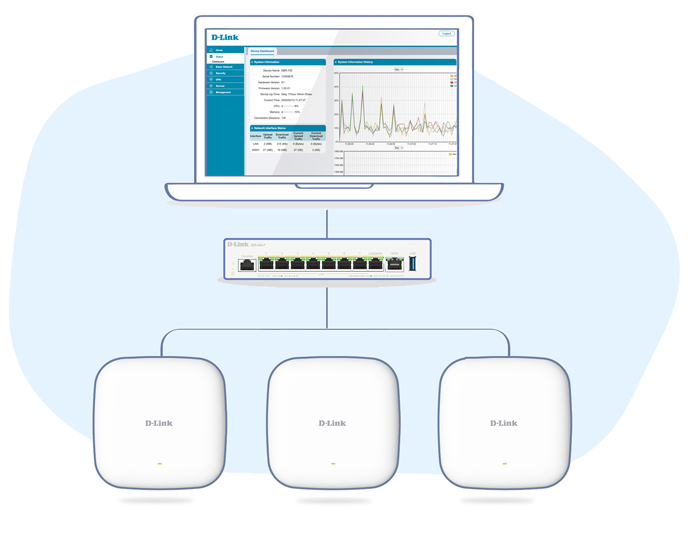

One-stop APs Management

Through an intuitive web UI, the DBR-600-P centrally monitors the entire network status and easily manages the configuration of advanced features. Integrated wireless management supports up to 10 Smart AP(DBR-X3000-AP) devices, simplifying administrative tasks such as radio settings, client monitoring, and access control. Hassle-free management and real-time insights into network activity help small business owners enhance overall operational efficiency.

Produits apparentés

Business Router
DBR-700
En savoir plus
AX3000 Wi-Fi 6 Smart Access Point
DBR-X3000-AP
En savoir plus

Prise en charge de fonctionnalités L2+

Les switches de la série DMS-1250 offrent un ensemble complet de fonctionnalités Layer 2+, notamment :

  • Route statique
  • IPv4/IPv6
  • Relais DHCP*
  • DiffServ QoS
  • Mise en miroir des ports
  • Protocole Spanning Tree (STP/MSTP/RSTP)
  • Protocole de contrôle d’agrégation de liens (LACP)
  • Surveillance IGMP et MLD
* Veuillez noter que la prise en charge n’est disponible qu’à partir de la version R2.

Applications

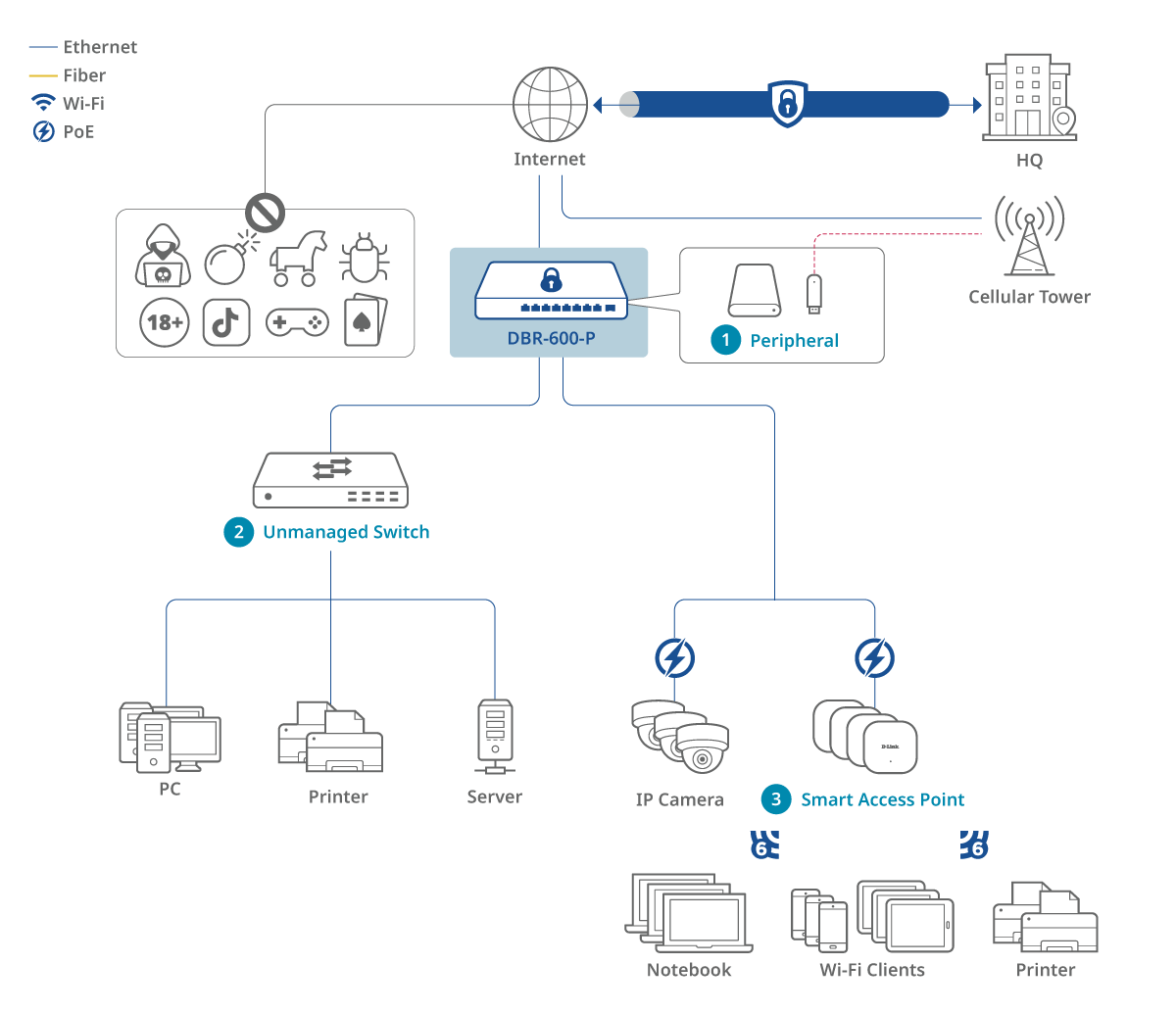

Startup Office (Enterprise)

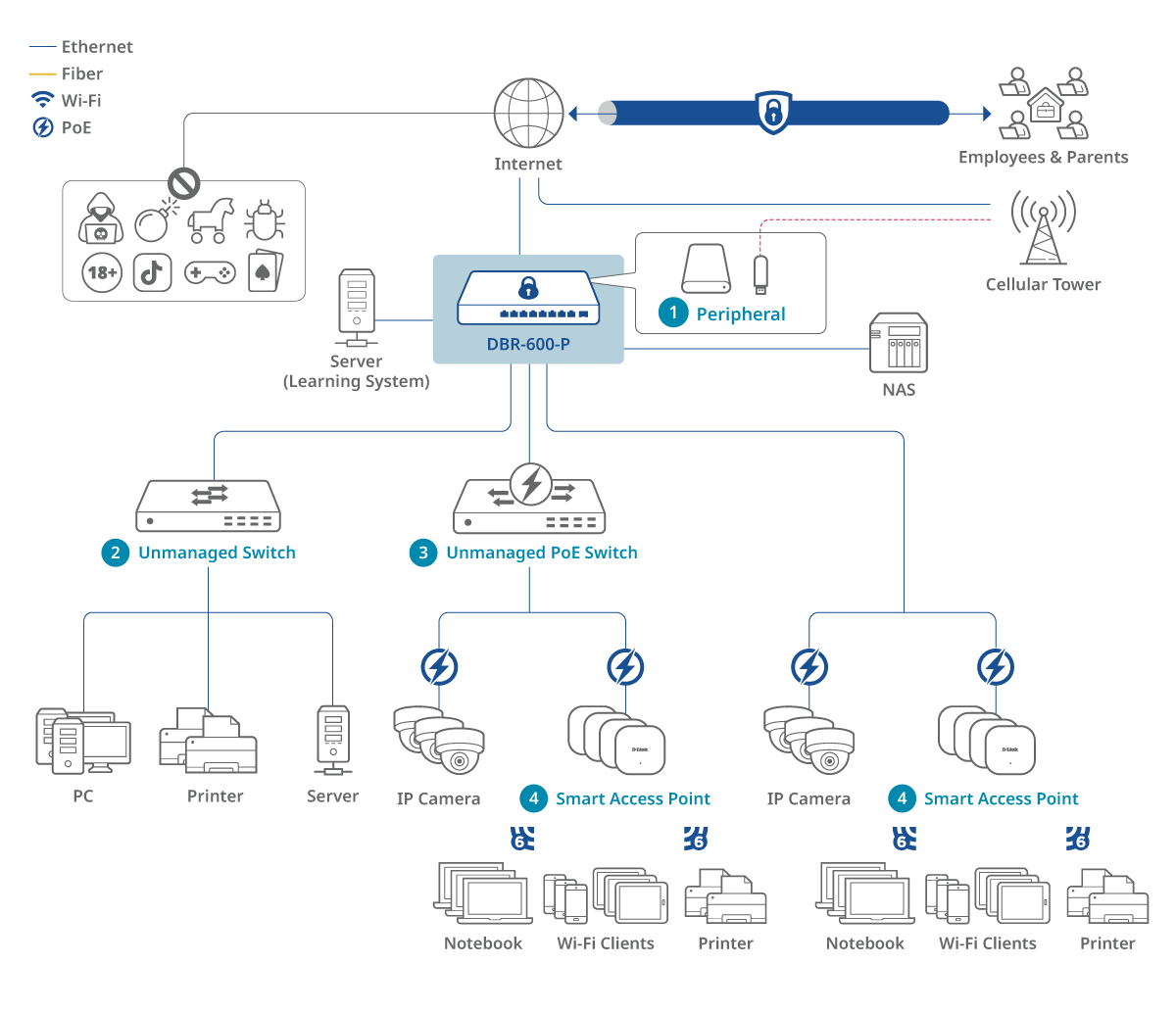

Kindergarten (Education)

Meilleur choix pour les télétravailleurs, les PME et les unités résidentielles multiples (MDU)

Les switches de la série DMS-1250 sont polyvalents et conviennent aux environnements de télétravail, de PME et d’unités résidentielles multiples. Ils assurent une transmission de données à haut débit avec 2,5 GE et une liaison montante 10G cruciale pour la connectivité externe. Cette liaison montante à haut débit garantit que l’ensemble de l’unité MDU peut accéder à des services externes sans rencontrer de goulots d’étranglement de données. De plus, IEEE 802.3at ou IEEE 802.3bt sont efficacement implémentées dans DMS-1250-10SP, 10SPL et 12TP pour permettre aux appareils de se connecter et de recevoir l’alimentation.​

Kindergarten (Education)

Comparaison des switches de la série DMS-1250



DMS-1250-10S
DMS-1250-10S
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
DMS-1250-10SP
DMS-1250-10SPL
DMS-1250-12TP
Interface
8 x 2,5GE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10G SFP+
8 x 2,5GE PoE
2 x 10GE
2 x 10GE SFP+
Performances
Capacité de commutation 80 Gbit/s 80 Gbit/s 80 Gbit/s 120 Gbit/s
Taux de transmission max. 59,53 Mpps 59,53 Mpps 59,53 Mpps 89,29 Gbit/s
PoE
Norme PoE S.O. IEEE802.3bt + IEEE802.3af/at IEEE802.3af/at IEEE802.3af/at
Ports PoE S.O. Port 1 ~ 2 (IEEE802.3bt)
Port 3 ~ 8 (IEEE802.3af/at)
Port 1 ~ 8 Port 1 ~ 8
Bilan PoE S.O. 120 W 240 W 240 W
Spécifications techniques
Protection contre les surtensions ・Conformité de la protection contre les surtensions IEEE61000-4-5
・Protection contre les surtensions de 6 kV sur tous les ports Ethernet 2,5 Gigabits
Consommation maximale 13,58 W 147 W (PoE activé) 287,58 W (PoE activé) 289,74 W (PoE activé)
Ventilateur Sans ventilateur Sans ventilateur 2 ventilateurs internes 2 ventilateurs internes
Port de console Oui Non Oui Oui
Type d’alimentation Interne Externe Interne Interne

Specs

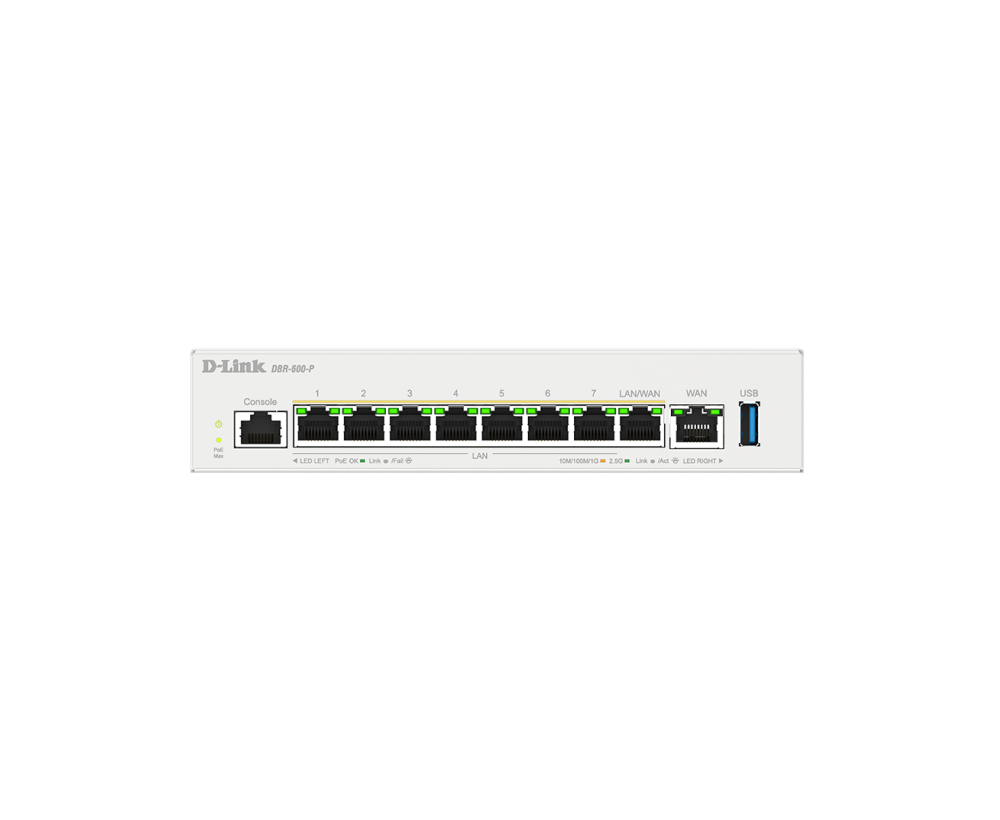

Interfaces
1 x 10/100/1000/2.5G WAN port
1 x 10/100/1000/2.5G WAN/LAN Configurable ports
7 x 10/100/1000/2.5G LAN port
1 x USB 3.0
WAN load balance
Yes
PoE Standards
IEEE 802.3at
PoE Power Budget
123 W
Firewall throughput
2Gbps
IPsec Tunnel
50
Firewall
IPS/IDS
SPI Firewall
MAC/IP Filtering
URL Blocking
VPN tunnels
IPSec
PPTP
OpenVPN
L2TP
WireGuard
IPS/DoS/DDoS
Yes
AP Management
Up to 10 DBR-X3000-AP
Captive Portal
Yes
Dimensions
120 x 190 x 38 mm
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 0% to 95% non-condensing
