The DVS-210-1 1-channel MPEG4 Video Encoder makes it possible to turn an existing analog surveillance infrastructure into a fully-functional IP-based surveillance system. The DVS-210-1 is an ideal choice for banks, airports, factories, government buildings, prisons, and traffic monitoring applications - any location where CCTV equipment is already installed and functioning.
Manage, record and view video with ease
The hardware encoder supports MPEG-4 / MJPEG video with frame rates of up to 25 fps at D1 resolution. D-Link’s intuitive D-ViewCam management software provides a robust platform for configuring and controlling one or many IP cameras and video encoders. Intuitive controls allow you to manage and control live video with ease.
Simplify surveillance with advanced alarms and events
Alarm handling features provide alerts in the event of loss of video or loss of network connection. Motion alarms with configurable detection areas allow for effective surveillance and avoid constant human supervision. A buffer system allows the device to capture images on to an SD card* both before and after an event occurs.
Robust management software
D-ViewCam is a software program that allows an operator to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform security staff of unusual activities.
*card not included

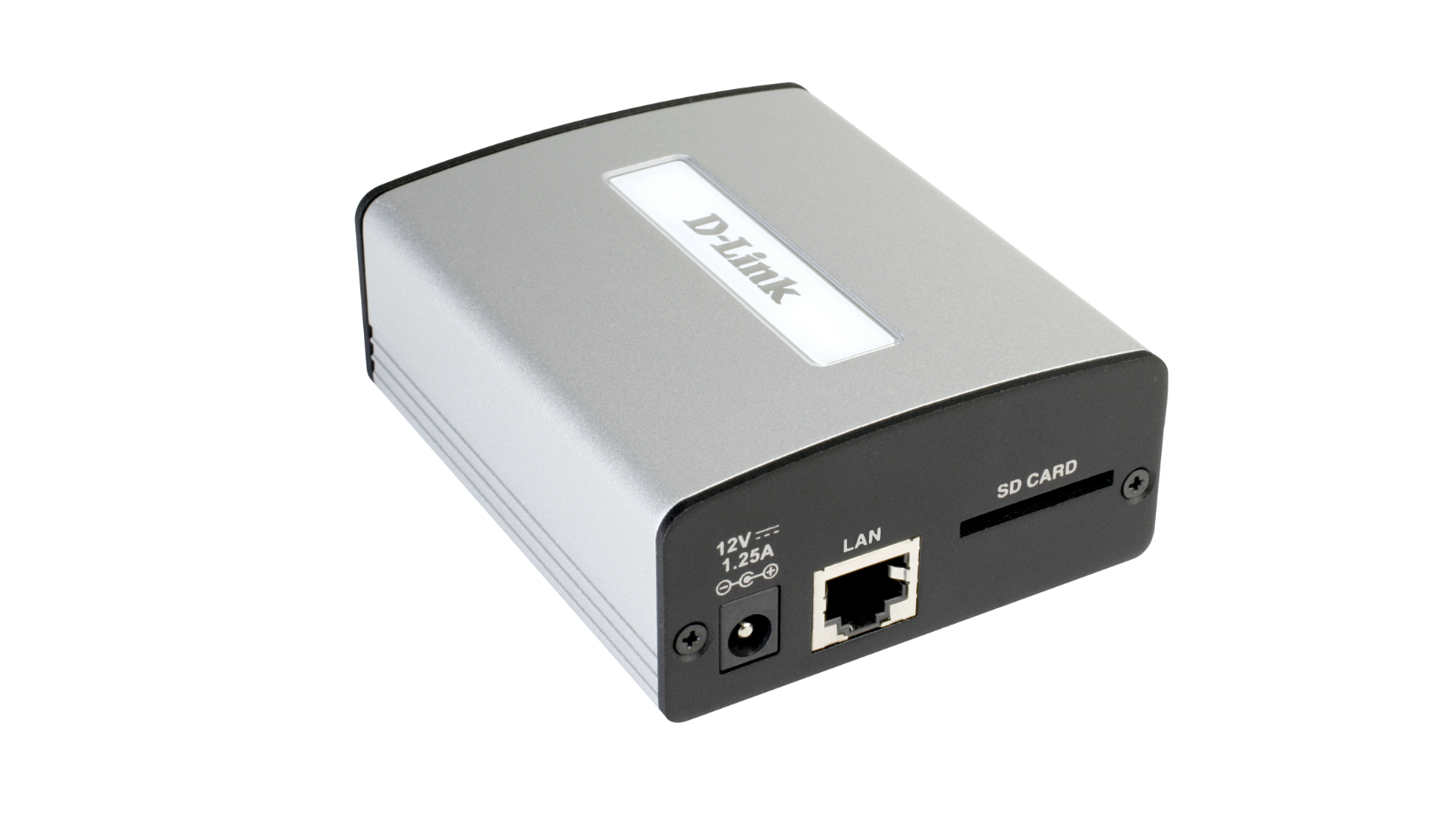

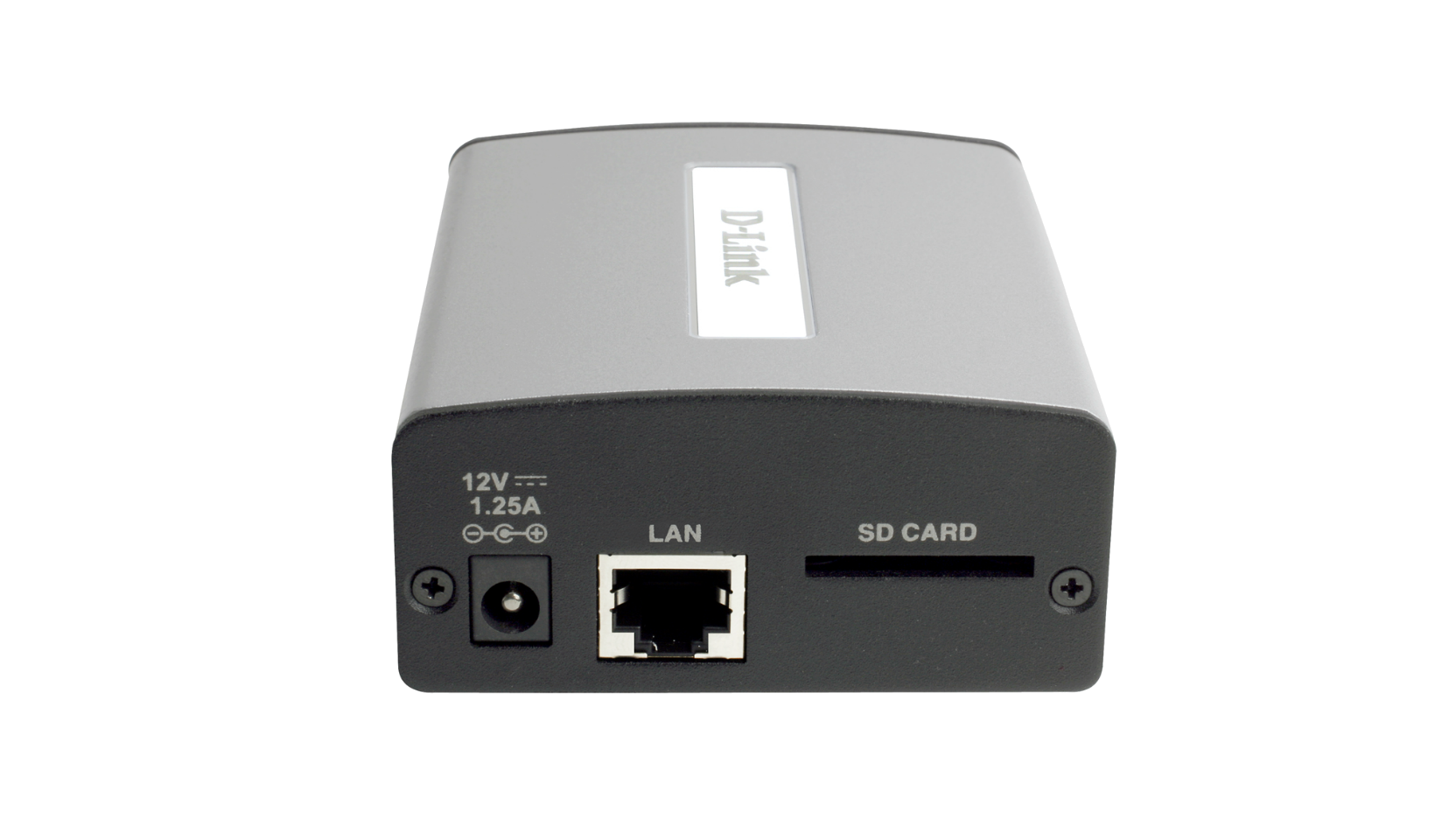

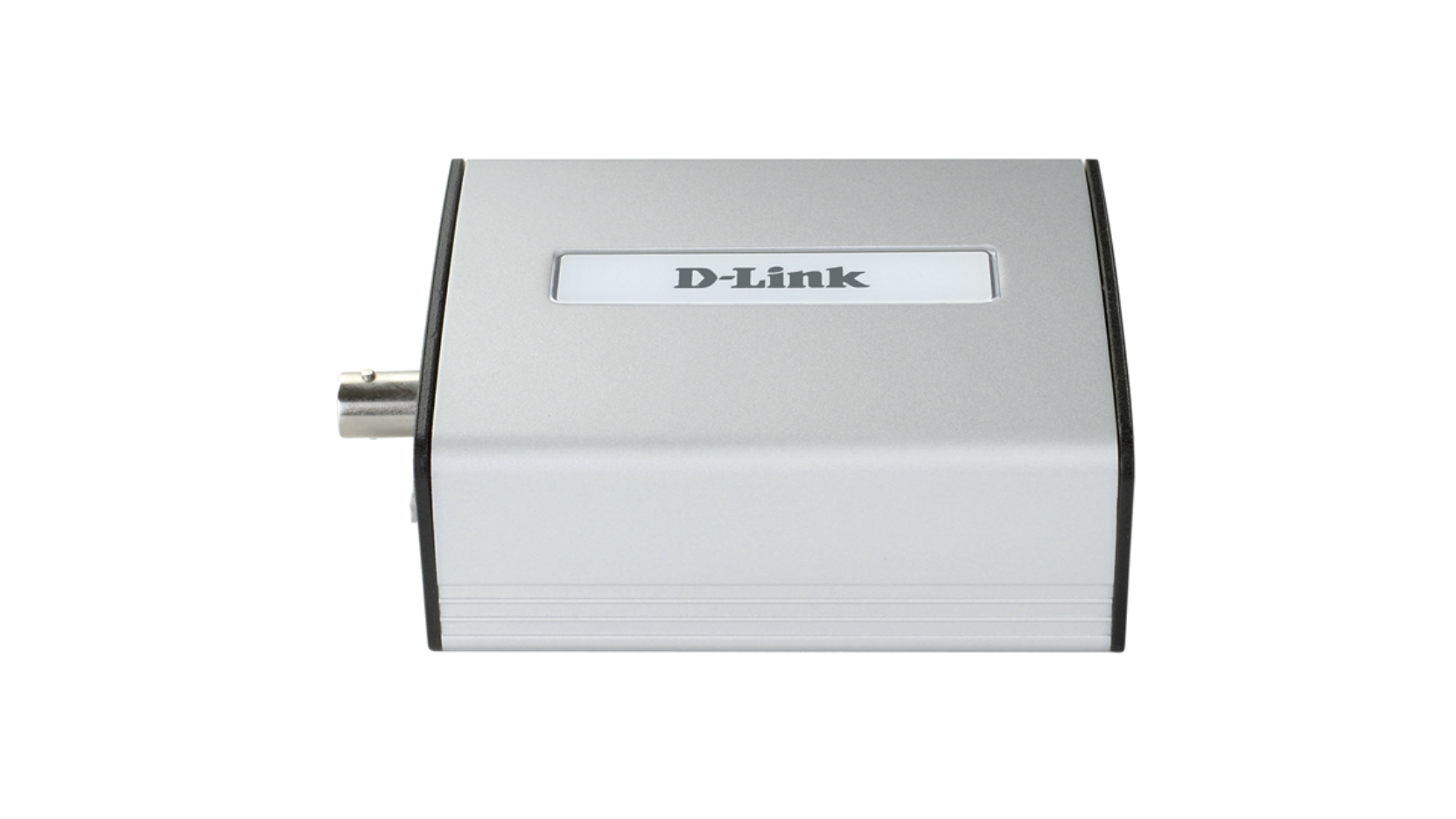

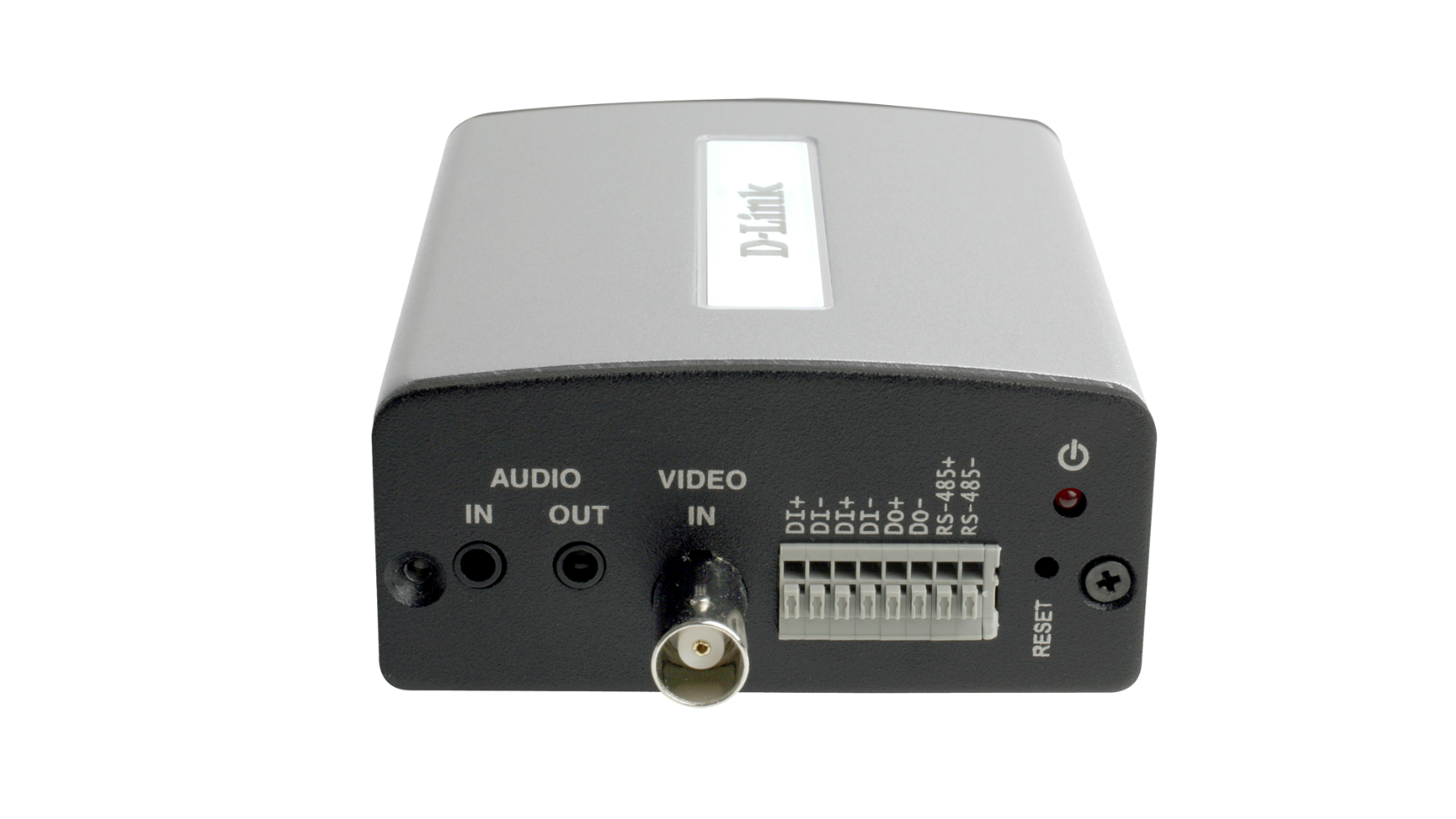

Actual product appearance may differ from the image displayed on this page
Manage, record and view video with ease
The hardware encoder supports MPEG-4 / MJPEG video with frame rates of up to 25 fps at D1 resolution. D-Link’s intuitive D-ViewCam management software provides a robust platform for configuring and controlling one or many IP cameras and video encoders. Intuitive controls allow you to manage and control live video with ease.
Simplify surveillance with advanced alarms and events
Alarm handling features provide alerts in the event of loss of video or loss of network connection. Motion alarms with configurable detection areas allow for effective surveillance and avoid constant human supervision. A buffer system allows the device to capture images on to an SD card* both before and after an event occurs.
Robust management software
D-ViewCam is a software program that allows an operator to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform security staff of unusual activities.
*card not included
Actual product appearance may differ from the image displayed on this page
Specs
Hardware
Video Specifications
Audio Specifications
PTZ Specifications
- Robust aluminum housing
- 10/100Base-TX Ethernet port
- SD card slot for local recording*
- 3.5mm stereo input/output audio connectors
- BNC connector
- Digital I/O support for sensors and alarms
Video Specifications
- M-JPEG and MPEG-4 Simultaneous Dual Codec
- Frame Rate: 25fps (PAL)
- Bit Rate: 64 kbps to 4 Mbps
- Resolution (PAL): D1 (720x576), CIF (352x288), QCIF (176x144)
Audio Specifications
- Input: 8 kHz sample rate, ADPCM
- Output: 8 kHz sample rate, ADPCM
PTZ Specifications
- Supported protocols: PelcoP, PelcoD, Merit Lilin, Visca, DynaColor, Transparent
- Baud rates: 1200, 1800, 2400, 4800, 9600, 19200
- Connector: RS-485 for PTZ control
Support
This product was phased out on: 18/09/2013
This product's last date of support is on: 18/09/2015
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet (English) | - | 0.92mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual (English) | Manual (English) | - | 7.68mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Quick Installation Guide (Multilingual) | - | 0.73mb | Download |
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | Type | |
---|---|---|---|---|
Firmware 1.00.01 | Firmware | 10. 12. 2010. | - | Download |
Version | Description | Date | |
---|---|---|---|
DEU_CE_Declaration_RevA | CE Declaration - (English, French) | 6. 4. 2010. | Download |
